Page 1-122
3Y3C-E-MMD01-A11-02
Changing the Consumable Parts Every 1500 to 6000 Hours
1-7-11 Changing the Bearings of Elevating Unit (6000 hours)
In cleaning and checking the transfer head, if the bearing of elevating unit gets brown or it does not
rotate smoothly, change it.

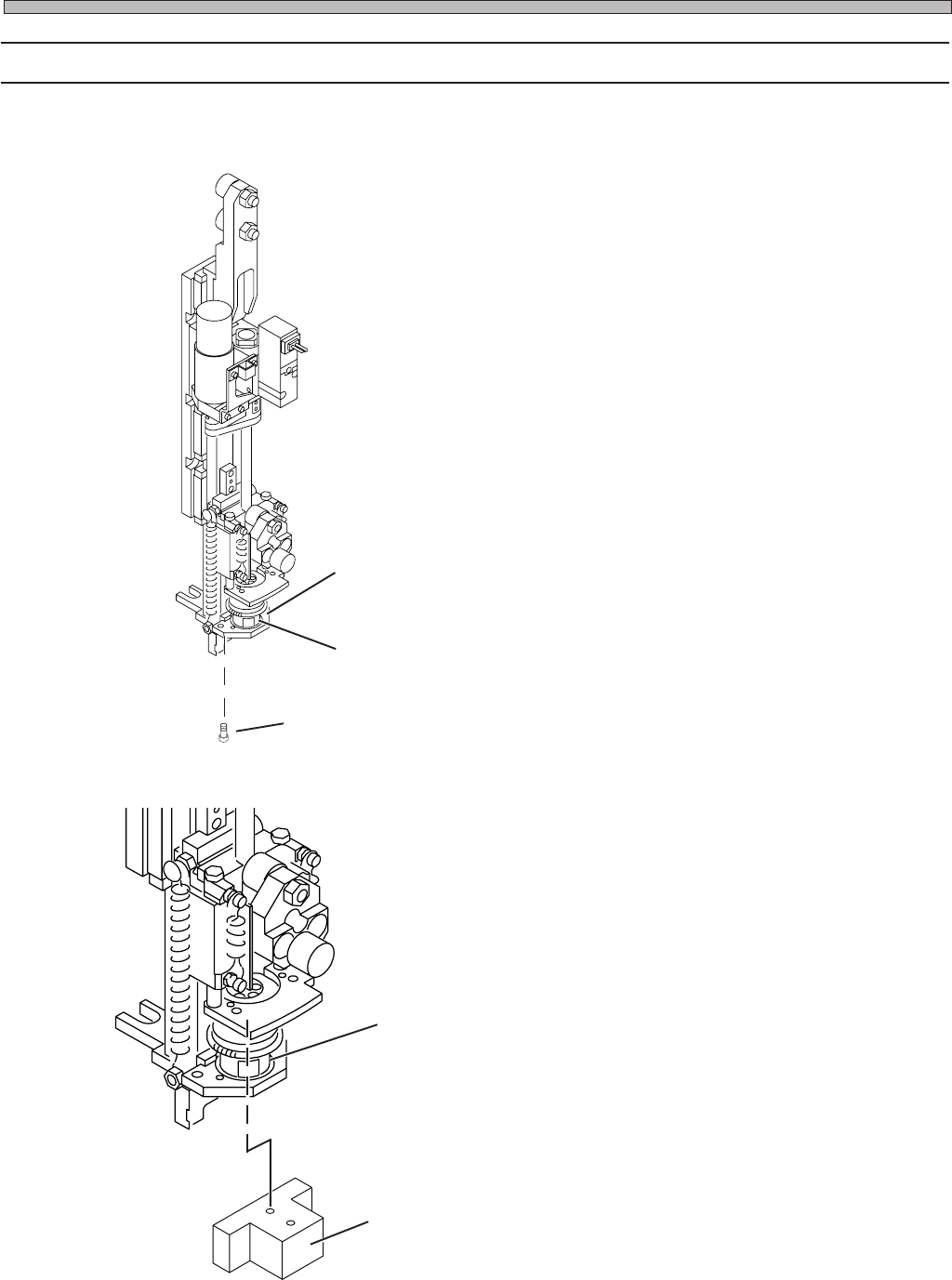

1. Remove 2 of M4 bolts and the hous-
ing.
2. Apply grease to the bearing and set it
to the housing.
[Oil : BARRIERTA IEL/V]
[Bearing type : A-2520 (NMB)]
3. Put the housing and holder together
and settle them temporally with 2 of
M4 bolts from the bottom.
∗ Set the housing so that it can be moved slightly.
4. After putting together the pin of
holder and hole of jig in such way as
setting the transfer head, settle the
bolt securely.
Jig
010KC0AA
3Y3C-159E
Holder
Housing
Bearing
Bolt
010KC0AA
3Y3C-160E
Page 1-123
REGULAR
MAINTENANCE
1
Changing the Consumable Parts Every 1500 to 6000 Hours
1-7-12 Changing the Consumable Parts for KME [6000 Hours]
The following consumable parts are to be changed by the service man of KME. When it comes to
the period for change, make contact with us.
1. Elevating unit cam follower
2. Timing belt
3. Pickup and mount upper and lower barrels
4. SRAM battery
3Y3C-E-MMD01-A11-00
Page 1-124
3Y3C-E-MMD01-A12-02
1-8 Replacing Batteries
NOTICE
The lithium battery is used for this product.
For replacing and casting off the battery, remove it following the procedure on the
next page.
∗ When the battery for the backup is used up, [Recognition data, machine param-
eter, and mount data] may be broken.
1-8-1 Type and Usage of the Batteries to be Used
Station name : CM88S-M/M1/MU, CM88C-D
3Y3C-120TE
.oN eludoM epyT rekaM .onmetI
lanimoN
egatlov
esU
1
XEYMCS
)XEWMCS(
muihtiLATIHSUSTAMFHI/0332LVhAm05,V0.3
dnaatadtnuomehtfopukcaB
.cte,retmearapenihcam
2XE9MRPmuihtiLATIHSUSTAMFHI/0332LVhAm05,V0.3
egamiehtfopukcaB
atadnoitingocer
