Lubricating

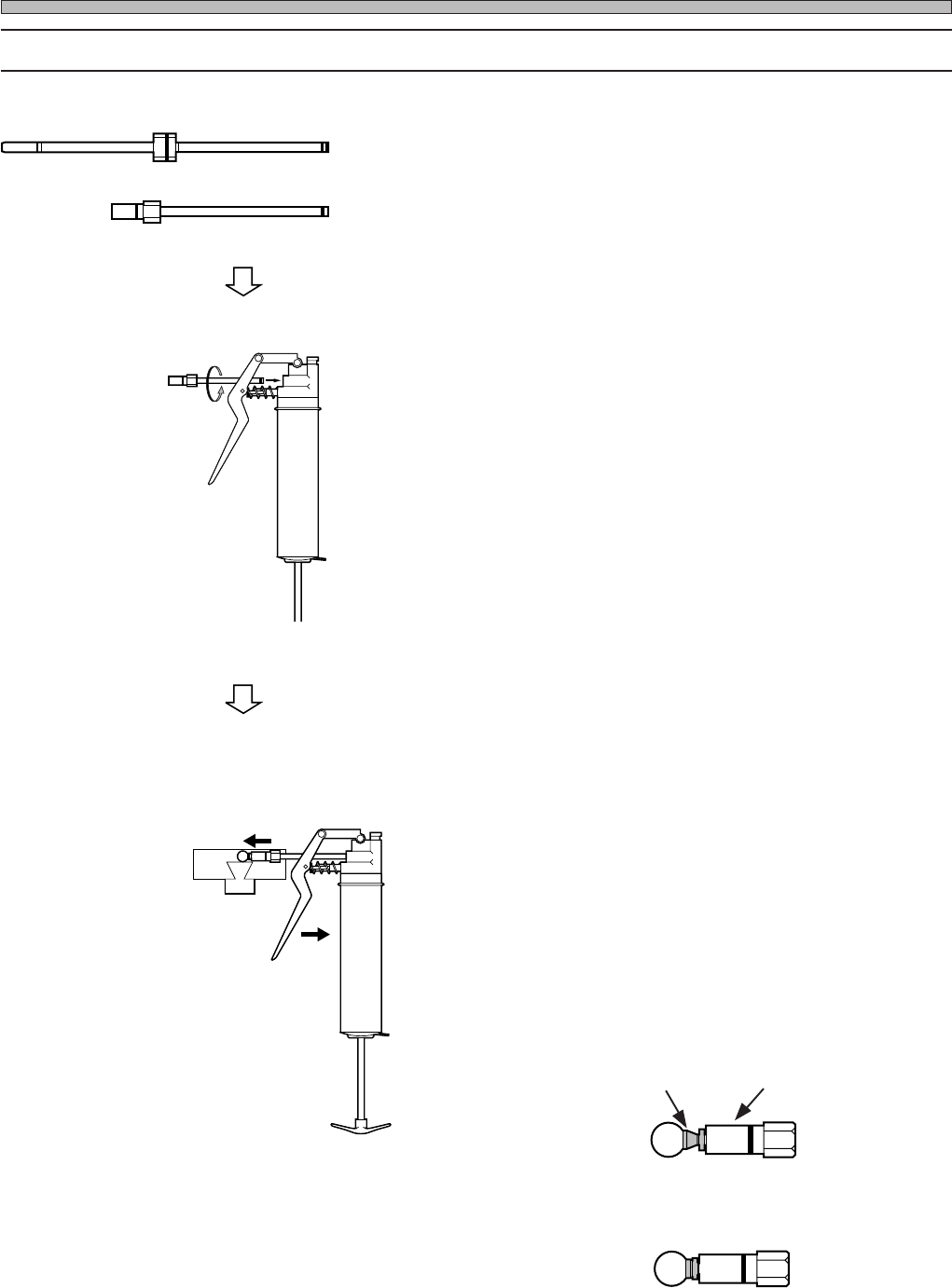

1-2-2 Using the Grease Gun

Select appropriate nozzle.

2. Fit the nozzle to the grease gun.

3. Attach the nozzle tip to the grease

nipple and pull the lever a few times.

4. Clean any surplus grease on the

grease nipple and surrounding of it

with a cloth.

Nozzle is not fully pushed.

Nozzle is properly attached to the nipple.

X-axis nozzle

Y-axis nozzle

Screw in completely.

Push firmly to the nozzle.

Pull

3Y3C-E-MMD01-A02-00

Grease nipple

Nozzle tip

Page 1-15

REGULAR

MAINTENANCE

1. Inject grease into the cylinder, and

then put the piston in there.

• The piston has direction.

• Press out a little grease by pressing the piston

a little.

• Bleed the cylinder of air.

2. Slide the button to “R” with the trigger

pulled.

3. Slide the rod to the right.

Lubricating

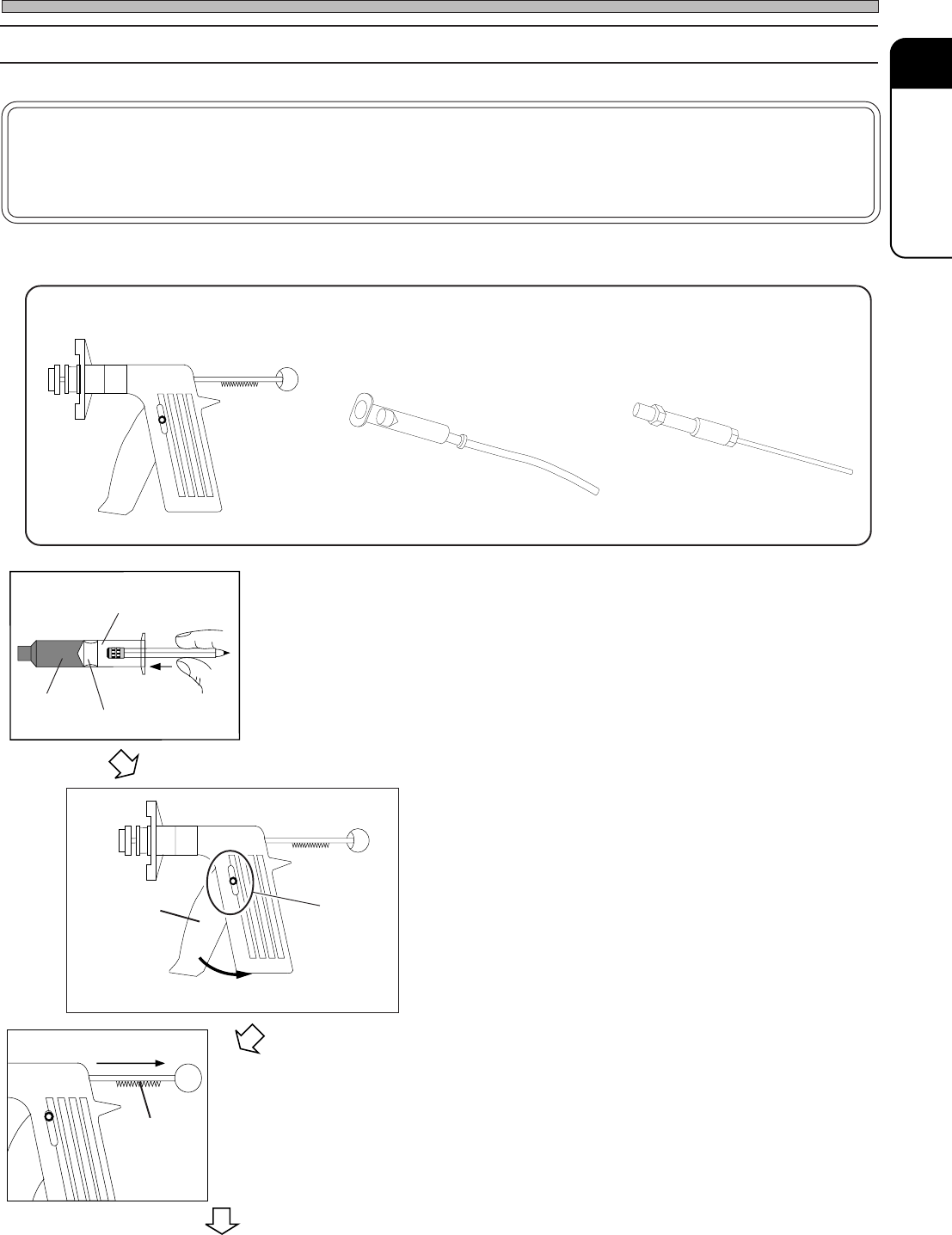

1-2-3 How to Use Dispensing Gun

NOTICE

Cylinder, transparent tube and nozzle will be used again, so keep them carefully

for the next use.

∗ Grease supplying tools for an elevating unit (Dispensing gun set)

• Dispensing gun × 1

3Y3C-E-MMD01-A02-01

To the next page

3Y3C-179E

• Grease injecting cylinder × 2

(One of them is spare.)

• Nozzle × 1

3Y3C-180E

3Y3C-181E

Cylinder

Grease

Piston

3Y3C-182E

3Y3C-179E

Trigger

Button

Pull

Rod

To the right

3Y3C-183E

Page 1-16

Lubricating

3Y3C-E-MMD01-A02-01

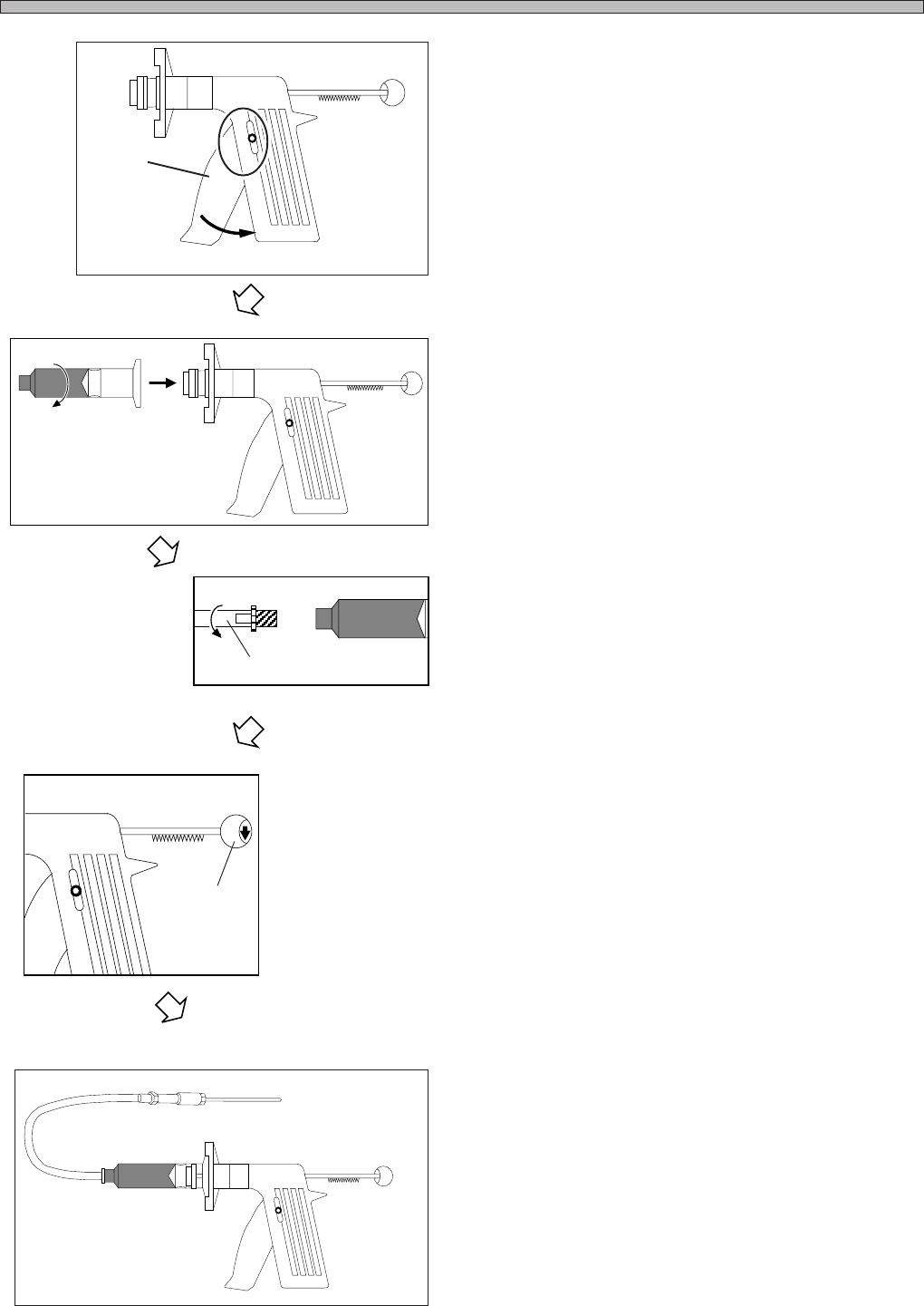

4. Slide the button to “2” with the trigger

pulled.

5. Fit the cylinder containing grease and

the piston to the dispensing gun.

6. Fit the transparent tube to the cylin-

der tip, and connect the transparent

tube with the nozzle.

7. Turn the knob until the arrow on it

points downward. Move the knob to

the arrow direction until the piston in

the dispensing gun touches the one

in the cylinder.

∗ While the arrow of the knob points upward, the

trigger will not move.

• Pull the trigger several times so that grease will

reach the nozzle tip. When you pull the trigger,

grease will be out.

∗ If you feel the lever heavy or grease will not be

out well, pull the knob once.

Then, press and screw it so that the rod gear

will engage, and check the motion.

3Y3C-185E

3Y3C-187E

3Y3C-184E

3Y3C-188E

Pull

Trigger

3Y3C-186E

Transparent tube

Knob
