Page 1-44 Check Every 560 Hours (Once a Month) 1-5-2 Casting off NG Parts Cast off the gathered NG parts. Clean also the surroundings of NG board. 1. T urn off the power . 2. Open the front safety cover . 3. Remove the N…
Page 1-43
REGULAR
MAINTENANCE
1
1-5 Check Every 560 Hours (Once a Month)

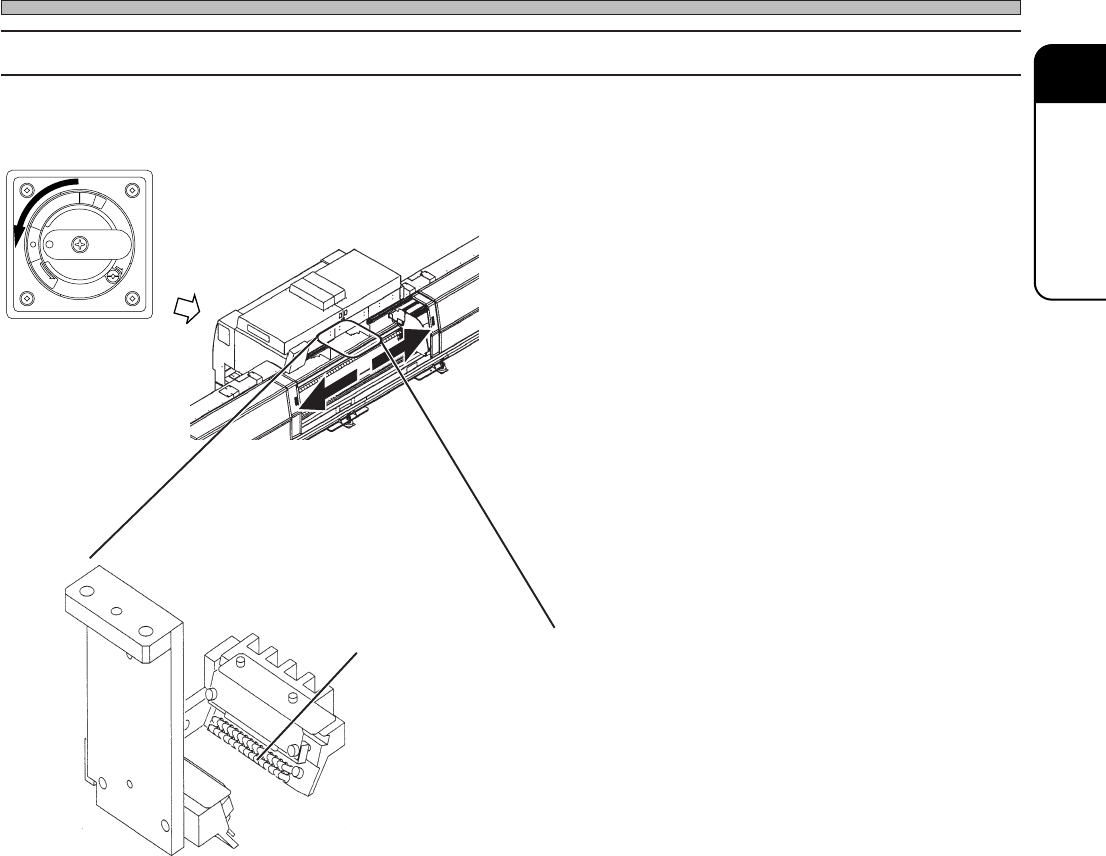

1-5-1 Cleaning and Greasing the Air Unit
Air unit is for mounting chip and discharging NG chip, and airing during forceful airing of nozzle.
1. Turn off the power.
2. Open the front safety cover.
3. Clean the disk of main axis with a
cloth.
4. Apply grease to the rail of disk.
(Oil : VALIANT U2)
∗ Be careful not to pour the grease to air supply-
ing section.
∗ We recommend to use a brush or spatula.
5. Clean the spring, and apply grease to
the hook.
(Oil : VALIANT U2)
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
4G3C-AB01
01DHC2AA
Main axis
Disk
Air unit
Rail part of disk
Do not apply grease to this face.
Spring hook
3Y3C-038P
3Y3C-E-MMD01-A05-02
Page 1-44
Check Every 560 Hours (Once a Month)
1-5-2 Casting off NG Parts
Cast off the gathered NG parts. Clean also the surroundings of NG board.
1. Turn off the power.
2. Open the front safety cover.
3. Remove the NG box.
4. Cast off the NG parts.
5. Clean the surroundings of NG box.
6. Set the NG box.
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
4G3C-AB01
1
2
3Y3C-039P
3Y3C-085P
NG box
3Y3C-E-MMD01-A05-02
Page 1-45
REGULAR
MAINTENANCE
1
Check Every 560 Hours (Once a Month)
1-5-3 Cleaning the Chip Recognition Section
The unit is for recognizing chips in the passing and reflecting methods and checking for the devia-
tion of chips.
∗ Before starting operation, carry out “Return to
origin” and “Stage escape” on the “Machine
adjustment menu” screen. If they have already
been done, this is unnecessary.
1. Turn off the power.
2. Open the rear center safety cover.
3. Clean the top of chip recognition
camera with a soft and clean cloth.
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
Chip recognition camera
16EYC0AA
3Y3C-E-MMD01-A05-01
3Y3C-AI01
