Page 1-53 REGULAR MAINTENANCE 1 Check Every 560 Hours (Once a Month) 3. Press Head mainte . • The “Head maintenance” screen appears. 4. T urn off the servo switch. 5. Open the rear center safety cover . 6. T ake off pins…
Page 1-52
Check Every 560 Hours (Once a Month)
1-5-9 Transfer Head : Cleaning the Filter (Change)
This section describes cleaning and changing the filters among parts used for transfer head.
Maintenance is mainly carried out at the rear side of machine.
NOTICE
It is unnecessary to remove the transfer head in this operation.
1. Removing the filter
∗ Before starting operation, carry out “Return to
origin” and “Stage escape” on the “Machine
adjustment menu” screen. If they have already
been done, this is unnecessary.

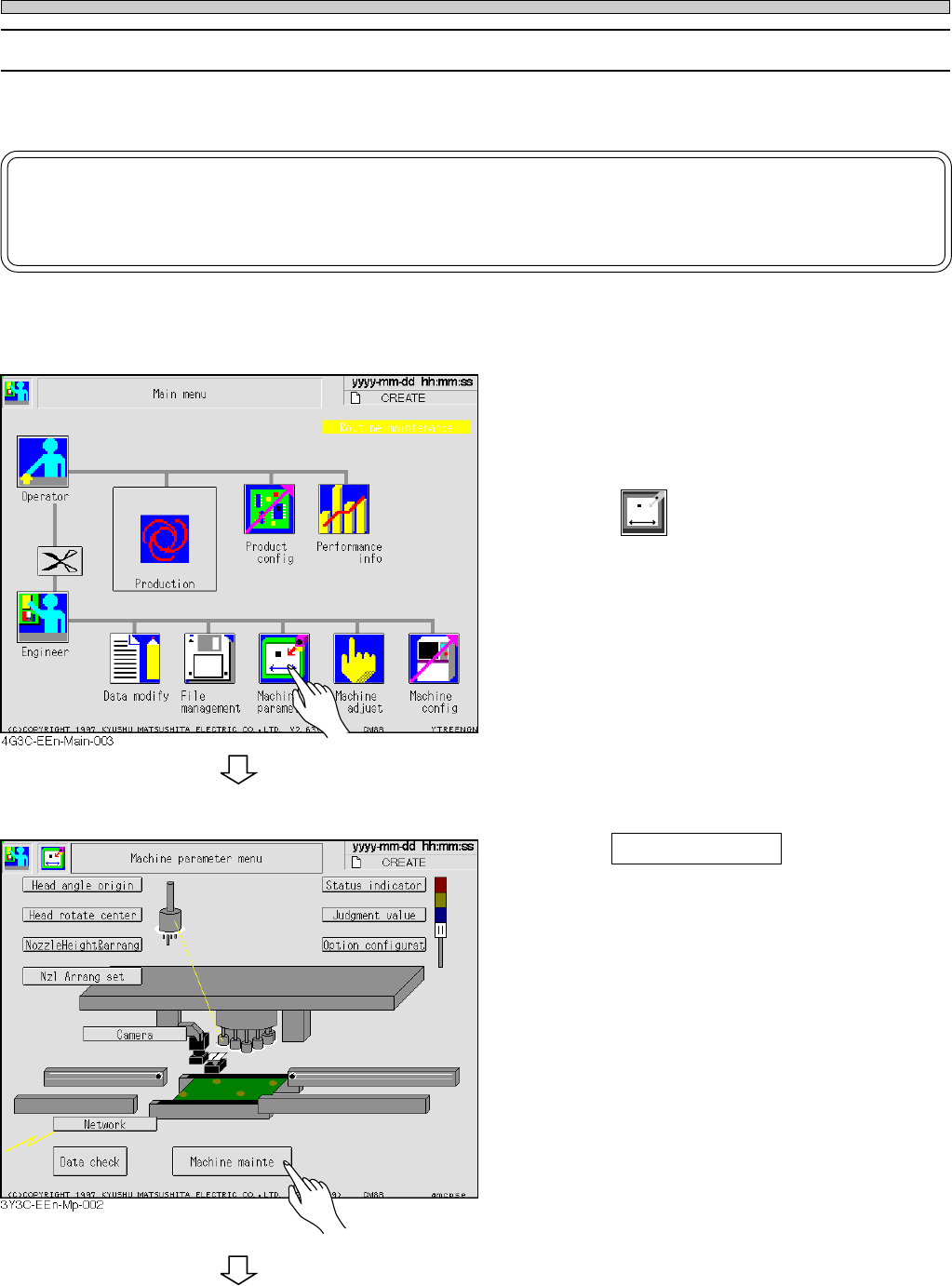

1. Press
Machine
parameter
.
• The “Machine parameter menu” screen ap-
pears.
2. Press Machine mainte .
• The “Machine maintenance menu” screen
appears.
To the next page
3Y3C-E-MMD01-A05-03
Page 1-53
REGULAR
MAINTENANCE
1
Check Every 560 Hours (Once a Month)

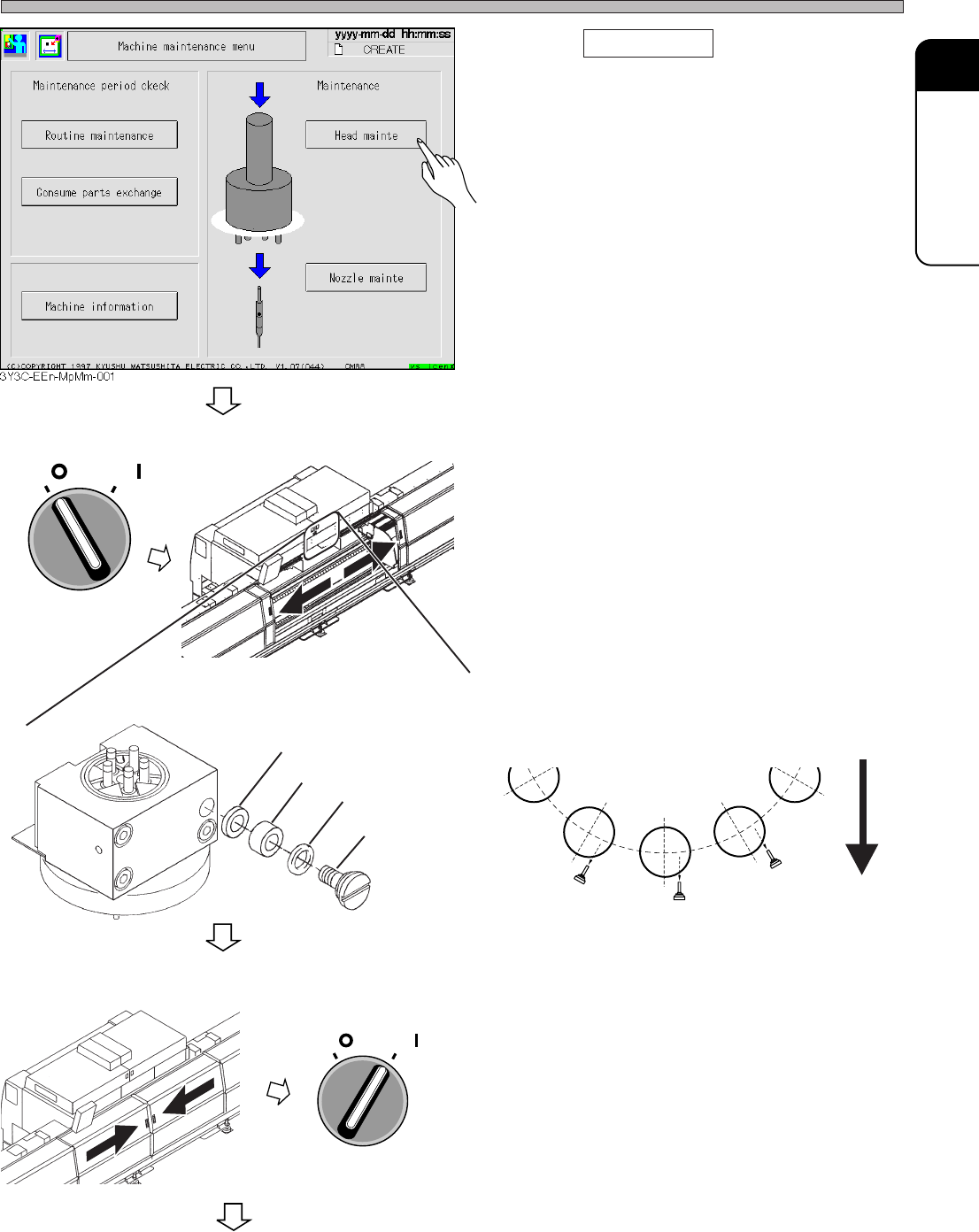

3. Press Head mainte .
• The “Head maintenance” screen appears.
4. Turn off the servo switch.
5. Open the rear center safety cover.
6. Take off pins with a driver.
7. Remove the filter.
8. Close the rear center safety cover.
9. Turn on the servo switch.
Filter
OFF ( )
ON ( )
SERVO
3Y3C-AI01
O-ring
Pin
OFF ( )
ON ( )
SERVO
To the next page
Rear side
Main axis
3Y3C-090E
3Y3C-046P
3Y3C-AG01
3Y3C-E-MMD01-A05-01
Packing
Page 1-54
Check Every 560 Hours (Once a Month)

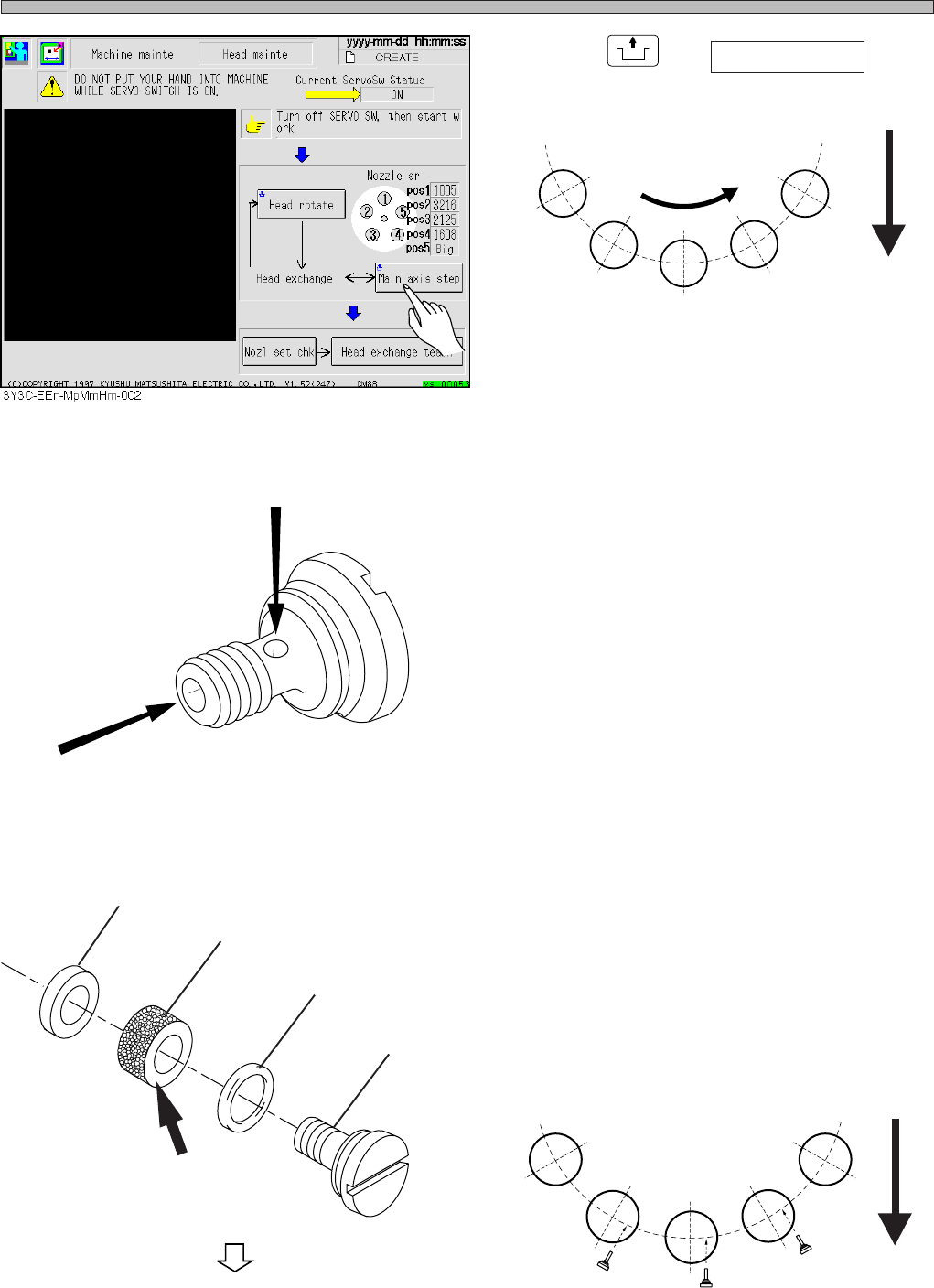

10. Press
UNLOCK
and Main axis step .
•Main axis moves by steps.
11. After that, repeat the procedures 4 to
10, and remove filters from all transfer
heads.
2. Cleaning and changing the filters
1. Remove the waste in the air path and
filter of pin with air guns.
2. Clean the pin and O-ring with a cloth.
∗ Change the damaged parts.
3. Apply grease to O-ring.
(Oil : BARRIERTA IEL/V)
3. Setting the Filter
1. Assemble each part.
∗ Be careful of setting direction of filter.
2. Clean the transfer head side to be
inserted with a cotton bud.
3. Tighten pins with drivers.
To the next page
Rear side
Main axis
3Y3C-125E
Pin
Filter
O-ring
Pin
Flat face
Rear side
3Y3C-093E
3Y3C-092E
3Y3C-091E
Main axis
3Y3C-E-MMD01-A05-01
Packing
