This chapter describes the installation of the "Long Board Option" (LBO).

There are two LBO versions, one with 1030 mm in length and one with 1200 mm.

2.1

2.1 Installing the LBO E Kit

Installing the LBO E Kit

2.1.1

2.1.1 Overview

Overview

▪ LBO E 1200 kit [03131447-xx]

▪ LBO E 1030 kit [03131448-xx]

2.1.2

2.1.2 Installation

Installation

2.1.2.1

2.1.2.1 Guide Rails (All Versions)

Guide Rails (All Versions)

► Remove the screws (1) and subsequently remove the short guide rails (2).

NOTICE

1030 mm and 1200 mm versions

The conversion procedure for both versions is basically the same.

Any relevant differences will be mentioned explicitly.

Installing

Installing the LBO E Kit 2.1.2 Installation

14 Assembly Instructions E by SIPLACE

► Fit the "Stop Guide Rail 100 mm" [03107818-xx] (1) instead of the short guide rails.

2.1.2.2

2.1.2.2 Lifting Table (All Versions)

Lifting Table (All Versions)

► Remove the four screws (1) securing lifting table.

Installing

2.1.2 Installation Installing the LBO E Kit

Assembly Instructions E by SIPLACE 15

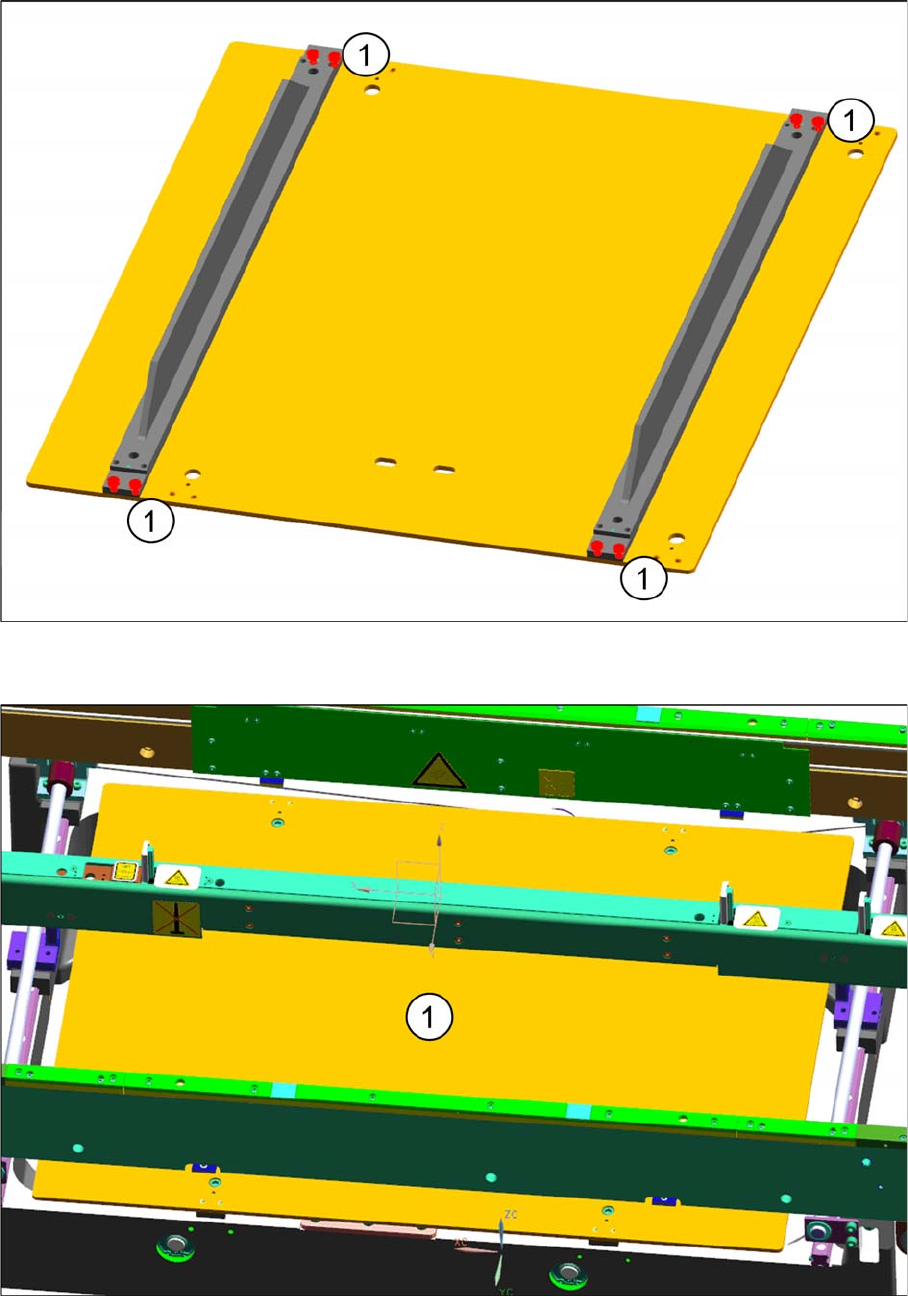

► Remove the stiffening fillet screws (1).

► Fit the stiffening fillet to the "E-series lifting table plate LBO" [03108017

xx] (1).

► Refit the lifting table assembly to the conveyor frame using the same M6x30 securing screws.
