Installing
Installing the LBO E Kit 2.1.2 Installation
18 Assembly Instructions E by SIPLACE

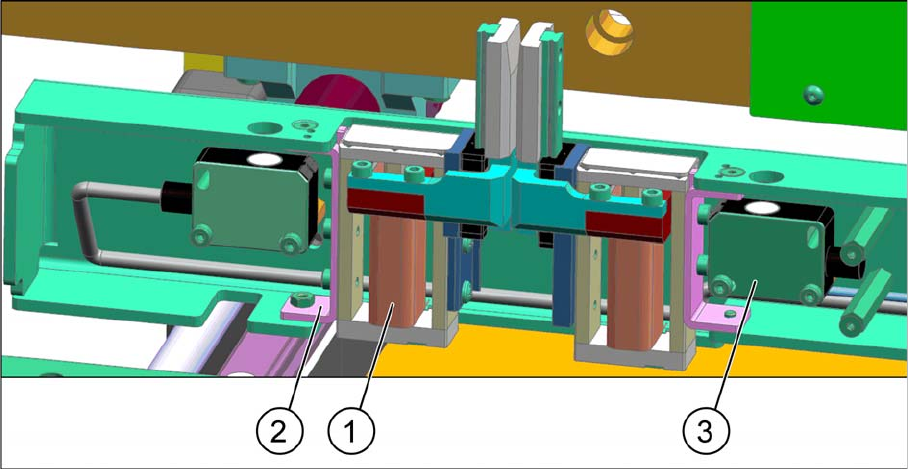

► Install the "E-series reverse stopper unit" [03108720-xx] (1) using the "M3x6 cap screws"
[03042540-xx].
► Install the "E-series stopper bracket" [03107923-xx] (2) using the "M3x6 countersunk screws"
[03082814-xx].
► Install the "Sonar Sensor UB100-F77" [03089004-xx] (3) using the "M3x16 cap screw" [03042545-
xx].
► Route all option cables by following the original cable routing.
► Refit the stopper rail cover.
Installing
2.1.2 Installation Installing the LBO E Kit
Assembly Instructions E by SIPLACE 19
2.1.2.4
2.1.2.4 Clamping Plate and Belt (Only 1200 mm Version)
Clamping Plate and Belt (Only 1200 mm Version)

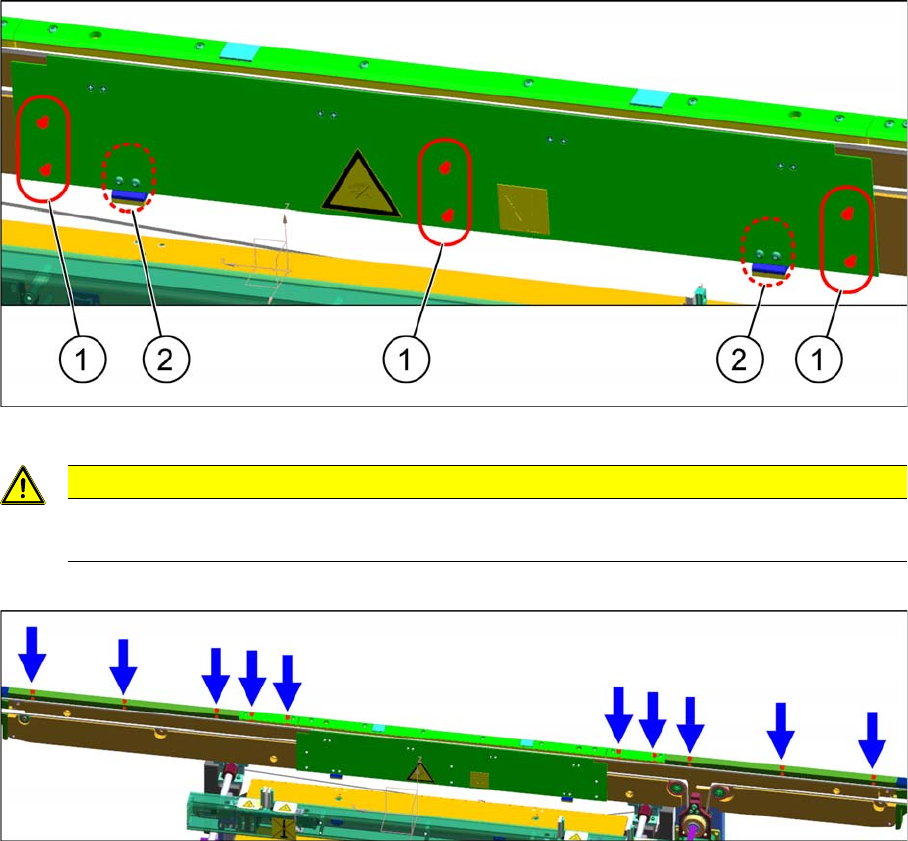

► Remove the screws (1) to release the clamping plate.
► Remove all screws on the top panels.
► Remove the belt and replace it with the "BRECOFLEX Belt 10T5/4000" [03109841-xx].
CAUTION
Springs
When removing the clamping plate, watch out for the springs (2).
Installing
Installing the LBO E Kit 2.1.2 Installation
20 Assembly Instructions E by SIPLACE

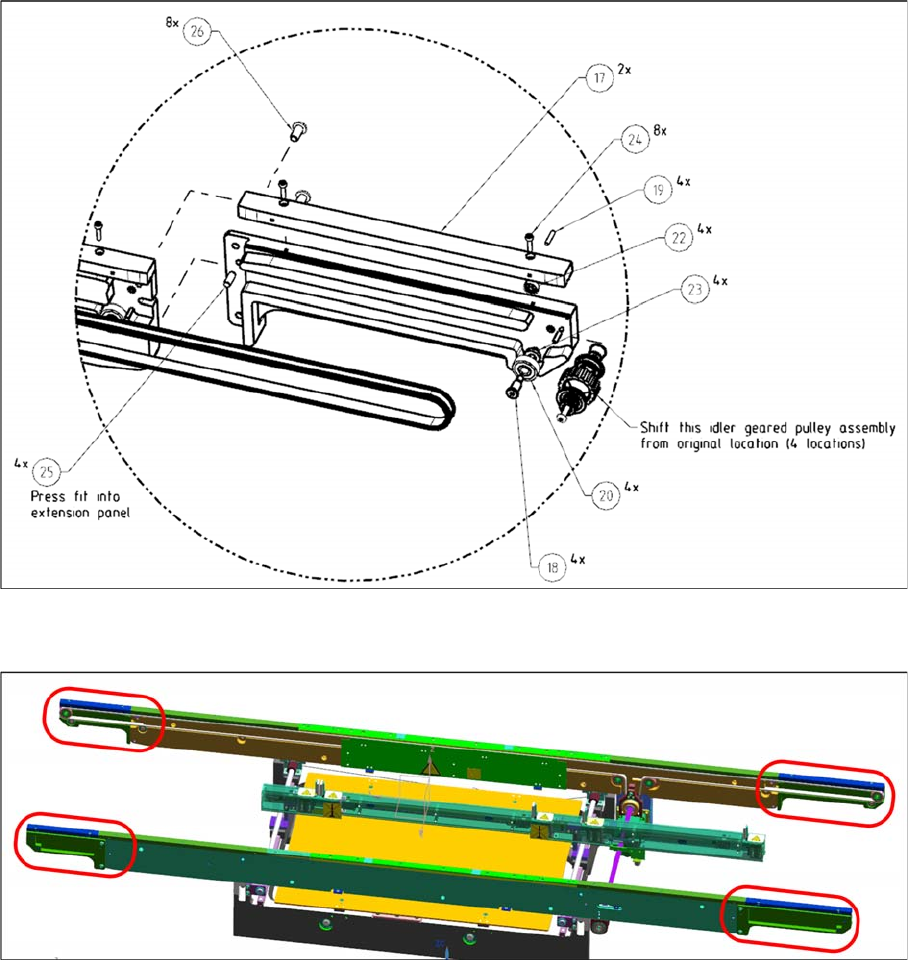

► Assemble the individual extension panel modules.
► Assemble the extension panels to the side panels using the M6x12 button head screw
[03040122
-
xx].
► Assemble the belt and the clamping plate along with the top panels. The clamping plate is needed
to guide the spring back to the original position.
► Do this for both side panels.
