Installing 2.1.2 Installation Installing the LBO E Kit Assembly Instructions E by SIPLACE 21 2.1.2.5 2 . 1 . 2 . 5 C a b le H a r n e s s ( A ll V e r s io n s ) Cable Harness (All Versions) ► Connect the designated cabl…
Installing
Installing the LBO E Kit 2.1.2 Installation
20 Assembly Instructions E by SIPLACE
► Assemble the individual extension panel modules.
► Assemble the extension panels to the side panels using the M6x12 button head screw
[03040122
-
xx].
► Assemble the belt and the clamping plate along with the top panels. The clamping plate is needed
to guide the spring back to the original position.
► Do this for both side panels.
Installing
2.1.2 Installation Installing the LBO E Kit
Assembly Instructions E by SIPLACE 21
2.1.2.5
2.1.2.5 Cable Harness (All Versions)
Cable Harness (All Versions)
► Connect the designated cable harness as per below conveyor option configurations.
Connections points are in the Standard flow and Reverse flow schematics.
LBO E 1200 [03110518-xx] and LBO E 1030 [03108019-xx]
▪ Standard flow (Right Fix)
– Cable, stopper, LBO, trk1 [03101844-xx]
– Cable, PCB sensor, LBO, trk1 [03101834-xx]
– Cable, stopper, reverse, trk1 reverse [03108854-xx]
– Cable, stopper ext, LBO Reverse trk 1 [03114850-xx]
▪ Reverse flow (Left Fix)
– Cable, stopper, LBO, trk1 [03101844-xx]
– Cable, stopper ext, LBO, trk 1 [03114849-xx]
– Cable, PCB sensor, LBO, trk1 [03101834-xx]
– Cable, stopper, reverse, trk1 reverse [03108854-xx]
Installing
Installing the LBO E Kit 2.1.2 Installation
22 Assembly Instructions E by SIPLACE

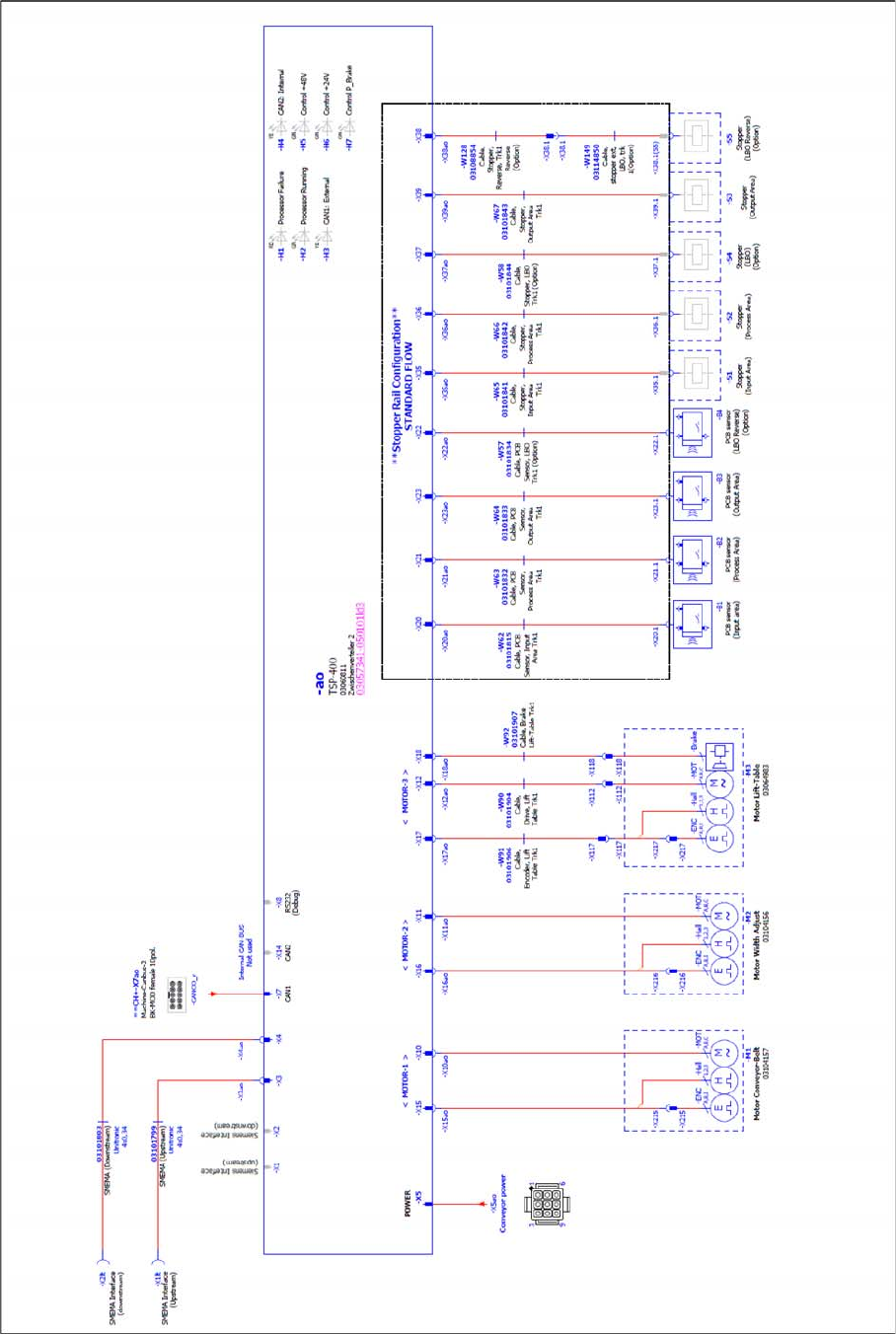

Standard flow (Right Fix) → (Single line connections)
