Installing Installing the LBO E Kit 2.1.2 Installation 24 Assembly Instructions E by SIPLACE Standard flow (Right Fix) → (Multi line connections)

Installing

2.1.2 Installation Installing the LBO E Kit

Assembly Instructions E by SIPLACE 23

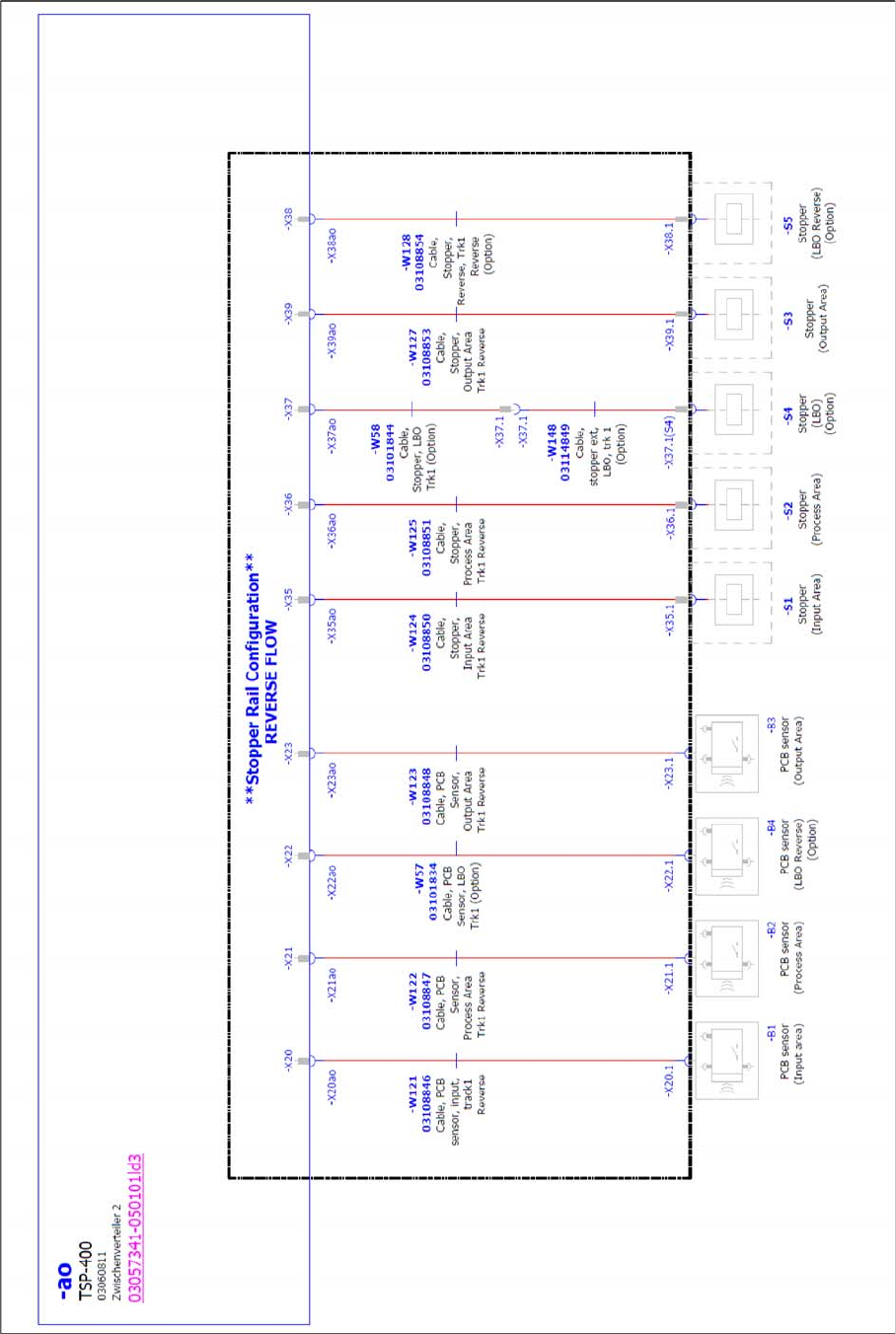

Reverse flow (Left Fix) → (Single line connections)

Installing

Installing the LBO E Kit 2.1.2 Installation

24 Assembly Instructions E by SIPLACE

Standard flow (Right Fix) → (Multi line connections)

Installing

2.1.2 Installation Installing the LBO E Kit

Assembly Instructions E by SIPLACE 25

Reverse flow (Left Fix) → (Multi line connections)

► When connecting cables to the TSP, make sure that the label on the cable matches the label on the

connector on the TSP.

► Make sure that the add-on cables are laid down following the original cable routing, inserted into the

original braided sleeve, and fixed using cable ties.
