Pneumatic system maintenance unit
Page 2 / 4 22.11.2021
Pneumatic system maintenance unit
Page 3 / 4 22.11.2021

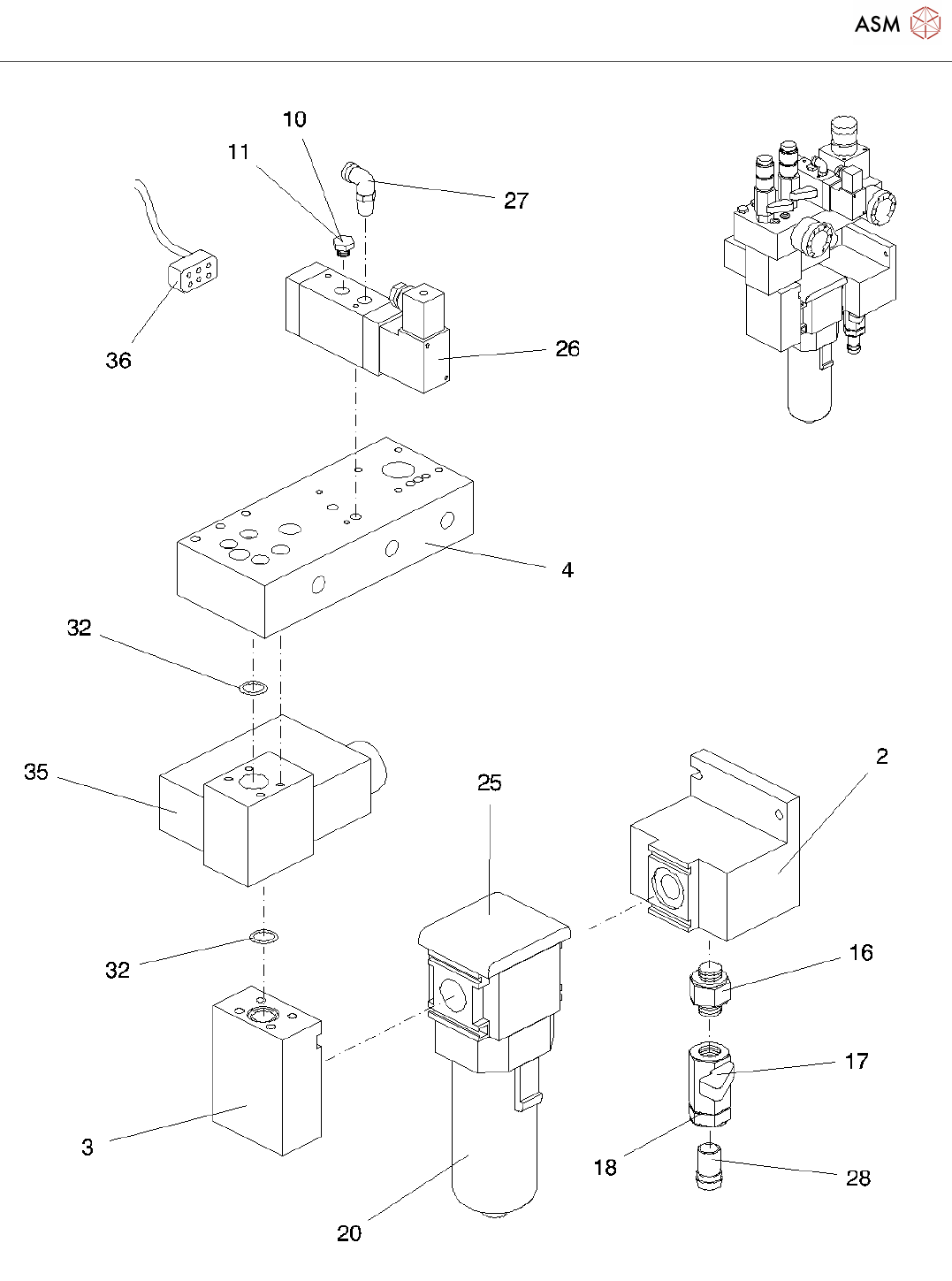

Pos. Item no. Description Part marking
1 00357795S01 PNEUMATIC-SERVICING-UNIT SPARE PART
2 00342785-01 PNEUMATICS - INPUT PLATE
3 00357797-01 PNEUMATICS - INTERMEDIATE
PLATE
4 00357796-01 PNEUMATICS - DISTRIBUTOR PLATE
5 00343002-01 PRESSURE GAUGE 0-4 BAR,G1/8
6 00343006-01 PRESSURE GAUGE 0-12 BAR G1/8
BAR+PSI-DISPLAY
7 00316492-01 SEALING PLUG G1/4 INCH *10
8 00343007-01 THREAD PLUG R3/8
9 00300875-01 QUICK RELEASE FASTENER SPARE PART
10 00316485-01 SEALING PLUG M5
11 00327325-01 SEALING 2661 - M5
12 00316491-01 3/2-WAY VALVE FLANGE FITTING
CONST.
SPARE PART
13 00327324-01 REDUCER 2520 1/4 INCH - 1/4 INCH
14 00327327-01 SEALING RING G1/4 INCH*2 PA STANDARD PARTS
15 00300891-02 MINIATURE BALL VALVE TYPE 012 -
1/4
16 00319722-01 REDUCER 2520 1/2 INCH-1/2 INCH
17 00300892-01 MINIATURE BALL VALVE 1/2
SERIE1502
SPARE
18 00327326-01 PA-SEALING 2661 - 1/2
19 00300894-01 SILENCER 1/4 SERIES SP WEAR PART
20 00343010-01 FILTER G1/2 MODULAIR 112MU WEAR PART
21 00201102-01 PRESSURE REGULATING VALVE 1/4
22 00358495-01 PLUG 2661-G1/8
23 00358494-01 PA-SEAL 2661- 1/8
24 00305496S01 QUICK SCREWS Spare Part
25 00343061-01 CONNECTION SET F. MODULAIR 112
26 00358441S01 5/2 VALVE 520 00 001 24V = SPARE PART
27 00359515-01 L-SCREW CONNECTION 6520 - 6 -
1/8
28 00327322-01 SCREW IN HOSE NOZZLE LV
46.0023
SPARE PART
29 00047600-02 BANJO BOLT
30 00310997-02 PIPE UNION
Pneumatic system maintenance unit
Page 4 / 4 22.11.2021
Pos. Item no. Description Part marking
31 00328767-01 SEALING PLATE F. 3/2-CONTROL
VALVE
32 00358492-01 O-RING 15*1.5 NBR 70
33 00314356-01 QUICK-RELEASE FASTENER
QSY-1/8-6
34 00343115-01 PLUG
35 00347621-01 PRESSURE REGULATING VALVE SPARE PART
36 00344773-02 CABLE: TAPE CUTTER MAIN VALVE
F5
