Safety instructions
3.4 Label positions
The following warning/caution labels are attached to the YAMAHA products to ensure safe and correct use.
Check that the information on each label is clearly legible and comply with the instructions.
For safety precautions other than those on the labels shown in this section, see the instructions in "1. Safety".
n
NOTE
Basically, labels are attached to the positions shown below, although they may differ slightly depending on the
machine model.
n
NOTE
When connecting power to this equipment, refer to "Power connection terminals" described in the appendix of the
maintenance manual or user's manual.

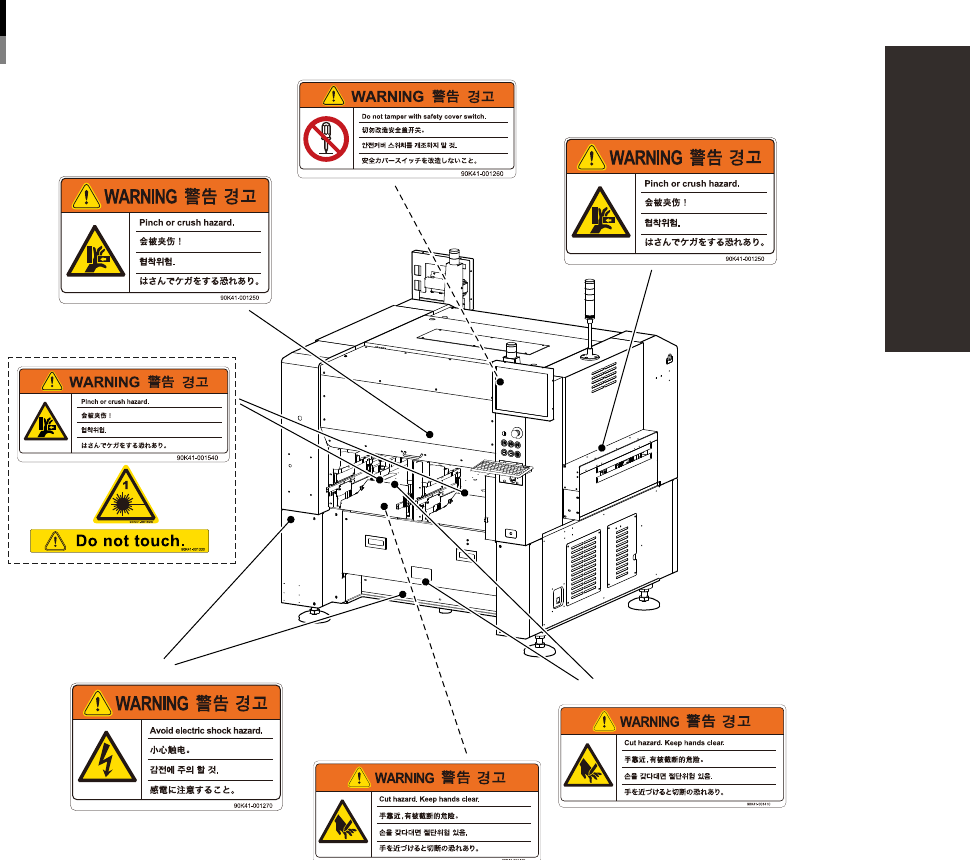

Warning/caution labels
Front
N Open/close cover
N Open/close cover inner side
N Conveyor opening
N Feeder setup section
N Cutter section
N Cutter inner side
N Lower panels
N Panel inner side
N Side
NMain switch
93201-L1-10
xxiii
Safety instructions
n
Label positions
Warning/caution labels
Rear
N Open/close cover
N Open/close cover inner side
N Feeder setup section
N Conveyor opening
N Cutter section
N Cutter inner side
N Lower panels
93202-L1-10
xxiv
Safety instructions
n
Label positions

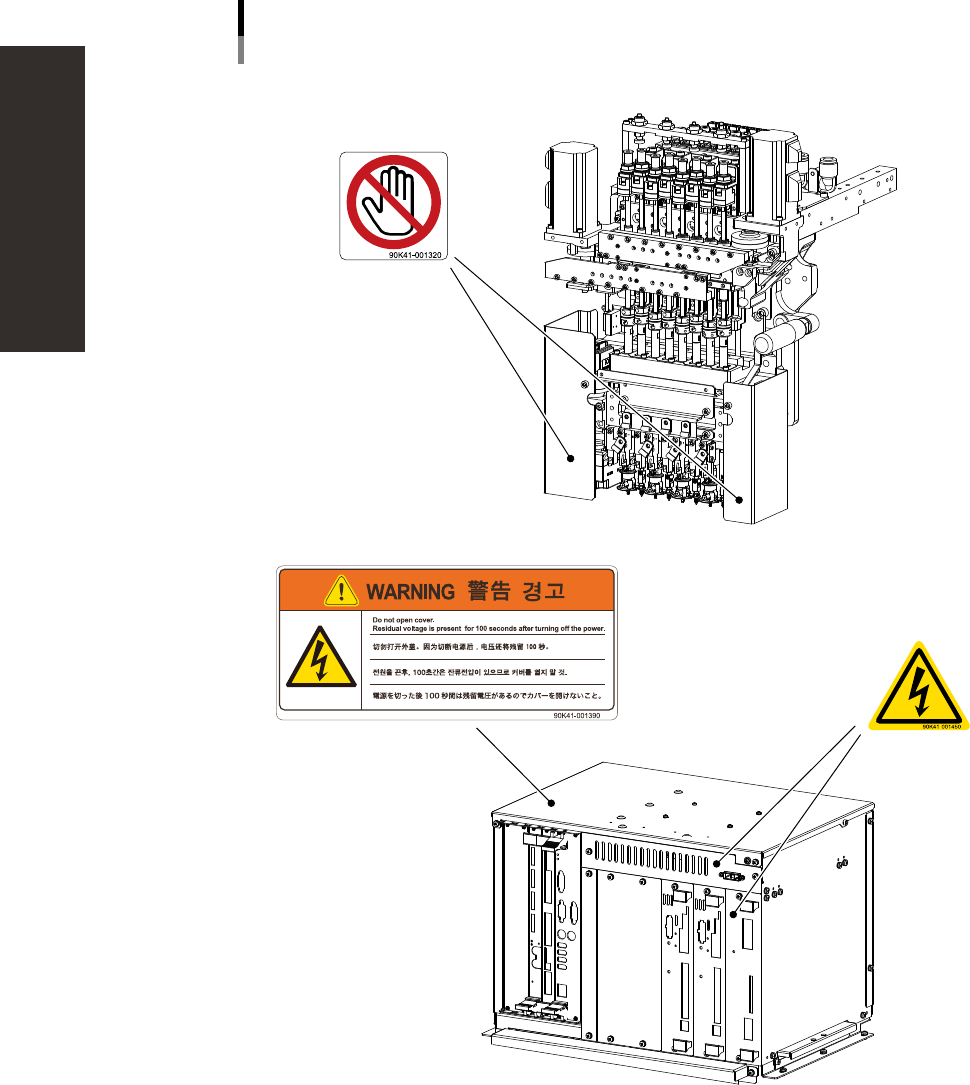

Warning/caution labels
N Head assembly
N Camera unit
N Top of controller
N Controller front panel
N Controller
93204-L1-10
