2. Operation panel and data input unit
Standard machines are equipped with an operation display, operation panel buttons, a keyboard and a
mouse on the front and rear (option) of the machine, to operate the machine and make data settings. The
functions of these units are explained below.

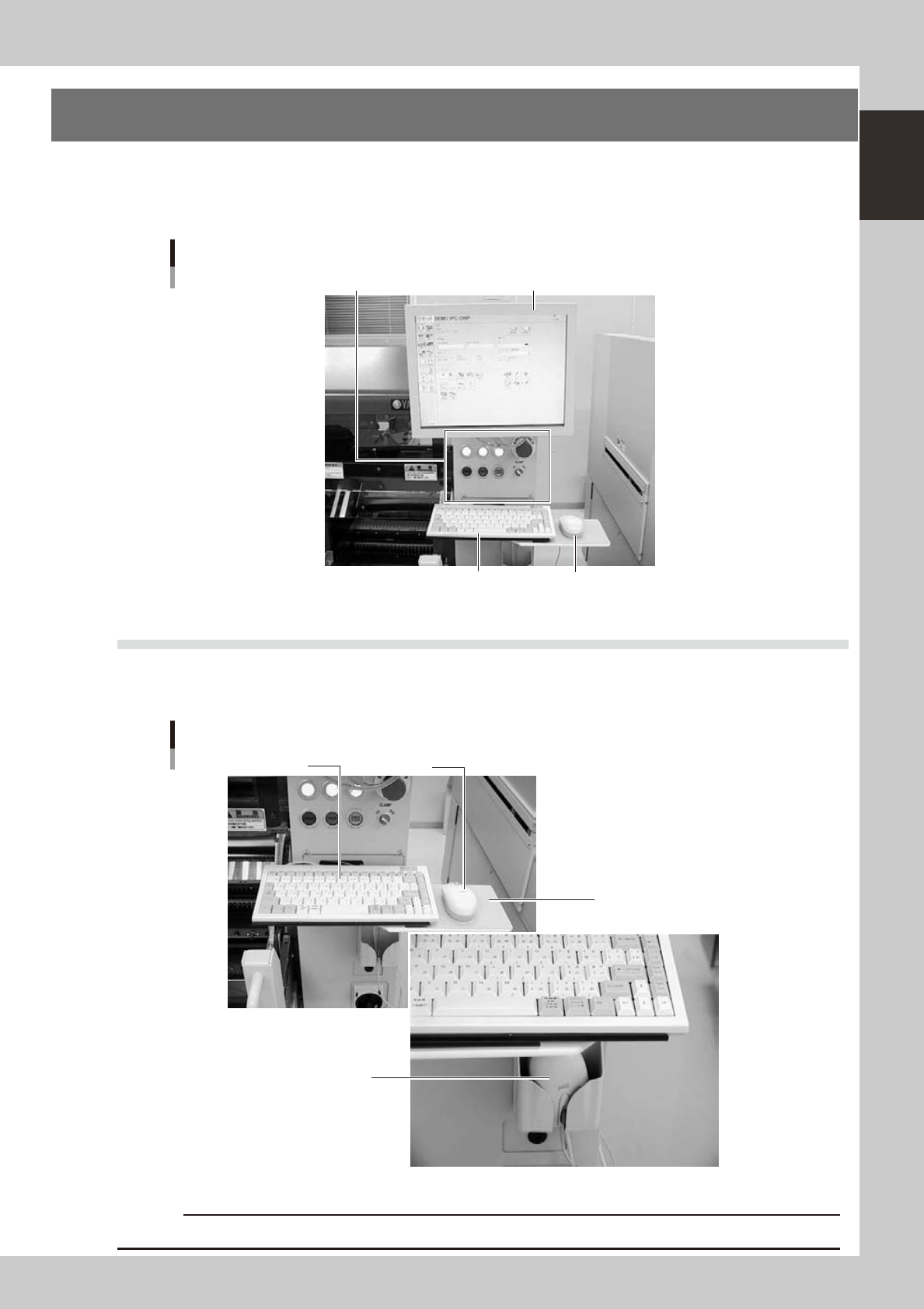

Operation panel and data input unit
Operation panel button Operation display (touch screen is optional)
MouseKeyboard
23101-L1-00
2.1 Keyboard and mouse
This machine is equipped with a keyboard and mouse as standard features to operate the machine or edit data
settings. To select a menu button or parameter item on the operation screen, click it with the left mouse button.
Mouse in holder
Keyboard and mouse
Keyboard
Mouse
Mouse pad
23103-L1-00
c
Store the mouse in holder when not in use or it may drop and be damaged.
1-4
1
Part names and functions
2.2 Operation panel buttons
The operation panel buttons are provided on the front and rear (option) of the machine to run major commands
frequently used to operate the machine. Each button is lit while turned on. (The operation panel buttons light
up in the same colors specified by the signal light.)

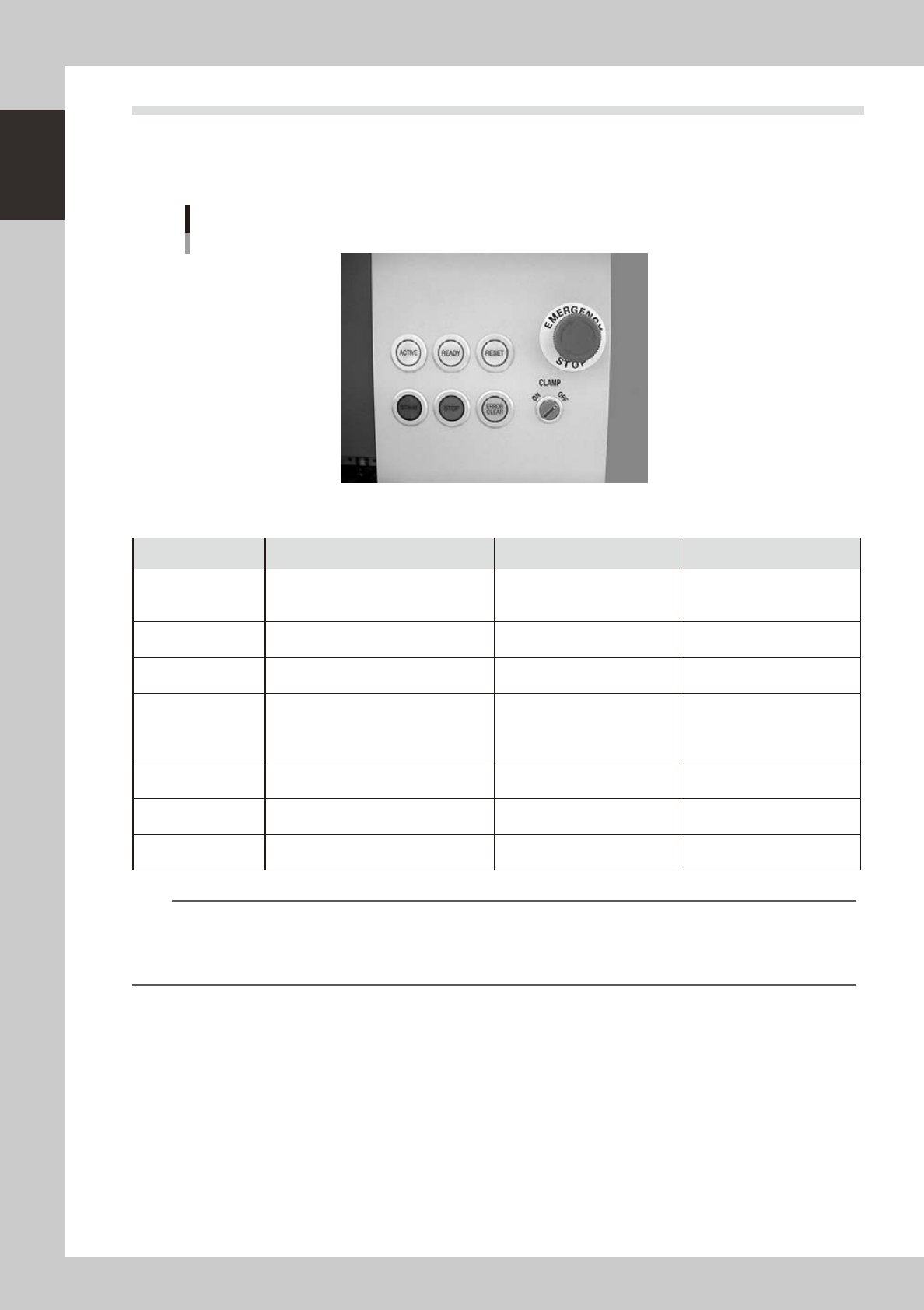

Operation panel buttons
23102-L1-00
n
Operation panel button functions
Button name Use the button to: OFF ON
ACTIVE
Enable other keys. (The front and rear
[ACTIVE] keys cannot be turned on
simultaneously.)
• After machine has started.
• The other table has access
rights to operate machine.
• Has access rights to
operate machine.
READY
Release emergency stop and turn the
servo on.
• SERVO OFF
(Motor power OFF)
• SERVO ON
(Motor power ON)
RESET
Stop automatic operation and return to
standby for board production.
• Machine is in normal operation
or stopped.
• Machine has been reset.
START
Perform component placement
according to board data.
• Machine is stopped.
• Machine is in normal
operation.
[Flash]
Pause or step operation
STOP
Interrupt automatic operation. (Press
START to resume operation.)
• Machine is in normal operation. • Error occurred.
ERROR CLEAR
Stop buzzer sound and clear error
screen.
• Machine is in normal operation. • Error occurred.
EMERGENCY STOP
Trigger emergency stop. Turn to the
right to release it.
n
NOTE
The [ACTIVE] button is provided on both front and rear (option) panels, but cannot be turned on simultaneously. This
means that the [READY], [START], [ERROR CLEAR] and [RESET] buttons are enabled only when the [ACTIVE] key on the
same panel is turned on. (The [STOP] button can be used when the [ACTIVE] button is either on or off.)
The keyboard is enabled only when the [ACTIVE] key on the front panel is on.
1-5
1
Part names and functions
3. Head assembly
The head assembly is mounted on the XY arms and moves to pick up and place components. The following
sections describe the head assembly configurations and nozzle types.

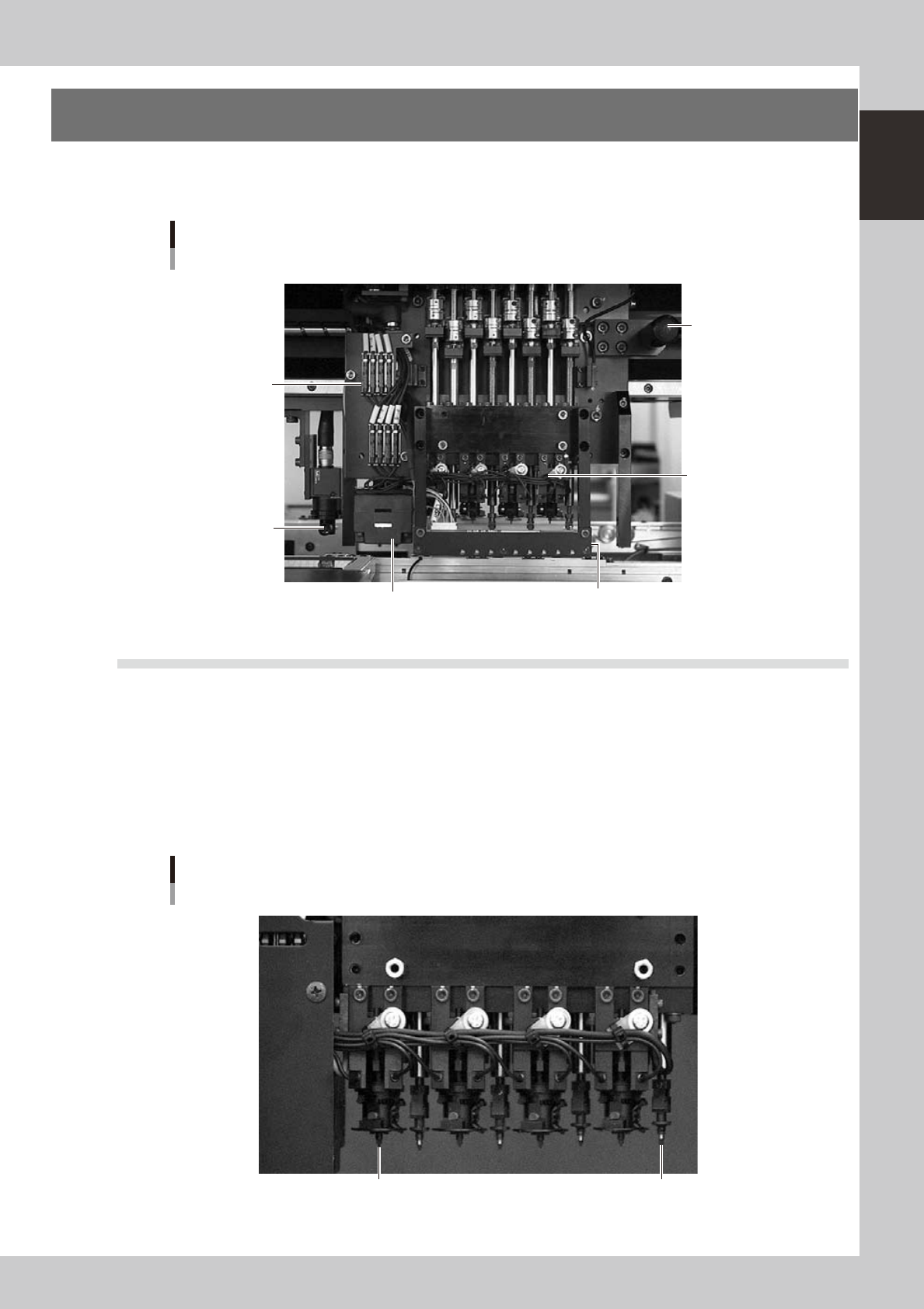

Head assembly
With cover removed
Nozzle sensor
Side-view camera
(fixed to X-axis)
Fiducial camera lighting unit
Eight-in-line
multi-head
Handle for moving
head assembly
Lighting unit for side-view camera (option)
23115-L1-00
3.1 Component pick-and-place head
3.1.1 Eight-in-line multi-head (FNC) assembly
The eight-in-line multi-head (FNC) assembly has 8 heads arranged in a row to pick up and mount components.
Head numbers are designated from 1 to 8, from the right as viewed from the front of the head assembly. The
spacing of adjacent nozzles attached to the head assembly is 16mm, which is identical to the pitch of the SS
feeder bank.
Heads 2, 4, 6 and 8 of the eight-in-line multi-head (FNC) assembly have a flying nozzle changer (FNC) to
change the nozzle while the head assembly is moving to a component feeder.
Head 8 Head 1
Eight-in-line multi-head assembly
FNC type
23105-L1-00
