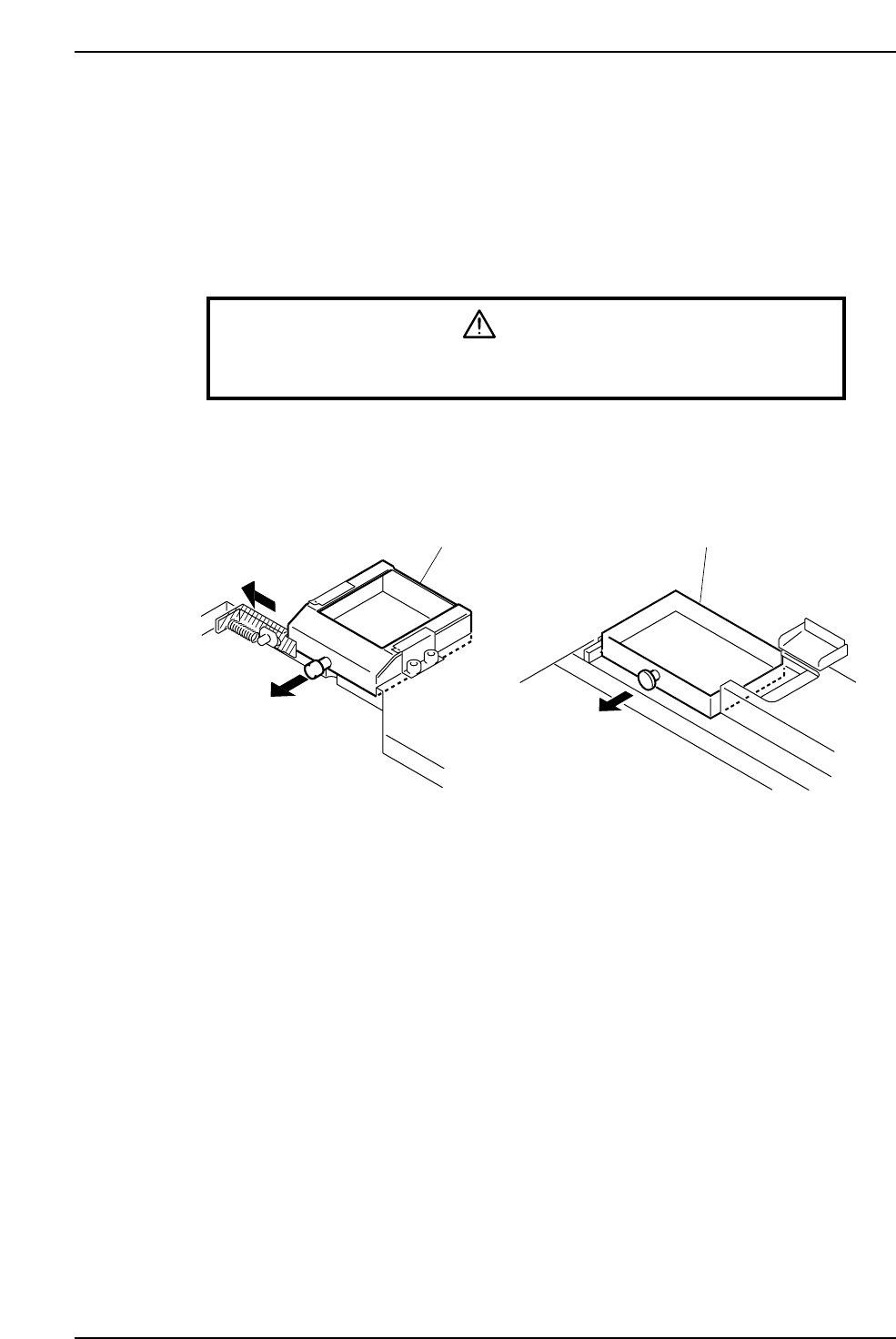

1.6 Cleaning the Parts Reject Box (Every 8 Hours)
Point
Parts deemed no good by vision processing or unplaced parts are rejected at station 10's
parts reject box. Inspect this box and remove the rejected parts.
Procedure
WARNING
Always be sure to cut off the 200 V power before carrying out any
work.
Dump parts box
Dump parts box
<4000 type> <5000 type>
CP6ML004E
Chapter 4 Cleaning and Lubrication
Version 11.1 4-1-6 CP-6 Series Maintenance

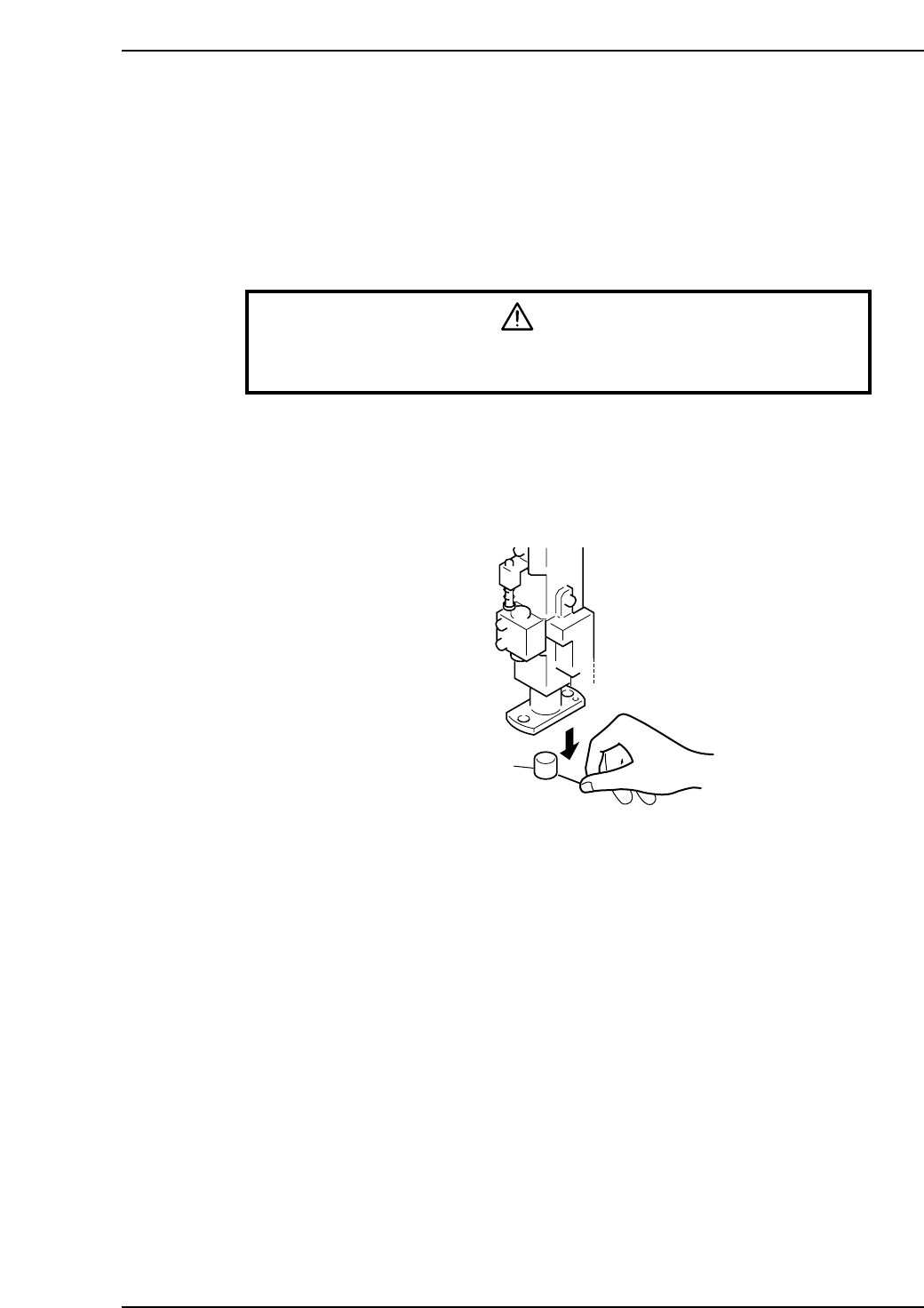

1.7 Changing the Nozzle Filter (Every 3 Months)
Point
The filter inside of the shaft-axis becomes dirty with use, and as a general rule should be
replaced with a new one every three months.
Procedure
WARNING
Always be sure to cut off the 200 V power before carrying out any
work.
1. Remove the nozzle holder. (Refer to Chapter 6, 1. Placing Heads.)
2. Take out the filter with a pair of tweezers.
Filter
CP6ML005E
Chapter 4 Cleaning and Lubrication
Version 11.1 4-1-7 CP-6 Series Maintenance

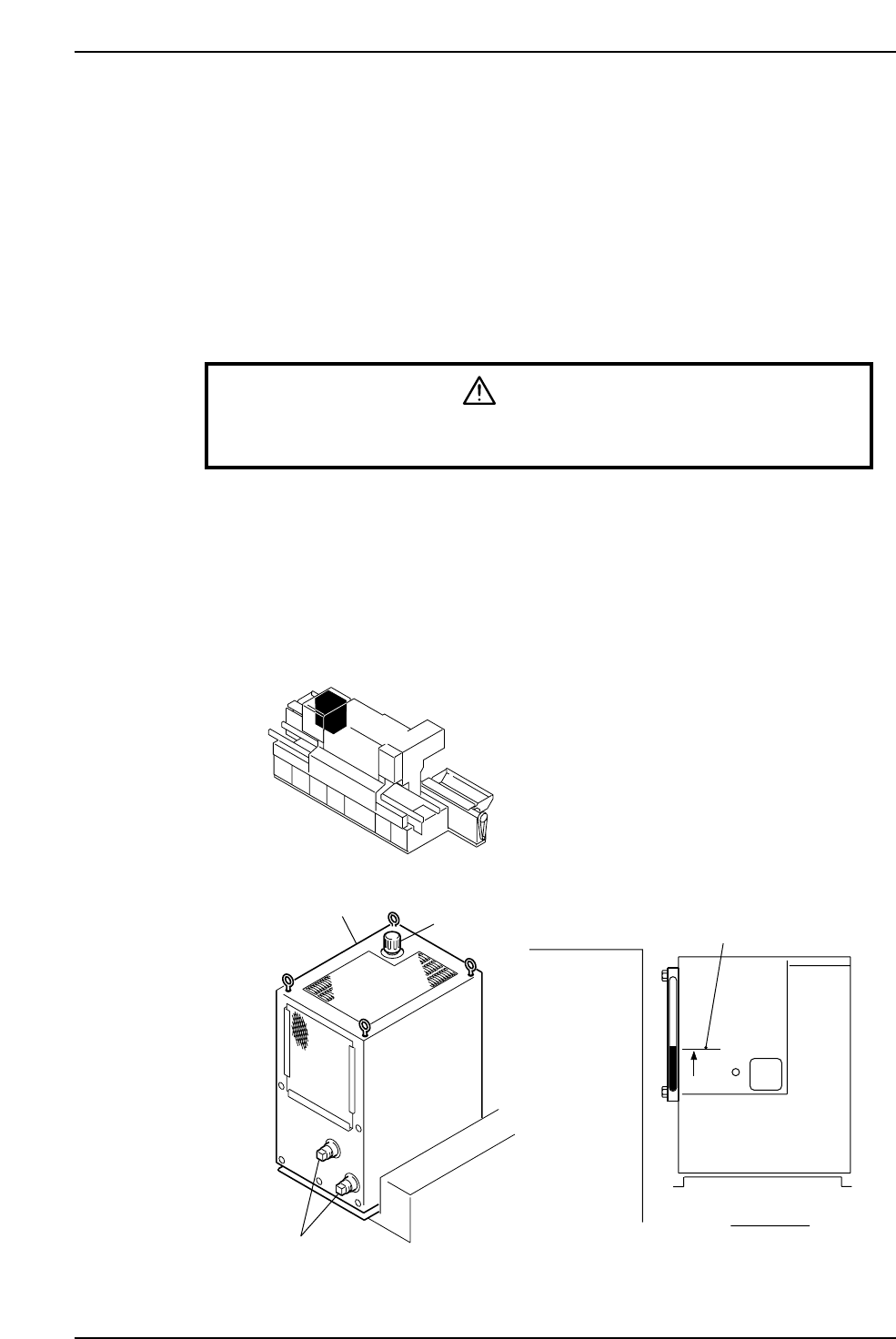

1.8 Changing Index Unit Oil (Every Year)
Point
The index unit inside the cam box uses a lubrication oil. This lubrication oil is loaded in
the oil tank that is located on the left side of the machine.
Change this oil once every year.
• Lubrication oil: Bonnok M150 Nippon Oil Company
• Oil amount: 15 litres
Procedure
WARNING
Always be sure to cut off the main power before carrying out any work.
Before starting, prepare a container to receive the oil.
1. Remove the cover from around the oil tank.
2. Loosen the 2 drain plugs and drain the oil. Be careful not to spill the oil from the
container.
3. Tighten the 2 plugs then remove the cap from the top of the tank.
Slowly pour in the new oil (Bonnok M150).
4. Add sufficient oil to return it to its initial level. The oil gage is between the oil tank
and the cam box.
Lid
Drain plugs
Index unit
Rear view
Cam box
Add sufficient oil to return it
to its initial level
Oil tank
CP6ML006E
Chapter 4 Cleaning and Lubrication
Version 11.1 4-1-8 CP-6 Series Maintenance
