2.4 Rotary Head Lubrication Arrow marks in the illustration indicate lubrication points. Wave washer Linear guide Shaft Turret groove Gear CP6ML013E (32) (33) (34) (35) (36) AFC Grease Daphne Eponex No. 2 N/A N/A ✔ ✔ N/A…

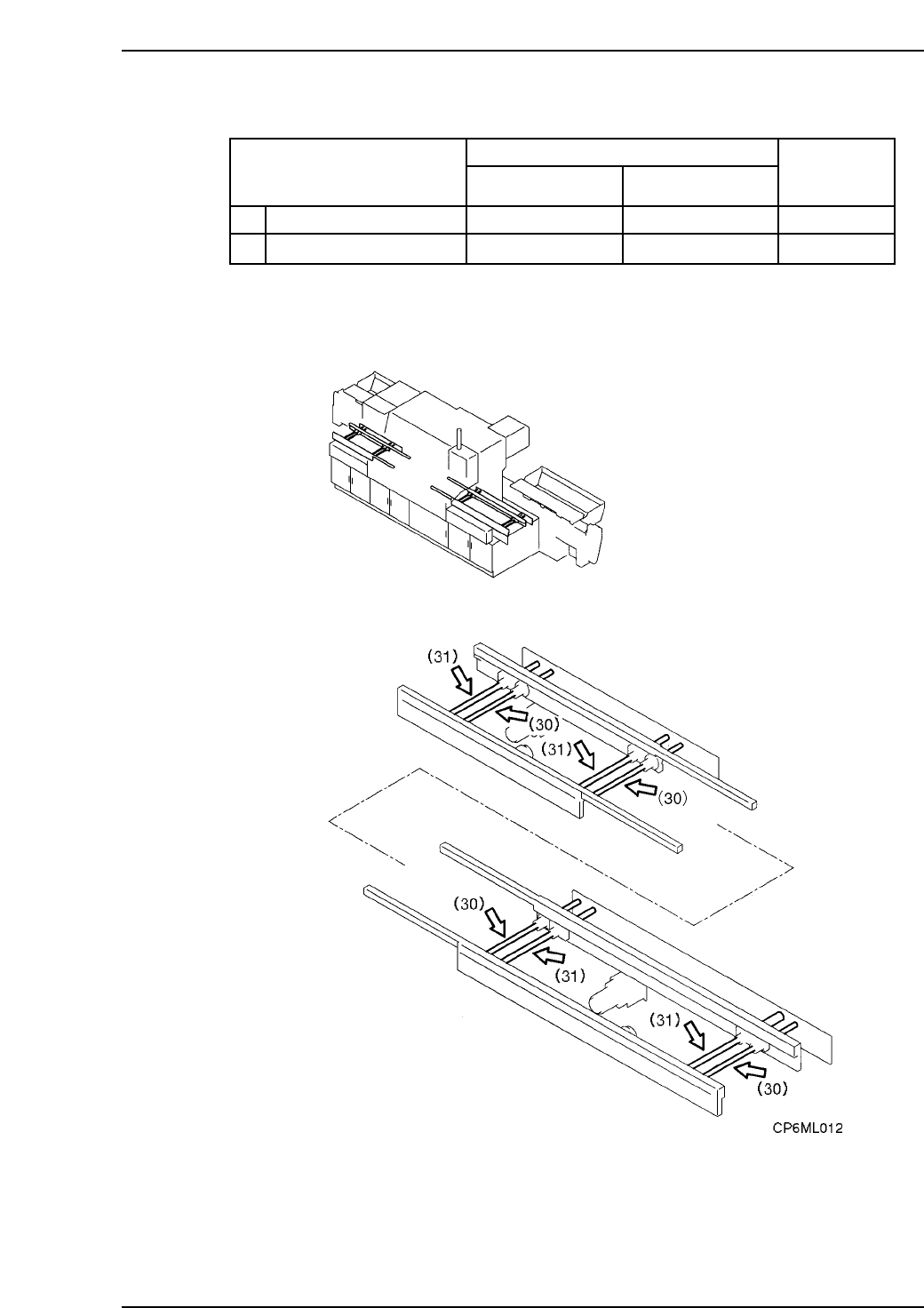

2.3 Conveyor Lubrication
Arrow marks in the illustration indicate lubrication points.
Biral T&D
Daphne
Eponex No. 2
✔
✔
R
R
T003E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
30
31
Every month
Every month
✔ : Lubricate R : Apply for rust prevention
Ball screw
Shaft
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-7 CP-6 Series Maintenance

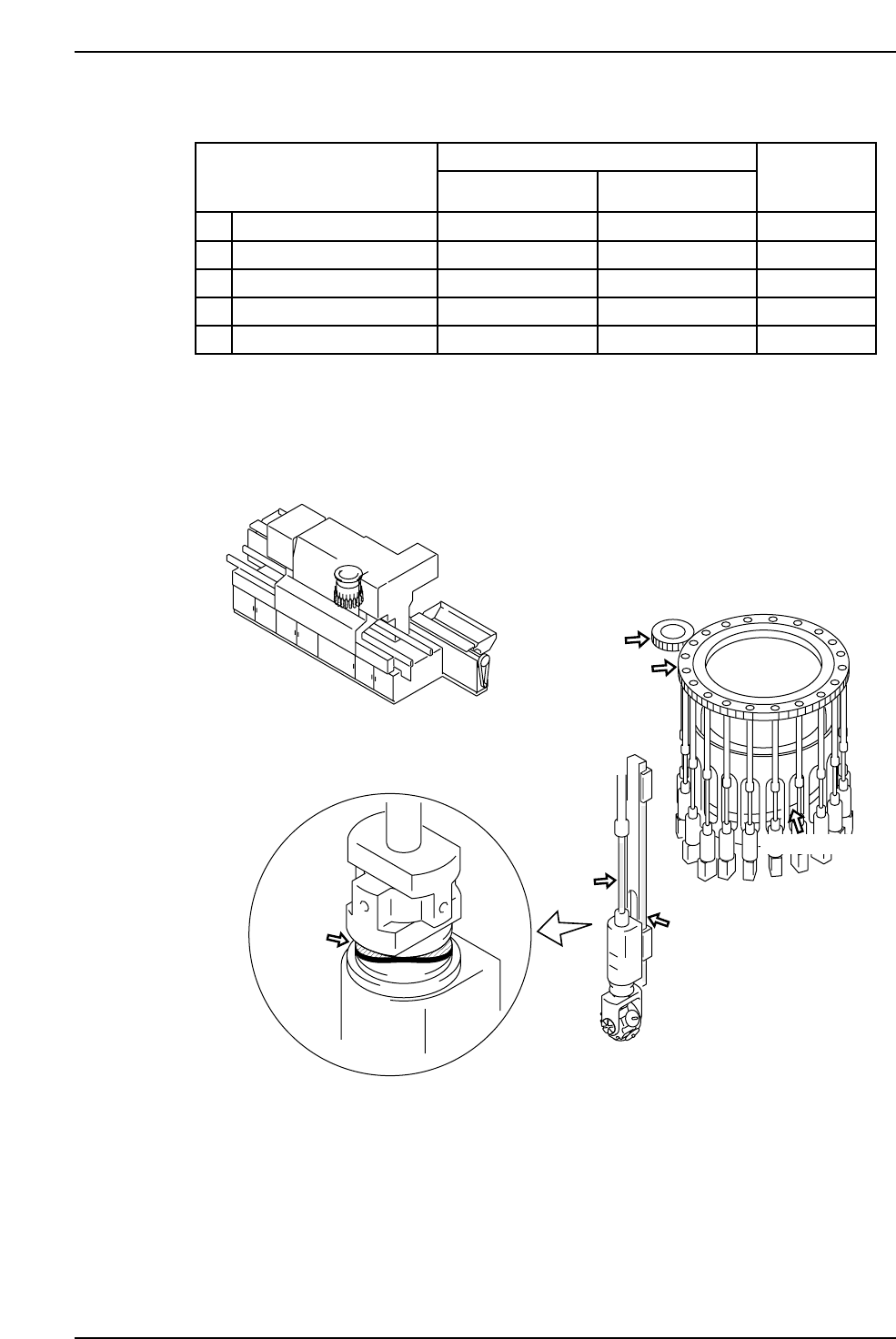

2.4 Rotary Head Lubrication
Arrow marks in the illustration indicate lubrication points.
Wave
washer
Linear guide
Shaft
Turret groove
Gear
CP6ML013E
(32)
(33)
(34)
(35)
(36)
AFC Grease
Daphne
Eponex No. 2
N/A
N/A
✔
✔
N/A
✔
✔
N/A
N/A
✔
T004E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
32
33
34
35
36
Every month
Every month
Every month
Every month
Every 3 months
✔ : Lubricate N/A : Do not lubricate
Cam groove
Gear
LM rail
Shaft
Wave washer
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-8 CP-6 Series Maintenance
2.5 Station 1 Tape Advance Lubrication
Arrow marks in the illustration indicate lubrication points.
AFC Grease
Daphne
Eponex No. 2
✔
N/A
N/A
✔
T005E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
37
38
Every month
Every month
✔ : Lubricate N/A : Do not lubricate
Cam lever
Shaft
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-9 CP-6 Series Maintenance
