2.9 Each Rod End Arrow marks in the illustration indicate lubrication points. Black arrows indicate points where a grease gun is required. Station 18 Inside of the cam box Rod end (with a grease nipple) CP6ML018E Rod end…

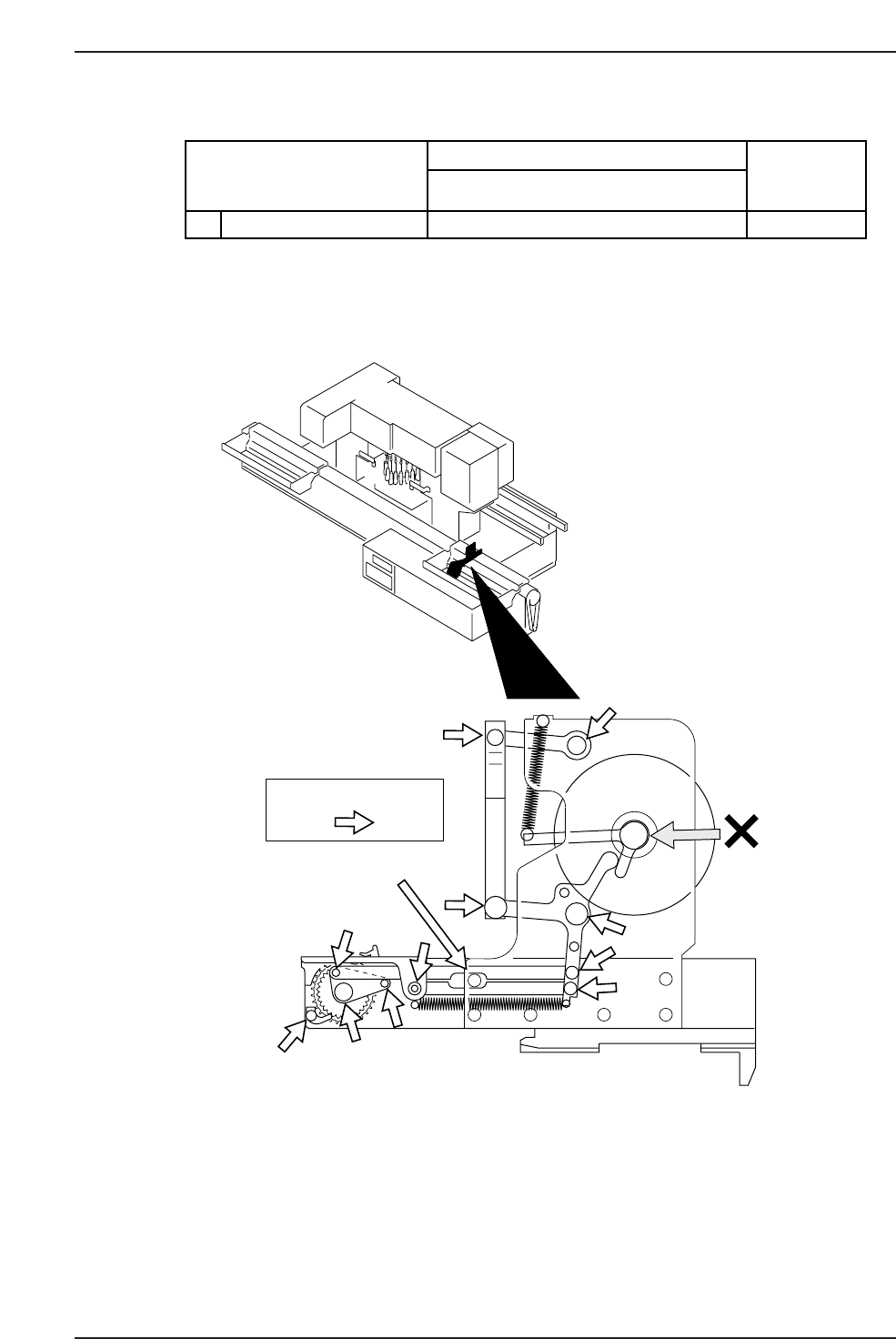

2.8 Feeder Lubrication
Arrow marks in the illustration indicate lubrication points.
Do not
lubricate !
Clean and Lubricate
regularly
CP6ML017E
(45)
Feeder lubricate point
Biral T&D
✔
T008E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
45
Every week
✔ : Lubricate
Movable Parts
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-12 CP-6 Series Maintenance

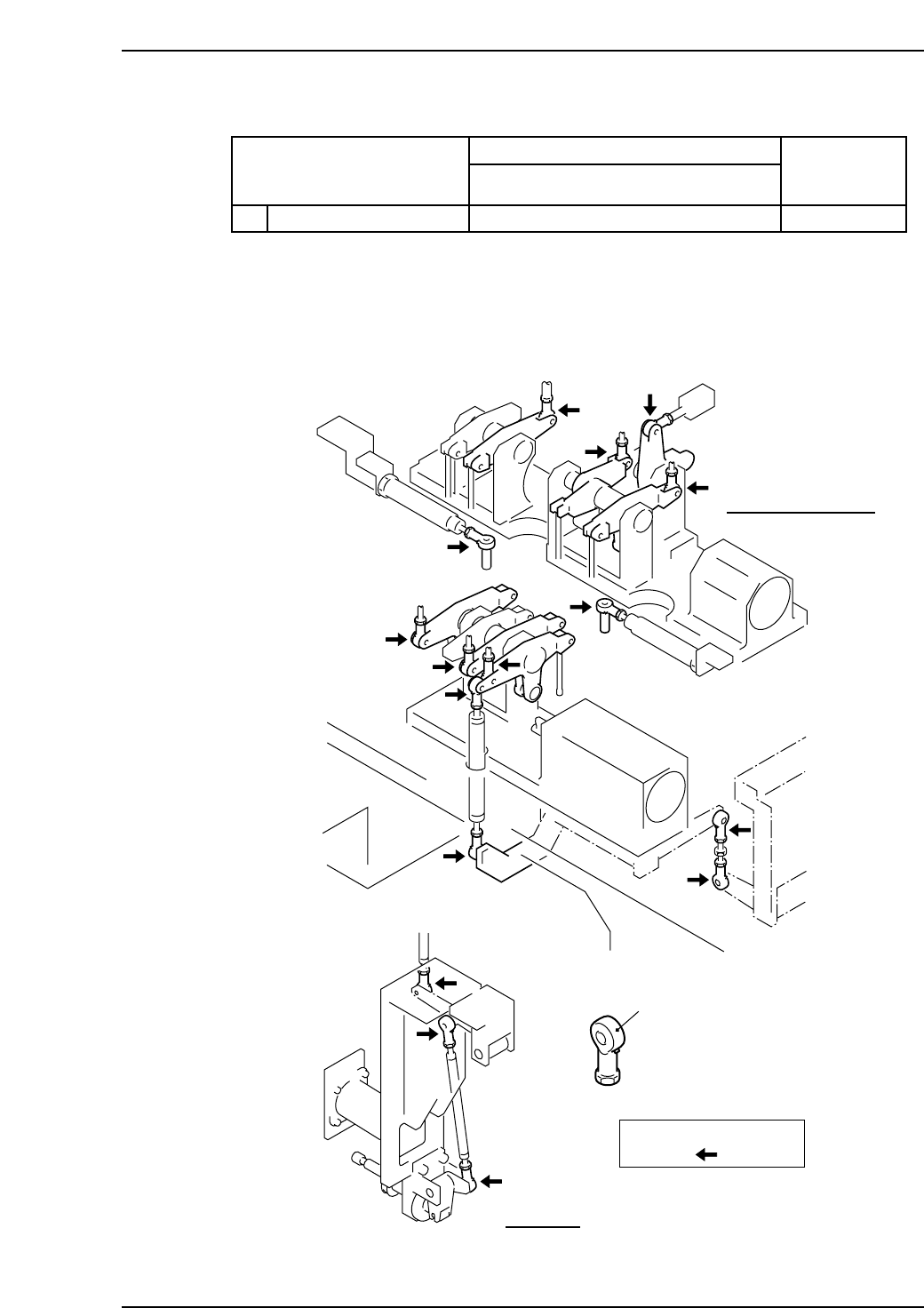

2.9 Each Rod End
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Station 18
Inside of the cam box
Rod end
(with a grease nipple)
CP6ML018E
Rod end lubrication point
(46)
Daphne Eponex No. 2
✔
T009E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
46
Every 3 months
✔ : Lubricate
Rod end
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-13 CP-6 Series Maintenance
2.10 D-axis Carrier Lubrication (CP-652CE only)
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Guide rail
CP6ML019E
(47)
(48)
(49)
(50)
(51)
(52)
(49)
AFC Grease
Daphne
Eponex No. 2
N/A
N/A
N/A
✔
✔
✔
✔
✔
✔
N/A
N/A
N/A
T010E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
47
48
49
50
51
52
Every month
Every week
Every month
Every week
Every week
Every month
✔ : Lubricate N/A : Do not lubricate
Ball screw
Slider
Guide rail
Lever fulcrum
LM
guide
LM rail
LM block
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-14 CP-6 Series Maintenance
