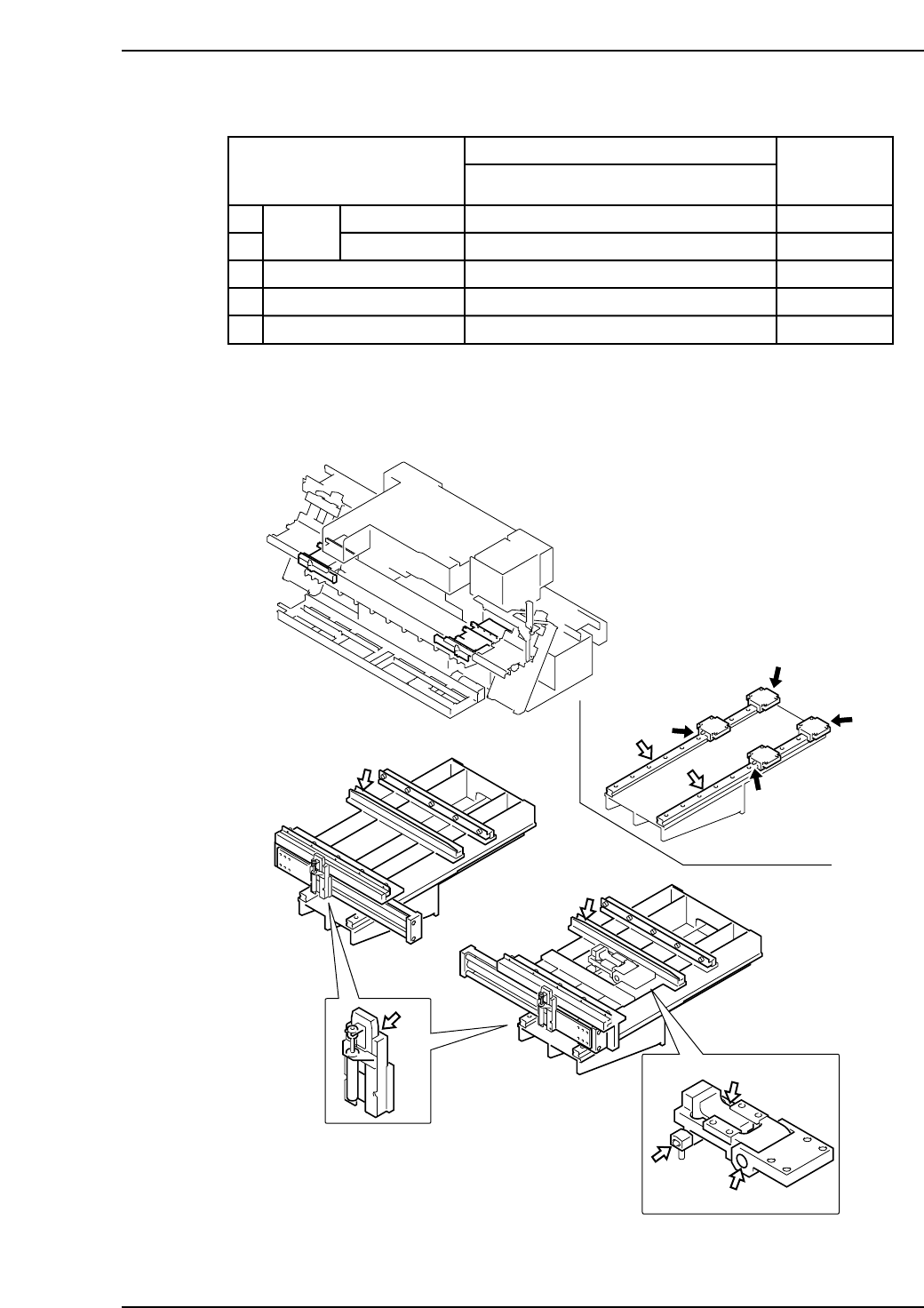

2.11 Setup Station Lubrication (CP-652CE only)
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Cam groove
Cam groove
Slider
Stopper
CP6ML020E
(53)
(53)
(54)
(54)
(54)
(54)
(55)
(56)
(56)
(56)
(57)
(57)
Daphne Eponex No. 2
✔
✔
✔
✔
✔
T011E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
53
54
55
56
57
Every month
Every month
Every month
Every month
Every month
✔ : Lubricate
Slider
Stopper sliding part
Cam groove
LM
guide
LM rail
LM block
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-15 CP-6 Series Maintenance
2.12 Elevator Lubrication (CP-652CE only)
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Front Side
Cam groove
Cam groove
CP6ML021E
(59)
(60)
(61)
(62)
(63)
(63)
(62)
(58)
(59)
(63)
(60)
Cylinder cam
Daphne Eponex No. 2
✔
✔
✔
✔
✔
✔
T012E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
58
59
60
61
62
63
Every month
Every week
Every month
Every month
Every month
Every month
✔ : Lubricate
Gear
Cam groove
Stopper sliding part
LM
guide
LM rail
LM block
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-16 CP-6 Series Maintenance
2.13 Return Conveyor Lubrication (CP-652CE only)
Arrow marks in the illustration indicate lubrication points.
Stopper
CP6ML022E
(64)
(64)
(65)
(65)
Stopper sliding part
Tab pivot pin
Daphne Eponex No. 2
✔
✔
T013E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
64
65
Every month
Every month
✔ : Lubricate
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-17 CP-6 Series Maintenance
