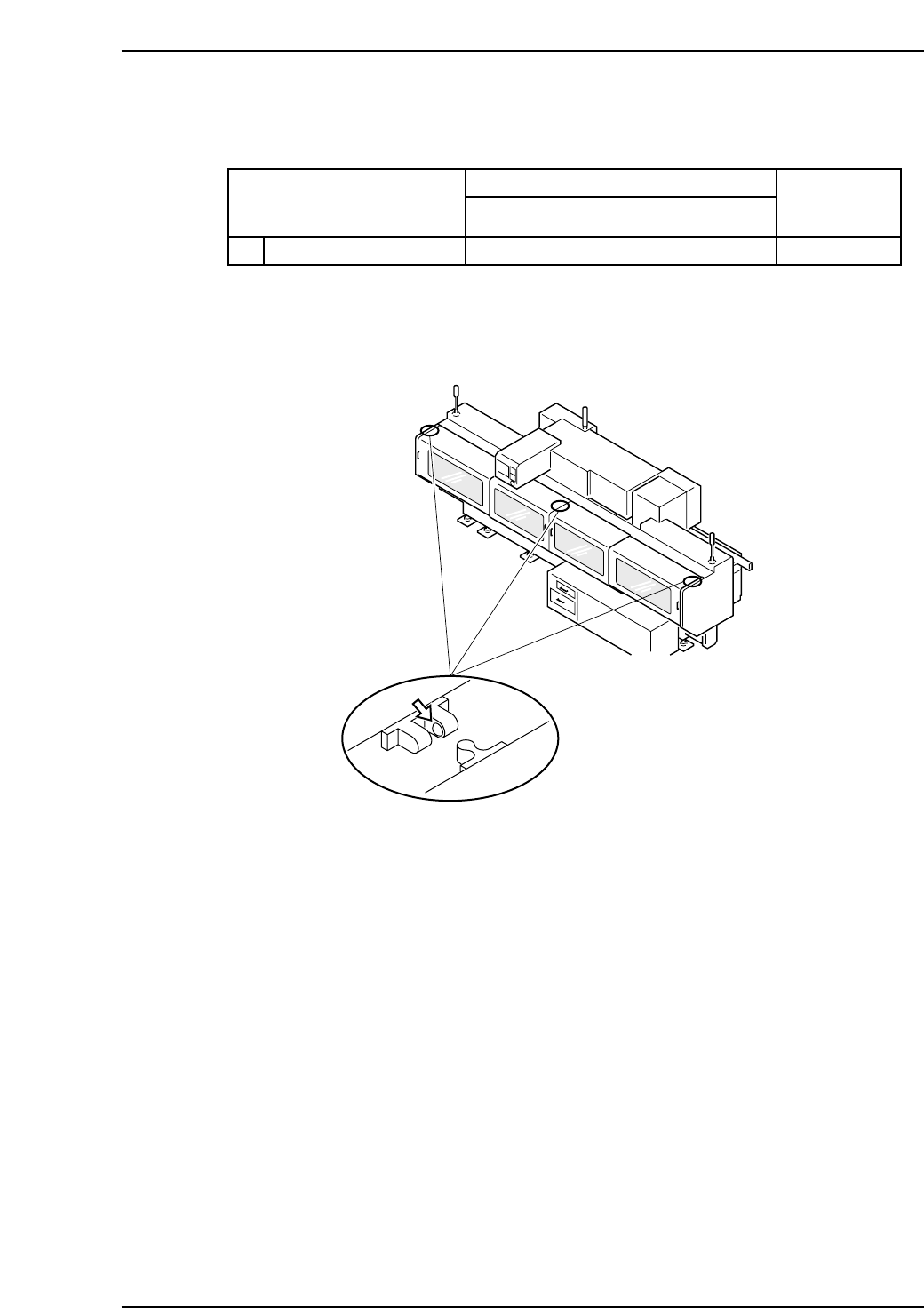

2.15 Rear Cover Lubrication
(CP-642/CP-643 Series with Rear Cover)
Arrow marks in the illustration indicate lubrication points.
CP6ML025E
(69)
Rear cover ball catch fasteners
Ball catch
Daphne Eponex No. 2
✔
T019E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
69
Every 3 months
✔ : Lubricate
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-19 CP-6 Series Maintenance
2.16 Cross Roller Bearing Lubrication
(CP-65/65E Only)

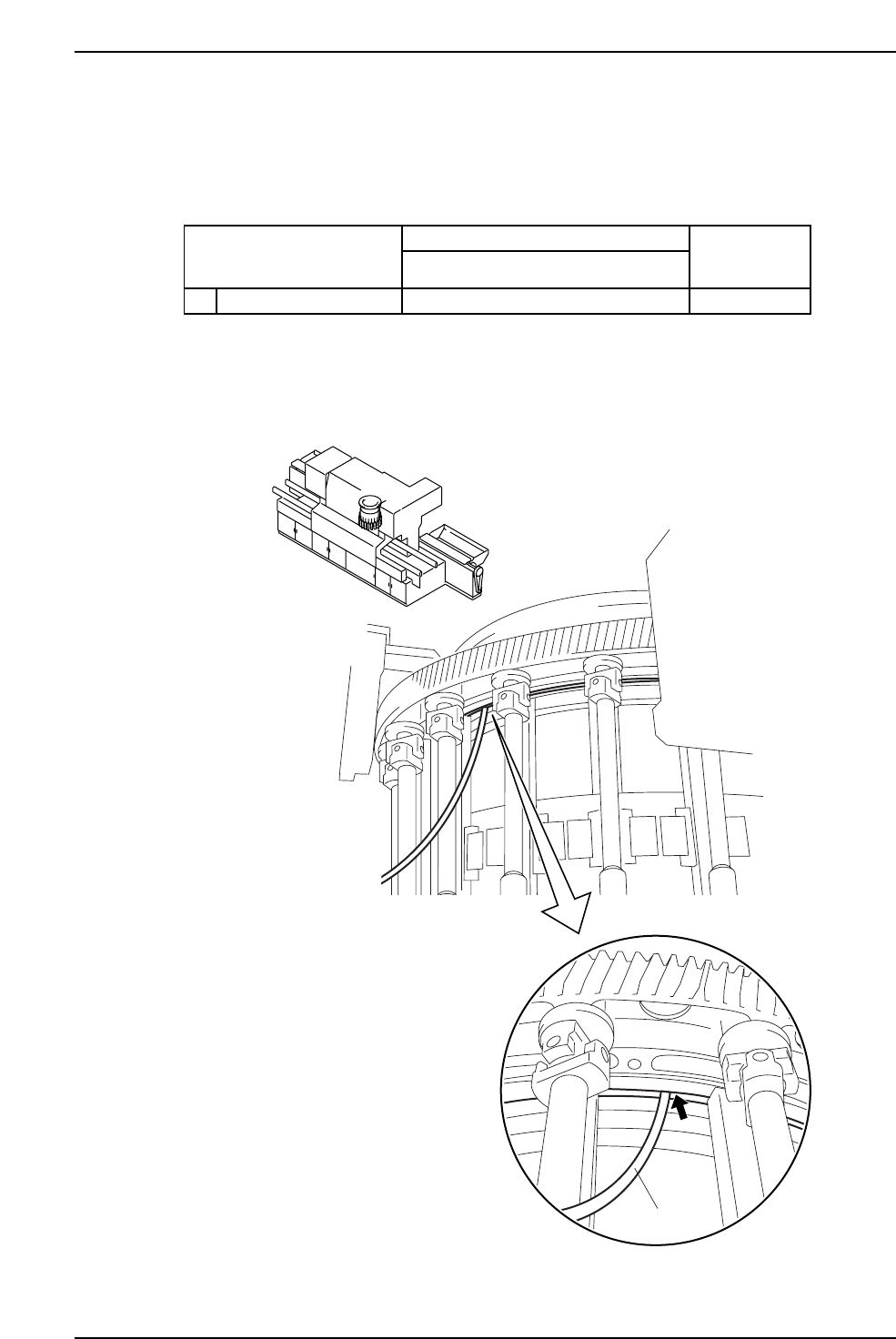

<CX-No.1~108> Unsealed Roller Bearing Type
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
CP6ML026E
Cross roller bearing
(70)
Tube
The Fuji grease gun kit AWPJ9601
(including tube T2061E and connector
K5030H) is necessary for this work.
Cross roller bearing
Daphne Eponex No. 2
✔
T018E
Lubrication
Locations
Lubrication
Frequency
Types of Lubricants
70
Every 1000 hours
✔ : Lubricate
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-20 CP-6 Series Maintenance
Procedure
1. Load the grease gun with a suitable amount of Daphne Eponex No. 2.
2. Insert the tube from the bottom groove of the cross roller bearing to where the
bearing makes contact.
3. Inject the grease such that it does not protrude out of the grooves.
Note: Inject grease every two pitches at the support axes (10 locations).
4. Carry out idle operation for several minutes to allow the grease to be adequately
dispersed.

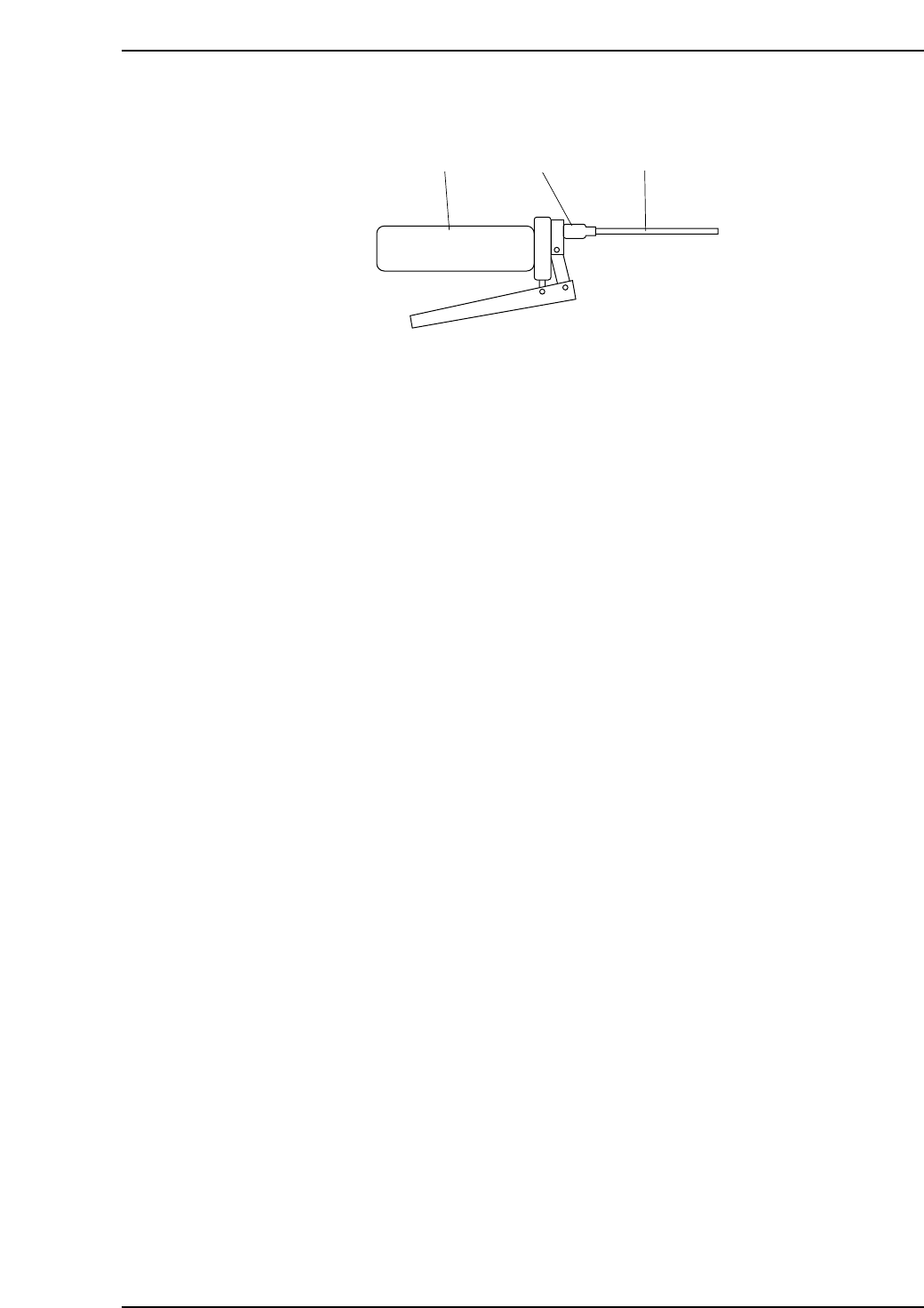

Grease gun
FUJI grease gun kit
Tube (150mm)
Connector
CP6ML027E
(AWPJ9601)
(T2061E)
(K5030H)
Chapter 4 Cleaning and Lubrication
Version 11.3 4-2-21 CP-6 Series Maintenance
