2. Nozzle Reflective Disk Replacement
Point
Replace the nozzle fluorescent seal if the seal becomes dirty and causes vision processing
errors to occur.
Procedure
1. Always wash your hands before handling the seals.
2. Choose the correct disk, referring to table below if necessary.
3. Check that the fluorescent disk is free of deformity and is clean.
4. Peel the fluorescent disk from its paper backing and remove the small circular
cutout at the center of the seal by pushing it out from the side of the seal covered
with fluorescent paint. If the cutout is pushed out from the side covered with
adhesive, some of the fluorescent paint may be torn away when the circular cutout
comes loose from the rest of the disk.

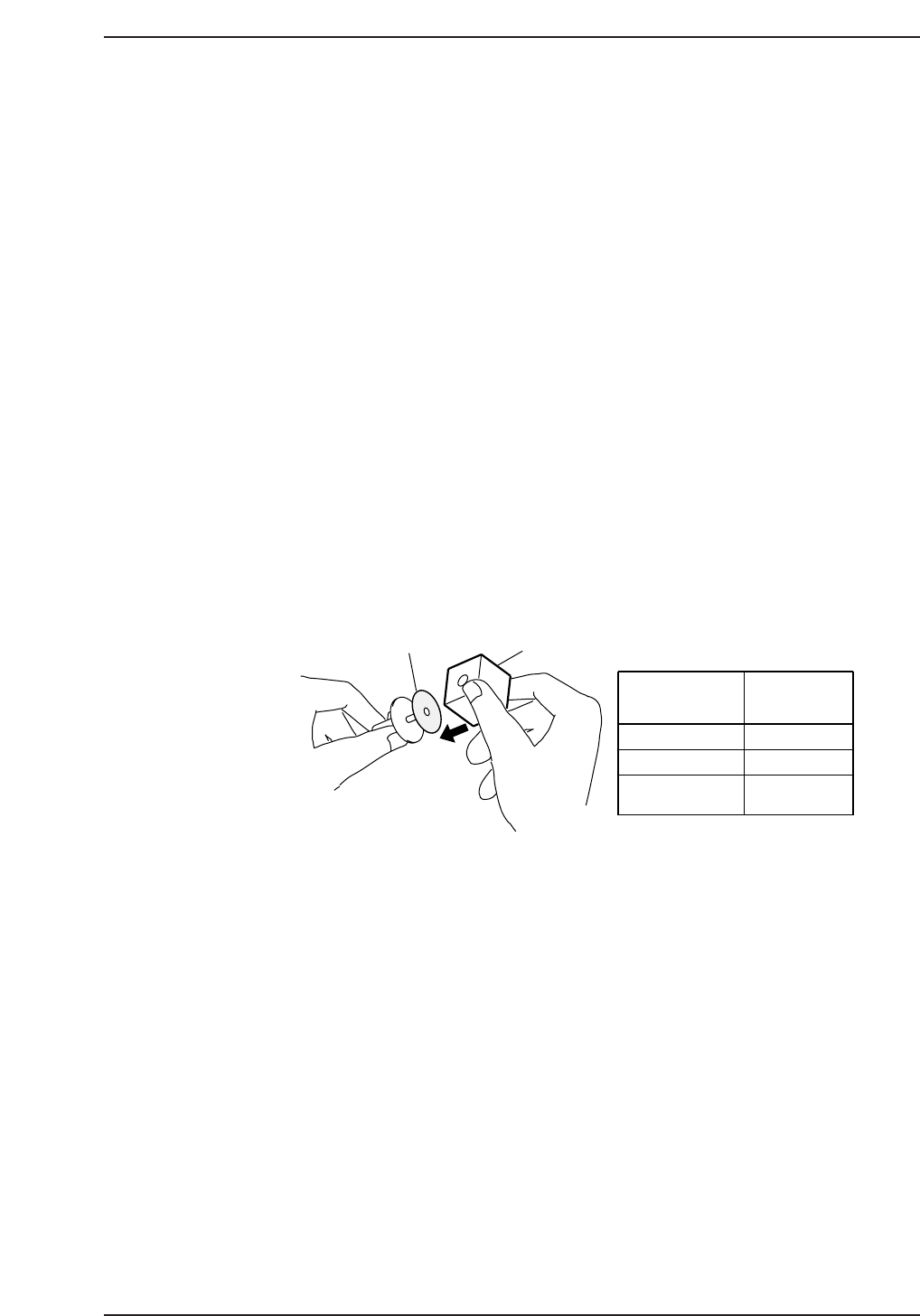

5. Match the center of the disk with the center of the nozzle. Using jig (for reflective
plate), push the disk into the nozzle as shown in figure below. Check that no
space exists between the seal and the nozzle.
6. Use an exacto knife to cut away any excess fluorescent seal.
7. Clean the fluorescent seal with a soft brush.
Reflective disk
Jig
Reflective
disk size
Jig No.
ø12 ~ 20
❒22
❒22, ❒29
(Plane type)
WPJ0770
AWPJ9101
YPJ0700
CP6MR002E
Chapter 5 Replacing Consumable Parts
Version 11.0 5-2-1 CP-6 Series Maintenance

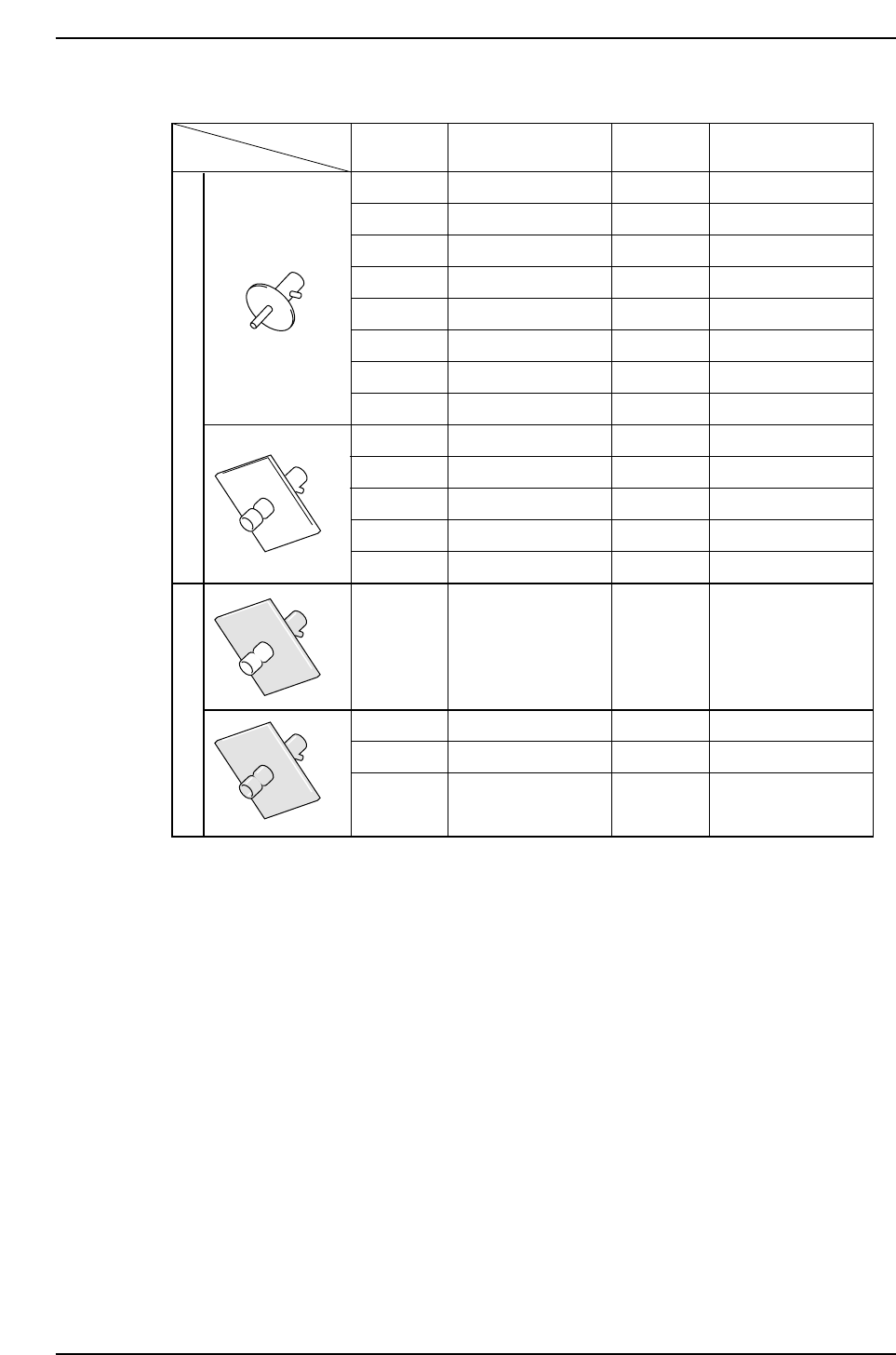

Part Numbers for the Nozzles and Reflective Disks
ø0.7
ø1.0
ø1.3
ø1.8
ø2.5
ø3.75
ø2.5
ø3.75
ø5.0
ø5.0
ø7.0
ø7.0
ø10.0
AWPH9512
AWPH9522
AWPH9532
AWPH9552
AWPH9562
AWPH9572
AWPH9582
AWPH9602
AWPH9612
AWPH9662
AWPH9682
AYPH9512 *
AYPH9534 *
ø12
ø12
ø12
ø12
ø20
ø16
ø16
ø20
❒20
❒22
❒22
❒29
❒29
LPH5012
LPH5022
LPH5032
LPH5042
WPH8201
WPH8211
WPH8081
WPH8121
WPH8101
WPH8231
WPH8181
YPH8061
YPH8570
ø5.0 AWPH9672 ❒22 WPH8221
ø7.0
ø7.0
AWPH9694
AYPH9524 *
❒22
❒29
WPH8081
YPH8580
T001E
Nozzle
size
Nozzle Assy No.
Reflective
disk size
Reflective
disk No.
For backlightFor frontlight
Chapter 5 Replacing Consumable Parts
Version 11.0 5-2-2 CP-6 Series Maintenance
3. Vision Processing UV Lamp Replacement
Procedure
Warning
Always be sure to cut out the main power before carrying out any
work.

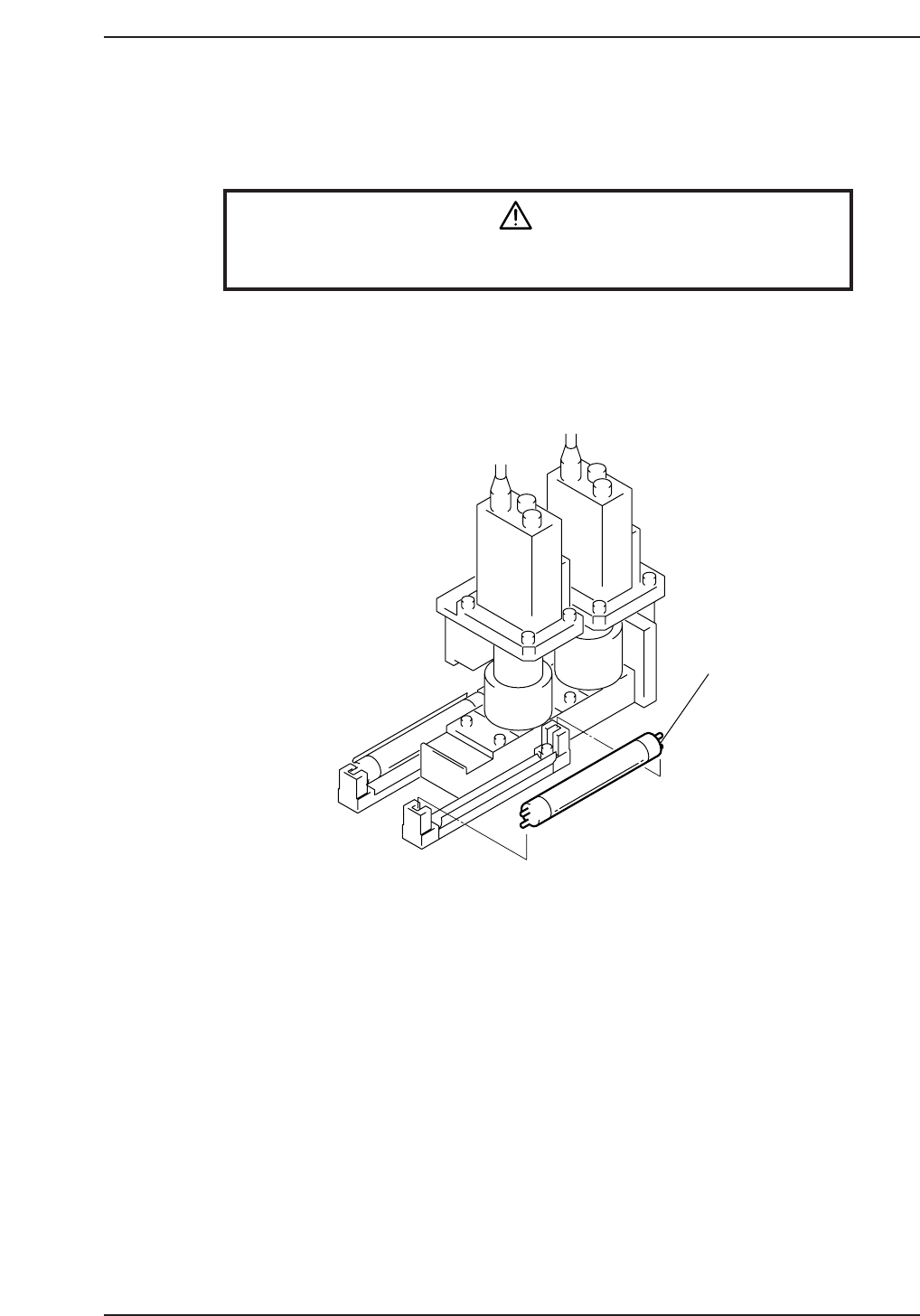

Remove the UV lamp by turning it and pulling it out.
Note : Do not touch the fluorescent lamp as oil from the skin may reduce its life span.
UV lamp
CP6MR003E
Chapter 5 Replacing Consumable Parts
Version 11.0 5-3-1 CP-6 Series Maintenance
