Notes:
Chapter 5 Replacing Consumable Parts
Version 11.0 5-5-2 CP-6 Series Maintenance
6. Replacing Vacuum Pump Parts
Point
The following types of the vacuum pumps used.
When the new type of vacuum pump is used, the maker's seal can be found on the side
noise reduction box.
Sticker
Sticker
CP6MR006E
CP-652C
Name
Vacuum pump
Vacuum pump
Machine type
Except CP-652C
CP-652C
No.
KH750A-302-G1
KHA750A-302-G1
Noise reduction box ASSY No.
AMPZ-9410
AYPV-9300
T002E
Chapter 5 Replacing Consumable Parts
Version 11.0 5-6-1 CP-6 Series Maintenance

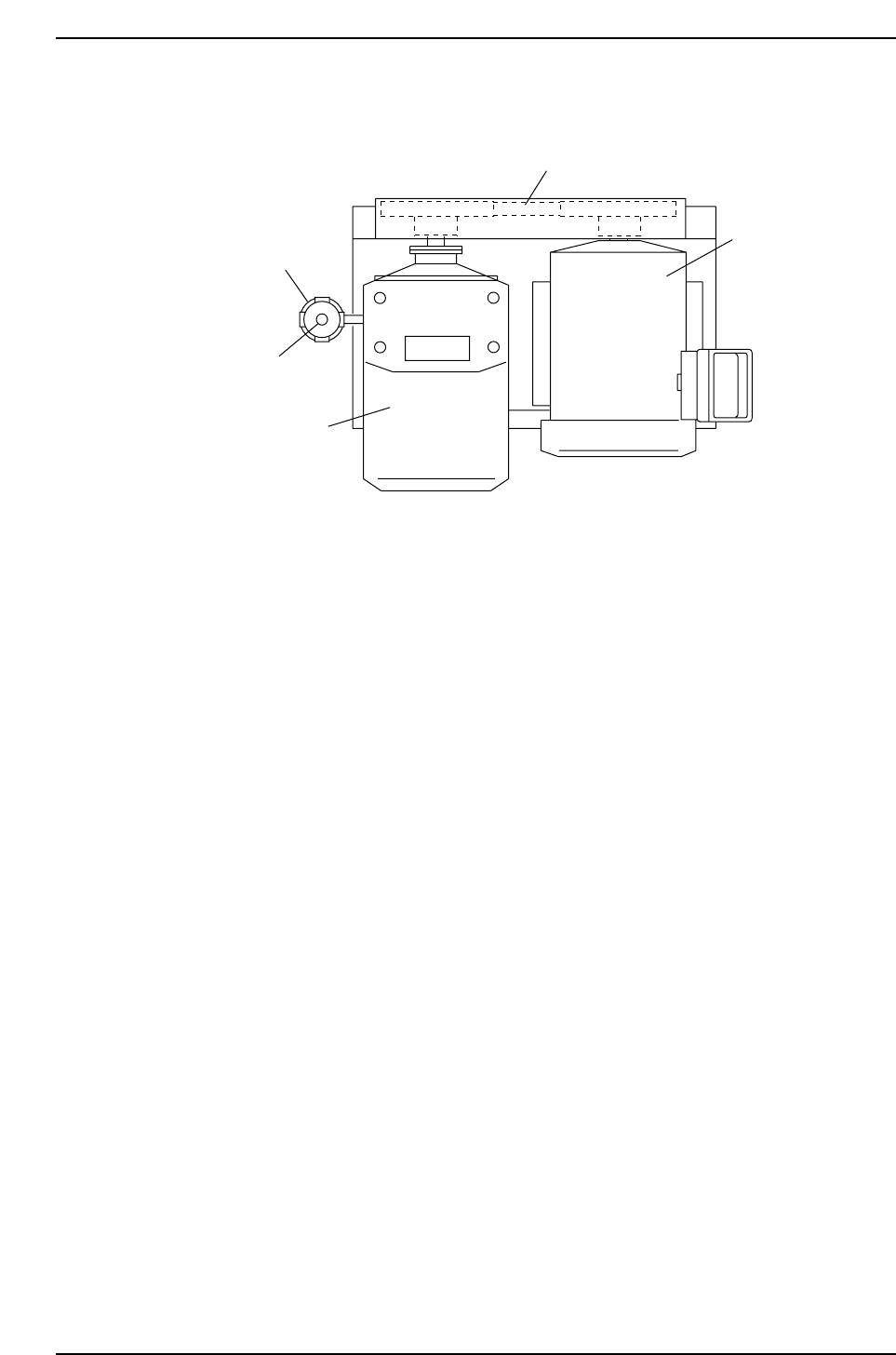

The vacuum pump construction and names of each component are shown below.
(a) Motor 0.75KW, 4P
(b) Vacuum pump KH750A
(c) Belt Polymax belt, 7M-670
(d) Filter 750A
(e) Filter element No. 04A30159010
(a)
(c)
(b)
(d)
(e)
CP6MR007
Chapter 5 Replacing Consumable Parts
Version 11.0 5-6-2 CP-6 Series Maintenance
