YSM40R_KMB_pl - 第34页
7 5 Head (RS) Z, V Axis Head KMB-1606 17 18 19 20 21 22 23 24 25 26 27 38 28 30 33 34 32 35 36 37 22 33 31 30 23 25 1 2 3 4 6 7 8 16 5 9 10 11 12 13 14 15 13 13 14 15 36 29 38 28 29 No. Part No. Part Name Q'ty Remar…
6
5

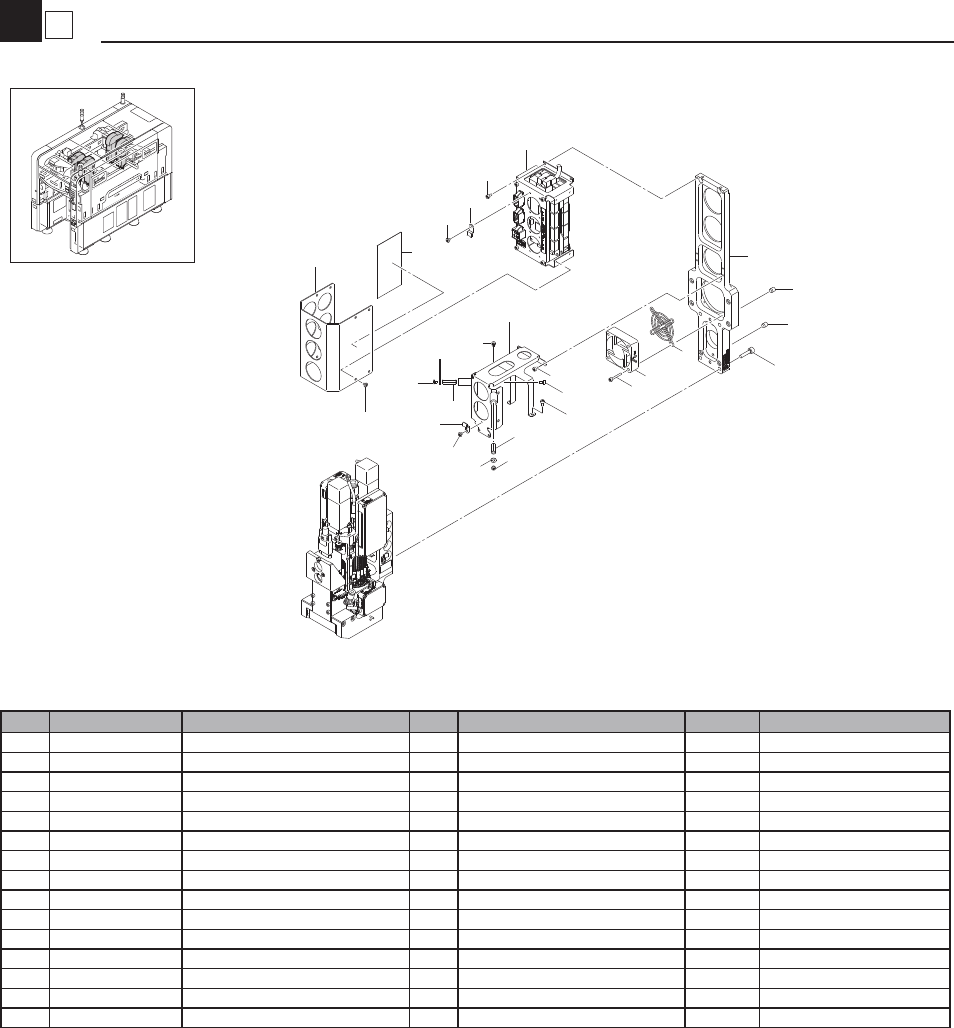

Head (RS) Servo Unit
Head
KMB-1606
1
4
8
8
14
5
7
6
12
11
9
2
12
12
12
12
9
11
11
10
15
11
3
10
15
11
13
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M7002-00 PLATE,HEAD 1
2 KMB-M70C1-00 STAY,HARNESS 1
3 KMB-M70CG-00 COVER,HARNESS 1
4 KMB-M70CJ-00 TAPE,COVER 1
5 KMB-M4187-00 FAN GUARD 52MM 1
6 KMB-M5802-47 HEAD SERVO UNIT ASSY 1
7 KMB-M6185-F0 FAN MOTOR ASSY 1
8 90990-18J034 PIN,PARALLEL 2
9 90990-55J001 CLAMP, CABLE 15
10 90562-23J200 SPACER 2
11 98902-03004 SCREW, BINDING HEAD 35
12 91312-03006 BOLT,HEX.SOCKET HEAD 16
13 91312-03020 BOLT,HEX.SOCKET HEAD 6
14 91312-05020 BOLT,HEX.SOCKET HEAD 4
15 92902-03200 WASHER,PLAIN 3
7
5

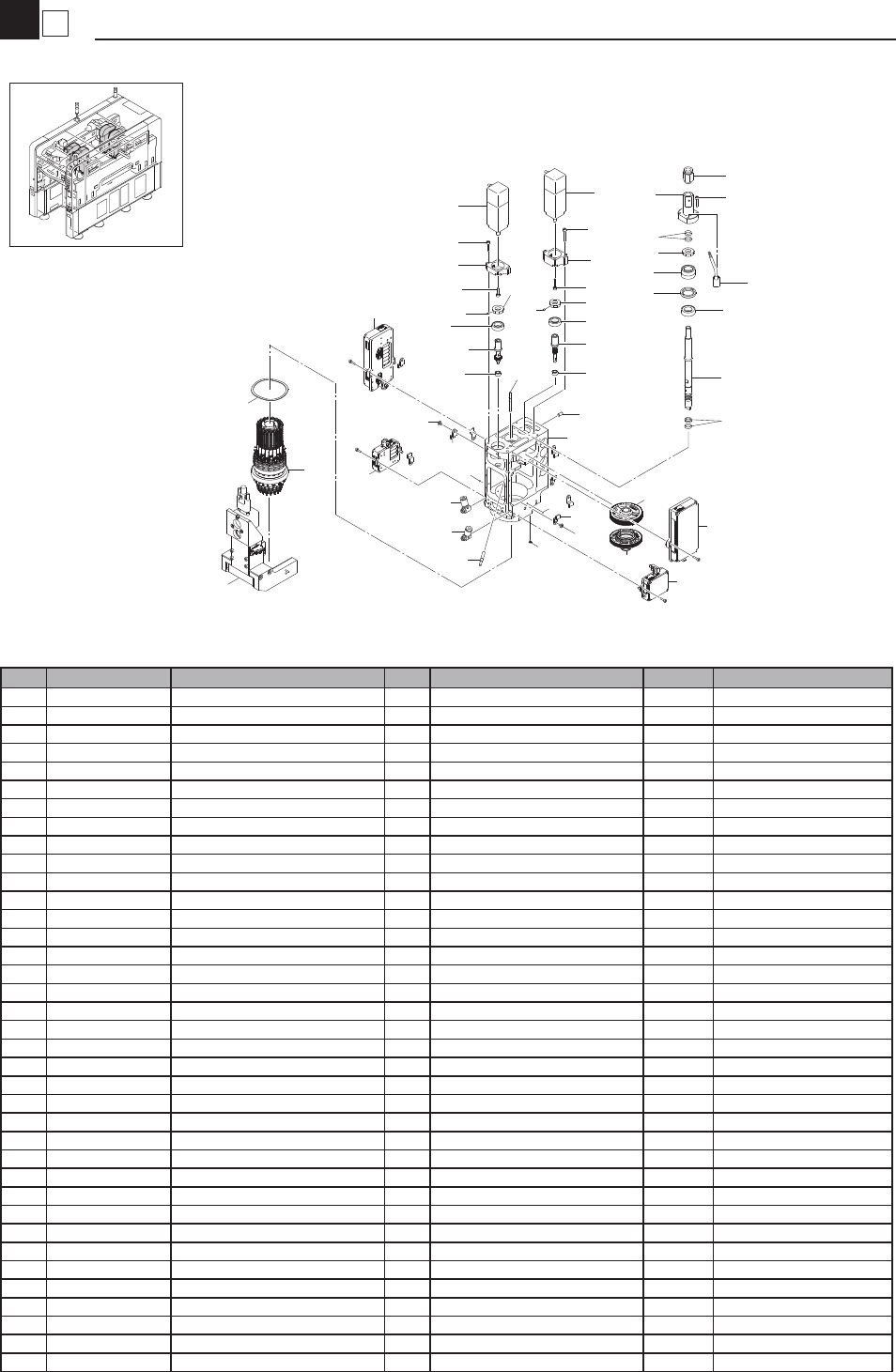

Head (RS) Z, V Axis
Head
KMB-1606
17
18
19
20
21
22
23
24
25
26
27
38
28
30
33
34
32
35
36
37
22
33
31
30
23
25
1
2
3
4
6
7
8
16
5
9
10
11
12
13
14
15
13
13
14
15
36
29
38
28
29
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M7001-00 HOUSING,HEAD 1
2 KMB-M7004-00 BASE,MOTOR 1
3 KMB-M7005-00 BASE,MOTOR 1
4 KMB-M7009-00 HOLDER,PACKING 1
5 KMB-M7010-00 ROTARY ASSY. 1
6 KMB-M7020-00 GEAR,N ASSY. 1
7 KMB-M7021-00 GEAR,N MOTOR 1
8 KMB-M7025-00 NUT,GEAR 1 1
9 KMB-M7028-00 WASHER,WAVE 1
10 KMB-M7030-00 GEAR,R ASSY. 1
11 KMB-M7031-00 GEAR,R MOTOR 1
12 KMB-M7041-00 SHAFT,MAIN 1
13 KMB-M7062-00 NUT,BEARING 3
14 KMB-M70K0-00 Z AXIS ASSY. 2
15 KMB-M70R0-00 V AXIS ASSY. 2
16 KMB-M79C0-H0 S.V.CAM.ASSY. 1
17 KMB-M653M-00 SENSOR,N ORG ASSY 1
18 KMB-M653N-00 SENSOR,R ORG ASSY 1
19 KMB-M653P-00 SEN.VAC.PRESS ASSY 1
20 90KD0-011504 AC SERVO MOTOR 1
21 90KD0-012003 AC SERVO MOTOR 1
22 90990-22J026 PACKING 4
23 90933-01J800 BEARING 2
24 90933-01J900 BEARING 1
25 90933-02J684 BEARING 2
26 90990-08J016 SCREW, PAN HEAD 3
27 90990-26J007 BEARING 1
28 90990-55J001 CLAMP, CABLE 15
29 90944-20J000 BALL,STEEL 2
30 90152-03J03 SCREW, SET 8
31 91312-03012 BOLT,HEX.SOCKET HEAD 2
32 91312-03014 BOLT,HEX.SOCKET HEAD 2
33 91312-03016 BOLT,HEX.SOCET HEAD 6
34 91312-03020 BOLT,HEX.SOCKET HEAD 6
35 99480-04008 PIN, PARALLEL 2
36 $SLH4-M5 JOINT 2
37 $ATS8-01 JOINT 1
8
5

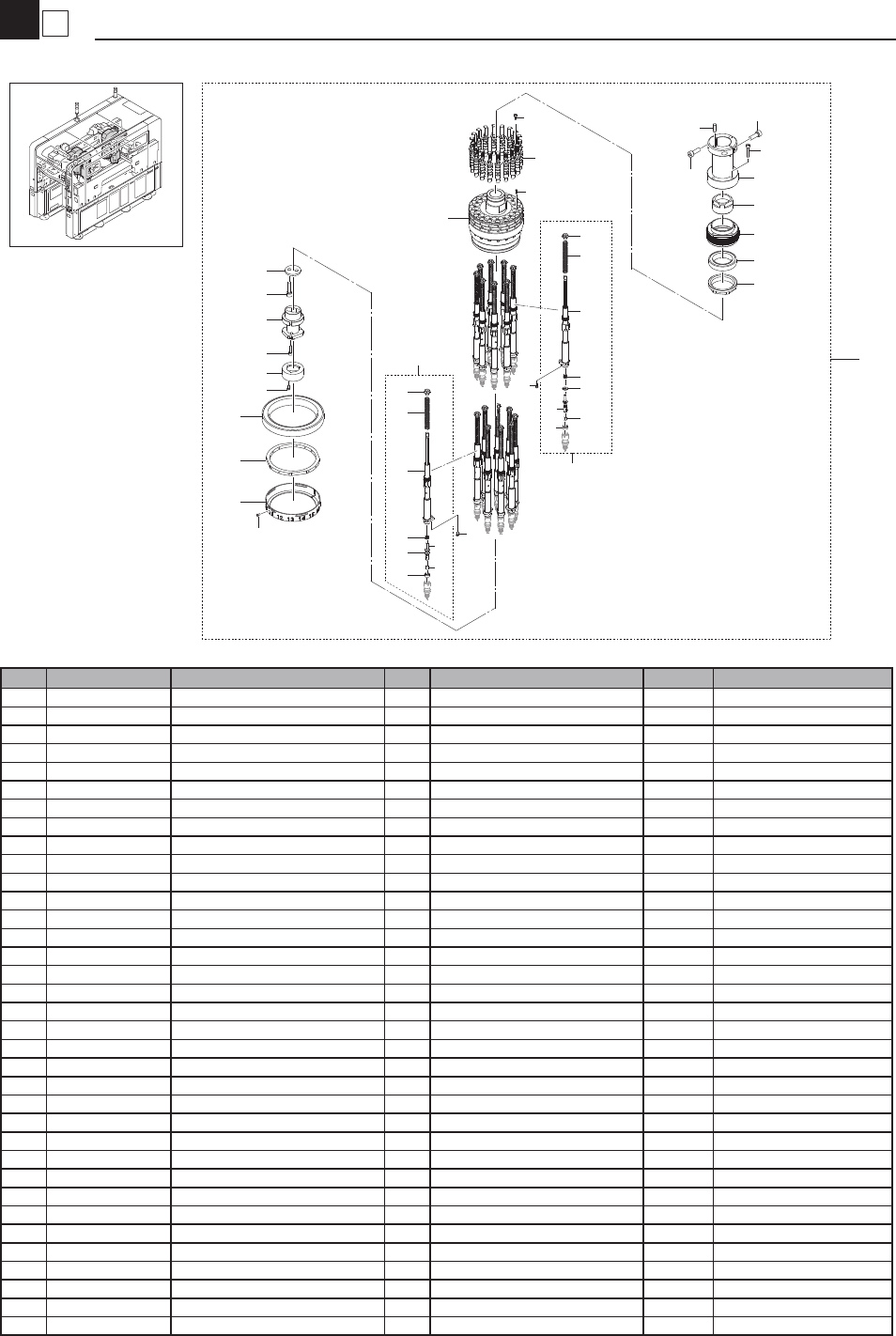

Rotary shaft Assy (RS)
Head
KMB-1606
25
33
25
31
20
18
21
34
19
24
23
26
22
8
5
3
6
4
9
7
10
2
28
11
8
5
12
28
6
9
4
7
10
16
32
13
30
14
27
35
15
17
29
1
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M7010-00 ROTARY ASSY. 1 No Nozzle
2 KMB-M7006-A0 HEAD SHAFT 1 ASSY. 9
3 KMB-M7006-00 BALL SPLINE 1
4 KMB-M7008-00 SHAFT,NOZZLE 1
5 KMB-M7015-00 SPRING 1
6 KMB-M7016-00 SPRING,NOZZLE 1
7 KMB-M7018-00 NUT,SHAFT 1
8 KMB-M702C-00 NUT,SPLINE 1
9 KMB-M70ER-00 WASHER 1
10 KMB-M7070-00 FILTER 1
11 KMB-M7007-A0 HEAD SHAFT 2 ASSY. 9
12 KMB-M7007-00 BALL SPLINE 1
13 KMB-M7012-00 HOLDER,DIFF. 1
14 KMB-M7013-00 DIFFUSER 1
15 KMB-M7014-00 NUT,BRG. 1
16 KMB-M7022-00 WASHER,SHAFT 1
17 KMB-M7023-00 RING,LABEL 1
18 KMB-M7026-00 NUT,GEAR 3 1
19 KMB-M7027-00 NUT,GEAR 2 1
20 KMB-M7032-00 COUPLING,R 1
21 KMB-M7034-00 GEAR,R3 1
22 KMB-M7042-00 HOLDER,MAIN 1
23 KMB-M70V0-00 VALVE,ASSY. 18
24 90990-01J031 BOLT,HEX.SOCKET HEAD 18
25 90990-01J155 BOLT,HEX.SOCKET HEAD 2
26 90990-18J035 PIN,PARALLEL 18
27 90990-08J035 SCREW,PAN HEAD 3
28 90990-08J038 SCREW,PAN HEAD 36
29 90990-08J039 SCREW,PAN HEAD 4
30 90115-02J008 BOLT,HEX.SOCKET HEAD 3
31 90112-02J012 BOLT,HEX.S.H: M2X12 4
32 91312-03012 BOLT,HEX.SOCKET HEAD 2
33 99480-03008 PIN, PARALLEL 1
34 90933-01J803 BEARING 1
35 90933-01J809 BEARING 1
