YSM40R_KMB_pl - 第6页

KMB-1606 5 / 5 Contents 11 FDR 1 1-1 Set Up ST on MC 1 1-2 FDR Power ST 1 1-3 F .S. T ype 100 1 1-4 Dust Box 12 Controller Section 12-1 Controller 13 Exterior , etc. Section 13-1 Exterior , etc. 1 13-2 Exterior , etc. 2 …

100%1 / 71

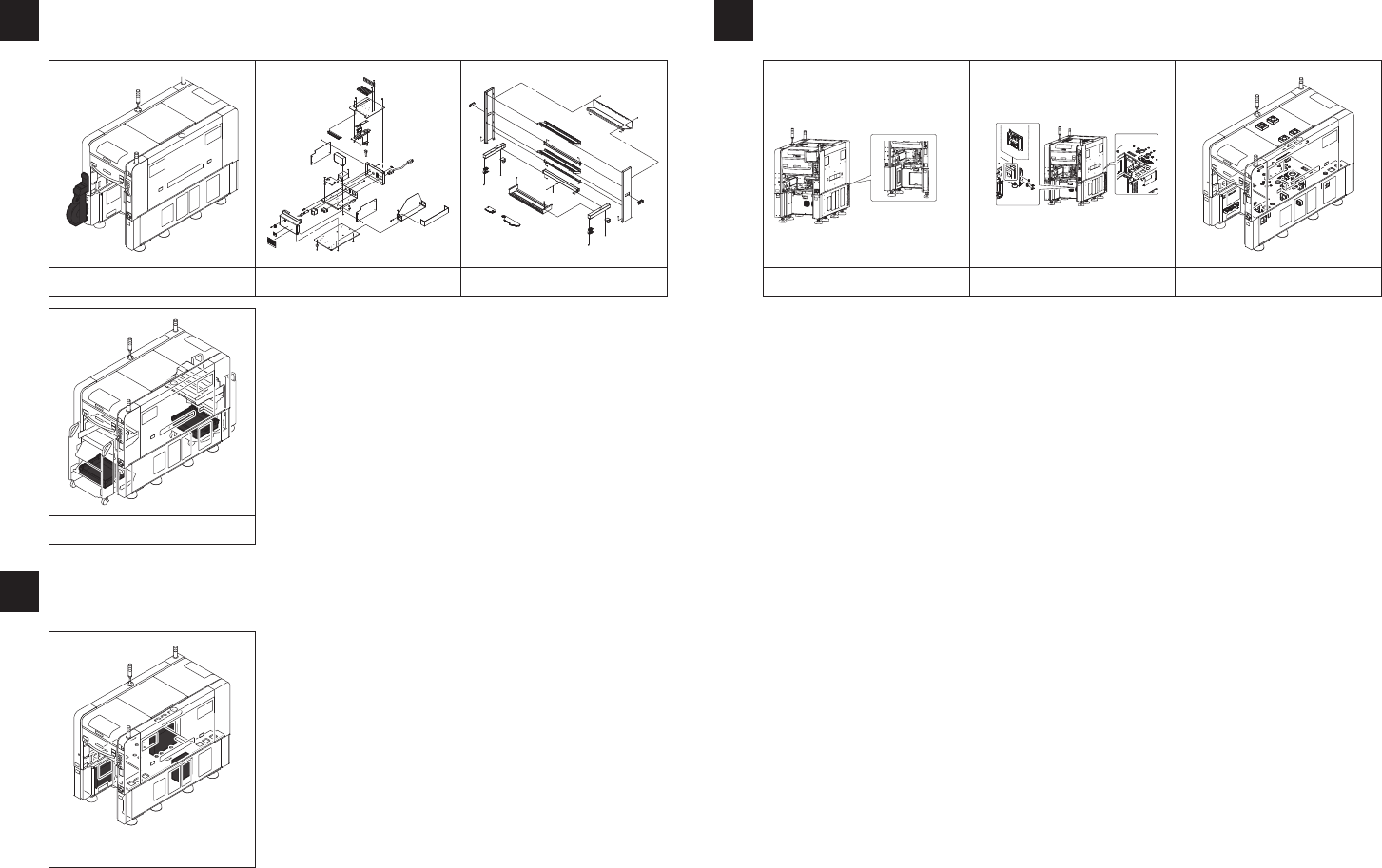

KMB-1606
4 / 5
Contents
7 Conveyor Section
7-10 Clamp Board 2 7-11 Extension
8 Camera Section
8-1 Multi Camera & Light Assy
8-2 Fiducial Camera
9 Blow Station Section
9-1 Blow Station (Fix)
10 Tape Cutter Section
10-1 Main Cutter Assy 46-Fix
Cylinder / Valve
10-2 Main Cutter Assy 46-Fix
Cutter / Guide
10-3 FES Joint Assy / Upper Cover
10-4 Base / Side Block
10-5 RMV (Desorption) / Clamp
10-6 RMV (Desorption) / R Base

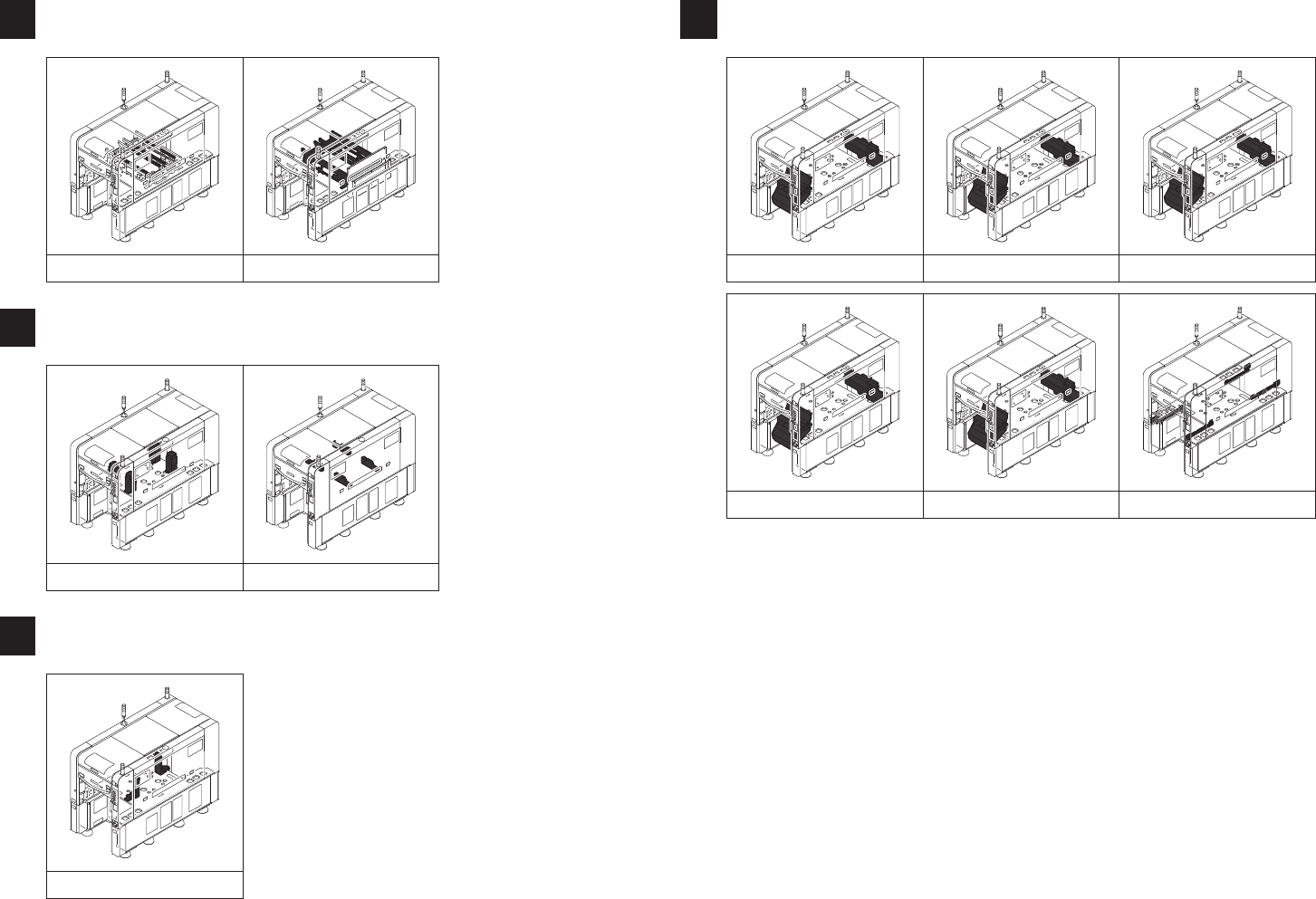

KMB-1606
5 / 5
Contents
11 FDR
11-1 Set Up ST on MC 11-2 FDR Power ST 11-3 F.S. Type 100
11-4 Dust Box
12 Controller Section
12-1 Controller
13 Exterior, etc. Section
13-1 Exterior, etc. 1 13-2 Exterior, etc. 2 13-3 Fan
1
1
Base
Base
KMB-1606
31
30
31
28
29
27
33
32
28
42
43
5
1
4
3
24
2
3
34
45
44
35
26
39
36
38
41
37
40
41
26
21
13
21
6
23
16
26
1
4
15
21
14
20
20
14
12
2
24
3
24
18
15
3
28
46
40
22
17
24
17
5
16
21
23
22
11
14
16
21
7
8
19
18
10
18
18
10
9
7
25

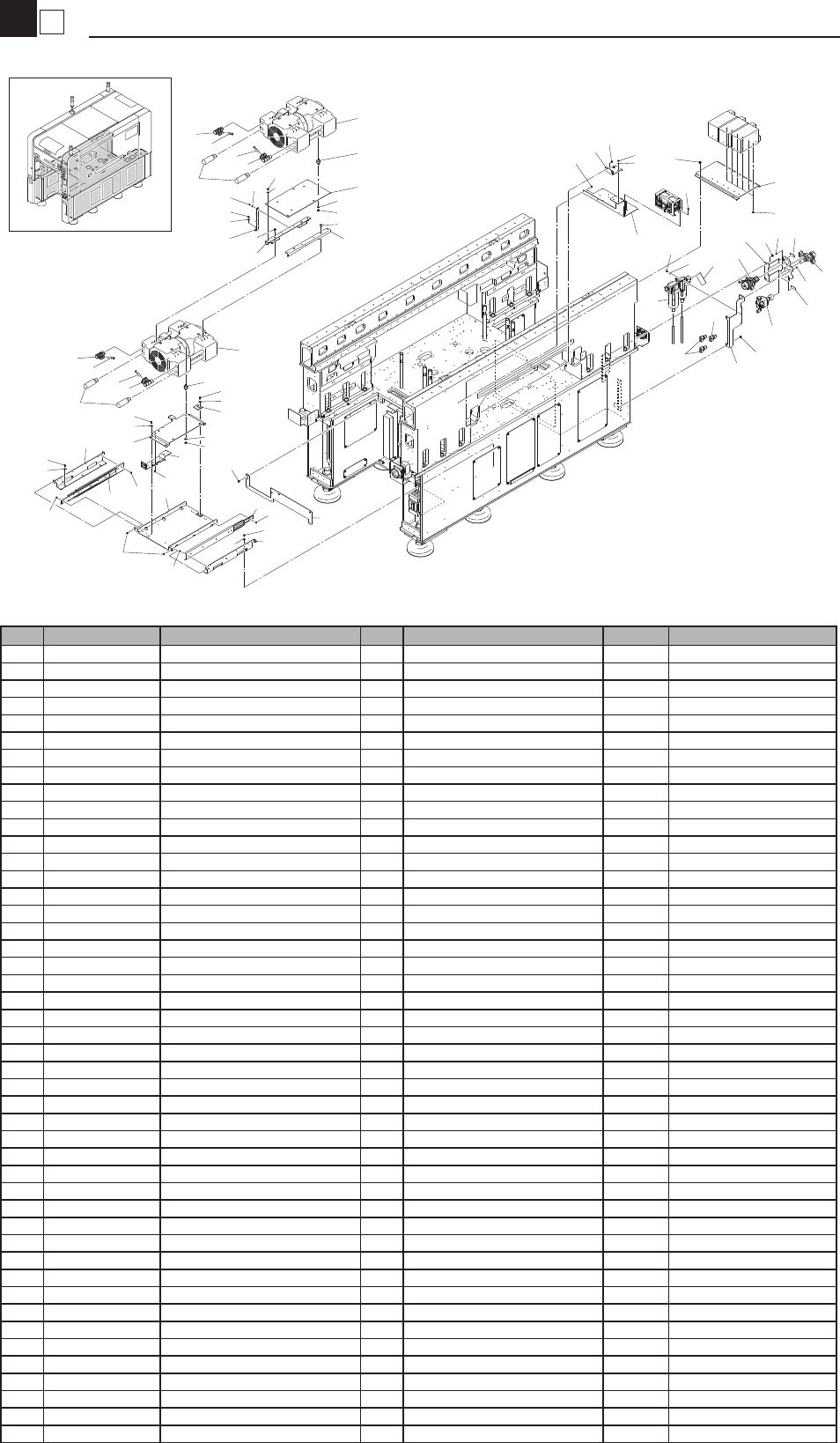

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M8501-00 PUMP,VACUUM 2
2 KLF-M8536-01 MUFFLER 4
3 KLF-M8537-00 JOINT 4
4 KLF-M11K3-00 ANTIVIB.RUBBER 8
5 KLF-M11K5-00 PLATE,PUMP 1 2
6 KLF-M11K6-00 PLATE,PUMP 2 1
7 KLF-M11N1-00 BRKT.,PUMP 1 2
8 KLF-M11N2-00 PLATE,PUMP 1
9 KLF-M11N3-01 PLATE,PUMP 1
10 KLF-M11N4-00 SLIDE RAIL 2
11 KLF-M11N7-01 PLATE,CONNECTOR 1
12 KLF-M11N9-00 STAY,HNS. 1
13 KJX-M1105-00 PLATE,HOLD 1
14 91312-04005 BOLT,HEX.SOCKET HEAD 4
15 91312-05006 BOLT,HEX.SOCKET HEAD 6
16 91312-05010 BOLT,HEX.SOCKET HEAD 8
17 91312-06010 BOLT,HEX.SOCKET HEAD 4
18 92012-04006 BOLT, BUTTON HEAD 16
19 97602-04308 SCREW,PAN HEAD W/W 2
20 92902-04200 WASHER,PLAIN 2
21 92902-05200 WASHER, PLAIN 14
22 95302-06600 NUT, HEXAGON 8
23 92902-06100 WASHER,SPRING 8
24 $UP10 JOINT 4
25 KLF-M11P4-00 BRKT.,COVER12 1
26 90990-12J004 SCREW, BIN. HEAD W/W 7
27 KMB-M91E1-00 PLATE,BASE 1
28 97602-05310 SCREW, PAN HEAD W/W 8
29 KLF-M91E5-00 STAY 1
30 92902-04200 WASHER,PLAIN 2
31 91312-04005 BOLT,HEX.SOCKET HEAD 6
32 KLF-M1128-00 PLATE 28 1
33 90990-11J003 SCREW,PAN HEAD W/W 12
34 KLF-M1111-02 PLATE 11 1
35 KLF-M1125-01 PLATE 25 1
36 KLF-M8502-00 FILTER SET 1
37 KLF-M8511-00 EXT.VALVE 1
38 KLF-M8512-00 REGULATOR 1
39 KLF-M8513-01 PRECISION REGULATOR 1
40 KLF-M13D1-00 SEAL,PRESSURE GAUGE 2
41 91312-04006 BOLT,HEX.SOCKET HEAD 8
42 91312-06010 BOLT,HEX.SOCKET HEAD 2
43 92902-06200 WASHER,PLAIN 2
44 $UYD10-8 JOINT 2
45 $AUY10 JOINT 1
46 KHY-M11B0-00 AIR TAG 1
