2017/04 – Subject to c hange 17 è Internet: www .festo.c om/catalogue/... He avy-duty three-point grippers HG D T Ac cessories Gripper jaw blank BUB-HGD T (sc ope of delivery: 3 pieces) Material: Wrought aluminium alloy …
Subject to change – 2017/04
16
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Accessories
Adapter kit
HAPG
Material:
Wrought aluminium alloy
Free of copper and PTFE
RoHS-compliant
-H- Note
The kit includes the individual
mounting interface as well as the
necessary mounting material.
Permissible drive/gripper combinations with adapter kit Download CAD data è www.festo.com
Combination Drive Gripper Adapter kit
Size Size CRC
1)
Part No. Type
EGSL/HGDT EGSL HGDT HAPG
35 25
2
542433 HAPG-97
45, 55 25 542439 HAPG-SD2-32
45, 55, 75 35 542436 HAPG-94
75 40 542437 HAPG-95
75 50 542443 HAPG-SD2-36
ERMB/HGDT ERMB HGDT HAPG
20, 25 25
2
542440 HAPG-SD2-33
20, 25, 32 35 542441 HAPG-SD2-34
25, 32 40 542442 HAPG-SD2-35
32 50 542443 HAPG-SD2-36
EHMB/HGDT EHMB HGDT HAPG
20 35
2
542441 HAPG-SD2-34
20 40 542442 HAPG-SD2-35
20 50 542443 HAPG-SD2-36
1) CRC2: Corrosion resistance class to Festo standard 940 070
Components with medium corrosion exposure. Externally visible components with significant decorative function in direct contact with normal industrial atmosphere or media such as coolants and lubricants.
2017/04 – Subject to change
17
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Accessories
Gripper jaw blank BUB-HGDT
(scope of delivery: 3 pieces)
Material:
Wrought aluminium alloy
Free of copper and PTFE
BUB-HGDT-25 BUB-HGDT-35 … 63
Dimensions and ordering data
For size B1 B2 D1 D2 D3 H1 L1
[mm] 0.05 +0.22 H13 H8 +0.22 0.05 0.05
25 11 5.9 3.2 5 – 20 21.6
35 11 – 3.2 5 5.9 35 26.5
40 16 – 4.3 7 7.4 50 34
50 20 – 6.3 9 10.4 65 42
63 24 – 6.3 9 10.4 80 52
For size L2 L3 T1 T2 Weight Part No. Type
0.02
1)
0.01
1)
per blank
[mm] 0.1
2)
0.1
1)
+0.1 [g]
25 12.6 6 1.3 14 10 541101 BUB-HGDT-25
35 14.5 8 1.3 29 22 541102 BUB-HGDT-35
40 17 12 1.6 45 59 541103 BUB-HGDT-40
50 21 15 2.1 58 112 541104 BUB-HGDT-50
63 24 18 2.1 73 222 541105 BUB-HGDT-63
1) For centring
2) For through-hole
Subject to change – 2017/04
18
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Accessories

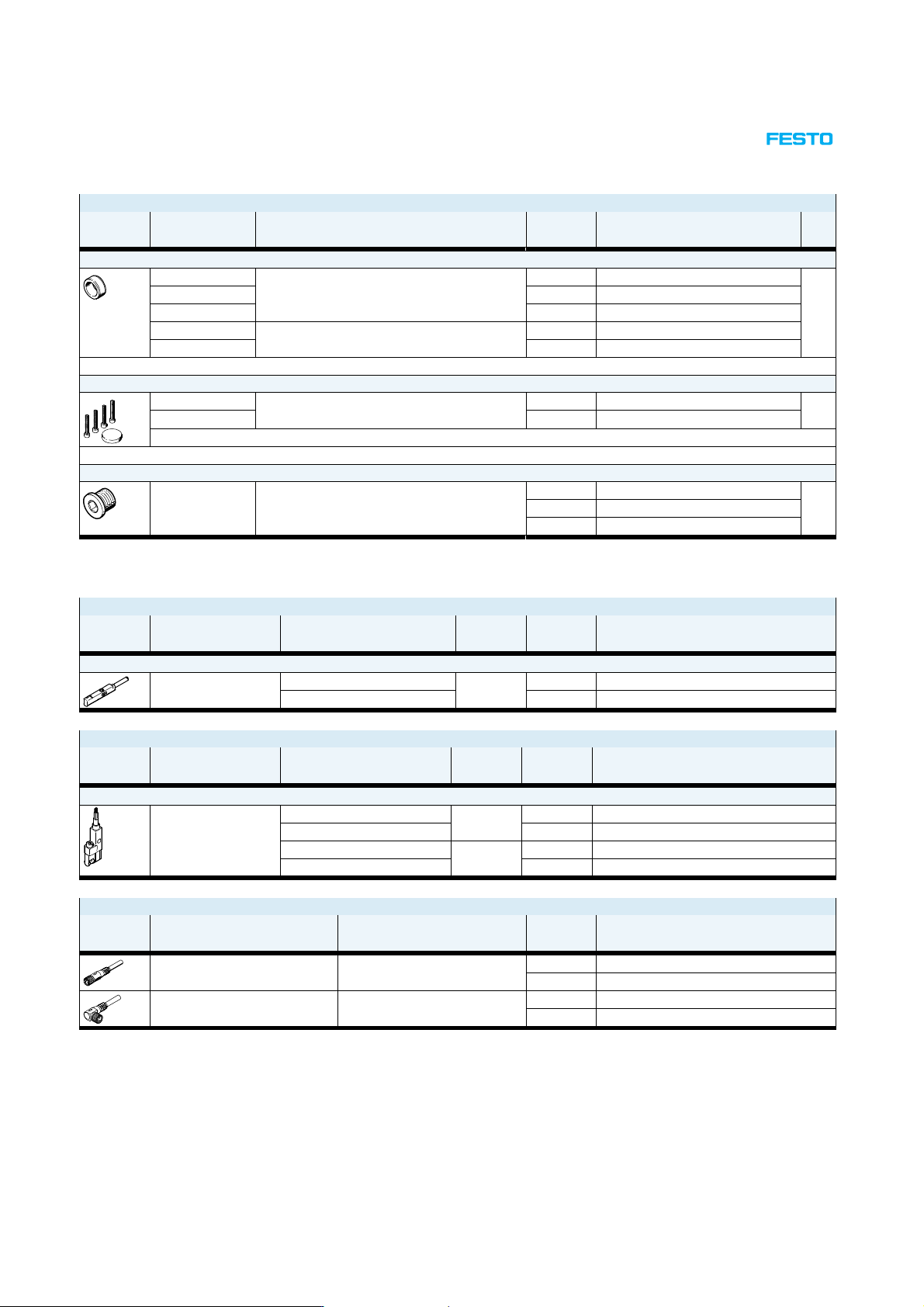

Ordering data
For size Remarks Weight Part No. Type PU
1)
[mm] [g]
Centring sleeve ZBH Technical data è Internet: zbh
25, 35 For centring gripper jaw blanks/gripper fingers on the
gripper jaws
1 189652 ZBH-5 10
40 1 186717 ZBH-7
50, 63 1 150927 ZBH-9
35, 40 For lateral centring of gripper fingers on the gripper jaws 1 189652 ZBH-5
50, 63 1 186717 ZBH-7
Central mounting SLZZ Technical data è Internet: slzz
25 For centring the gripper during mounting 21 150900 SLZZ-16/10 –
35, 40, 50, 63 40 150901 SLZZ-25/16
Blanking plug B Technical data è Internet: blanking plug
25 … 63 For sealing the supply ports 0.6 30979 B-M3-S9 10
1 174308 B-M5-B
5 3568 B-x
1) Packaging unit
Ordering data – Proximity sensors for C-slot, magneto-resistive Technical data è Internet: smt
Type of mounting Electrical connection,
connection direction
Switching
output
Cable length Part No. Type
[m]
N/O contact
Insertable in the slot from
above
Cable, 3-wire, in-line PNP 2.5 551373 SMT-10M-PS-24V-E-2,5-L-OE
Plug M8x1, 3-pin, in-line 0.3 551375 SMT-10M-PS-24V-E-0,3-L-M8D
Ordering data – Proximity sensors for C-slot, magneto-resistive Technical data è Internet: smt
Type of mounting Electrical connection,
connection direction
Switching
output
Cable length Part No. Type
[m]
N/O contact
Insertable in the slot
lengthwise
Cable, 3-wire, lateral PNP 2.5 547862 SMT-10G-PS-24V-E-2,5Q-OE
Plug M8x1, 3-pin, lateral 0.3 547863 SMT-10G-PS-24V-E-0,3Q-M8D
Cable, 3-wire, lateral NPN 2.5 8065030 SMT-10G-NS-24V-E-2,5Q-OE
Plug M8x1, 3-pin, lateral 0.3 8065029 SMT-10G-NS-24V-E-0,3Q-M8D
Ordering data – Connecting cables Technical data è Internet: nebu
Electrical connection, left Electrical connection, right Cable length Part No. Type
[m]
Straight socket, M8x1, 3-pin Cable, open end, 3-wire 2.5 541333 NEBU-M8G3-K-2.5-LE3
5 541334 NEBU-M8G3-K-5-LE3
Angled socket, M8x1, 3-pin Cable, open end, 3-wire 2.5 541338 NEBU-M8W3-K-2.5-LE3
5 541341 NEBU-M8W3-K-5-LE3
