Subject to change – 2017/04
2
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Key features
At a glance
The force generated by the linear
motion is translated into the gripper
jaw movement via a force-guided
triple wedge mechanism. This also
guarantees synchronous movement
of the gripper jaw. The virtually
backlash-free slideway is realised
using ground-in gripper jaws.
A wide range of uses:
Double-acting gripper
Compression springs for supple
menting or retaining gripper forces,
or for use as a single-acting gripper
with only one compressed air
connection
Suitable for external and internal
gripping
Sealing air connection:
Compressed air flows past the gripper
jaw when sealing air (max. 0.5 bar) is
connected.
This prevents particles and soluble
oil, etc. from entering the gripper jaw
guides.
There are two variants available:
Standard – HGDT-…
Stroke per gripper jaw:
3 … 10 mm
Total gripping force:
207 … 1728 N
High force – HGDT-…-F
Stroke per gripper jaw:
1.5 … 5 mm
Total gripping force:
411 … 3372 N
1
2
3
4
1 Gripper jaw
2 Triple wedge mechanism
3 Slot for proximity sensor
4 Piston with magnet
-H- Note
Design software
for gripper selection
è www.festo.com
Wide range of supply ports Mounting options
Direct Via adapter plate Direct mounting Via adapter plate
from the front from underneath from above from underneath
1
2
1
4
3
4
3
4
4
1 Supply ports
2 O-rings
3 Mounting screws
4 Centring pins or centring disc
-H- Note
These grippers are not suitable or are
of limited suitability for the following
application examples:
Not suitable for: Of limited suitability for:
Welding splashes Machining with sealing air possible
Aggressive media only possible after consultation with Festo
2017/04 – Subject to change
3
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Peripherals overview and type codes
Peripherals overview System product for handling and assembly technology
8
1
2
3
4
5
6
7
Accessories
Type Description è Page/Internet
1 Gripper jaw blank
BUB-HGDT
Blank specially matched to the gripper jaws for custom production of gripper fingers 17
2 Centring sleeve
ZBH
For centring gripper jaw blanks/gripper fingers on the gripper jaws 18
3 Push-in fitting
QS
For connecting compressed air tubing with standard O.D. qs
4 Blanking plug
B
For sealing supply ports when using ports at the front 18
5 Proximity sensor
SMT-10/SMT-10G
For sensing the piston position, 3 slots available 18
6 Central mounting
SLZZ
For centring the gripper during mounting 18
7 Dowel pin For centring the gripper during mounting –
8 Adapter kit
DHAA, HAPG
Drive/gripper connections 15
Type codes
HGDT — 25 — A — F — G1
Type
HGDT Three-point gripper
Size
Position sensing
A Via proximity sensor
Force variant
F High force
Gripping force backup
G1 Opening
G2 Closing
Subject to change – 2017/04
4
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT

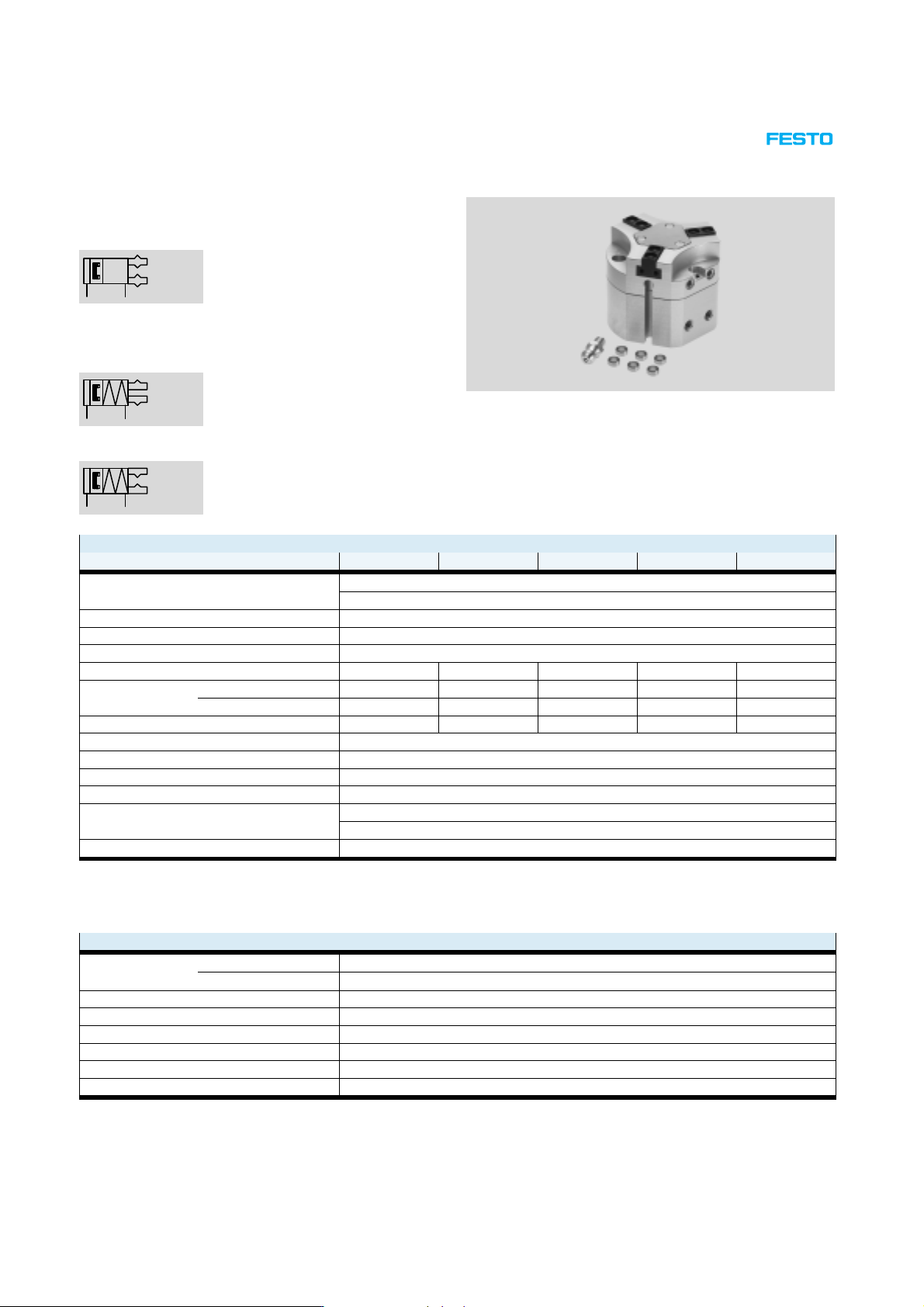

Technical data
Function
Double-acting
HGDT-…-A
Single-acting or
with gripping force retention …
… opening HGDT-…-G1
… closing HGDT-…-G2
-N- Size
25 … 63
-T- Stroke
1.5 … 10 mm
General technical data
Size 25 35 40 50 63
Constructional design Wedge-shaped actuator
Force-guided motion sequence
Mode of operation Double-acting
Gripper function 3-point
Number of gripper jaws 3
Max. load per external gripper finger
1)
[g] 10 30 70 160 250
Stroke per gripper jaw HGDT-…-A [mm] 3 4 6 8 10
HGDT-…-A-F [mm] 1.5 2 3 4 5
Pneumatic connection M5 M5 M5 Gx Gx
Pneumatic connection for sealing air M5
Repetition accuracy
2)
[mm] 0.03
Max. operating frequency [Hz] 4
Position sensing Via proximity sensor
Type of mounting Via through-hole, locating pin or centring disc
Via female thread, locating pin or centring disc
Mounting position Any
1) Valid for unthrottled operation
2) Concentric to the central shaft
Operating and environmental conditions
Min. operating
pressure
HGDT-… [bar] 3
HGDT-…-G… [bar] 4
Max. operating pressure [bar] 8
Sealing air operating pressure [bar] 0 … 0.5
Operating medium Compressed air in accordance with ISO 85731:2010 [7:4:4]
Note on operating/pilot medium Operation with lubricated medium possible (in which case lubricated operation will always be required)
Ambient temperature
1)
[°C] +5 … +60
Corrosion resistance class CRC
2)
2
1) Note operating range of proximity sensors
2) CRC2: Corrosion resistance class to Festo standard 940 070
Components with medium corrosion exposure. Externally visible components with significant decorative function in direct contact with normal industrial atmosphere or media such as coolants and lubricants.
