Heavy-duty three-point grippers HGDT
Peripherals overview and type codes
Peripherals overview System product for handling and assembly technology
8
1
2
3
4
5
6
7
Accessories
Type Description è Page/Internet
1 Gripper jaw blank
BUB-HGDT
Blank specially matched to the gripper jaws for custom production of gripper fingers 17
2 Centring sleeve
ZBH
For centring gripper jaw blanks/gripper fingers on the gripper jaws 18
3 Push-in fitting
QS
For connecting compressed air tubing with standard O.D. qs
4 Blanking plug
B
For sealing supply ports when using ports at the front 18
5 Proximity sensor
SMT-10/SMT-10G
For sensing the piston position, 3 slots available 18
6 Central mounting
SLZZ
For centring the gripper during mounting 18
7 Dowel pin For centring the gripper during mounting –
8 Adapter kit
DHAA, HAPG
Drive/gripper connections 15
Type codes
HGDT — 25 — A — F — G1
Type
HGDT Three-point gripper
Size
Position sensing
A Via proximity sensor
Force variant
F High force
Gripping force backup
G1 Opening
G2 Closing
Subject to change – 2017/04
4
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data
Function
Double-acting
HGDT-…-A
Single-acting or
with gripping force retention …
… opening HGDT-…-G1
… closing HGDT-…-G2
-N- Size
25 … 63
-T- Stroke
1.5 … 10 mm
General technical data
Size 25 35 40 50 63
Constructional design Wedge-shaped actuator
Force-guided motion sequence
Mode of operation Double-acting
Gripper function 3-point
Number of gripper jaws 3
Max. load per external gripper finger
1)
[g] 10 30 70 160 250
Stroke per gripper jaw HGDT-…-A [mm] 3 4 6 8 10
HGDT-…-A-F [mm] 1.5 2 3 4 5
Pneumatic connection M5 M5 M5 Gx Gx
Pneumatic connection for sealing air M5
Repetition accuracy
2)
[mm] 0.03
Max. operating frequency [Hz] 4
Position sensing Via proximity sensor
Type of mounting Via through-hole, locating pin or centring disc
Via female thread, locating pin or centring disc
Mounting position Any
1) Valid for unthrottled operation
2) Concentric to the central shaft
Operating and environmental conditions
Min. operating
pressure
HGDT-… [bar] 3
HGDT-…-G… [bar] 4
Max. operating pressure [bar] 8
Sealing air operating pressure [bar] 0 … 0.5
Operating medium Compressed air in accordance with ISO 85731:2010 [7:4:4]
Note on operating/pilot medium Operation with lubricated medium possible (in which case lubricated operation will always be required)
Ambient temperature
1)
[°C] +5 … +60
Corrosion resistance class CRC
2)
2
1) Note operating range of proximity sensors
2) CRC2: Corrosion resistance class to Festo standard 940 070
Components with medium corrosion exposure. Externally visible components with significant decorative function in direct contact with normal industrial atmosphere or media such as coolants and lubricants.
2017/04 – Subject to change
5
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data

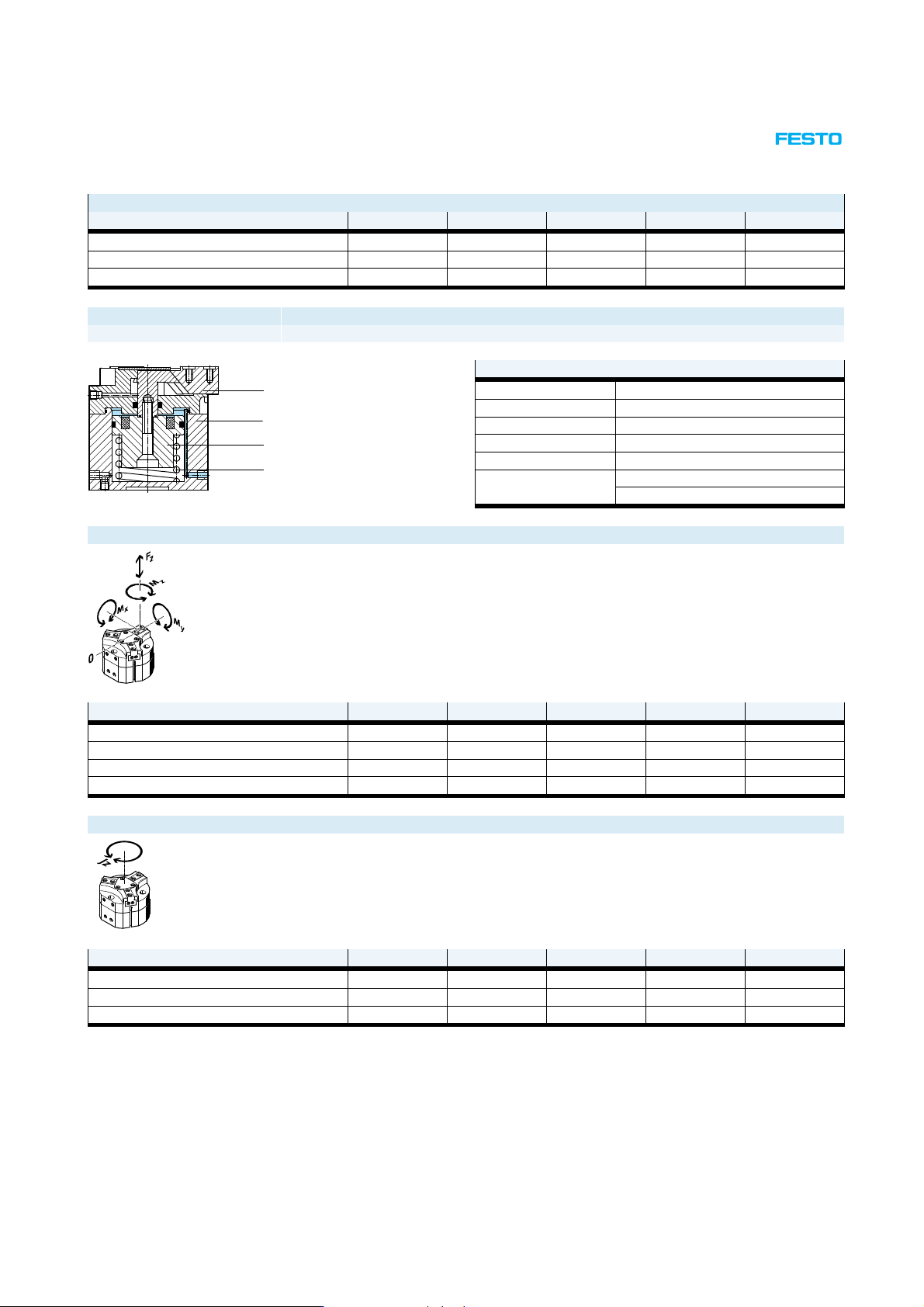

Weight [g]
Size 25 35 40 50 63
HGDT-… 185 307 712 1104 1873
HGDT-…-G1 203 337 840 1592 2469
HGDT-…-G2 203 385 837 1440 2543
Materials
Sectional view
Three-point gripper
1 Gripper jaw Hardened steel
2 Housing Smooth anodised aluminium
3 Piston Anodised aluminium
4 Spring Spring steel
– Seals Nitrile rubber
– Note on materials Free of copper and PTFE
RoHS-compliant
Characteristic load values at the gripper jaws
The indicated permissible forces and
torques apply to a single gripper jaw.
They include the lever arm,
additional applied loads due to the
workpiece or external gripper fingers
and acceleration forces occurring
during movement.
The zero coordinate line (gripper
finger point of rotation) must be
taken into consideration for the
calculation of torques.
Size 25 35 40 50 63
Max. permissible force F
z
[N] 350 400 800 1500 2500
Max. permissible torque M
x
[Nm] 7 15 30 50 80
Max. permissible torque M
y
[Nm] 10 10 20 30 50
Max. permissible torque M
z
[Nm] 5 10 25 40 60
Moment of inertia [kgcm
2
]
Mass moment of inertia of the three-
point gripper in relation to the central
axis, without external gripper fingers,
without load.
Size 25 35 40 50 63
HGDT-… 0.48 1.17 4.37 11.05 28.77
HGDT-…-G1 0.5 1.37 5.59 15.33 42.44
HGDT-…-G2 0.5 1.37 5.23 13.92 39.50
1
2
3
