2017/04 – Subject to c hange 7 è Internet: www .festo.c om/catalogue/... He avy-duty three-point grippers HG D T T echnical data Standar d – HGD T- … Gripping force F Gri p per gripper jaw as a function of operating pres…

100%1 / 18

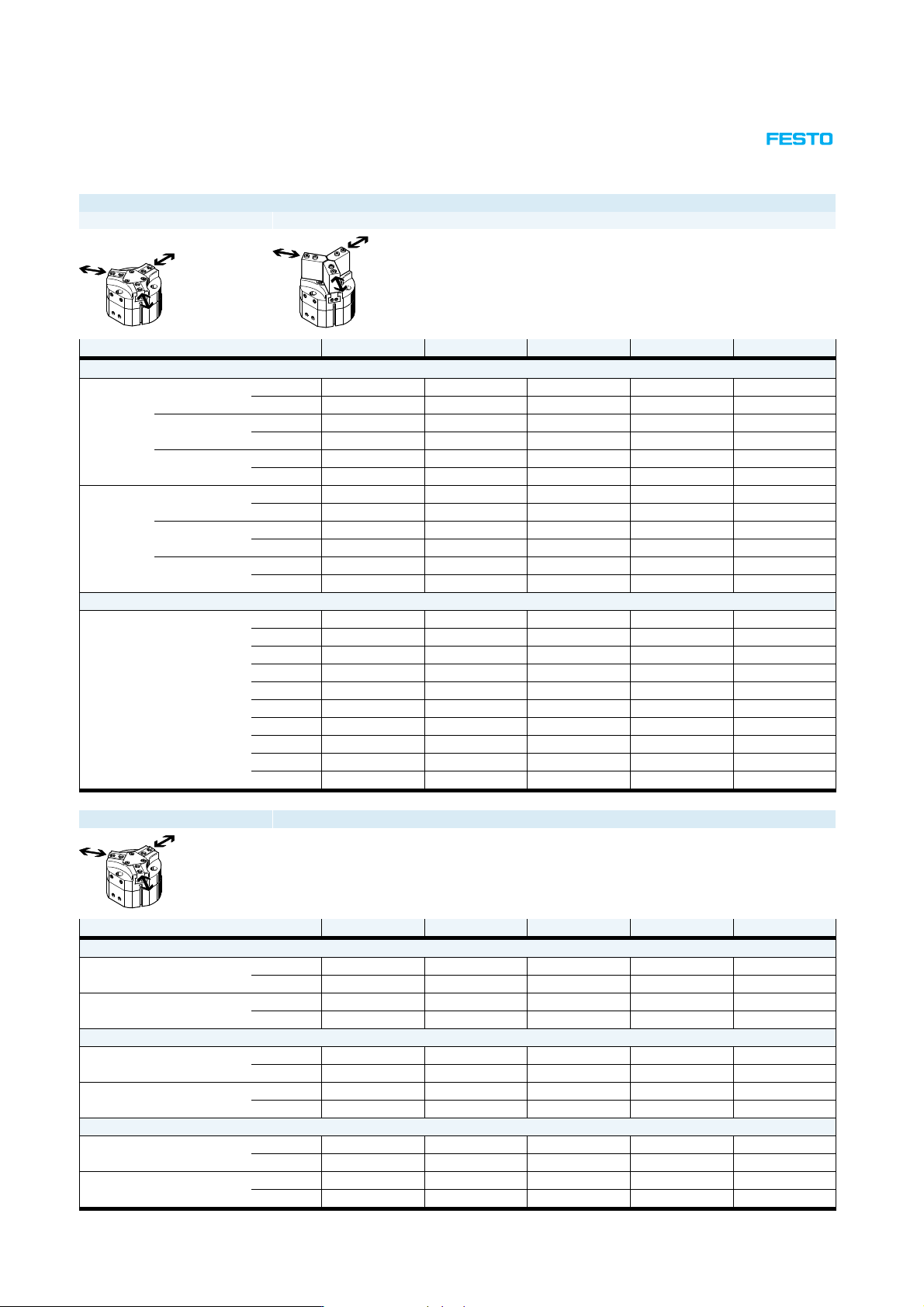

Subject to change – 2017/04
6
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data
Opening and closing times [ms] at 6 bar
Without external gripper fingers With external gripper fingers
The indicated opening and closing
times [ms] have been measured at
room temperature at an operating
pressure of 6 bar with horizontally
mounted gripper without additional
gripper fingers. The grippers must be
throttled for greater loads [g]. Opening
and closing times must then be
adjusted accordingly.
Size 25 35 40 50 63
Without external gripper fingers
Standard HGDT-…-A opening 28 40 62 85 152
closing 25 45 59 75 142
HGDT-…-A-G1 opening 27 32 58 32 48
closing 33 56 160 146 246
HGDT-…-A-G2 opening 33 46 111 61 159
closing 25 35 87 70 107
High force HGDT-…-A-F opening 20 43 48 96 163
closing 30 39 49 83 162
HGDT-…-A-F-G1 opening 25 29 63 31 70
closing 61 67 190 170 299
HGDT-…-A-F-G2 opening 38 53 117 88 169
closing 33 36 104 65 128
With external gripper fingers per gripper finger (as a function of the load)
HGDT-… 20 g 80 – – – –
30 g 100 130 – – –
70 g 150 200 115 – –
100 g 180 240 140 – –
150 g 220 290 170 – –
200 g – 335 200 190 –
250 g – – 220 210 190
300 g – – – 230 200
400 g – – – 270 230
500 g – – – – 260
Gripping force [N] at 6 bar
Size 25 35 40 50 63
Gripping force per gripper jaw
Standard HGDT-…-A opening 82 164 229 347 576
closing 69 152 206 307 551
High force HGDT-…-A-F opening 180 294 367 740 1124
closing 148 274 330 625 864
Total gripping force
Standard HGDT-…-A opening 246 492 687 1041 1728
closing 207 456 618 921 1653
High force HGDT-…-A-F opening 540 882 1101 2220 3372
closing 444 822 990 1875 2592
Total gripping force with spring support (gripping force retention)
Standard HGDT-…-A opening 286 555 814 1159 2186
closing 228 547 712 1052 2172
High force HGDT-…-A-F opening 708 1254 1629 2800 4456
closing 612 1194 1518 2655 4338
2017/04 – Subject to change
7
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data
Standard – HGDT-…
Gripping force F
Grip
per gripper jaw as a function of operating pressure and lever arm x
The gripping forces as a function of
operating pressure and lever arm can
be determined from the following
graphs.
External gripping (closing)
HGDT-25-A HGDT-35-A
HGDT-40-A HGDT-50-A
HGDT-63-A
3 bar
6 bar
8 bar
Subject to change – 2017/04
8
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data
Standard – HGDT-…
Gripping force F
Grip
per gripper jaw as a function of operating pressure and lever arm x
The gripping forces as a function of
operating pressure and lever arm can
be determined from the following
graphs.
Internal gripping (opening)
HGDT-25-A HGDT-35-A
HGDT-40-A HGDT-50-A
HGDT-63-A
3 bar
6 bar
8 bar
