2017/04 – Subject to change
7
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data
Standard – HGDT-…
Gripping force F
Grip
per gripper jaw as a function of operating pressure and lever arm x
The gripping forces as a function of
operating pressure and lever arm can
be determined from the following
graphs.

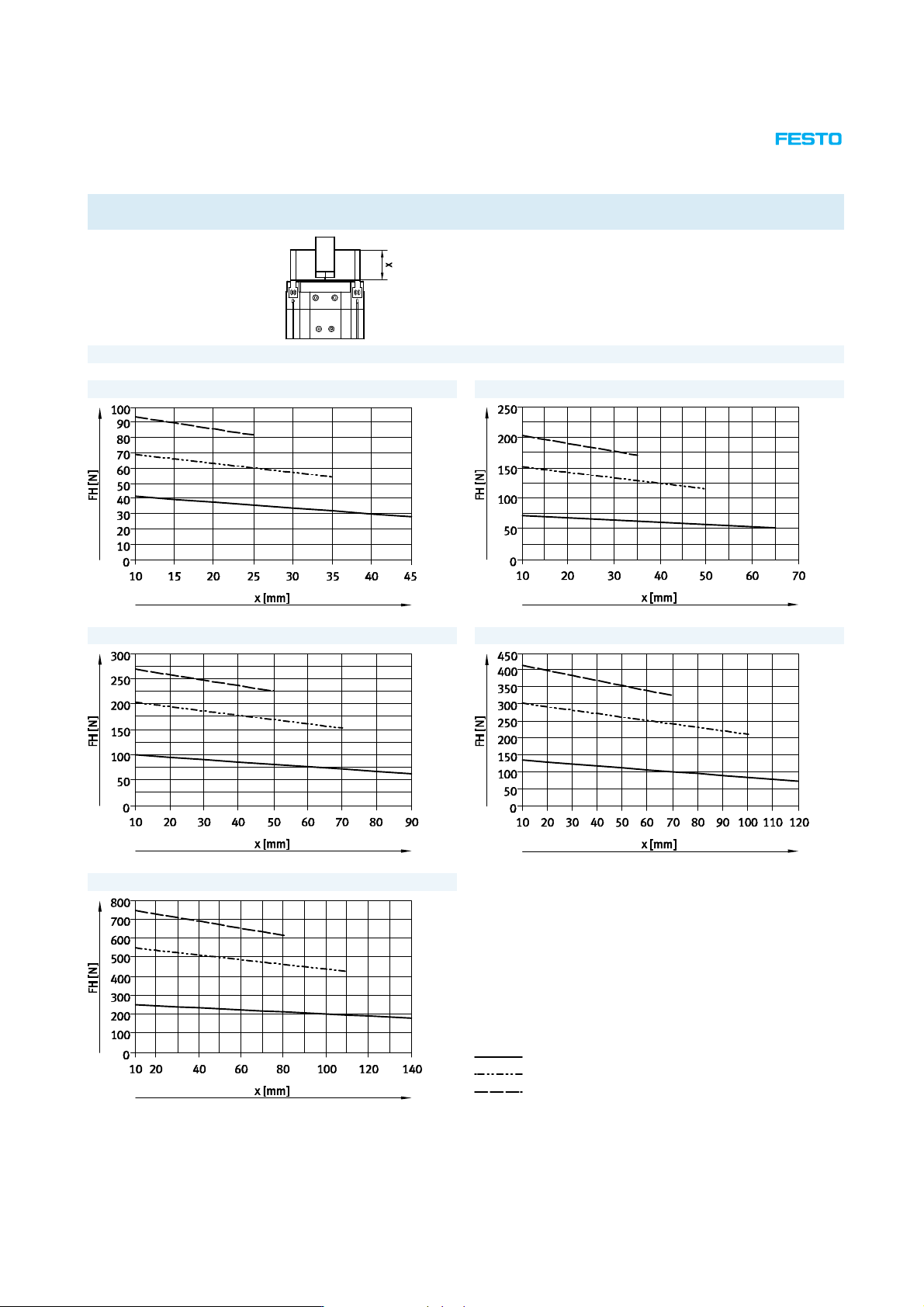

External gripping (closing)
HGDT-25-A HGDT-35-A
HGDT-40-A HGDT-50-A
HGDT-63-A
3 bar
6 bar
8 bar
Subject to change – 2017/04
8
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data
Standard – HGDT-…
Gripping force F
Grip
per gripper jaw as a function of operating pressure and lever arm x
The gripping forces as a function of
operating pressure and lever arm can
be determined from the following
graphs.

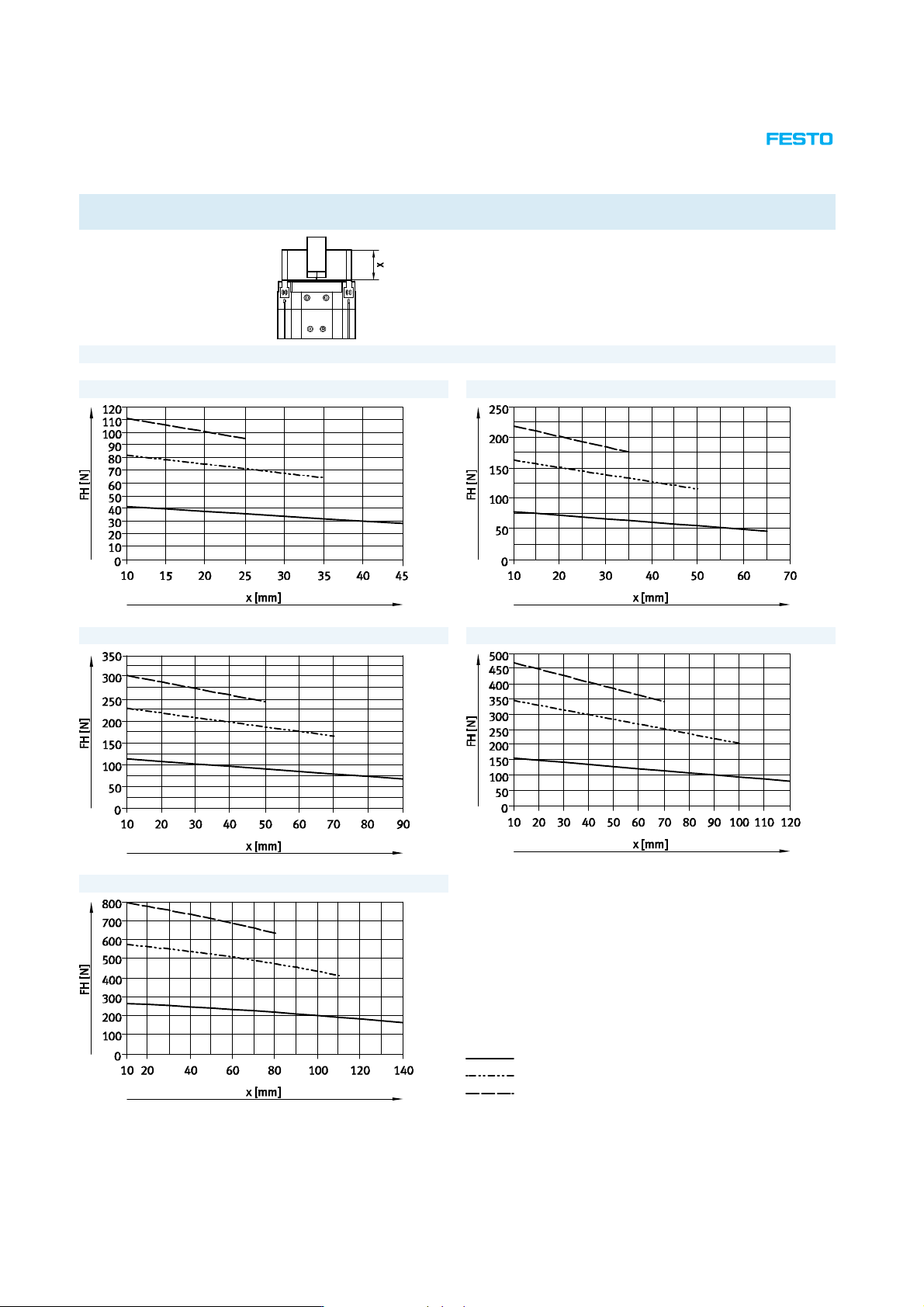

Internal gripping (opening)
HGDT-25-A HGDT-35-A
HGDT-40-A HGDT-50-A
HGDT-63-A
3 bar
6 bar
8 bar
2017/04 – Subject to change
9
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data
High force – HGDT-…-F
Gripping force F
Grip
per gripper jaw as a function of operating pressure and lever arm x
The gripping forces as a function of
operating pressure and lever arm can
be determined from the following
graphs.
External gripping (closing)
HGDT-25-A-F HGDT-35-A-F
HGDT-40-A-F HGDT-50-A-F
HGDT-63-A
3 bar
6 bar
8 bar
