YS12P_12F_mpl_je - 第40页
Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Par t No. Par t Name Q' t y Remar ks Rank Lev el No. Par t No. Par …
18
6
9
19
5
3
11
4
9
6
18
19
14
8
10
13
20
722
23
22
15
16
23
2
21
14
24
24
1
12
17
KKD/KKJ-1204
8
1

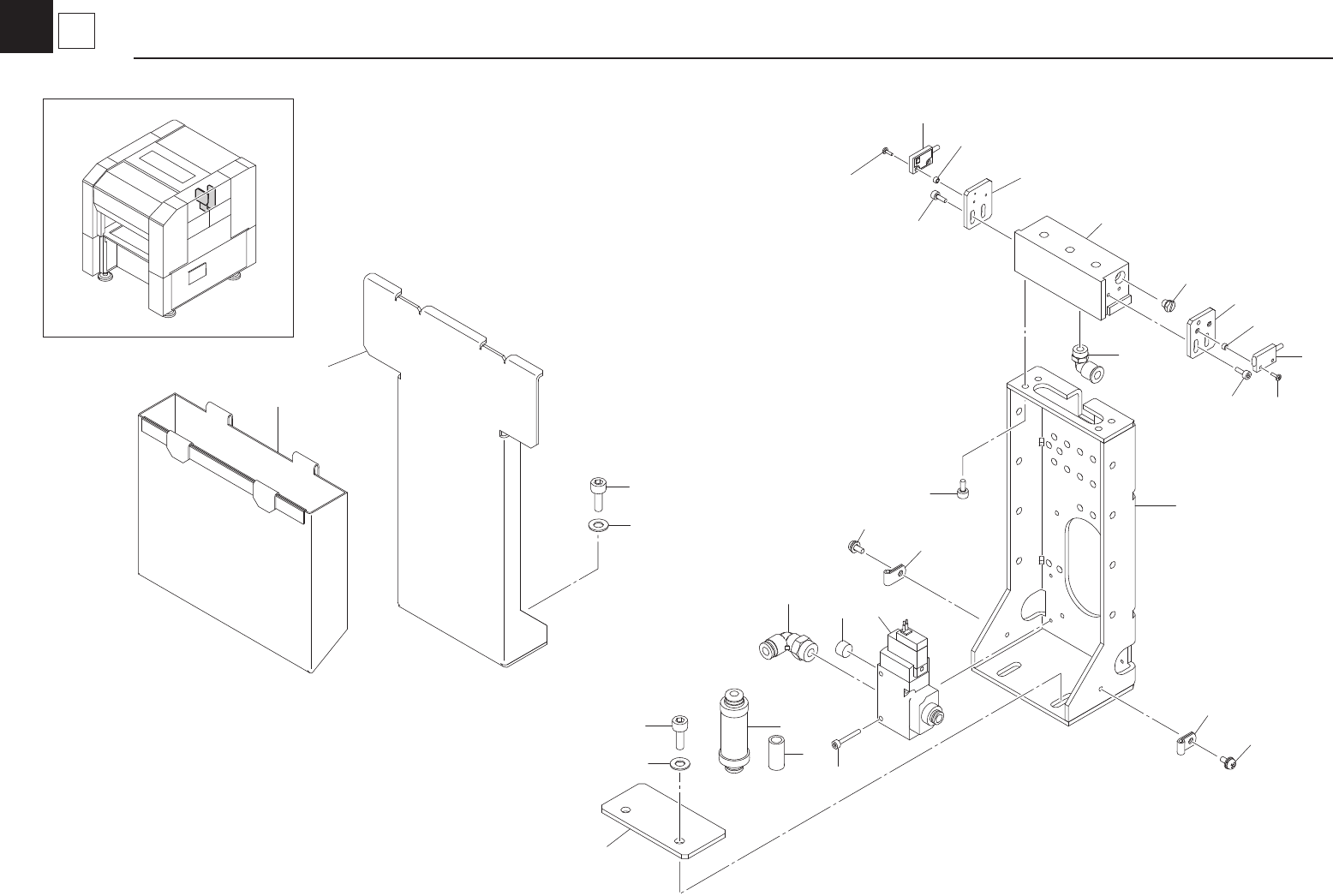

Blow Station
Blow Station
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1 KKD-M9901-00 BASE,B.STN. 1 /
Í
39
2 KKD-M9902-00 PLATE,BASE 1 /
Í
40
3 KKD-M9903-01 BLOCK,BLOW ST. 1 /
Í
41
4 KGR-M9905-00 BRACKET R,SENSOR 1 /
Í
42
5 KGR-M9906-00 BRACKET L,SENSOR 1 /
Í
43
6 KHY-M652R-00 SENSOR,BLOW ST ASSY 1 B
Í
44
7 KGR-M9934-01 INLINE FILTER 1 A
45
8 KHW-M9906-A0 VALVE 1 B
Í
46
9 90990-41J066 COLLAR 4 /
Í
47
10 K40-M8598-10 PLUG 1 1 /
48
11 $PF PLUG 1 /
Í
49
12 $TL6-01M JOINT 1 /
Í
50
13 $TL6-02 JOINT 1 /
Í
51
14 $NK-2N NYLON CLIP 2 /
Í
52
15 KJJ-M99D5-00 STAND,DUMP BOX 1 /
53
16 KGS-M99D0-00 DUMP BOX ASSY. 1 /
54
17 KGR-M9934-F0 FILTER, SPARE 1 SPARE E
55
18 90169-02J206 SCREW BINDING HEAD 4 56
19 91312-03008 BOLT HEX.SOCKET HEAD 4 57
20 91312-03020 BOLT,HEX.SOCKET HEAD 2 58
21 91312-04008 BOLT HEX.SOCKET HEAD 4 59
22 91312-06016 BOLT HEX.SOCKET HEAD 4 60
23 92902-06200 WASHER PLAIN(N) 4 61
24 97602-04308 SCREW,PAN HEAD W/W 2 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
KKD/KKJ-1204
8
1
Blow Station
Blow Station
10
9
19
18
17
12
21
24
34
43
34
43
31
33
29
29
26
43
34
28
31
33
43
34
27
40
40
6
7
3
25
40
38
38
39
43
42
20
22
13
15
35
39
43
42
16
40
23
8
36
40
40
32
41
5
36
37
36
11
36
1
4
2
14
31
33
KKD/KKJ-1204
9
1

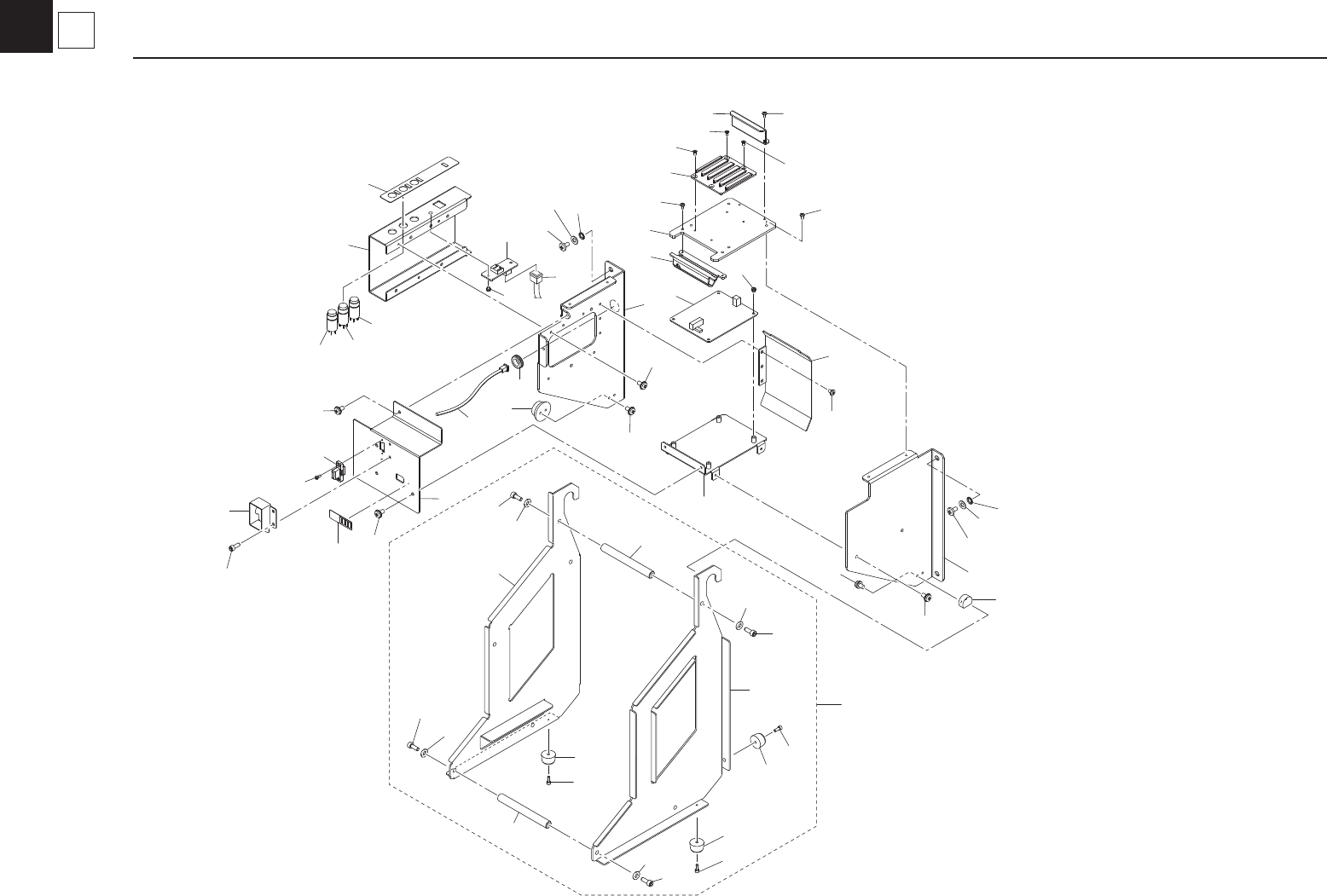

Set Up ST on MC
FDR
