YS12P_12F_mpl_je - 第42页
Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Par t No. Par t Name Q' t y Remar ks Rank Lev el No. Par t No. Par …
10
9
19
18
17
12
21
24
34
43
34
43
31
33
29
29
26
43
34
28
31
33
43
34
27
40
40
6
7
3
25
40
38
38
39
43
42
20
22
13
15
35
39
43
42
16
40
23
8
36
40
40
32
41
5
36
37
36
11
36
1
4
2
14
31
33
KKD/KKJ-1204
9
1

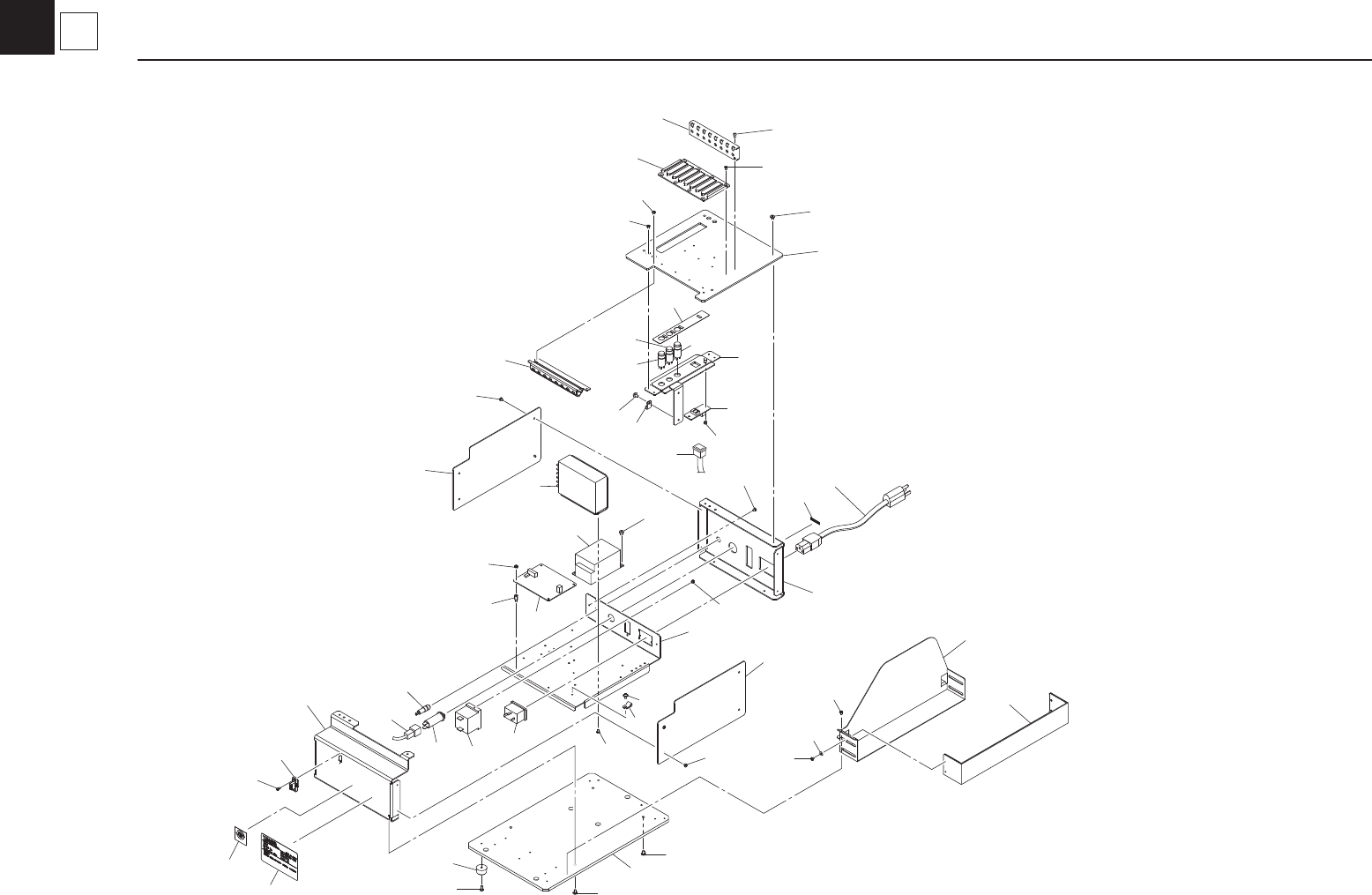

Set Up ST on MC
FDR
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1 KHJ-MD101-00 FEEDER PLATE 1 /
39 98902-06010 SCREW BINDING HEAD 4
2 KHJ-MD102-00 SIDE PLATE, L 1 /
40 90990-12J001 SCREW BIN.HEAD W/W 16
3 KHJ-MD103-00 SIDE PLATE, R 1 /
41 98702-03005 SCREW FLAT HEAD 4
4 KHJ-MD104-00 CLAMP PLATE 1. 1 /
42 90172-00J060 WASHER,EXTL.TOOTHED 4
5 KHJ-MD105-00 FEEDER STOPPER 1 /
43 92902-06200 WASHER PLAIN(N) 12
6 KHJ-MD106-00 CONNECTOR PLATE 1 /
44
7 KHJ-MD107-00 UNDER COVER 1 /
45
8 KHJ-MD108-00 BACK COVER 1 /
46
9 KHJ-MD109-00 SWITCH COVER 1 /
47
10 KHJ-MD110-00 LABEL, PITCH 1 /
48
11 KHJ-MD111-01 RAIL GUIDE 1 /
49
12 KHJ-MD112-00 GROMMET 1 /
50
13 KHY-M379K-00 LABEL, LED POSI. 1 /
51
14 KHJ-M4484-02 FDR. ST. BOARD ASSY 1 /
52
15 KHJ-M4486-00 PITCH LED BOARD ASSY 1 /
53
16 KHJ-M663B-10 HNS, PITCH LED 1 /
54
17 KHJ-M663C-10 HNS, PITCH UP 1 /
55
18 KHJ-M663D-10 HNS, PITCH DOWN 1 /
56
19 KHJ-M663E-10 HNS, PITCH SET 1 /
57
20 KHY-M66TE-00 HNS, F. CTRL-FDR. 1 /
58
21 KHY-M66RK-00 HNS, FDR. ST. 1 /
59
22 KHY-M372M-00 SCREW, STAD 2 /
60
23 KHJ-MD113-00 PROTECT,CONNECTOR 1 /
61
24 KHJ-MD114-00 PIN,HUNG L 1 /
62
25 KHJ-MD115-00 PIN,HUNG R 1 /
63
26 KHJ-MD120-00 REELHOLDER EQUIP. 1 /
64
27 KHJ-MD121-02 SIDE PLATE,L 1 /
65
28 KHJ-MD122-01 SIDE PLATE,R 1 /
66
29 KHJ-MD123-00 SHAFT 3 /
67
30 68
31 KHJ-MD210-00 FOOT 6 /
69
32 91312-03006 BOLT HEX.SOCKET HEAD 2 70
33 91312-03008 BOLT HEX.SOCKET HEAD 6 71
34 91312-06010 BOLT HEX.SOCKET HEAD 8 72
35 98902-03004 SCREW BINDING HEAD 2 73
36 98902-03008 SCREW BINDING HEAD 10 74
37 98902-03008
SCREW BINDING HEAD 1 75
38 98902-04006 SCREW BINDING HEAD 5 76
KKD/KKJ-1204
9
1
Set Up ST on MC
FDR
12
20
38
19
16
38
28
43
42
37
43
42
37
37
34
23
6
33
32
30
28
41
38
2
10
9
35
3
8
13
29
31
14
7
37
36
21
37
36
18
22
24
5
1
11
37
38
15
25
17
37
26
27
4
38
40
39
38
KKD/KKJ-1204
9
2
FDR Power ST
FDR
