MODEL CV-5062FR 0208-001 延長コンベアＦＲ Extended Conveyor FR Fig. HR-2 コンベア駆動部 Conveyor Driver Fig.HR-2 CV-5062FR 190 130 190 See Fig.HR-1 Key No.16 182 183 181 192 181 184 189 125 112 112 168 167 166 191 103 104 111 162 163 1…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL CV-5062FR
0208-001
HR-1
1 630 084 9172 GUIDE,SLIDE 1 742HRF11H-001
2 630 083 4642 BUSH,BALL 2 742HRF11H-002
5 630 008 5303 BEARING,UNIT 1 742HRF11H-005
6 630 001 1548 BEARING,RADIAL 1 742HRF11H-006
7 630 001 1531 BEARING,RADIAL 1 742HRF11H-007
8 630 091 2487 BELT,FLAT 2 742HRF11H-008
9 630 069 5373 PULLEY,FLAT 8 742HRF11H-009
10 630 069 5380 PULLEY,FLAT 8 742HRF11H-010
14 630 001 0237 WASHER 10 742HRF11H-014
15 630 001 0213 WASHER 1 742HRF11H-015
16 630 089 2932 FRAME 1 742HRF11B-016
18 630 086 6698 BASE 1 742HRF11B-018
19 630 086 6711 BASE 1 742HRF11B-019
20 630 083 5304 GUIDE 1 742HRF11B-020
21 630 083 5311 GUIDE 1 742HRF11B-021
22 630 083 5328 GUIDE 4 742HRF11B-022
23 630 084 5594 SPACER 2 742HRF11B-023
24 630 084 1374 WASHER 2 742HRF11B-024
26 630 083 4925 SUPPORT 4 742HRF11B-026
31 630 084 1251 PLATE 1 742HRF11B-031
33 630 085 0734 PLATE,LOCATE 1 742HRF11B-033
38 630 006 9044 BEARING,RADIAL 1 742HRF11H-038
42 411 000 7805 RING C 20 1
51 411 141 4800 WASHER V 12X24X2.5 4 FW12
52 411 141 3308 WASHER SPR 12 4 SW12
53 411 141 1304 NUT HEX 12 4 M12
56 411 141 4503 WASHER V 8X17X1.6 2 FW8
57 411 141 3100 WASHER SPR 8 2 SW8
58 630 000 8012 BOLT,HEX-SCT 2 M8X20
61 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
62 411 141 3001 WASHER SPR 6 12 SW6
63 630 000 7879 BOLT,HEX-SCT 2 M6X12
64 630 000 7886 BOLT,HEX-SCT 6 M6X16
65 630 000 7893 BOLT,HEX-SCT 4 M6X20
66 411 141 4107 WASHER V 5X10X1 10 FW5
67 411 141 6705 WASHER SPR 5 13 SW5
68 630 000 7749 BOLT,HEX-SCT 4 M5X10
70 630 000 7770 BOLT,HEX-SCT 2 M5X20
72 411 141 0505 NUT HEX 5 7 M5
73 630 001 0220 WASHER 3 BW5
77 411 141 2905 WASHER SPR 4 9 SW4
78 630 000 7633 BOLT,HEX-SCT 1 M4X12
79 630 000 7657 BOLT,HEX-SCT 8 M4X16
80 411 141 0307 NUT HEX 4 8 M4
82 411 141 2806 WASHER SPR 3 22 SW3
83 630 000 7510 BOLT,HEX-SCT 22 M3X8
89 630 000 8883 SET SCREW 2 M3X4 SET
90 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
MODEL CV-5062FR
0208-001
延長コンベアＦＲ Extended Conveyor FR

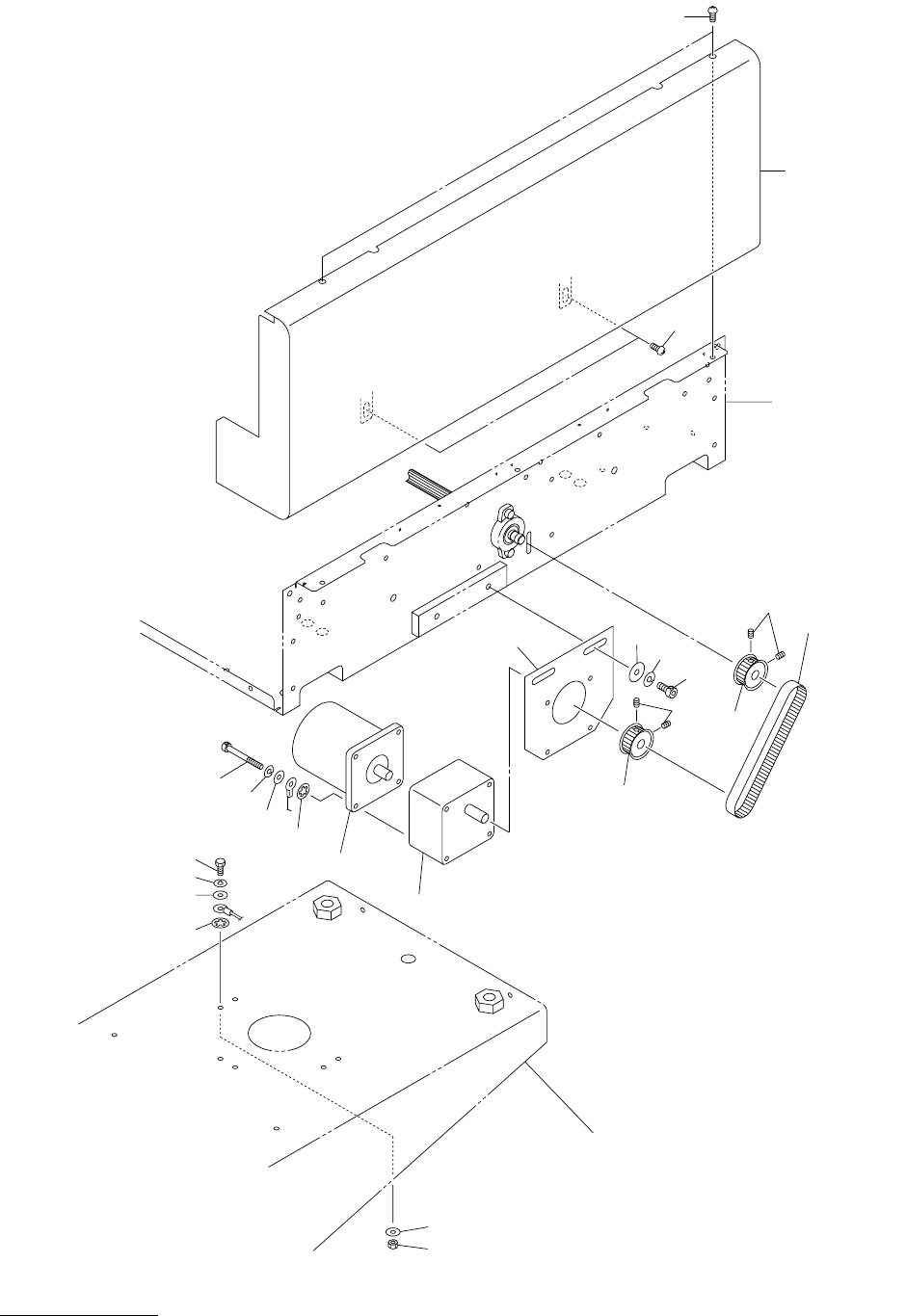

Fig. HR-2 コンベア駆動部 Conveyor Driver
Fig.HR-2
CV-5062FR
190
130
190
See Fig.HR-1
Key No.16
182
183
181
192
181
184
189
125
112
112
168
167
166
191
103
104
111
162
163
114
189
See Fig.HL-1
Key No.18
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL CV-5062FR
0208-001
HR-2
103 630 049 0831 MOTOR,REVERSIBLE 1 M601,3RK15GN-AUL 100V
742HRF11H-003
104 630 003 2574 GEAR,REDUCTION 1 742HRF11H-004
111 630 075 1758 BELT,TIMING 1 742HRF11H-011
112 630 069 1795 PULLEY,TIMING 2 742HRF11H-012
114 630 001 0237 WASHER 2 742HRF11H-014
125 630 084 3446 PLATE 1 742HRF11B-025
130 630 089 2956 COVER 1 742HRF11B-030
162 411 141 3001 WASHER SPR 6 2 SW6
163 630 000 7886 BOLT,HEX-SCT 2 M6X16
166 411 141 4107 WASHER V 5X10X1 4 FW5
167 411 141 6705 WASHER SPR 5 4 SW5
168 630 000 7831 BOLT,HEX-SCT 4 M5X50
181 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
182 411 008 1706 WASHER SPR 4 1 SW4 F
183 411 140 4702 BOLT HEX 4X10 1 M4X10 HEX
184 411 054 8506 NUT HEX 4 1 M4 F
189 630 000 8944 SET SCREW 4 M5X6 SET
190 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
191 411 087 1109 WASHER IN TW 5 1
192 411 087 0508 WASHER IN TW 4 1
