P-0219-001 - 第15页
Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL CV-5062FR 0208-001 HR-1 1 630 084 9172 GUIDE,SLIDE 1 742HRF1 1H-001 2 630 083 4642 BUSH,BALL 2 742HRF1 1H-002 5 630 008 5303 BEARING,UNIT 1 742HRF1 1H-005 6 630 001…
MODEL CV-5062FR
0208-001
延長コンベアＦＲ Extended Conveyor FR

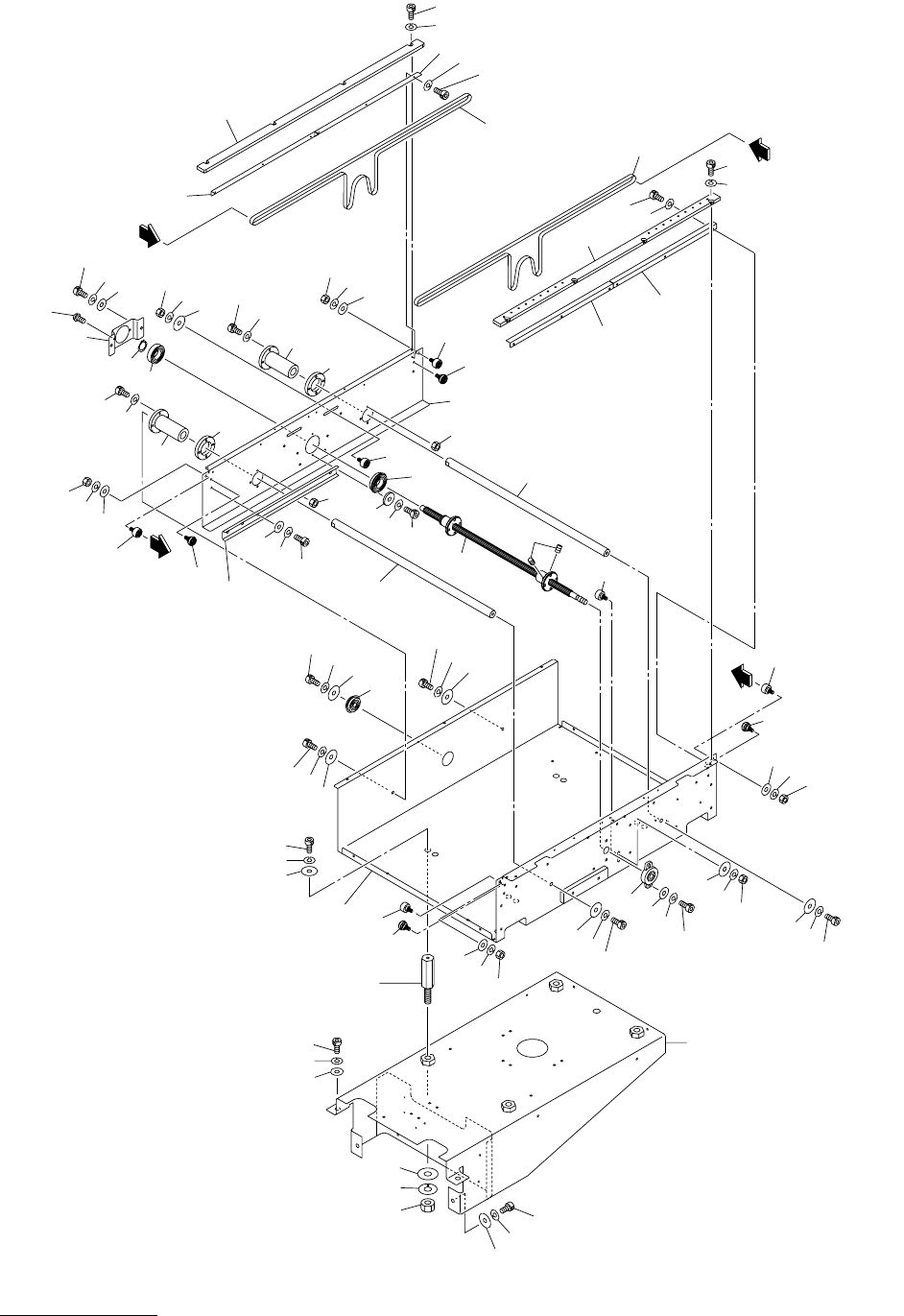

Fig. HR-1 コンベア Conveyor
14
62
65
15
6
14
62
65
2
1
66
22
20
8
22
67
68
19
9
10
89
2
77
78
65
62
14
64
62
61
65
62
57
58
56
62
63
14
62
18
9
10
64
14
26
16
51
52
53
14
5
Fig.HR-1
CV-5062FR
21
8
31
9
9
10
22
80
10
9
A
A
B
B
79
72
67
66
83
82
70
67
66
42
38
33
23
79
77
22
83
83
82
77
2
66
67
72
90
82
83
82
23
2
9
73
67
72
72
67
66
72
67
73
66
67
72
24
82
83
7
80
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL CV-5062FR
0208-001
HR-1
1 630 084 9172 GUIDE,SLIDE 1 742HRF11H-001
2 630 083 4642 BUSH,BALL 2 742HRF11H-002
5 630 008 5303 BEARING,UNIT 1 742HRF11H-005
6 630 001 1548 BEARING,RADIAL 1 742HRF11H-006
7 630 001 1531 BEARING,RADIAL 1 742HRF11H-007
8 630 091 2487 BELT,FLAT 2 742HRF11H-008
9 630 069 5373 PULLEY,FLAT 8 742HRF11H-009
10 630 069 5380 PULLEY,FLAT 8 742HRF11H-010
14 630 001 0237 WASHER 10 742HRF11H-014
15 630 001 0213 WASHER 1 742HRF11H-015
16 630 089 2932 FRAME 1 742HRF11B-016
18 630 086 6698 BASE 1 742HRF11B-018
19 630 086 6711 BASE 1 742HRF11B-019
20 630 083 5304 GUIDE 1 742HRF11B-020
21 630 083 5311 GUIDE 1 742HRF11B-021
22 630 083 5328 GUIDE 4 742HRF11B-022
23 630 084 5594 SPACER 2 742HRF11B-023
24 630 084 1374 WASHER 2 742HRF11B-024
26 630 083 4925 SUPPORT 4 742HRF11B-026
31 630 084 1251 PLATE 1 742HRF11B-031
33 630 085 0734 PLATE,LOCATE 1 742HRF11B-033
38 630 006 9044 BEARING,RADIAL 1 742HRF11H-038
42 411 000 7805 RING C 20 1
51 411 141 4800 WASHER V 12X24X2.5 4 FW12
52 411 141 3308 WASHER SPR 12 4 SW12
53 411 141 1304 NUT HEX 12 4 M12
56 411 141 4503 WASHER V 8X17X1.6 2 FW8
57 411 141 3100 WASHER SPR 8 2 SW8
58 630 000 8012 BOLT,HEX-SCT 2 M8X20
61 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
62 411 141 3001 WASHER SPR 6 12 SW6
63 630 000 7879 BOLT,HEX-SCT 2 M6X12
64 630 000 7886 BOLT,HEX-SCT 6 M6X16
65 630 000 7893 BOLT,HEX-SCT 4 M6X20
66 411 141 4107 WASHER V 5X10X1 10 FW5
67 411 141 6705 WASHER SPR 5 13 SW5
68 630 000 7749 BOLT,HEX-SCT 4 M5X10
70 630 000 7770 BOLT,HEX-SCT 2 M5X20
72 411 141 0505 NUT HEX 5 7 M5
73 630 001 0220 WASHER 3 BW5
77 411 141 2905 WASHER SPR 4 9 SW4
78 630 000 7633 BOLT,HEX-SCT 1 M4X12
79 630 000 7657 BOLT,HEX-SCT 8 M4X16
80 411 141 0307 NUT HEX 4 8 M4
82 411 141 2806 WASHER SPR 3 22 SW3
83 630 000 7510 BOLT,HEX-SCT 22 M3X8
89 630 000 8883 SET SCREW 2 M3X4 SET
90 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
MODEL CV-5062FR
0208-001
延長コンベアＦＲ Extended Conveyor FR
Fig. HR-2 コンベア駆動部 Conveyor Driver
Fig.HR-2
CV-5062FR
190
130
190
See Fig.HR-1
Key No.16
182
183
181
192
181
184
189
125
112
112
168
167
166
191
103
104
111
162
163
114
189
See Fig.HL-1
Key No.18
