YSP20_mpl - 第57页
KKX-1306 lane 1 lane 2 32 44 14 49 29 13 54 61 50 42 33 53 50 36 19 45 35 7 37 52 4 17 45 22 20 10 51 23 46 45 4 31 2 3 15 1 43 45 48 21 1 1 40 8 26 12 3 25 47 28 17 39 10 10 51 9 38 50 64 42 14 18 45 5 10 45 49 42 19 52…
KKX-1306
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
$SSU4 SPEED CONTROLER 1
39
KKX-M9225-00 PLATE,RAIL 4 1
/
Í
2
$TL6-01M JOINT 2
40
KKX-M9226-00 DOG,E-CLAMP ON 1
/
Í
3
$TL8-01 JOINT 1
41
KKX-M9226-10 DOG,E-CLAMP END 1
/
Í
4
$TSH4-M5M JOINT 2
42
KKX-M9229-00 PLATE,NUT 2
/
Í
5
$TSH6-M5M JOINT 2
43
KKX-M922C-00 BRKT.,SENSOR 1
/
Í
6
$TT8-01 JOINT 1
44
KKX-M922C-10 BRKT.,SENSOR 1
/
Í
7
$UT4M
JOINT 1
45
KKX-M923A-00
BRKT.,W HNS. 1
/
Í
8
$UYD8-6
JOINT
1
46
KKX-M923B-00
COVER,W HNS.
1
/
Í
9
90933-02J126 BEARING
15
47
KKX-M923D-00
COVER,HNS. 1
lane 1
/
Í
10
90990-29J055 SHIM 15
48
KKX-M9241-00 CYLINDER 2
/
Í
11
90990-41J146 COLLAR 4
49
KKX-M9242-00 JOINT,CYL. 2
/
Í
12
91312-03008 BOLT HEX,SOCKET HEAD 4
50
91312-04016 BOLT HEX,SOCKET HEAD 10
13
91312-03014 BOLT HEX,SOCKET HEAD 6
51
91312-04025 BOLT HEX,SOCKET HEAD 4
14
91312-03030 BOLT HEX,SOCKET HEAD 8
52
91312-05012 BOLT HEX,SOCKET HEAD 4
15
91312-04006 BOLT HEX,SOCKET HEAD 2
53
91312-05016 BOLT HEX,SOCKET HEAD 4
16
91312-04008 BOLT HEX,SOCKET HEAD 38
54
91312-06025 BOLT HEX,SOCKET HEAD 8
17
91312-04010 BOLT HEX,SOCKET HEAD 14
55
91312-06050 BOLT HEX,SOCKET HEAD 8
18
91312-04012
BOLT HEX,SOCKET HEAD 16
56
97602-03308
SCREW PAN HEAD W/WASHER
4
19
KGJ-M925A-00 PIN 1
1
/
Í
57
90K41-001330 LABEL,CAUTION
1
20
91312-04014
BOLT HEX,SOCKET HEAD
1
58
KKX-M923D-50 COVER,HNS.
1
lane 2
/
Í
21
KHT-M9124-00 VACUUM PLATE 2
/
59
22
KKX-M652W-00 SENSOR EC FIX ASSY 1
B
Í
60
23
KKX-M652W-10 SENSOR EC END ASSY 1
B
Í
61
24
KKX-M920A-00 PLATE,CLAMP UNIT 3 4
/
Í
62
25
KKX-M920D-00 PLATE,CLAMP UNIT 4 1
/
Í
63
26
KKX-M9210-00 PLATE,E-CLAMP FIX 1
/
Í
64
27
KKX-M9210-10 PLATE,E-CLAMP MOV. 1
/
Í
65
28
KKX-M9211-00 PLATE,EDGE 2
/
Í
66
29
KKX-M9214-00 STAY,E-CLAMP MOV. 1
/
Í
67
30
KKX-M9215-00 BRKT.,RAIL R 1
/
Í
68
31
KKX-M9215-10 BRKT.,RAIL L 1
/
Í
69
32
KKX-M9218-00 PLATE,CYL. 2
/
Í
70
33
KKX-M921A-01 BRKT.,SEAL 1
/
Í
71
34
KKX-M921B-00 SEAL,SCALE 1
/
Í
72
35
KKX-M9221-00 STOPPER,E-CLAMP 2
/
Í
73
36
KKX-M9222-00 PLATE,STOPPER 2
/
Í
74
37
KKX-M9223-00 SCREW,ADJUST 2
/
Í
75
38
KKX-M9224-00 PLATE,RAIL 3 1
/
Í
76
7
5

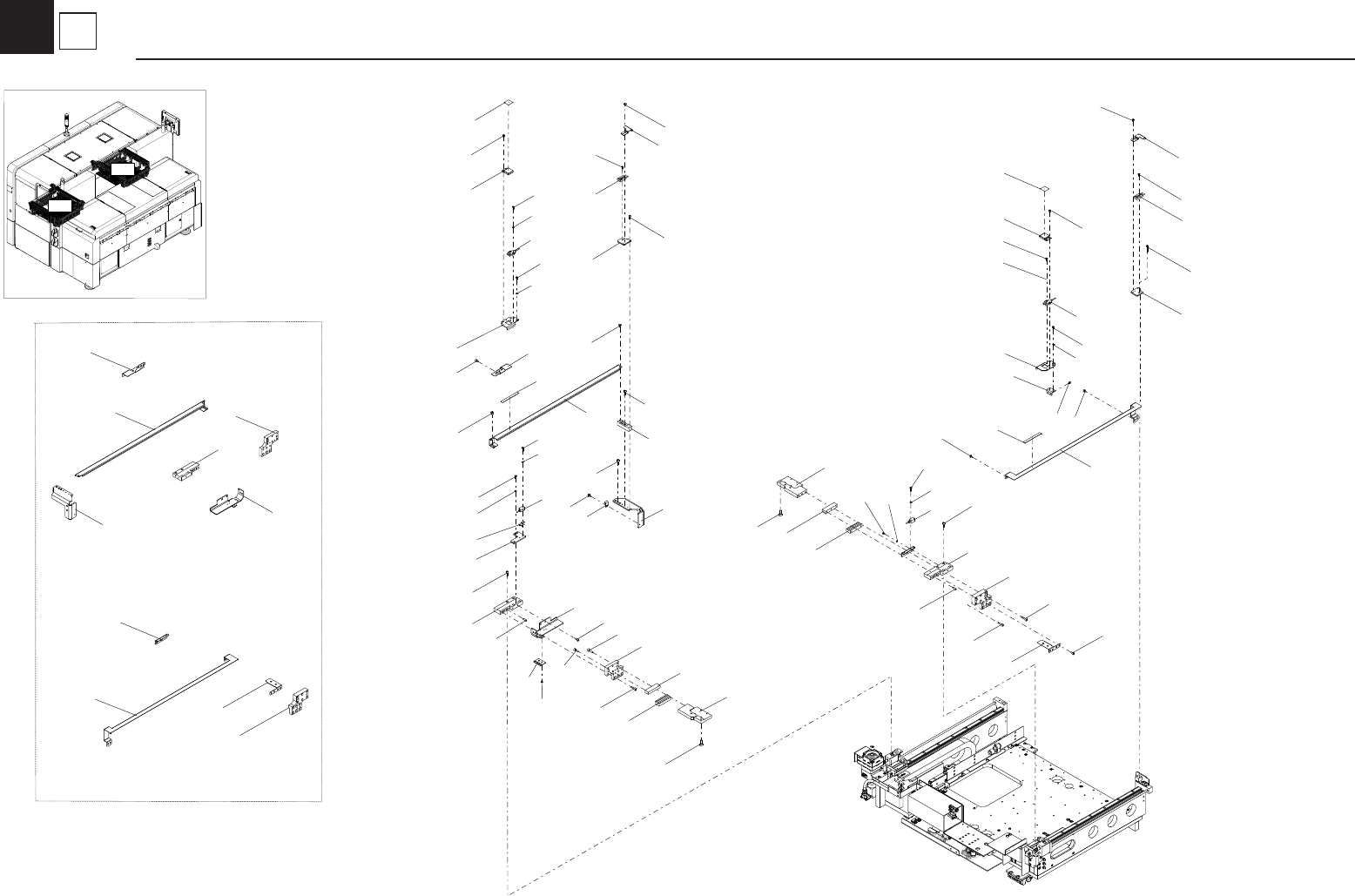

Clamp Unit 1
Conveyor Unit
KKX-1306
lane 1
lane 2
32
44
14
49
29
13
54
61
50
42
33
53
50
36
19
45
35
7
37
52
4
17
45
22
20
10
51
23
46
45
4
31
2
3
15
1
43
45
48
21
11
40
8
26
12
3
25
47
28
17
39
10
10
51
9
38
50
64
42
14
18
45
5
10
45
49
42
19
52
36
6
50
35
42
34
8
41
63
20
24
46
45
4
30
16
3
45
60
56
48
59
27
3
62
25
57
58
55
7
6
Clamp Unit 2
Conveyor Unit
KKX-1306
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 $NK-3N NYLON CLIP 1 39 KKX-M9232-00 BRKT.,W CABLE DUCT 2 1
l
ane 1 /
Í
2 90990-11J003 SCREW, PAN HEAD W/W 1 40 KKX-M923E-00 BRKT.,HNS. 1 lane 1 /
Í
3 91312-03004 BOLT HEX,SOCKET HEAD 8 41 KKX-M923F-00 BRKT.,HNS. 1 lane 1 /
Í
4 91312-03006 BOLT HEX,SOCKET HEAD 6 42 91312-05014 BOLT HEX,SOCKET HEAD 15
5 91312-03008
BOLT HEX,SOCKET HEAD 2 43 91312-05016 BOLT HEX,SOCKET HEAD 3
6 91312-03010
BOLT HEX,SOCKET HEAD 2
44 92012-03006 BOLT BUTTON HEAD
2
7
91312-03020 BOLT HEX,SOCKET HEAD
2
45
92902-03600 WASHER,PLAIN
16
8 91312-04006
BOLT HEX,SOCKET HEAD 4
46
98702-03008 SCREW,FLAT HEAD
4
9 91312-04008 BOLT HEX,SOCKET HEAD 2
47 98902-03004 SCREW BINDING HEAD 2
10 91312-04012 BOLT HEX,SOCKET HEAD 16 48 98902-03008 SCREW BINDING HEAD 4
11 91312-04016 BOLT HEX,SOCKET HEAD 6 49 98902-03012 SCREW BINDING HEAD 4
12 91312-05012 BOLT HEX,SOCKET HEAD 2 50 98902-04006 SCREW BINDING HEAD 7
13 KHT-M7635-00 PLATE,NUT 1 /
Í
51 99480-04012 PIN,PARALLEL 4
14 KKX-M653D-00 SENS.BACKUPPIN ASSY 1 B
Í
52 90K41-001330 LABEL,CAUTION 4
15 KKX-M653Y-00 SENS.W BRAKE ENT 1 B
Í
53 KKX-M920G-00 COVER,W GUIDE 1
lane 1
/
Í
16 KKX-M653Y-10 SENS.W BRAKE EXIT 1 B
Í
54 KKX-M9204-50 BLOCK,E-CLAMP R 1 lane 2 /
Í
17 KKX-M9204-00 BLOCK,E-CLAMP F
2
lane 1 /
Í
55 KKX-M920G-50
COVER,W GUIDE 1
lane 2
/
Í
18 KKX-M920G-10
COVER,W GUIDE
1 lane 1
/
Í
56 KKX-M920G-60
COVER,W GUIDE
1 lane 2
/
Í
19 KKX-M920J-01
BRKT.,PCB CHECK
2
/
Í
57 KKX-M920M-50
BRKT.,CLAMP UNIT 1L 1
lane 2
/
Í
20 KKX-M920K-01 FIBER 2
B
Í
58 KKX-M9212-50 LEG,E-CLAMP MOV. 1R 1 lane 2
/
Í
21 KKX-M920M-00 BRKT.,CLAMP UNIT 1L 1 lane 1 /
Í
59 KKX-M9212-60 LEG,E-CLAMP MOV. 1L 1 lane 2 /
Í
22 KKX-M920P-00 BRKT.,SENSOR W1 1 /
Í
60 KKX-M9227-51 BRKT.,PIN SENSOR R 1 lane 2 /
Í
23 KKX-M920R-00 BRKT.,SENSOR W2R 1 /
Í
61 KKX-M9232-50 BRKT.,W CABLE DUCT 2 1 lane 2 /
Í
24 KKX-M920R-10 BRKT.,SENSOR W2L 1 /
Í
62 KKX-M923E-50 BRKT.,HNS. 1 lane 2 /
Í
25 90K41-001320 LABEL,CAUTION 2 /
Í
63 KKX-M923F-50 BRKT.,HNS. 1 lane 2 /
Í
26 KKX-M920T-00 COVER,SENSOR R 1 /
Í
64
KW3-M9139-00 MASK 1
1
Slit
27 KKX-M920T-10 COVER,SENSOR L 1 /
Í
65
28 KKX-M920U-00 BRKT.,COVER 1 /
Í
66
29 KKX-M920X-00 COVER,FIBER 1 /
Í
67
30 KKX-M920X-10 COVER,FIBER 1 /
Í
68
31 KKX-M9212-00 LEG,E-CLAMP MOV. 1R 1 lane 1 /
Í
69
32 KKX-M9212-10 LEG,E-CLAMP MOV. 1L 1 lane 1 /
Í
70
33 KKX-M9213-00 BRKT.,E-CLAMP MOV.R 1 /
Í
71
34 KKX-M9213-10 BRKT.,E-CLAMP MOV.L 1 /
Í
72
35 KKX-M9216-00 PLATE,RAIL 1 2 /
Í
73
36 KKX-M9217-00 PLATE,RAIL 2 2 /
Í
74
37 KKX-M9227-01 BRKT.,PIN SENSOR R 1 lane 1 /
Í
75
38 KKX-M922B-01 BRKT.,PIN SENSOR L 1 /
Í
76
7
6
Clamp Unit 2
Conveyor Unit
