KKX-1306 20 13 7 32 7 6 29 9 49 8 1 48 34 41 33 47 1 1 49 17 46 28 44 8 39 50 40 35 30 4 31 13 8 10 13 5 2 2 38 14 15 45 3 23 3 12 37 16 36 51 42 21 48 43 18 48 19 26 22 24 25 27 8 4 SYRINGE HEAD PSC
KKX-1306
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KHT-M7396-10 CLEANER SHAFT 6
1
φ6X150mm
/
39
2
KHT-M7396-20 CLEANER SHAFT 10
1
φ10X150mm
/
40
3
KHT-M7396-30 CLEANER SHAFT 15
1
φ15X150mm
/
41
4
KHT-M734A-A0 ADAPTER ASSY,B-1
1
HI-Regist
/
42
5
KHT-M734A-00 ADAPTER,POT B-1
1 /
43
6
KHT-M734A-10 JIG,ADAPTER B-1 SET
1 /
44
7
KHT-M7341-B0 PACKING ASSY ADAPTER
2
E
45
8
KHT-M7342-00 JIG,ADAPTER SET
1
/
46
9
KHT-M734B-A0 ADAPTER ASSY,S-1
1
SENJU
/
47
10
KHT-M734B-00 ADAPTER,POT S-1
1 /
48
11
KHT-M734C-A1 ADAPTER ASSY,T-1
1
TAMURA
/
49
12
KHT-M734C-01 ADAPTER,POT T-1
1 /
50
13 51
14 52
15 53
16 54
17
55
56
18
57
19
58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
8
3

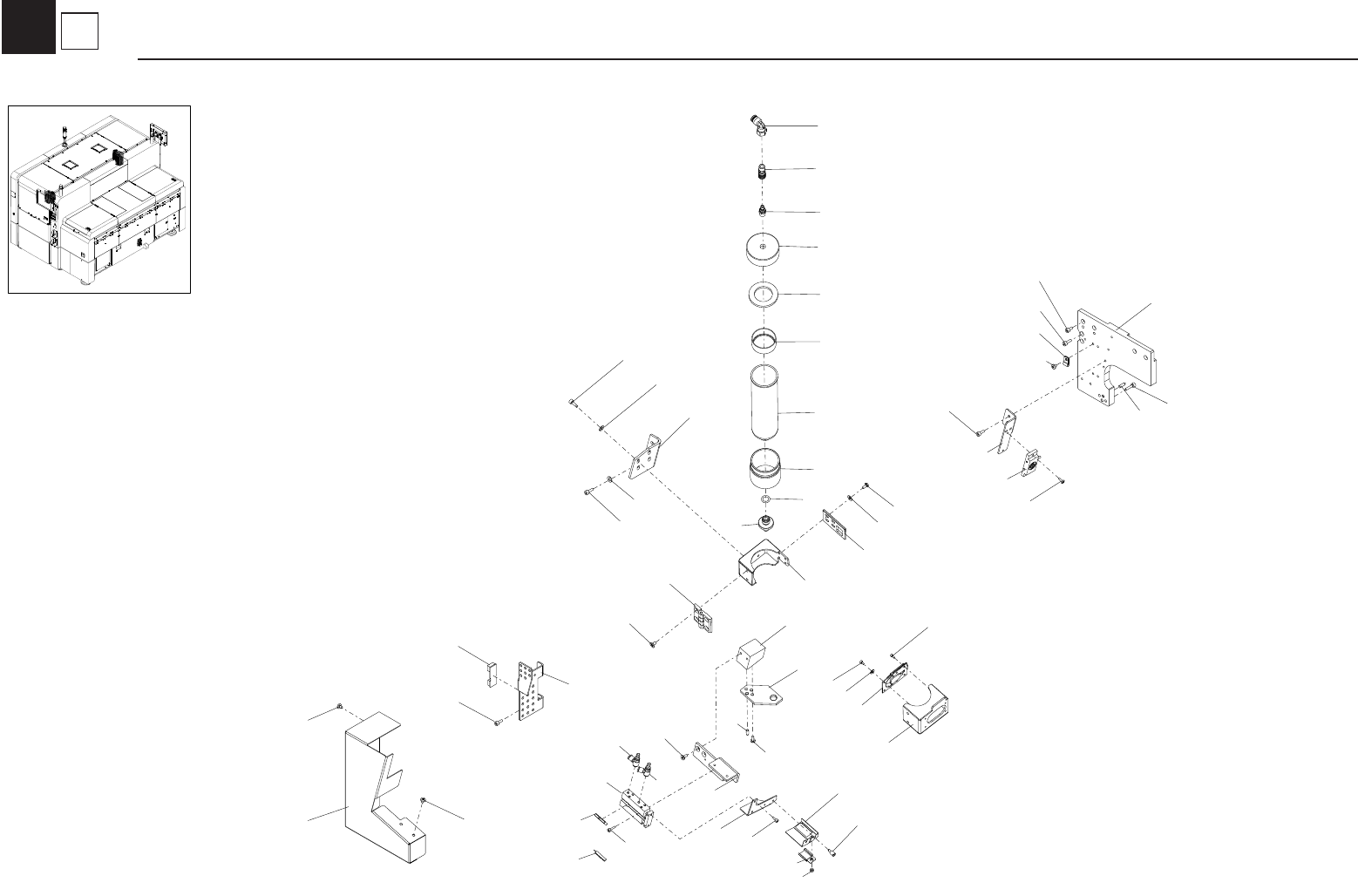

POT-Adpter, Ext.
PSC
KKX-1306
20
13
7
32
7
6
29
9
49
8
1
48
34
41
33
47
11
49
17
46
28
44
8
39
50
40
35
30
4
31
13
8
10
13
5
2
2
38
14
15
45
3
23
3
12
37
16
36
51
42
21
48
43
18
48
19
26
22
24
25
27
8
4
SYRINGE HEAD
PSC
KKX-1306
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 $NK-2N NYLON CLIP 5
39
KKX-M7362-00 BLOCK,PEAST NOZZLE 1 /
Í
2 $SC4-M3MA SPEED CONTROLLER 2
40
KKX-M7364-00 BRKT.,CUTTER 1
/
Í
3 90112-2AJ005 BOLT, HEX.SOCKET HEAD 4
41
KKX-M7365-00 BRKT.,SENSOR 1 /
Í
4 91312-03008 BOLT HEX,SOCKET HEAD 3
42
KKX-M7368-00 BRKT.,HNS 1 /
Í
5 91312-03012 BOLT HEX,SOCKET HEAD 1
43
KKX-M7381-00 COVER,FP 1 /
6 91312-04008 BOLT HEX,SOCKET HEAD 4
44
98702-04010 SCREW,FLAT HEAD 2
7 91312-04010 BOLT HEX,SOCKET HEAD
4
45
98702-05008
SCREW FLAT HEAD 4
8 91312-04012
BOLT HEX,SOCKET HEAD 8
46
98902-03004
SCREW BINDING HEAD
1
9
91312-04016 BOLT HEX,SOCKET HEAD
2
47
98902-03008
SCREW BINDING HEAD 2
10 92012-04008 BOLT, BOTTON HEAD 4
48
98902-04005 SCREW BINDING HEAD 8
11 92012-04012 BOLT, BOTTON HEAD 2
49
99480-04012 PIN,PARALLEL 4
12 92902-03200 WASHER,PLAIN 4
50
KKX-M7382-00 PLATE,CUTTER 1
/
Í
13 92902-04200 WASHER,PLAIN 10
51
90990-17J064 O-RING 1
E
14 KHT-M7354-00 BASE,DISP. HOLDER 1 /
Í
52
15 KHT-M7356-00 HINGE 1 /
53
16 KLF-M459H-00 PNP CHANGER BRD ASSY 1 /
Í
54
17 KHT-M7363-00 NOZZLE BASE 1 /
Í
55
18 KHT-M7367-00 BARREL,170
1
E
56
19
KHT-M7368-00
BARREL PLUNGER 1
E
57
20
KHT-M7371-01 CYLINDER
1
A
Í
58
21 KHT-M7372-00 HOLDER,PLNJER 1
/
59
22 KHT-M7373-00 CAP,HOLD DIS. 1 /
60
23 KHT-M7374-00 NOZZLE 6,DISPENSER 1 /
61
24 KHT-M7375-00 JOINT 1 /
62
25 KHT-M7376-00 JOINT 1 /
63
26 KHT-M7377-00 PACCKING 1 E
64
27 KHT-M7378-00 JOINT 1 /
65
28 KHT-M7380-00 PASTE CUP 1 A
66
29 KHT-M7383-01 PASTE CUTTER 1 A
67
30 KHT-M7394-00 KNOBE,M3 2 /
68
31 KKX-M653S-00 SENS. CUT OPEN ASSY 1 B
Í
69
32 KKX-M653S-10 SENS. CUT CLOSE ASSY 1 B
Í
70
33 KKX-M653V-00 SENS.SYRSOL DET ASSY 1 B
Í
71
34 KKX-M7351-00 PLATE,FX AXIS 1 /
Í
72
35 KKX-M7352-00 BRKT.,HOLDER SYR. 1 /
Í
73
36 KKX-M7355-00 CAP,DISP. HOLDER 1 /
74
37
KKX-M7357-00 LATCH 1 /
75
38
KKX-M7358-00 PLATE,LOCK 1 /
76
8
4
SYRINGE HEAD
