KMC-1709 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KMC-1709
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KKG-M373L-00 LABEL,FEEDER 32-12P 1 /
39
2 KLF-M374S-00 GUIDE,FEEDER UPPER 1 A
Í
40
3 KLF-M374T-00 GUIDE,FEEDER UPPER 2 A
Í
41
4 KLW-M3730-00
TOP COVER ASSY.
1 /
Í
42
5 KLW-M3731-00 RIGHT ARM ASSY. 1 /
Í
43
6 KLW-M3732-00 LEFT ARM ASSY. 1 /
Í
44
7 KLW-M373A-00 COVER,TOP 1 /
45
8 KLW-M373B-01 PLATE,UPPER 1 /
Í
46
9 KLW-M373C-00 PLATE,OBSTRUCTIVE 1 /
Í
47
10 KLW-M373E-01 STOPPER,TG 1 /
Í
48
11 KLW-M373G-00 ARM,UPPER GUIDE R 1 /
Í
49
12 KLW-M373H-00 ARM,UPPER GUIDE L 1 /
Í
50
13 KLW-M373L-01 BRACKET,ARM R 1 /
Í
51
14 KLW-M373M-01 BRACKET,ARM L 1 /
Í
52
15 KLW-M373N-01 COVER,HNS. R 1 /
53
16 KLW-M373P-01 COVER,HNS. L 1 /
54
17 KLW-M373R-00 BRKT.,GUARD 2 /
55
18 $NK-3N NYLON CLIP 2 56
19 90990-01J074 BOLT HEX,SOCKET HEAD 8 57
20 90990-11J001 SCREW, PAN HEAD W/W 2 58
21 90K41-001830 LABEL,CAUTION 1 59
22 90K41-001840 LABEL,CAUTION 1 60
23 91312-03004 BOLT HEX,SOCKET HEAD 4 61
24 91312-05006 BOLT HEX,SOCKET HEAD 6 62
25 92012-04006 BOLT, BOTTON HEAD 2 63
26 92012-04010 BOLT, BOTTON HEAD 4 64
27 92B12-05012 SCREW, HEX. SOCKET 2 65
28 98702-03006 SCREW,FLAT HEAD 3 66
29 98902-03004 SCREW BINDING HEAD 60 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
3
6

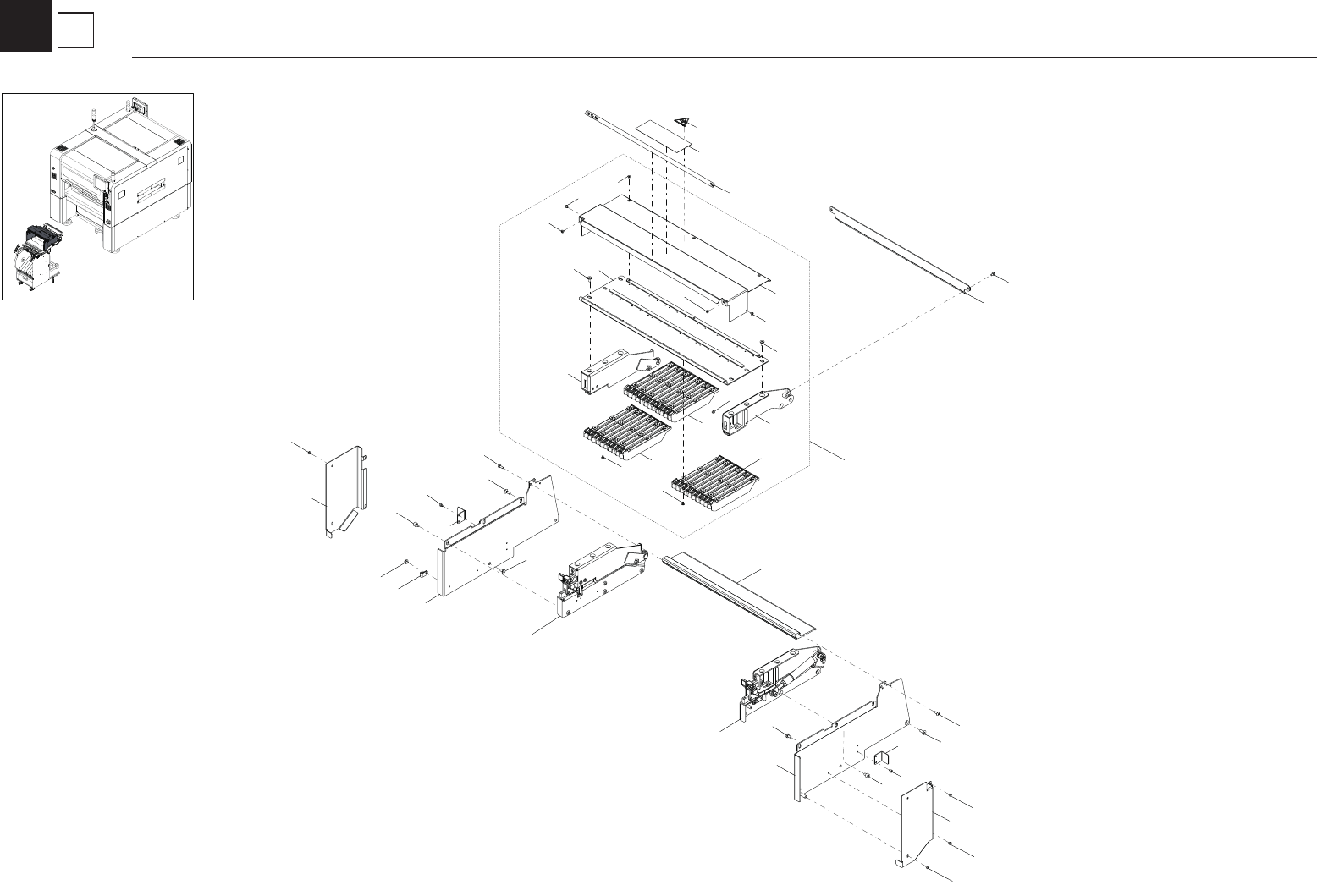

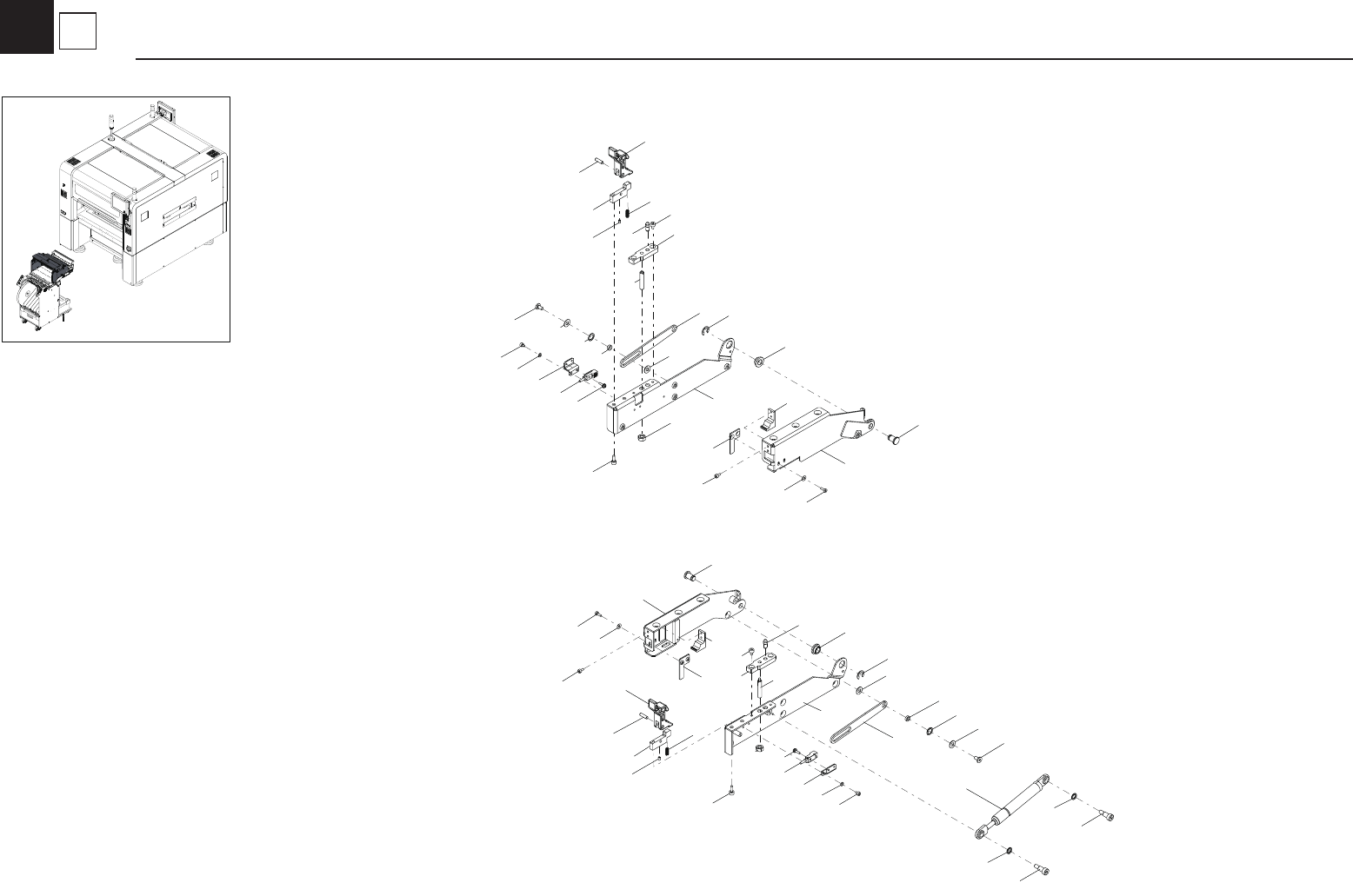

FES32 Carriage (ZSF Cover)
Feeder Holder
