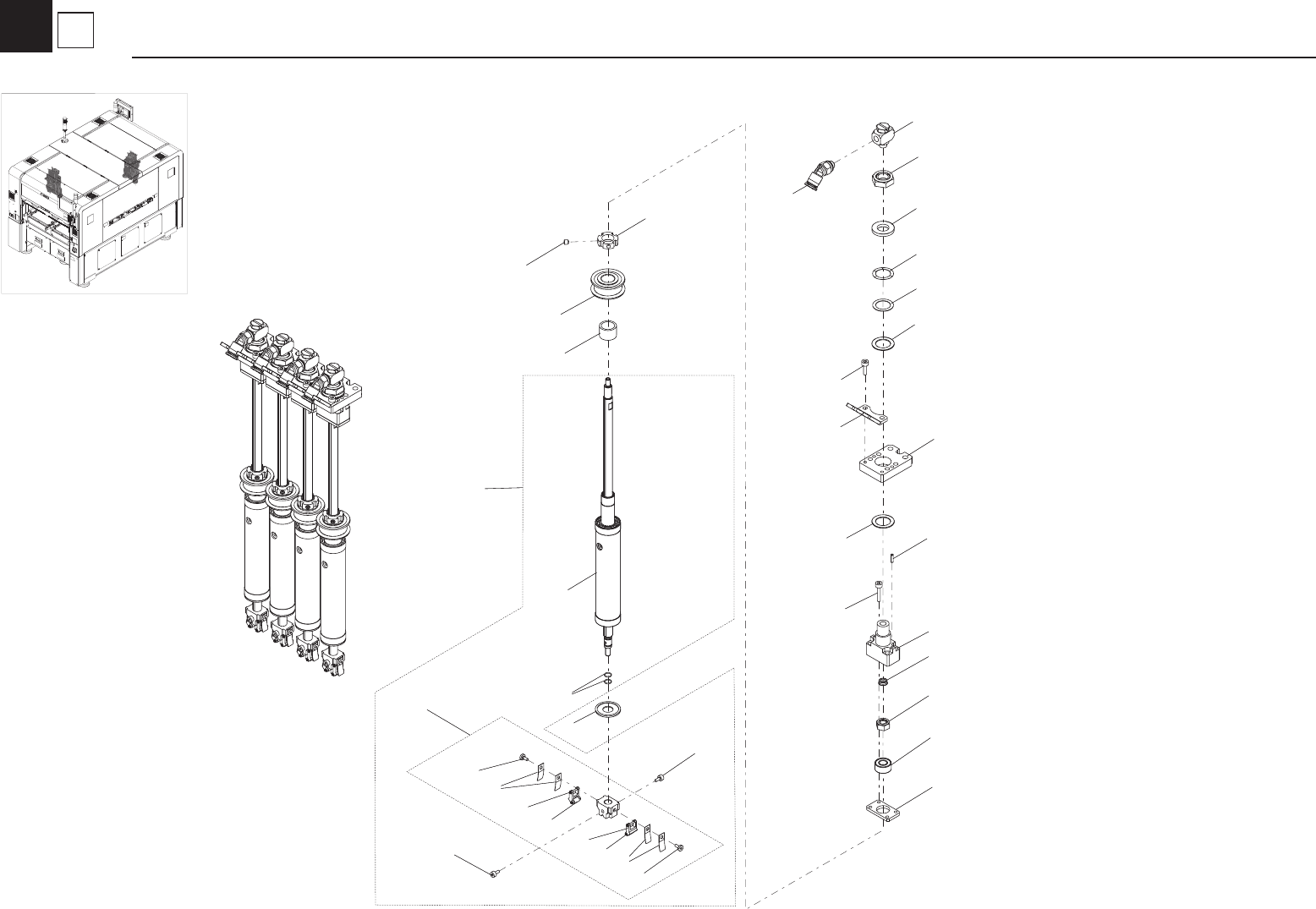

No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90990-46J011 BOLT, THIN HEAD 24 39
2 90K41-001320 LABEL,CAUTION 8 40
3 90K41-001400 LABEL,CAUTION 4 41
4 90K41-001570 LABEL,CAUTION 4 42
5 KLF-M4187-10 FAN GUARD 80MM 8 /
Í
43
6 KMC-M26FE-01 BRACKET,FAN 4
/
Í
44
7 KMC-M26FE-A0 FAN DUCT ASSY. 4 /
Í
45
8 KMC-M26T3-00 COVER 1,LINEAR 1 /
Í
46
9 KMC-M26T3-A0 LINEAR COVER 1 ASSY. 1 /
Í
47
10 KMC-M26T4-00 COVER 2,LINEAR 1 /
Í
48
11 KMC-M26T4-A0 LINEAR COVER 2 ASSY. 1 /
Í
49
12 KMC-M26T5-00 COVER 5,LINEAR 2 /
Í
50
13 KMC-M26T7-00 COVER 3,LINEAR 1 /
Í
51
14 KMC-M26T7-A0 LINEAR COVER 3 ASSY. 1 /
Í
52
15 KMC-M26T8-00 COVER 4,LINEAR 1 /
Í
53
16 KMC-M26T8-A0 LINEAR COVER 4 ASSY. 1 /
Í
54
17 KMC-M26T9-00 COVER 6,LINEAR 2 /
Í
55
18 KMC-M26TJ-00 BRACKET 1,LINEAR 2 /
Í
56
19 KMC-M26TK-00 BRACKET 2,LINEAR 2 /
Í
57
20 KMC-M6185-00 FAN MOTOR ASSY 4 A
Í
58
21 90990-01J110 BOLT,HEX.S/HEAD WW 20 59
22 90990-46J010 BOLT, THIN HEAD 16 60
23 91312-04045 BOLT HEX,SOCKET HEAD 16 61
24 91312-05020 BOLT HEX,SOCKET HEAD 12
62
25 91380-04005 BOLT HEX,SOCKET HEAD 4 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
4
2

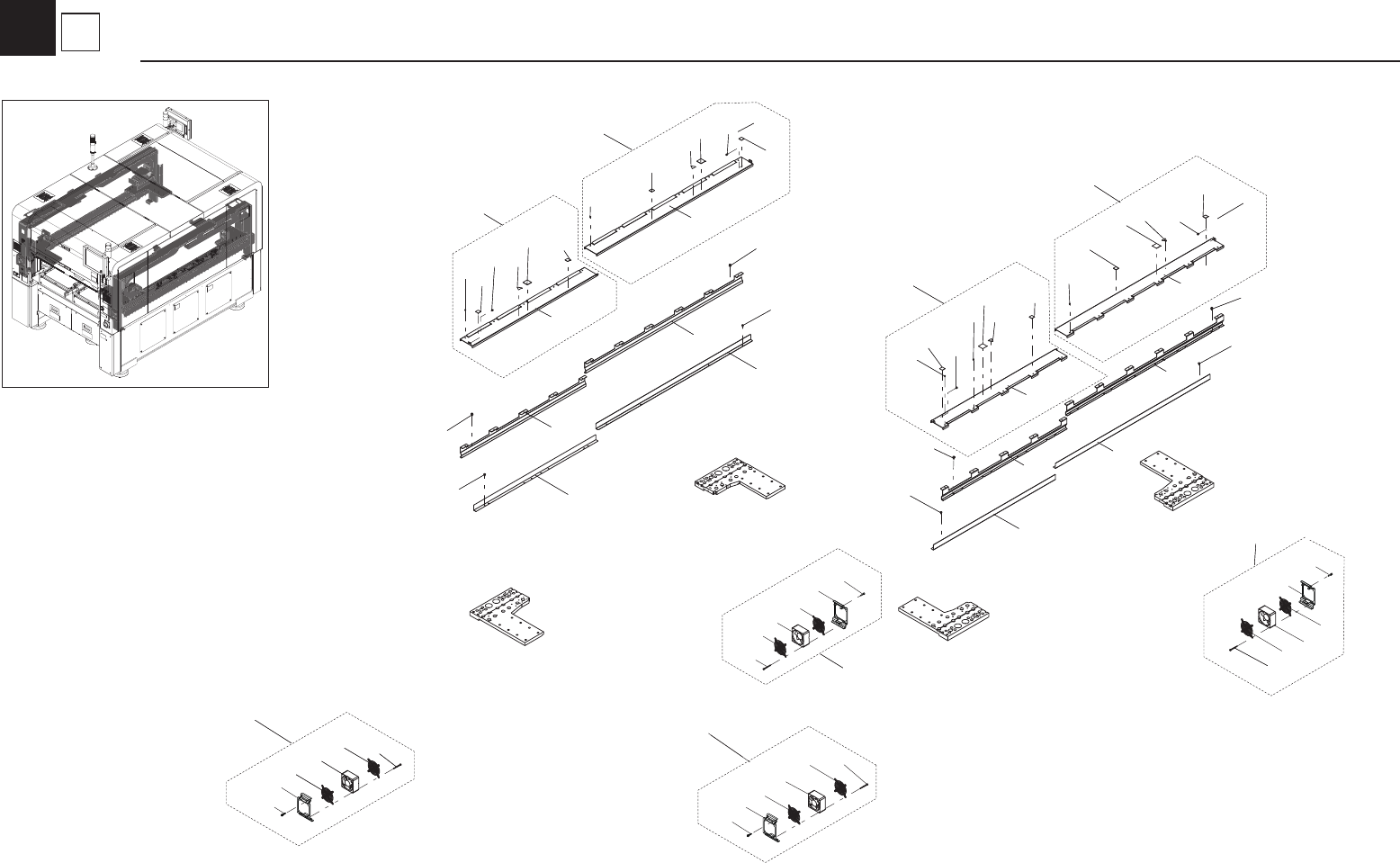

Y-Axis Linear motor / Cover
Moving-axis
