KMC-1709 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…

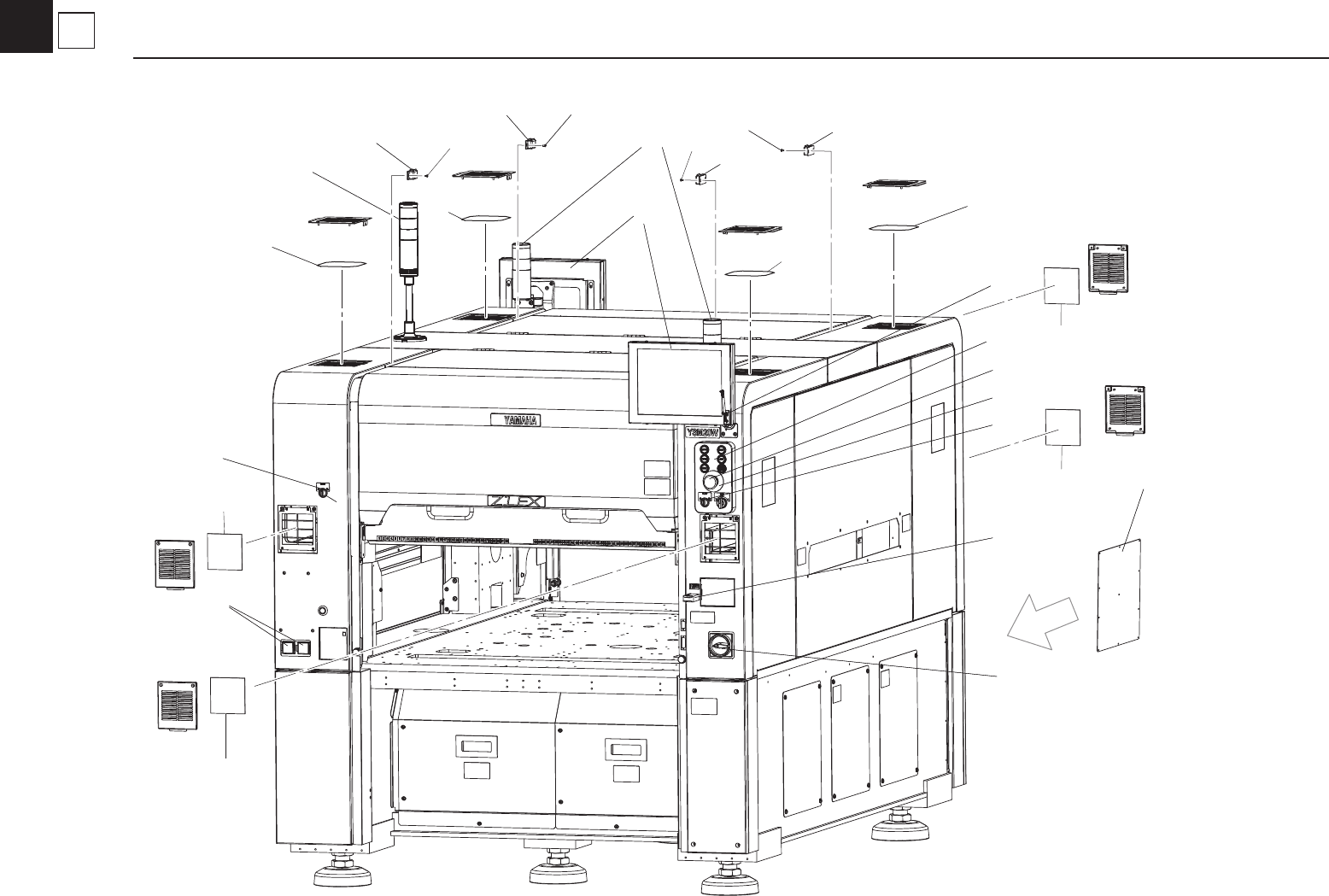

KMC-1709
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90166-12JA10 SCREW, PAN HEAD 4 39
2 91312-04006 BOLT HEX,SOCKET HEAD 6 40
3 91312-04030 BOLT HEX,SOCKET HEAD 4 41
4 91312-04040 BOLT HEX,SOCKET HEAD 8 42
5 91312-05012 BOLT HEX,SOCKET HEAD 5 43
6 KJJ-M412B-00 CLAMP 2 4 /
Í
44
7 KKE-M4141-00 DUMMY PANEL SYS 1 STD B
45
8 KLA-M4209-73 SYSTEM UNIT ASSY 1 B
46
9 KLA-M441H-20 VISION BOARD ASSY 1 B
47
10 KLW-M4530-10 REMOTE IF BOARD ASSY 1
B
48
11 KLA-M5840-03 SERVO BOARD ASSY 2 B
49
12 KLA-M5840-36 SERVO BOARD ASSY 1 B
50
13 KLR-M4111-00 PANEL,DUMMY 1 STD B
51
14 KLV-M4131-00 BASE,C/R BOX 1 /
Í
52
15 KLV-M4132-00 BRKT.,FAN 1 /
Í
53
16 KLV-M4133-01 GUIDE,FLOW 2 1 /
Í
54
17 KLV-M4134-00 COVER,FILTER 1 1 /
55
18 KLV-M4135-00 COVER,FILTER 2 1 /
56
19 KLV-M4136-00 FILTER 1 E
57
20 KLW-M53L6-00 FAN MOTOR ASSY. 1 B
Í
58
21 KLW-M53M4-00 FAN MOTOR ASSY. 2 B
Í
59
22 KLW-M5880-00 CONVERTER BOARD ASSY 1 B
60
23 92902-05200 WASHER,PLAIN 5 61
24 97602-04306
SCREW PAN HEAD W/WASHER
2 62
25 97602-04308
SCREW PAN HEAD W/WASHER
12 63
26 97602-04312 SCREW PAN HEAD W/W 2 64
27 KLW-M445E-00 CAP 1 1 65
28 KLA-M5840-15 SERVO BOARD ASSY 1 with ATS B
66
29 KLW-M4110-00 BOX ASSY.C/R 1 /
Í
67
30 KLA-M4255-10 FLASH DISK 4G 1 B
68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
10
1
Controller
Controller
