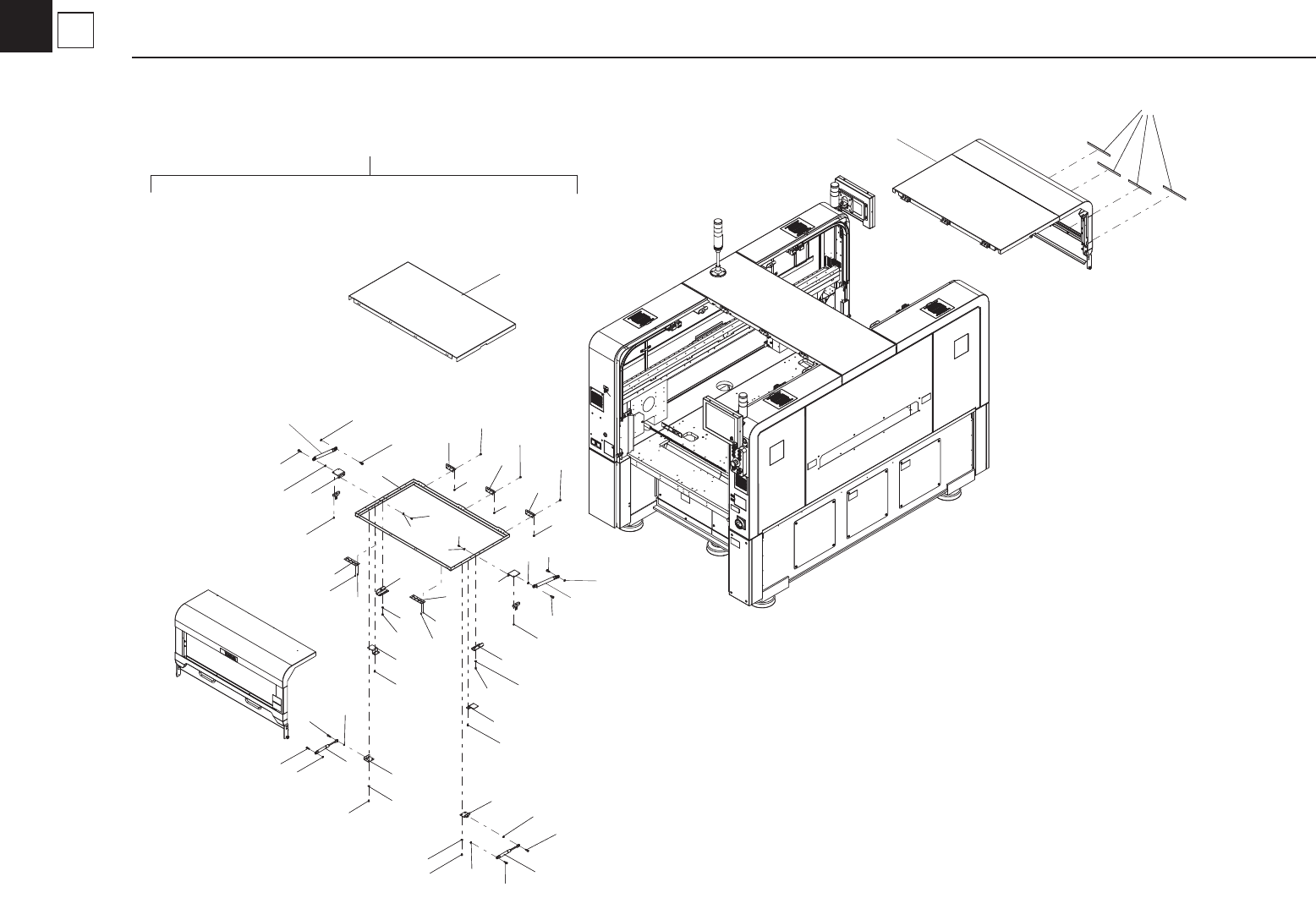

KMC-1709 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…

100%1 / 92
KMC-1709
9
19
25
6
36
33
16
33
18
21
23
34
3
26
32
24
20
35
26
35
5
26
27
5
14
26
33
32
33
35
35
21
26
27
26
29
10
22
23
23
35
15
11
30
26
26
6
31
36
33
10
36
29
12
7
28
8
30
1
26
2
17
13
4
9
19
25
6
36
33
16
33
18
21
23
34
3
26
32
24
20
35
26
35
5
26
27
5
14
26
33
32
33
35
35
21
26
27
26
29
10
22
23
23
35
15
11
30
26
26
6
31
36
33
10
36
29
12
7
28
8
30
1
26
2
17
13
4
2
1
Acril Door 1
Cover
KMC-1709
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90K41-001250 LABEL,WARNING 1 /
39
2 90K41-001420 LABEL,WARNING 1 /
40
3 KKG-M13D8-00 STICKER 4 /
41
4 KKX-M13D7-00 SEAL 2(YAMAHA) 1 /
42
5 KLV-M1347-00 PULL 2 /
43
6 KLW-M1348-00 ROLLER 2 /
Í
44
7 KLW-M134M-00 PLATE,WINDOW 1 /
Í
45
8 KLW-M134R-01 COVER 9-3 1 /
Í
46
9 KLW-M134S-00 COVER 9-4 1 /
Í
47
10 KLW-M134U-00 COVER 9-6 2 /
Í
48
11 KLW-M135P-00 HINGE,SPRING 4 /
Í
49
12 KLW-M135S-00 TAPE 1 /
Í
50
13 KLW-M13D8-00 LABEL (Z:LEX) 1 /
Í
51
14 KMC-M1344-00 FRAME2,COVER9 1 /
Í
52
15 KMC-M134F-00 BRKT.1,ROLLER 1 /
Í
53
16 KMC-M134G-00 BRKT.2,ROLLER 1 /
Í
54
17 KMC-M134P-00 COVER 9-2 1 /
Í
55
18 KMC-M134T-00 COVER 9-5(SS) 1 SS Feeder /
Í
56
19 KMC-M134T-10 COVER 9-5(ZS) 1 ZS Feeder /
Í
57
20 KMC-M1355-00 BRKT.,KEY L 1 /
Í
58
21 KMC-M1359-00 BRKT.3,DAMPER 2 /
Í
59
22 KMC-M135M-00 PLATE,1 1 /
Í
60
23 KMC-M135R-00 PLATE,NUT 6 /
Í
61
24 LE2-M13H1-00 ACTUATOR 1 /
Í
62
25 KLF-M1392-00 LABEL,WARNING 1 ZS Feeder /
63
26 90172-00J040 WASHER, EXTL, TOOTHED 23 64
27 90172-00J050 WASHER, EXTL, TOOTHED 4 65
28 90990-11J001 SCREW, PAN HEAD W/W 2 66
29 90990-41J179 COLLAR 4 67
30 90990-46J015 BOLT, THIN HEAD 4 68
31 91312-03006 BOLT HEX,SOCKET HEAD 8 69
32 91312-04010 BOLT HEX,SOCKET HEAD 4 70
33 91312-05008 BOLT HEX,SOCKET HEAD 12 71
34 91317-04008 BOLT HEX,SOCKET HEAD 6 72
35 95702-04500 NUT FLANGE 11 73
36 98702-03006 SCREW,FLAT HEAD 12 74
37 75
