Ref No. Remarks R 1 Q't y 1-D 本体部 Main Body ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit No . キット品 番 Kit Name キット名称 N610023989AB Part N ame 備 考 ｾｸｼｮﾝNo. PARTS LIST Section No. R 3 COVER 2 20 N210035325AC COVER 2 21 N2…

100%1 / 362
1-D
本体部
Main Body

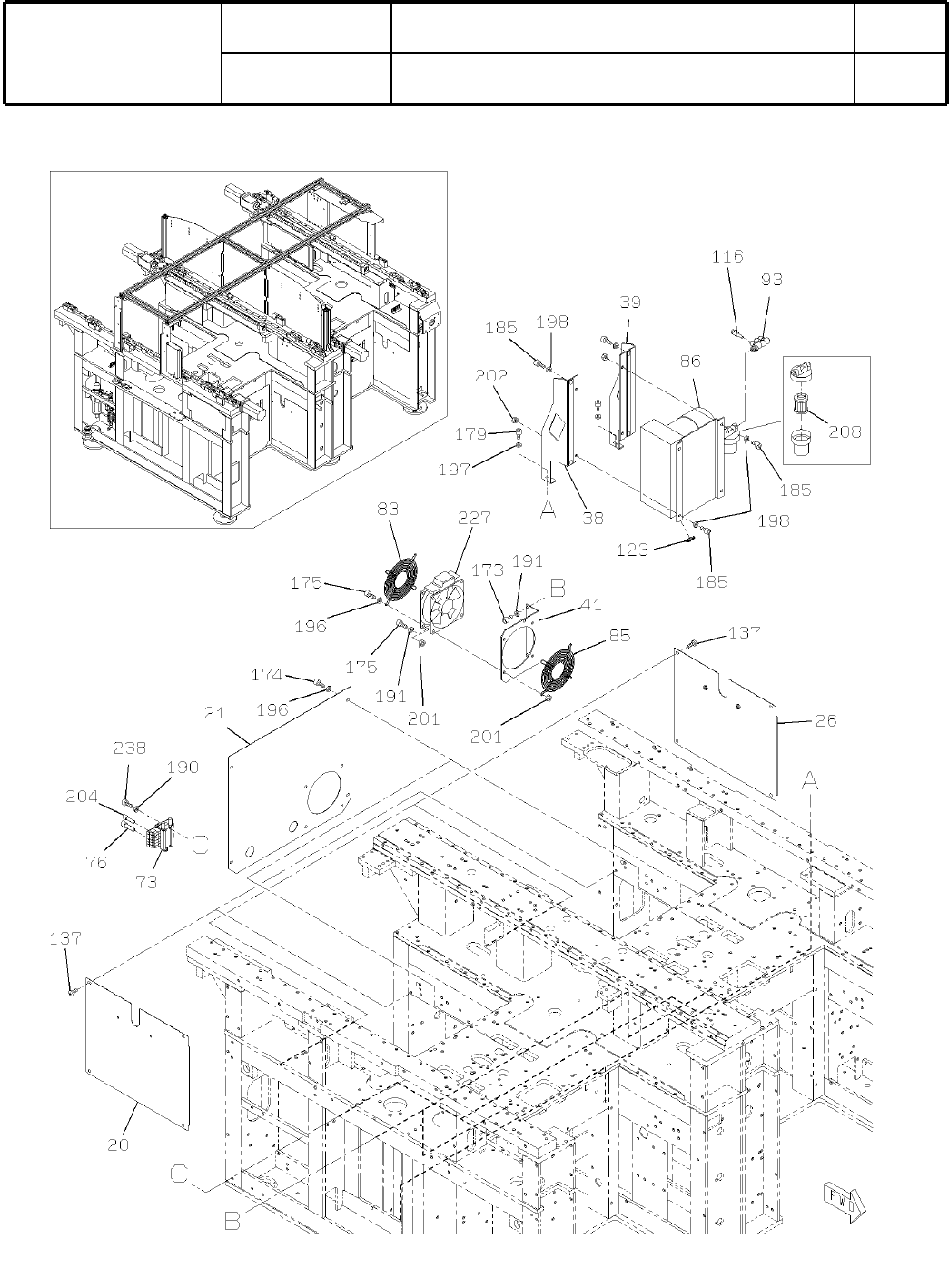

パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610023989AB
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
M7

Ref
No.
Remarks
R
1
Q't
y
1-D
本体部
Main Body
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit No.
キット品
番
Kit Name
キット名称
N610023989AB
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
COVER
2
20 N210035325AC
COVER
2
21 N210021385AD
COVER
2
26 N210035327AC
BRACKET
2
38 N210022765AC
BRACKET
2
39 N210022766AC
BRACKET
2
41 N210022767AB
MANIFOLD
2
73 KXFX061FA00 VV5QZ12-06-X111(DDA)
PLUG
4
76 KXF02CRAA00 KQP-06
FAN-GUARD
2
83 KXFP007AA00 109-620
FAN-GUARD
2
85 KXF07S8AA00 109-619E
PUMP
2
86 N510010616AA KHA400-313-G1-KD192
JOINT
2
93 KXF0866AA00 KQVT10-03S
JOINT
2
116 KXF02CZAA00 KQR06-10
GROMMET
2
123 KXF0DT7AA00 B-19-2
SCREW
16
137 N510018303AA
Cross recessed Truss head machine screw M5X8-4.8 A2S (Trivalent)
BOLT
4
173 N510017386AA
Hexagon socket head cap screw M5X10-10.9 A2J (Trivalent)
BOLT
8
174 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
16
175 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
BOLT
4
179 N510017428AA
Hexagon socket head cap screw M6X12-10.9 A2J (Trivalent)
BOLT
16
185 N510017472AA
Hexagon socket head cap screw M8X20-10.9 A2J (Trivalent)
WASHER
4
190 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
12
191 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
16
196 N510020100AA Thick washer for M5
WASHER
4
197 N510020101AA Thick washer for M6
WASHER
16
198 N510020102AA Thick washer for M8
NUT
16
201 N510017862AA
Hexagon nut Type-1 Best class M5-6H-4T A2J (Trivalent)
NUT
8
202 N510017877AA
Hexagon nut Type-1 Best class M8-6H-4T A2J (Trivalent)
PLUG
2
204 KXF02CQAA00 KQP-04
FILTER
1
208 KXF0E3RRA00 04A30159010
FAN
2
227 N610029791AA
BOLT
4
238 N510017359AA
Hexagon socket head cap screw M4X25-10.9 A2J (Trivalent)
