2-C X 軸 ユニット X-Axis Unit パーツレイアウト Kit No. キット品 番 Kit Name キット名称 N610012218AA ｾｸｼｮﾝNo. PARTS LAYOUT Section No.   M23 

100%1 / 362
Ref
No.
Remarks
R
1
Q't
y
2-B
X
軸
ユニット
X-Axis Unit
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit No.
キット品
番
Kit Name
キット名称
N610012218AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
HOUSING
1
1 KXFB02PHA01
PLATE
1
2 N210009901AA
STOPPER
1
4 KXFB01FRA00
FLANGE
1
5 KXFB02PMA00
BRACKET
1
6 KXFB02PNA00
HOLDER
1
7 KXFB02PPA01
COUPLING
1
8 KXFB02RLA01
DOG
1
10 KXFB02PVA00
NUT-PLATE
3
11 KXFB02RMA00
BRACKET
2
12 N210045351AA
JOINT
1
26 KXF029JAA00 KJL04-M5
PH-SENSOR
1
28 KXF0DL7AA01 PM-L53-C1(DA KXF0DL7AA01)
PH-SENSOR
1
29 KXF0DL4AA01 PM-L53B-C1(DA KXF0DL4AA01)
PH-SENSOR
1
30 KXF0DL5AA01 PM-L53B-C1(DA KXF0DL5AA01)
C-RING
1
31 KXF04CRAA00 STW-10
BEARING
2
32 KXF00JZAA00 6000ZZ
BALL-SCREW
1
33 N510014883AA SBK1530ZS-3.4G0+717LCp5R(30033134C000)
MOTOR
1
35 N510005279AA
S
HC-MFS43-S25
BEARING
1
36 KXF0A1QAA00 7201T2DF/GNP5
BEARING-WASHER
1
37 KXF0E3LDA00 AW01
BEARING-NUT
1
38 KXF0E3M2A00 AN01
PIN
2
39 KXF02Y7AA00 MS4-15
PIN
2
40 KXF02YFAA00 MS5-10
WASHER
2
41 KXF0BLBAA00 T20
SPACER
2
42 N510016347AA 3382330-40030
SPACER
1
45 KXF0747AA00 CL-525N
BOLT
1
46 KXF0CJFAA00 UNAH5-30
BOLT
6
68 N510017311AA
Hexagon socket head cap screw M3X14-10.9 A2J (Trivalent)
BOLT
2
69 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
BOLT
2
71 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
2
72 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
20
73 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
BOLT
4
74 N510017351AA
Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent)
BOLT
18
77 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
BOLT
2
80 N510017435AA
Hexagon socket head cap screw M6X20-10.9 A2J (Trivalent)
BOLT
4
81 N510017437AA
Hexagon socket head cap screw M6X25-10.9 A2J (Trivalent)
WASHER
2
84 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
24
88 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
8
89 N510018480AA
Small round-plain washer 5 10H A2J (Trivalent)
WASHER
6
90 N510018481AA
Small round-plain washer 6 10H A2J (Trivalent)
WASHER
4
92 N510020099AA Thick washer for M4
WASHER
6
95 N510018330AA Spring lock washer No.2 4 S A2J (Trivalent)
WASHER
4
96 N510018332AA Spring lock washer No.2 5 S A2J (Trivalent)
COVER
1
100 N210088751AA
COVER
1
101 N210059862AA
SCREW
2
102 N510018061AA
Cross recessed Pan head machine screw M3X8-4.8 A2J (Trivalent)
WASHER
2
103 N510020098AA Thick washer for M3
M22


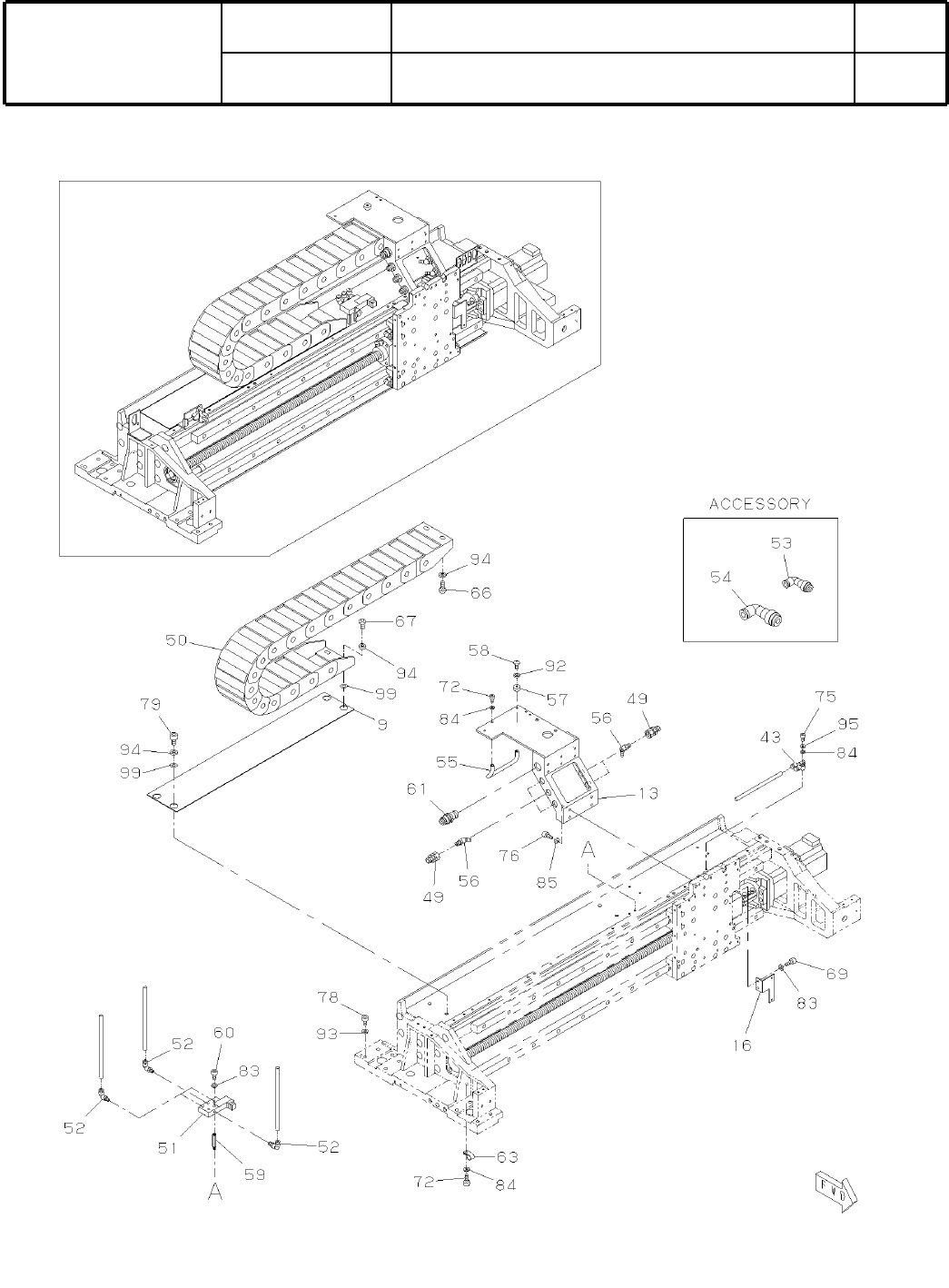

2-C
X
軸
ユニット
X-Axis Unit
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610012218AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
M23

Ref
No.
Remarks
R
1
Q't
y
2-C
X
軸
ユニット
X-Axis Unit
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit No.
キット品
番
Kit Name
キット名称
N610012218AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
SHEET
1
9 N210068092AA
BRACKET
1
13 N210029088AB
BRACKET
1
16 N210009911AA
JOINT
1
43 KXF02DNAA00 KQU06-00
JOINT
5
49 KXF0CSCAA00 KQ2E04-01
CABLE-BEAR
1
50 N510009577AA 25.3-055BB-11-23B
VALVE
1
51 KXF0A1RAA00 VQZ115R-5MO-M5-PR
JOINT
4
52 KXF02C3AA00 KQL06-M5
JOINT
1
53 KXF0CSDAA00 KK3S-06L
JOINT
1
54 KXF0CSEAA00 KK4S-10L
PULL
1
55 KXF00RAAA00 A-1075-7
GREASE-NIPPLE
5
56 KXF0CSHAA00 GPB1
WASHER
1
57 KXF0CXGAA00 WTAB12-4-5
SCREW
1
58 N510018282AA
Cross recessed Truss head machine screw M4X8-4.8 A2J (Trivalent)
SPACER
2
59 N510014379AA CB-325E
BOLT
2
60 N510017329AA
Hexagon socket head cap screw M3X40-10.9 A2J (Trivalent)
JOINT
1
61 KXF0CVQAA00 KK3S-06E
CLIP
1
63 KXF031SAA00 NK-3N
BOLT
2
66 N510017554AA
Hexagon socket button head screw M6X10-10.9 A2J (Trivalent)
BOLT
2
67 N510017557AA
Hexagon socket button head screw M6X16-10.9 A2J (Trivalent)
BOLT
2
69 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
BOLT
3
72 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
1
75 N510017354AA
Hexagon socket head cap screw M4X20-10.9 A2J (Trivalent)
BOLT
2
76 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
16
78 N510017398AA
Hexagon socket head cap screw M5X20-10.9 A2J (Trivalent)
BOLT
2
79 N510017428AA
Hexagon socket head cap screw M6X12-10.9 A2J (Trivalent)
WASHER
4
83 N510018494AA
Round finish plain washer 3 10H A2J (Trivalent)
WASHER
4
84 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
2
85 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
1
92 N510020099AA Thick washer for M4
WASHER
16
93 N510020100AA Thick washer for M5
WASHER
6
94 N510020101AA Thick washer for M6
WASHER
1
95 N510018330AA Spring lock washer No.2 4 S A2J (Trivalent)
WASHER
4
99 N510024069AA MMSRB8-0.5
M24

