Ref No. Remarks R 1 Q't y 6-B 基 板 コンベアR Board Conveyor R ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit No . キット品 番 Kit Name キット名称 N610012222AA Part N ame 備 考 ｾｸｼｮﾝNo. PARTS LIST Section No. R 3 SENSOR 1 11 N610012890AA…
6-B
基
板
コンベアR
Board Conveyor R
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610012222AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
M49
Ref
No.
Remarks
R
1
Q't
y
6-B
基
板
コンベアR
Board Conveyor R
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit No.
キット品
番
Kit Name
キット名称
N610012222AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
SENSOR
1
11 N610012890AA
SENSOR
1
16 N610012891AA
STOPPER
1
32 KXFB02N4A03
PLATE
1
33 N210022326AA
PLATE
1
34 N210022327AA
D-PIN
1
36 KXFB02NAA00
BLOCK
2
38 N210021903AA
BRACKET
1
48 N210022330AA
BRACKET
1
49 N210022331AA
BRACKET
2
50 N210022332AA
BRACKET
1
51 KXFB0A4GB00
BRACKET
2
52 N210029095AA
BOLT
1
61 KXF0ASEAA00 CBSS4-6
SPRING
1
62 KXF0CWKAA00 H063-10
CYLINDER
1
63 KXF0DZBAA00 CJPB15-DCG8017G-15(DDA)
SPEED-CONTROLLER
1
64 KXF00YSAA00 AS1211F-M5-04
WASHER
1
65 N510010165AA WASM12-6-1
PIN
1
66 KXF02Y8AA00 MS4-20
PIN
1
67 KXF0303AA00 MSTH6-30
WASHER
1
68 KXF0E0UXA00 FWSSS-D9.0-V6.0-T2.6
JOINT
4
70 KXF02SSAA00 M-3ALU-4
JOINT
4
71 KXF02STAA00 M-3AU-4
BOLT
2
72 N986ACB340 ACB3-40
BOLT
4
73 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
BOLT
8
75 N510017308AA
Hexagon socket head cap screw M3X12-10.9 A2J (Trivalent)
BOLT
2
79 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
8
80 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
BOLT
2
81 N510017351AA
Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent)
BOLT
4
82 N510017359AA
Hexagon socket head cap screw M4X25-10.9 A2J (Trivalent)
BOLT
2
88 N510017354AA
Hexagon socket head cap screw M4X20-10.9 A2J (Trivalent)
WASHER
6
89 N510018494AA
Round finish plain washer 3 10H A2J (Trivalent)
WASHER
17
90 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
4
93 N510020098AA Thick washer for M3
WASHER
6
94 N510020099AA Thick washer for M4
WASHER
6
95 N510018330AA Spring lock washer No.2 4 S A2J (Trivalent)
NUT
6
97 N510017855AA
Hexagon nut Type-1 Best class M4-6H-4T A2J (Trivalent)
NUT
2
98 N510017849AA
Hexagon nut Type-1 Best class M3-6H-4T A2J (Trivalent)
M50

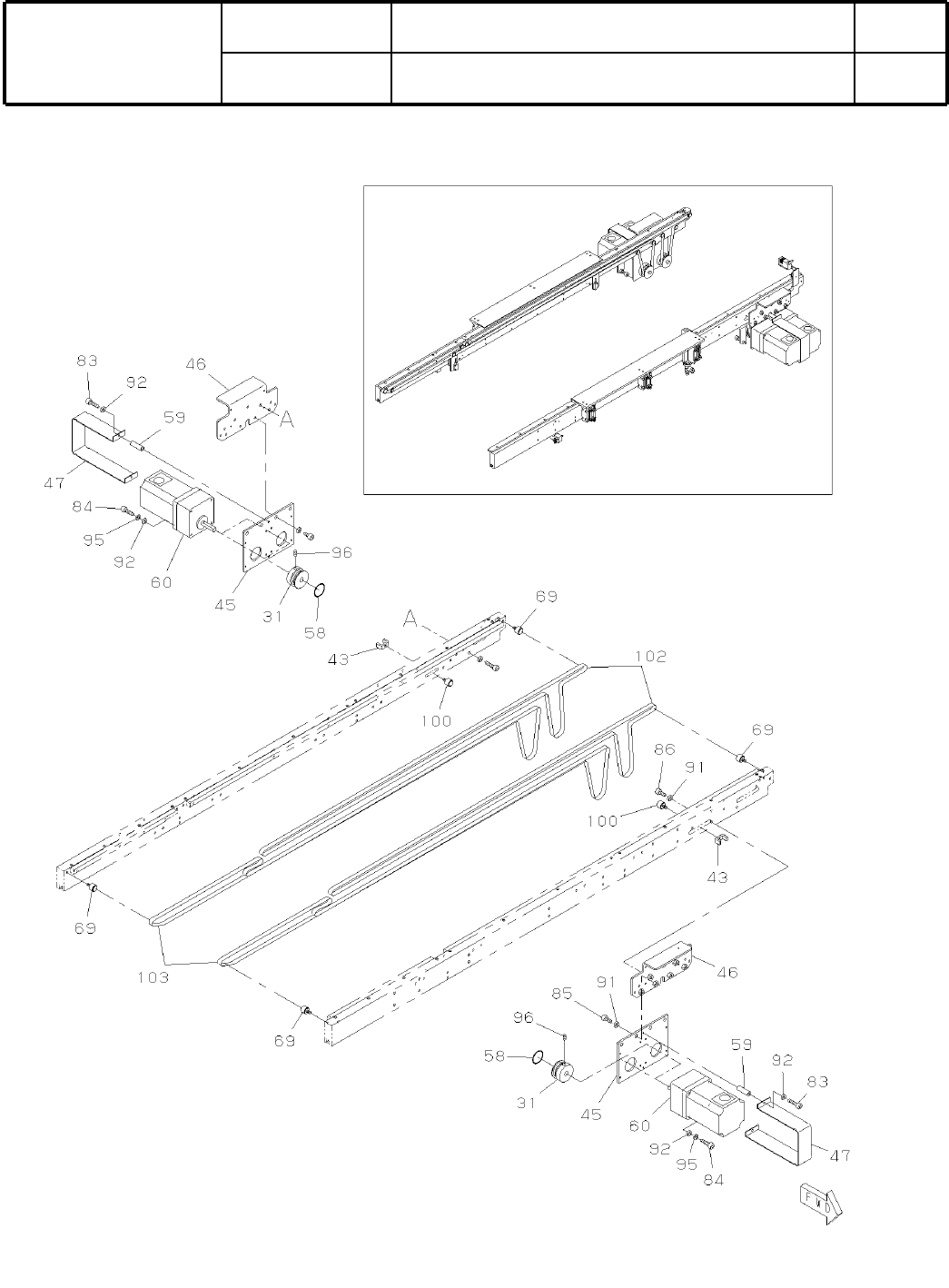

6-C
基
板
コンベアR
Board Conveyor R
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610012222AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
