4.5.2 Main Window of File Display
In the following, the areas of the main window and their functions are explained.

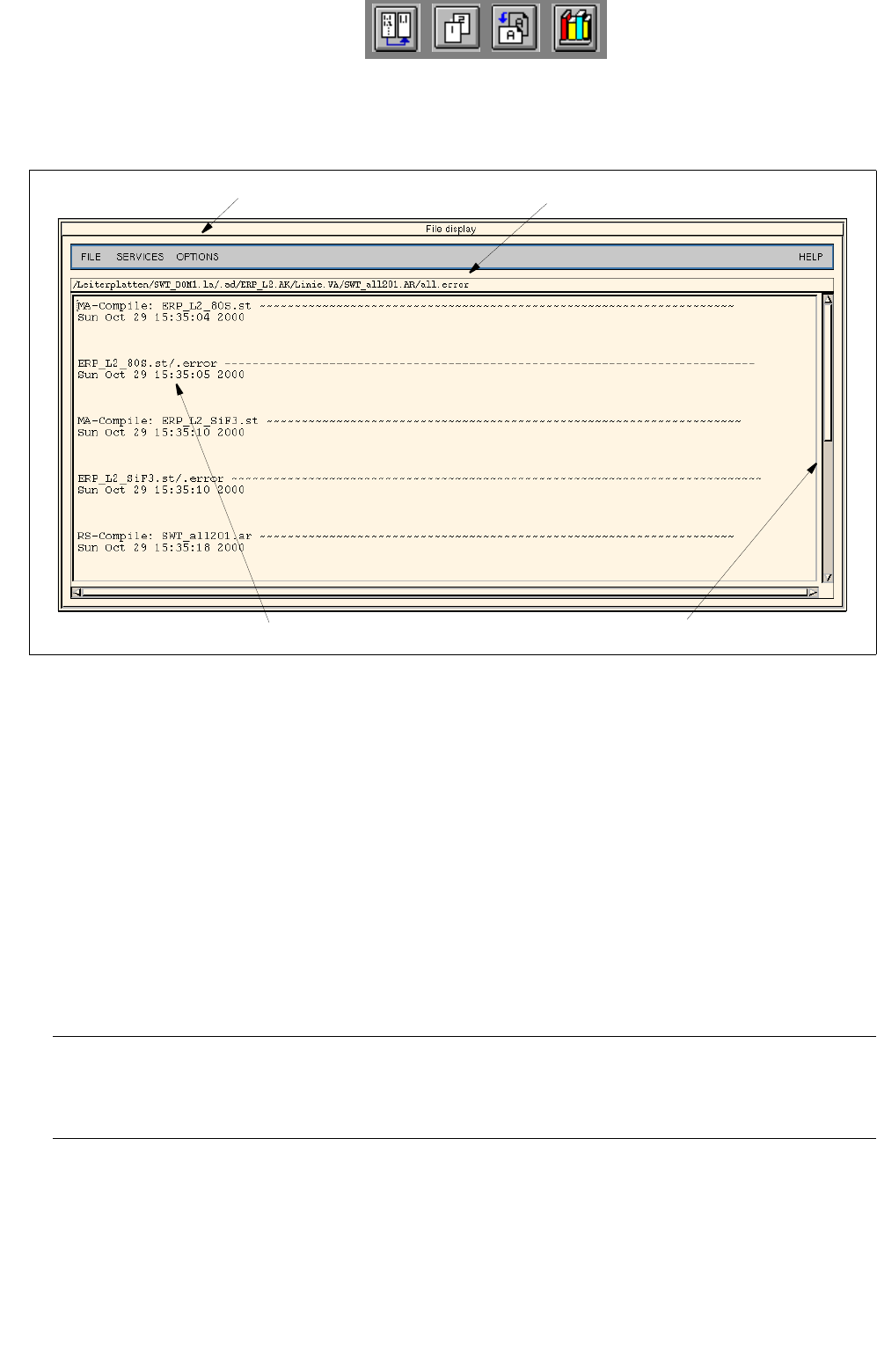

Fig. 4.5.1 Main Window "File Display - Error File"
The main window is subdivided as follows:
- Menu bar
- Status bar
- Display area
Menu bar
The menu bar contains the menus "FILE", "SERVICES", "OPTIONS", and "HELP". The first menu option of
the "FILE" menu is explained in
section 4.5.2.1. The "SERVICES" menu is described in section 4.5.2.2 and
the "OPTIONS" menu in section 4.5.2.3.
NOTE
Since the functions and operation of the "FILE" and "HELP" menus are similar to those in other application
programs of the line computer, they are described comprehensively in chapt. 2 of this manual.
Status bar
The status bar displays the complete path in which the opened file is stored.
menu bar
display area
scroll bar
status bar
User Manual Line Computer UNIX 4 Data Management
Software Version 502.xx 10/2000 Issue 4.5 File Display User Interface
147
I
t I I
Display area
This area shows the contents of the open file which may be edited, if necessary, provided the file is not write-
protected.
NOTE
Edited files may be saved via FILE --> Save or FILE --> Save as. In the case of a write-protected file (e.g. a
line configuration list) these menu items cannot be selected.
If the file contains more information than can fit in the display area, the contents can be scrolled by means of
the vertical scroll bar.
4 Data Management User Manual Line Computer UNIX
4.5 File Display User Interface Software Version 502.xx 10/2000 Issue
148
I
t I I
4.5.2.1 FILE menu
- Opening
This option can be used to select a new file whose contents are to be displayed in the display area.
● Select FILE --> Open...
Depending on the data type selected under Options (see
page 4 - 152) an FSB containing the
applicable filter is opened. The following example is valid for the setting "Line configuration lists".
● Successively select the entries master data: Anlagen, ERP_L2.ak, .ra and .mf displayed in the FSB,
by double-clicking (or else by clicking once and confirming the selection with OK in each case).
The FSB is closed and the line configuration list of the line is displayed in the main window of the
File Display.
Fig. 4.5.2 Main Window "File Display - Line Configuration List"
NOTE
Whenever a file is "opened", a new window opens so that the contents of several different files may be com-
pared with one another.
line configuration list
