User Manual Line Computer UNIX 9 Production Tools / Feeders Software Version 502.xx 10/2000 Issue 9. 1 Feeder Editor 285 I t I I Calling up the li st of feede rs whose qu antity was l imited: ● Select me nu item SERVICES…

9 Production Tools / Feeders User Manual Line Computer UNIX

9.1 Feeder Editor Software Version 502.xx 10/2000 Issue

284

t I I

Calling up the list of package forms not allocated to any feeders yet:

● Select the menu option SERVICES --> Lists --> GFs w/out allocat.

All package forms are displayed that have not been allocated to any feeders yet.

selected feeder

machine type (location)

allocated component

User Manual Line Computer UNIX 9 Production Tools / Feeders

Software Version 502.xx 10/2000 Issue 9.1 Feeder Editor

285

t I I

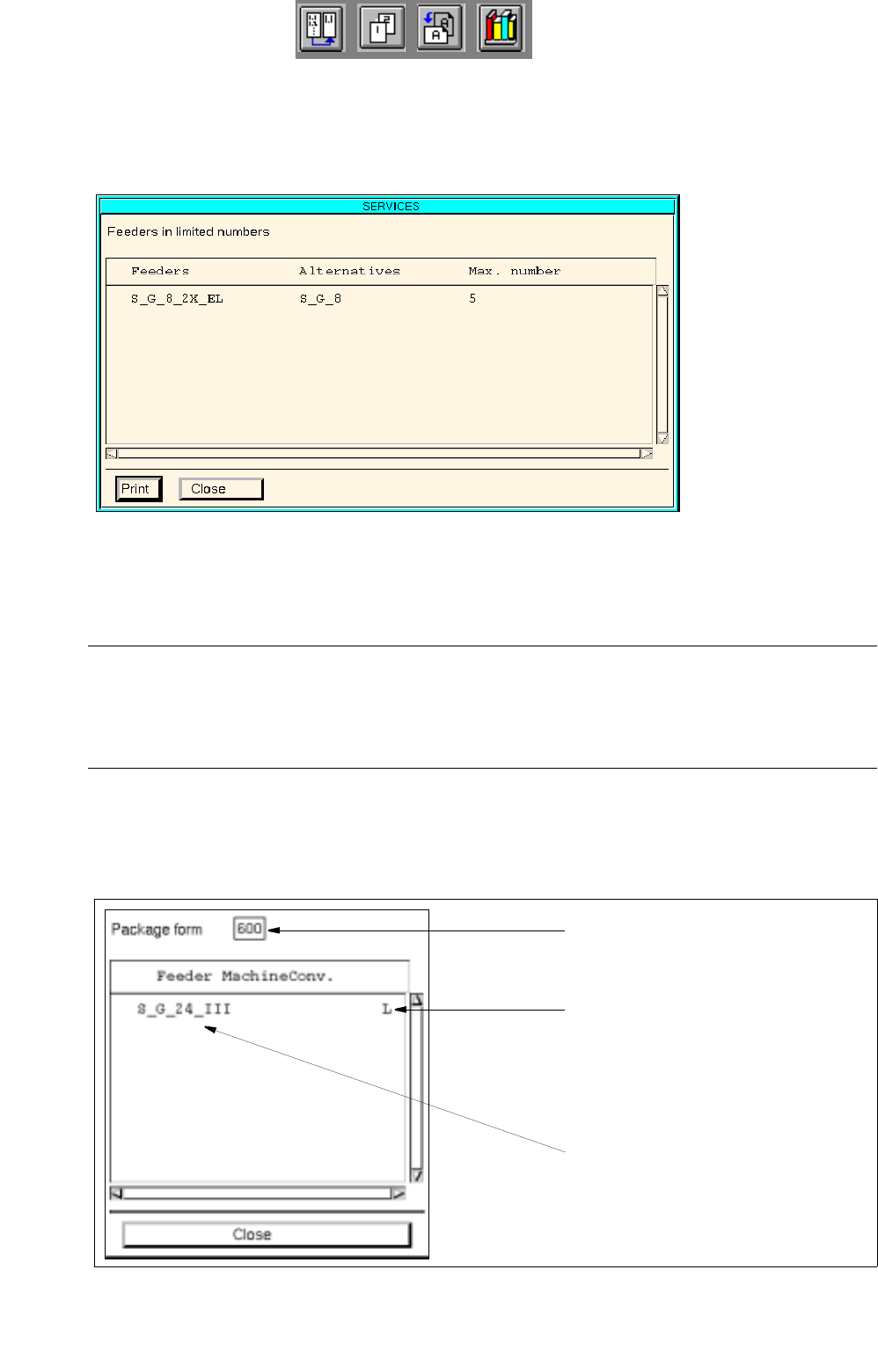

Calling up the list of feeders whose quantity was limited:

● Select menu item SERVICES --> Lists --> Feeders in limited numbers.

All feeders with limited quantities are listed. If alternative feeders were specified (see

section

9.1.3.4

), these will be displayed next to the relevant feeders..

- Allocations to GF

This function enables a list of the feeders or waffle pack trays to be displayed that were allocated to

the current package form.

NOTE

The display of the list is useful if the user has selected a component (see section 9.1.3.2) and wishes

to inform himself of the allocations that have already been defined with respect to the package form of

this component.

Calling up the list:

● Select the menu option SERVICES --> Allocat. to GF.

The list containing the allocations for the current package form is opened.

● Click on the Close button to close the window containing the respective list.

number of the

conveyor side and machine type

allocated feeder

current package form

9 Production Tools / Feeders User Manual Line Computer UNIX

9.1 Feeder Editor Software Version 502.xx 10/2000 Issue

286

t I I

9.1.3.2 Selection Area "Package Form/Component"

This area contains the icons (symbol for package form) and (symbol for component) by means of

which it is possible to switch to a different package form or to a different component within the Feeder Editor.

The procedure for switching from package form --> component or from component --> package form is the same.

NOTE

Switching to a different component/package form can also be accomplished by entering the component

name or the package form number into the appropriate editing field (see Fig. 9.1.2). This variant,

how-ever, is only possible for a changeover within the same type (package form --> package form or

component --> component).

Example: Changing from component "BESO24" to package form "704"

Procedure:

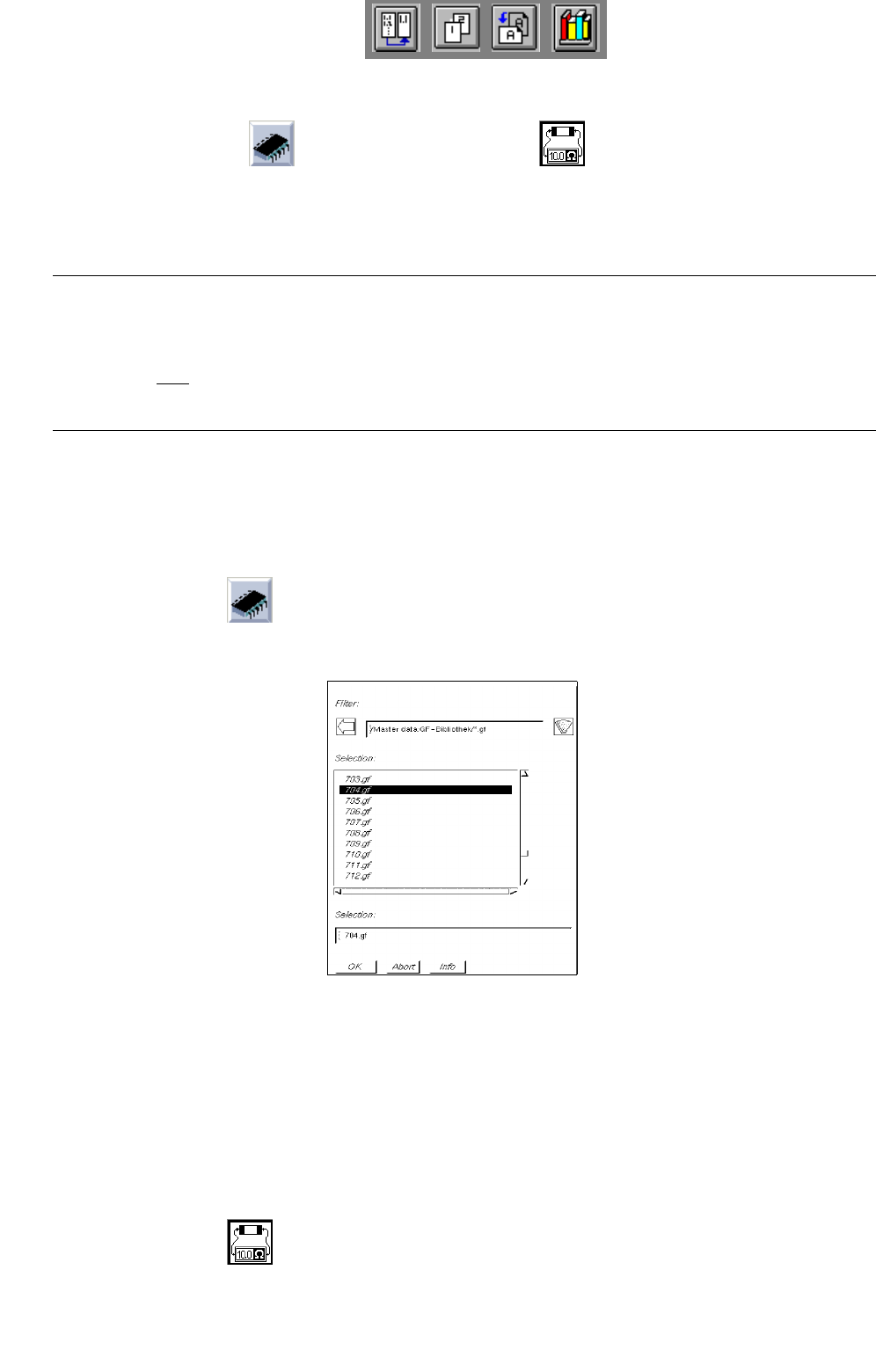

● Click on icon

The FSB containing a selection of the files of all previously defined package forms is opened:

● Select GF-file 704.gf by double-clicking (or enter name of the GF-file in the selection field and

confirm with OK).

The FSB is closed and the number of the selected package form is entered in the editing field

"Package form" in the main window of the Feeder Editor.

In the "GF name" field the comment ("PLCC68") entered in the Package Form Editor is displayed.

Example: Changing from package form "600" to component "IC204"

Procedure:

● Click on icon

The FSB containing a selection of the files of all previously defined components is opened:
