User Manual Line Computer UNIX 13 Production Tools / Set-Up Software Vers ion 502.xx 10/2000 Issue 13.1 Set-Up E ditor (Feeder Part and WPC/MTC Editors) 389 I t I I Fig. 13.1.4 Main Window of WPC/MTC Editor The ma in win…
13 Production Tools / Set-Up User Manual Line Computer UNIX
13.1 Set-Up Editor (Feeder Part and WPC/MTC Editors) Software Version 502.xx 10/2000 Issue
388
I
t I I
13.1.2.1 Starting the WPC/MTC Editor
The WPC/MTC Editor is started from the desktop by clicking on a Waffle Pack Changer or Matrix Tray Changer
(see Fig. 13.1.3).
NOTE
If no Waffle Pack Changer or Matrix Tray Changer was set up upon the configuration of the station, it may
subsequently be allocated via the "options list" in the Feeder Part Editor.
Fig. 13.1.3 Starting the WPC/MTC Editor
● Click on the Waffle Pack Changer or Matrix Tray Changer.
The FSB containing the file selection "Set-up selection" is opened.
● Select a set-up from the list or enter a name (xx.ar), click on OK.
The WPC/MTC Editor is opened.
NOTE
The WPC/MTC Editor will open for the selected Waffle Pack Changer or Matrix Tray Changer .
To be able to edit the setup of another Waffle Pack Changer or Matrix Tray Changer in the line, the
WPC/MTC Editor must be open as well.
13.1.2.2 Main Window of WPC/MTC Editor
The WPC/MTC Editor is opened for the Waffle Pack Changer or Matrix Tray Changer that was clicked on upon
starting. Upon opening, the first level is always displayed.
If waffle pack trays have already been defined, these are displayed at the individual levels in the display area
"Levels". By clicking on the individual levels, they are displayed in the "WPC/MTC" display area (see Fig. 13.1.4).
waffle pack changer
User Manual Line Computer UNIX 13 Production Tools / Set-Up
Software Version 502.xx 10/2000 Issue 13.1 Set-Up Editor (Feeder Part and WPC/MTC Editors)
389
I
t I I

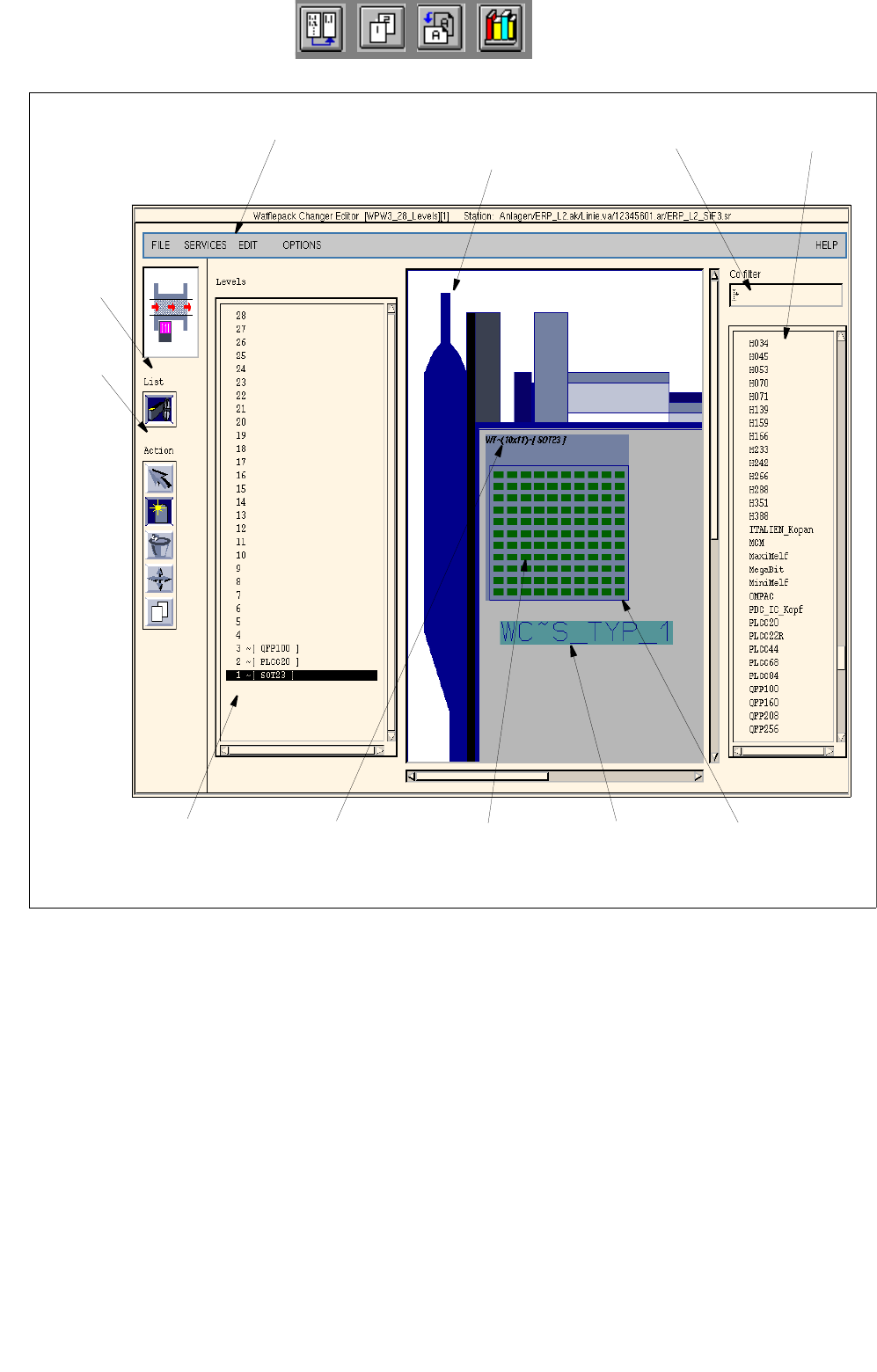

Fig. 13.1.4 Main Window of WPC/MTC Editor
The main window of the WPC/MTC Editor is subdivided into the following areas:
- Menu bar
- Command area "Lists"
- Command area "Action"
- Display area "Levels"
- Display area "WPC/MTC"
- Filter field "Component filter"
- Selection field "Components"
selection field
"Components"
filter field
"Component filter"
menu bar
command
area "Lists"
command
area
display area
"Levels"
Entry of spacing waffle pack
tray carrier
waffle pack tray
display area
WPW/MTC
division of the
waffle pack tray
(here: 10x11) and
component
(here: SOT23)
"Action"
(level 1)
13 Production Tools / Set-Up User Manual Line Computer UNIX
13.1 Set-Up Editor (Feeder Part and WPC/MTC Editors) Software Version 502.xx 10/2000 Issue
390
I
t I I
Menu Bar
The menu bar contains the menus "FILE", "SERVICES", "EDIT", "OPTIONS" and "HELP".
The "SERVICES" menu is described in section 13.1.3, the "EDIT" menu in section 13.1.4.
NOTE
The functions and the operation of the menus "FILE", "OPTIONS" and "HELP" are similar to those of other
application programs of the line computer and are described in detail in chapt. 2 "General Information on
Using the Program".
Command area "Lists"
In this command area the icon "Feeder list" is displayed by means of which the Feeder List can be opened.
The feeder list contains all possible feeders, modules, waffle pack trays and waffle pack tray carrier. Only waffle
pack trays and waffle pack tray carriers can be placed in the Waffle Pack Changer or Matrix Tray Changer.
They can be selected individually and allocated to the various levels in the display area of the main window.
Moreover, the feder list can be opened from the FILE menu using the "° Feeder list" option.
(For a detailed description refer to
section 13.1.3.1).
Command area "Action"
In this command area the icons are displayed by means of which the following actions can be executed:
- selecting
- creating
- deleting
- moving
For a detailed description of the icons refer to section 13.1.5.
