13 Production Tools / Set-Up User Manual Line Compu ter UNIX 13.1 Set-Up E ditor (Feeder Part and WPC/MTC Editors) Software V ersion 502.xx 10/2000 Issue 394 I t I I Fig. 13.1.7 Virtual Level in the Feeder Part Editor 13…
User Manual Line Computer UNIX 13 Production Tools / Set-Up
Software Version 502.xx 10/2000 Issue 13.1 Set-Up Editor (Feeder Part and WPC/MTC Editors)
393
I
t I I

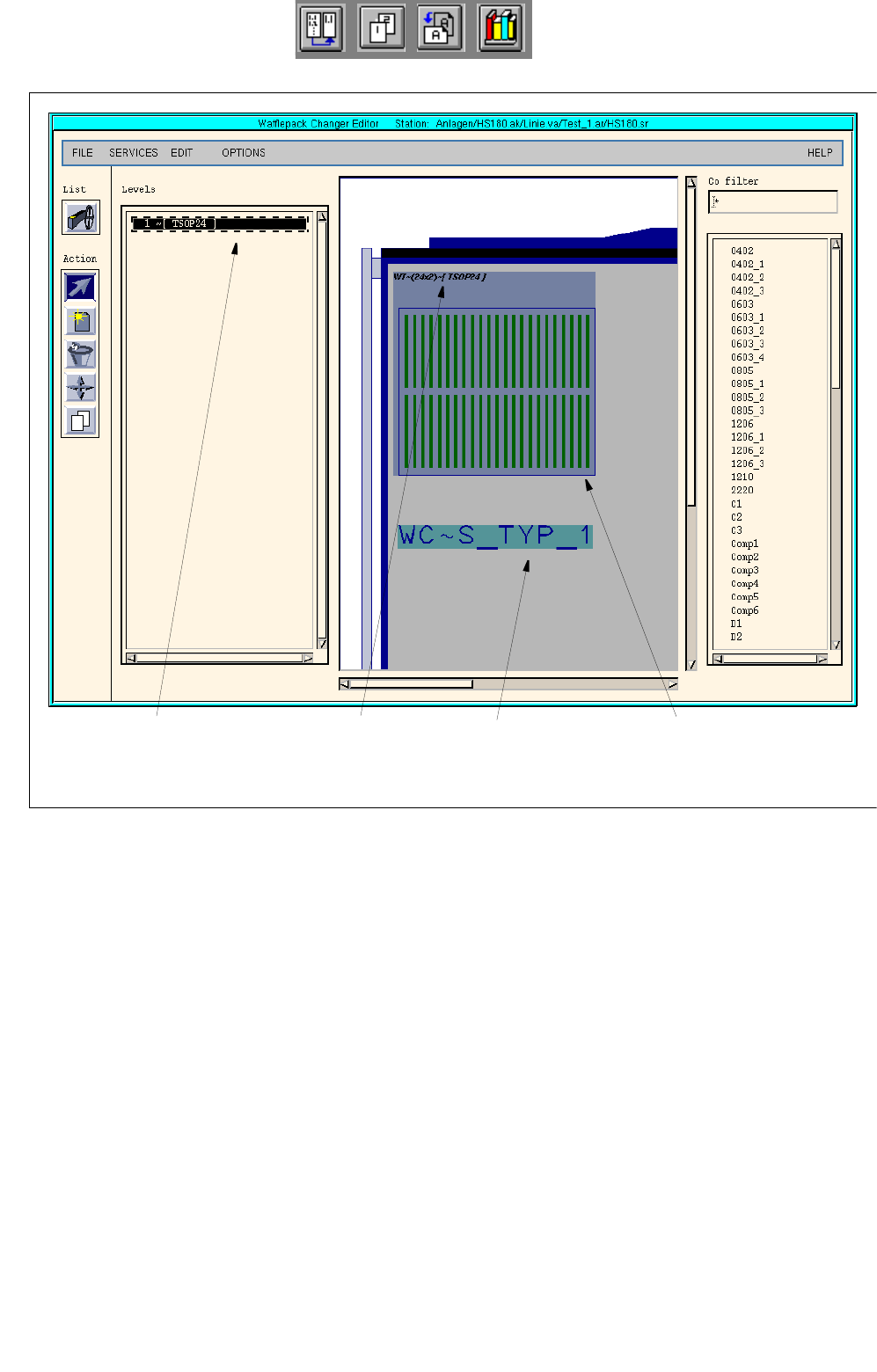

Fig. 13.1.6 Main Window of the WPC Editor for the Virtual Level
Structure and operation of the WPC Editor for the Virtual Level and and that of the Waffle Pack Changer are
identical and are described in detail in section 13.1.2.2.
If a Virtual Level exists, the same is displayed upon opening the Feeder Part Editor. The waffle pack trays
defined thereon are, however, not displayed (see
Fig. 13.1.7).
However, no waffle pack trays can be allocated. Allocations can only be made in the WPC Editor.
waffle pack tray waffle pack traydisplay area "Levels"
(one level only)
carrier
Entry of spacing
(here: 24x2) and
component
(here: TSOP24)
13 Production Tools / Set-Up User Manual Line Computer UNIX
13.1 Set-Up Editor (Feeder Part and WPC/MTC Editors) Software Version 502.xx 10/2000 Issue
394
I
t I I
Fig. 13.1.7 Virtual Level in the Feeder Part Editor
13.1.3 SERVICES Menu
The SERVICES menu on the menu bar of both editors contains the following options:
- Feeder list (see section 13.1.3.1 )
- Options list (see section 13.1.3.2)
- Packaging box (see section 13.1.3.3)
- Nozzle Changer (see section 13.1.3.6)
- RV head nozzle config. (see section 13.1.3.7)
User Manual Line Computer UNIX 13 Production Tools / Set-Up
Software Version 502.xx 10/2000 Issue 13.1 Set-Up Editor (Feeder Part and WPC/MTC Editors)
395
I
t I I
13.1.3.1 Feeder list
The feeder list contains all Siemens-defined types of feeders, modules, waffle pack trays and waffle pack tray
carriers.They can be selected individually and allocated to the tracks or levels in the display area of the main
window.
Clicking on the "Feeder list" option on the FILE menu causes the "Feeder list" window to be opened (see Fig.
13.1.8
). Moreover, the feeder list can also be opened by clicking on the "Feeder list" icon in the command area.
Fig. 13.1.8 Feeder list
The "Feeder list" window is subdivided into the following areas:
- Menu bar
- Command area "Feeders/Waffle pack trays/Modules/Waffle pack tray carriers"
- Display area "Feeder list"
Menu Bar
The menu bar contains the menus "FILE" and "HELP".
NOTE
The functions and the operation of the menus "FILE" and "HELP" are similar to those of other application
programs of the line computer and are described in detail in chapt. 2 "General Information on Using the
Program".
Command area "Feeders/Waffle pack trays/Modules/Waffle pack tray carriers"
In this area the icons for the feeders, waffle pack trays, modules and waffle pack tray carriers are displayed.
Clicking on the icons causes the respective lists to be opened and displayed in the "Feeder list" display area.
command area
"Feeders/
Waffle pack trays/
display area
"Feeder list"
Modules/
Waffle pack tray
carriers"
