14 Control / Control Modules User Manual Line Computer UNIX

14.5 Set-Up Modification Generator Software Version 502.xx 10/2000 Issue

474

t I I

● Click on button Set-up not modified.

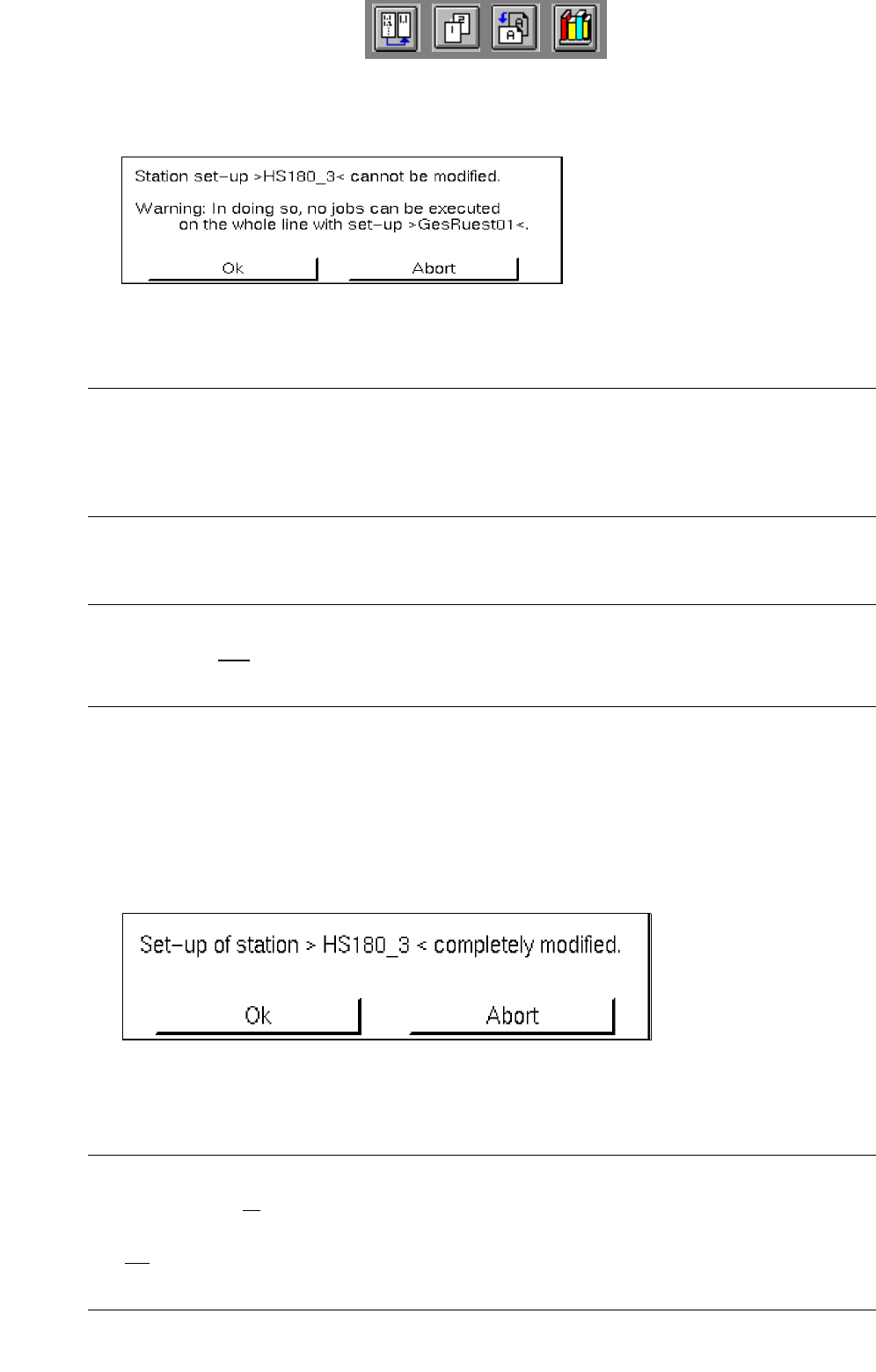

A dialog box containing the following warning message is displayed:

● Confirm the dialog box with Ok.

NOTE

If the set-up of only one station of the subline could not be changed over, it is not possible to produce

any PCB type on the entire subline for which the follow-up set-up displayed has been specified in the

job data for the production of this PCB type.

- Set-up modified

NOTE

This button can only be selected when the Set-Up Modification Generator was opened by a station

controller (initated by a requesting program).

This enables the operator to confirm the physical set-up changeover of a station.

This button is clicked on whenever a station selected from the selection field "Stations" has been reset

in accordance with the corresponding changeover instructions.

● Click on button Set-up modified.

If no station was selected, a corresponding prompt requesting the selection of a station is dis-

played, otherwise the following dialog box is opened:

● Confirm the dialog box with Ok.

The dialog box is closed and the station where set-up changeover has been completed (confir-

med) is no longer displayed in the selection field "Stations".

NOTE

When the set-up of all stations of the subline has been changed over and when the completed chan-

geover has been confirmed for each station, the Set-Up Modification Generator is automatically closed.

It is not possible to prematurely close the Set-Up Modification Generator via the menu using menu

option Quit!

User Manual Line Computer UNIX 15 Control / Error Message System

Software Version 502.xx 10/2000 Issue 15.1 Error Message System

475

t I I

15 Control / Error Message System

15.1 Error Message System

The task of the error message system is to collect all messages in the line computer system and to display

them. The system differentiates between various degrees of urgency of the messages. These messages are:

- simple informative messages on the status of the LC system

- error messages about errors that are not critical for the overall system

- alarm messages signalling serious errors in the LC system (danger for the overall system)

Simple Messages

Simple messages can comprise all types of messages that neither indicate an error nor request any user

response. They are displayed in the display area of the window (see

Fig. 15.1.1) sorted according to date and

time. The number of messages that can be displayed is limited. When the maximum number is reached, the

"oldest" messages are deleted when new messages arrive. In addition, all incoming messages are stored in a file.

Error Messages

Error messages are all messages indicating an error in the LC system. Their display is sorted according to date

and time. The number of messages that can be displayed is limited. When the maximum number is reached,

the "oldest" error messages are deleted when new messages arrive. In addition, all incoming error messages

are stored in a file.

Alarm Messages

Alarm messages are all messages indicating a serious error in the LC system. They are displayed in a separate

window on the monitor immediately after the individual error has occurred. Each alarm message must be

acknowledged by the user before any further alarm messages (if any) are displayed.

When alarm messages have been acknowledged by the user, they can subsequently be viewed in the display

area of the display window (see

Fig. 15.1.1) by activating the error signalling system.

15 Control / Error Message System User Manual Line Computer UNIX

15.1 Error Message System Software Version 502.xx 10/2000 Issue

476

t I I

15.1.1 Opening the "Error Message System" Display Window

● Click on the Error icon on the desktop. The display window is opened.

Upon the initial opening, any existing error messages are displayed first.

NOTE

The icon Errors always changes colour when new messages arrive that have not been viewed yet so

that the user is informed of the existence of current messages at all times.

15.1.2 Display Window "Error Message System"

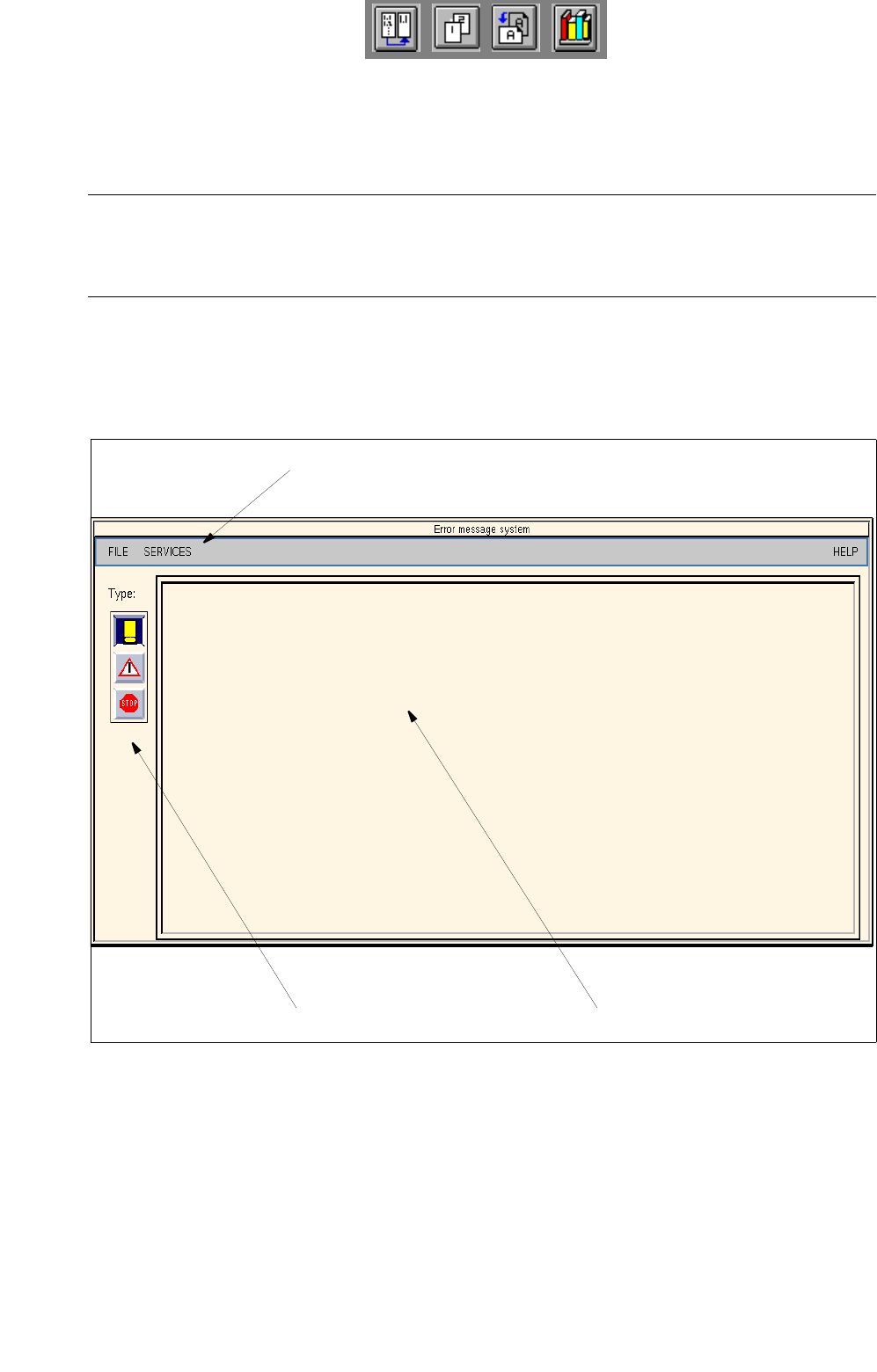

Fig. 15.1.1 Display Window "Error Message System"

The main window is subdivided into the following areas:

- Menu bar

- Display area

- Command area

display areacommand area

menu bar
