User Manual Line Computer UNIX 17 Practical Tips on Using the LC UNIX Software Version 502.xx 10/2000 Issue 17.3 Description of Components and PCBs 545 I t I I 94. In th e ’ Centering ’ selectio n box, activ ate the ap p…
17 Practical Tips on Using the LC UNIX User Manual Line Computer UNIX
17.3 Description of Components and PCBs Software Version 502.xx 10/2000 Issue
544
I
t I I
FILE
Save
FILE
Save
FILE
Quit

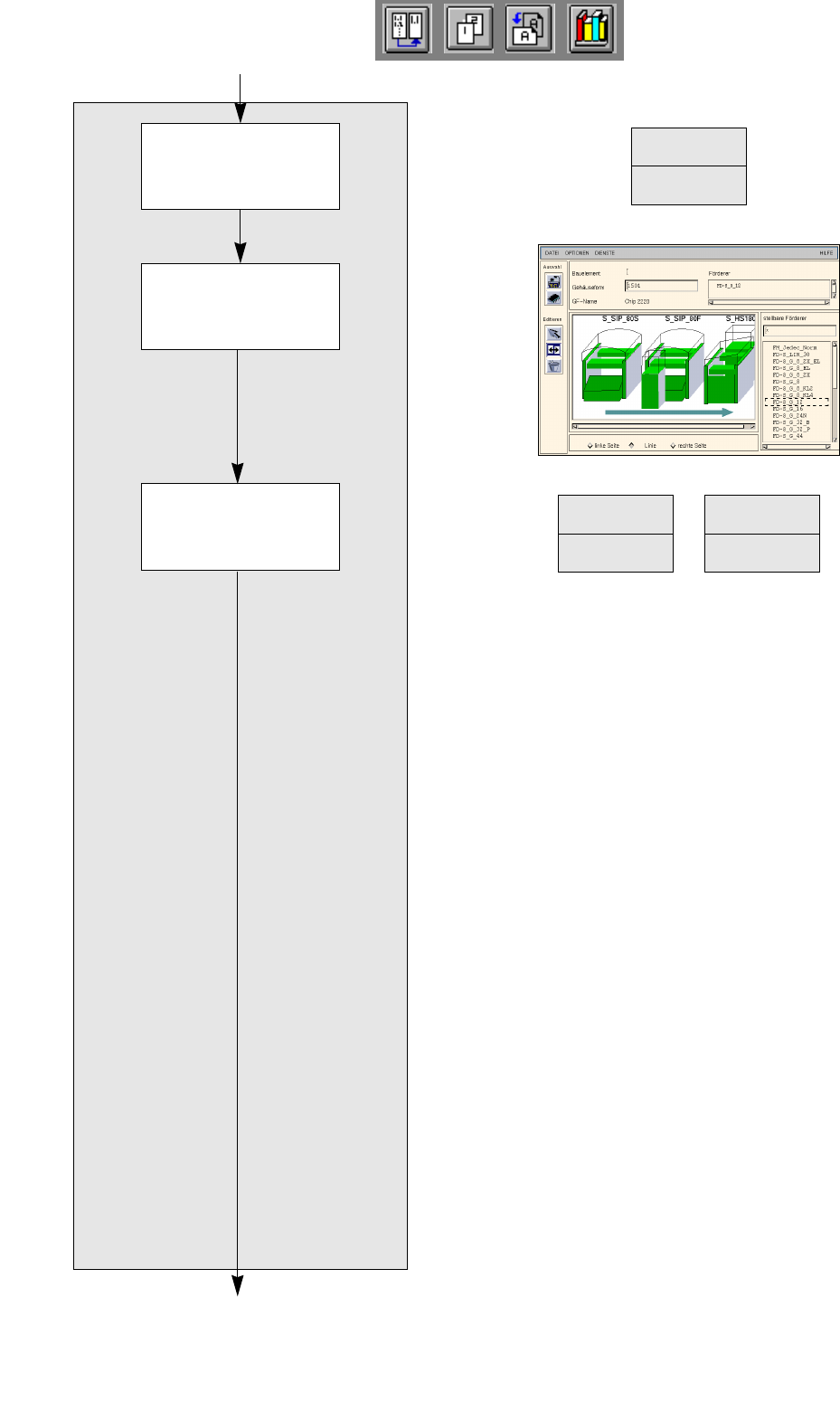

Allocating a package
form to a feeder
continued from page 17-30
Saving package form
to feeder allocation
Package form description for pack. form 1503
continued on page 17-34
Saving package form
data
User Manual Line Computer UNIX 17 Practical Tips on Using the LC UNIX
Software Version 502.xx 10/2000 Issue 17.3 Description of Components and PCBs
545
I
t I I
94. In the ’Centering’ selection box, activate the applicable buttons, here: Centering in head.
95. In this example, the preselected settings for the handling values, the handling instructions and the ’Acce-
leration’ special handling option can be accepted as they are. No changes are required.
96. Click on the Save option on the FILE menu.
The data are saved.
To allocate a feeder to package form 1503, proceed as follows:
97. On the SERVICES menu click on the Starting Feeder Editor option.
The Feeder Editor is opened.
98. Activate the Allocate icon .
99. Click on the Line button.
The entire line is highlighted in light-green.
100.Click on the appropriate feeder on the list of placeable feeders, here: FD~S_G_12.
The feeder is transferred to the Feeder selection field.
101.In the Feeder Editor click on the Save option on the FILE menu.
The data are now saved.
102.Click on the Quit option on the FILE menu.
The Feeder Editor is closed.
103.In the Package Form Editor click on the Quit option on the FILE menu.
The Package Form Editor is closed.
17 Practical Tips on Using the LC UNIX User Manual Line Computer UNIX
17.3 Description of Components and PCBs Software Version 502.xx 10/2000 Issue
546
I
t I I
The adhesive pattern description is dispensed with.

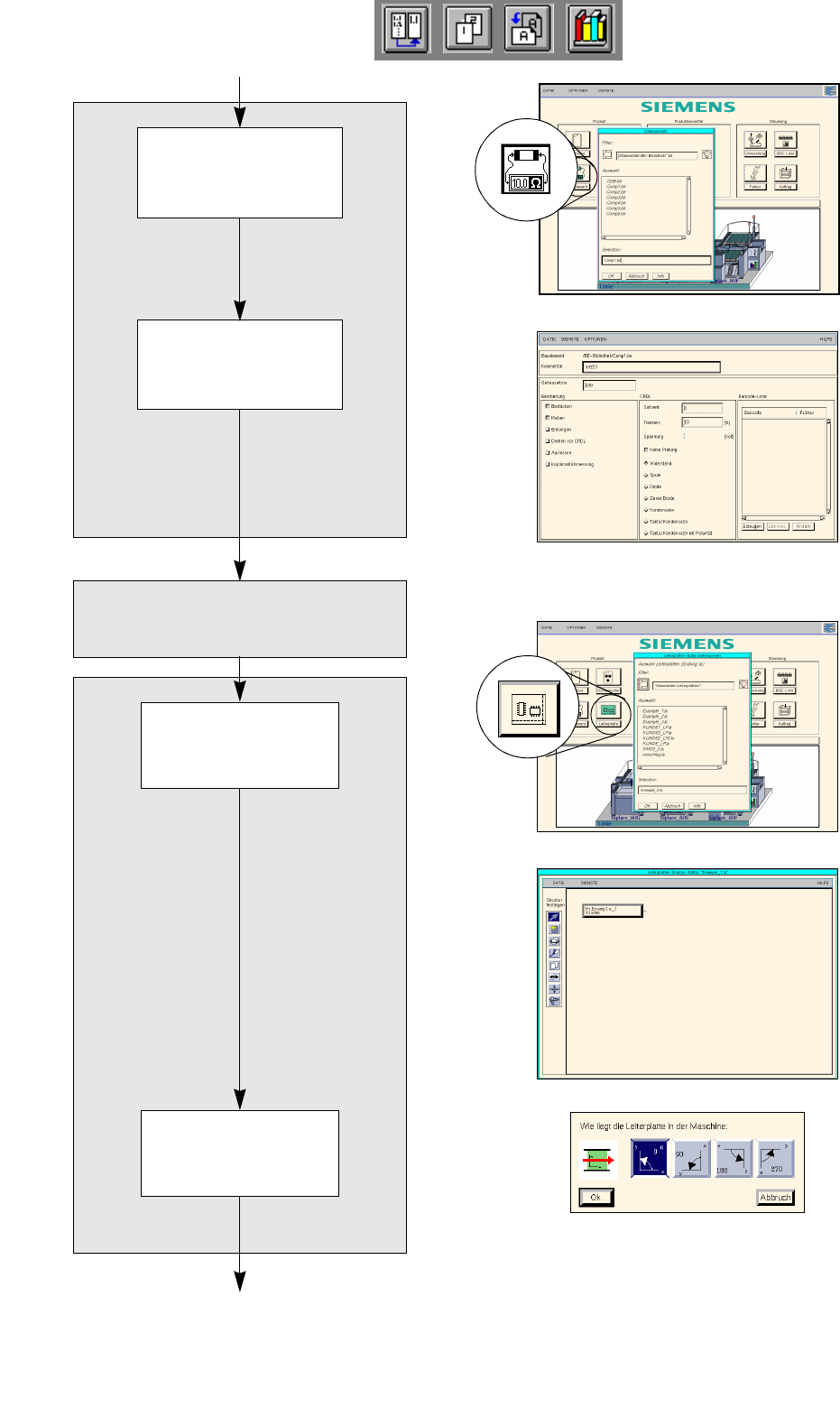

Opening the
Component Editor for
a component
Entering component
data
Component Editor
Adh. pattern description
Starting the PCB
Editor for a PCB
Entering the position
of the PCB in the
machine
PCB description
continued on page 17-36
continued from page 17-32
