17 Practical Tips on Using the LC UNIX User Manual Line Computer UNIX 17.3 Description of Com ponents and PC Bs Software Version 5 02.xx 10 /2000 Issue 548 I t I I PCB description Defining f iducials continue d from page…
User Manual Line Computer UNIX 17 Practical Tips on Using the LC UNIX
Software Version 502.xx 10/2000 Issue 17.3 Description of Components and PCBs
547
I
t I I
17.2.2.2 Component Description
To open the Component Editor for a component, proceed as follows:
104.On the desktop click on the icon the the Component Editor .
The file selection window is opened.
105.Click on the Selection editing field.
106.Enter the name of the component, here: Comp4.be, click on the OK button.
The Component Editor is opened.
To enter the component data, proceed as follows:
107.Click on the Comment editing field, enter a comment that is a unique description of the component, here:
Chip 2220.
108.Click on the Package form editing field, enter the package form number, here: 1501.
109.In the Handling selection field activate the appropriate buttons, here: Placing.
110.In the CRDL selection area activate the appropriate buttons, here: No check.
111.Click on the Save option on the FILE menu.
The component data are saved.
112.Click on the Quit option on the FILE menu.
The Component Editor is closed.
113.Carry out the component description for the remaining components analogously, here: Comp5.be and
Comp6.be.
17.2.2.3 Adhesive Pattern Description
For the new package forms an adhesive pattern is automatically adopted from the DM-Bibliothek.
17.2.2.4 PCB Description
To open the PCB Editor, proceed as follows:
114.On the desktop click on the icon of the PCB Editor .
The file selection window is opened.
115.Click on the Selection editing field.
116.Enter the name of the PCB, here: Example_2.la and click on the OK button.
A dialog box is opened.
117.Click on the TYPE editing field.
118.Enter a type designation, here: board_1 and click on the OK button.
The PCB Editor is opened. The PCB is displayed as a rectangle.
To specify the position of the PCB in the machine, proceed as follows:
119.Activate the Coordinate system icon .
120.Click on the PCB (rectangle).
A dialog box with the display of four coordinate systems is opened.
121.Click on a coordinate system, here: 0°.
122.Click on the OK button.
The dialog box is closed.
User Manual Line Computer UNIX 17 Practical Tips on Using the LC UNIX
Software Version 502.xx 10/2000 Issue 17.3 Description of Components and PCBs
549
I
t I I
To enter the dimensional data of the PCB, proceed as follows:
123.Activate the Select icon .
124.Click on the PCB (rectangle).
The rectangle is highlighted in green.
125.Click on the Cluster Editor option on the SERVICES menu.
The Cluster Editor is opened.
126.Enter the dimensions of the PCB. See Fig. 17.3.4 on page 17-532 and Fig. 17.3.5 .

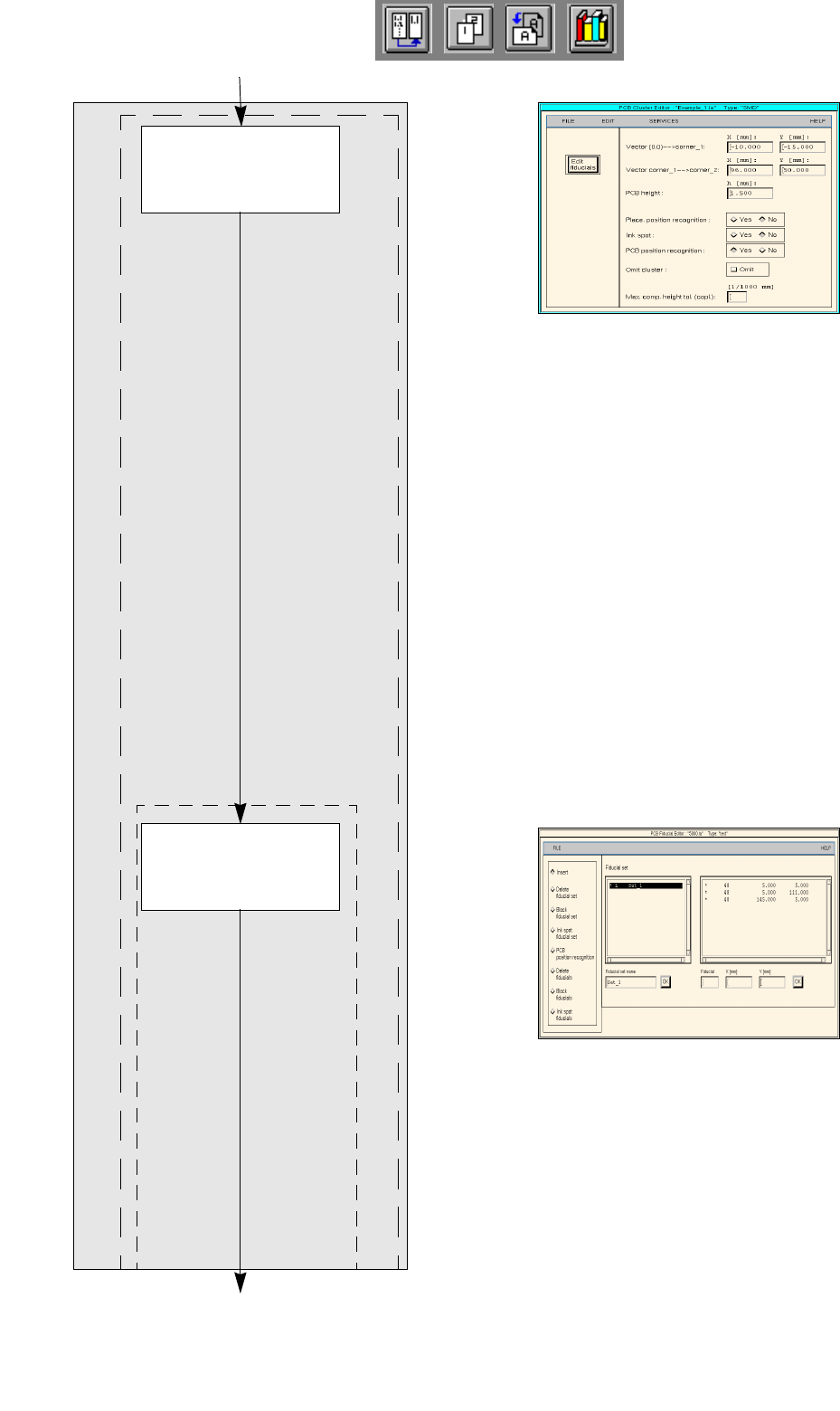

Fig. 17.3.5 Cluster Editor for PCB 2
To define the fiducials, proceed as follows:
127.In the Cluster Editor click on the Edit fiducials button.
The Fiducial Editor is opened.
128.Activate the Insert button.
129.Click on the Fiducial set name editing field.
130.Enter a name for the new fiducial set, here: Set_1.
131.Click on the OK button.
The fiducial set Set_1 appears on the fiducial list.
132.Click on fiducial set Set_1 on the fiducial list.
133.Click on the Fiducial editing field.
134.Enter the fiducial number for the first fiducial, here: 48.
135.Click on the editing fields for the coordinates, enter coordinates
(do not confirm with Enter key!), here: see chart:
136.Click on the OK button.
The data of the fiducial are transferred to the list of the fiducials of the fiducial set.
137.Define the remaining fiducials accordingly, here: fiducials 48 and 48.
138.Activate the PCB position recognition button.
139.Click on the fiducial set Set_1 on the fiducial list.
The fiducial set Set_1 is marked by a preceeding
L for PCB position recognition.
Fiducial number X Y
48 30 0
48 0 86
48 30 86
Activate ink spot
Activate PCB pos. recognition
