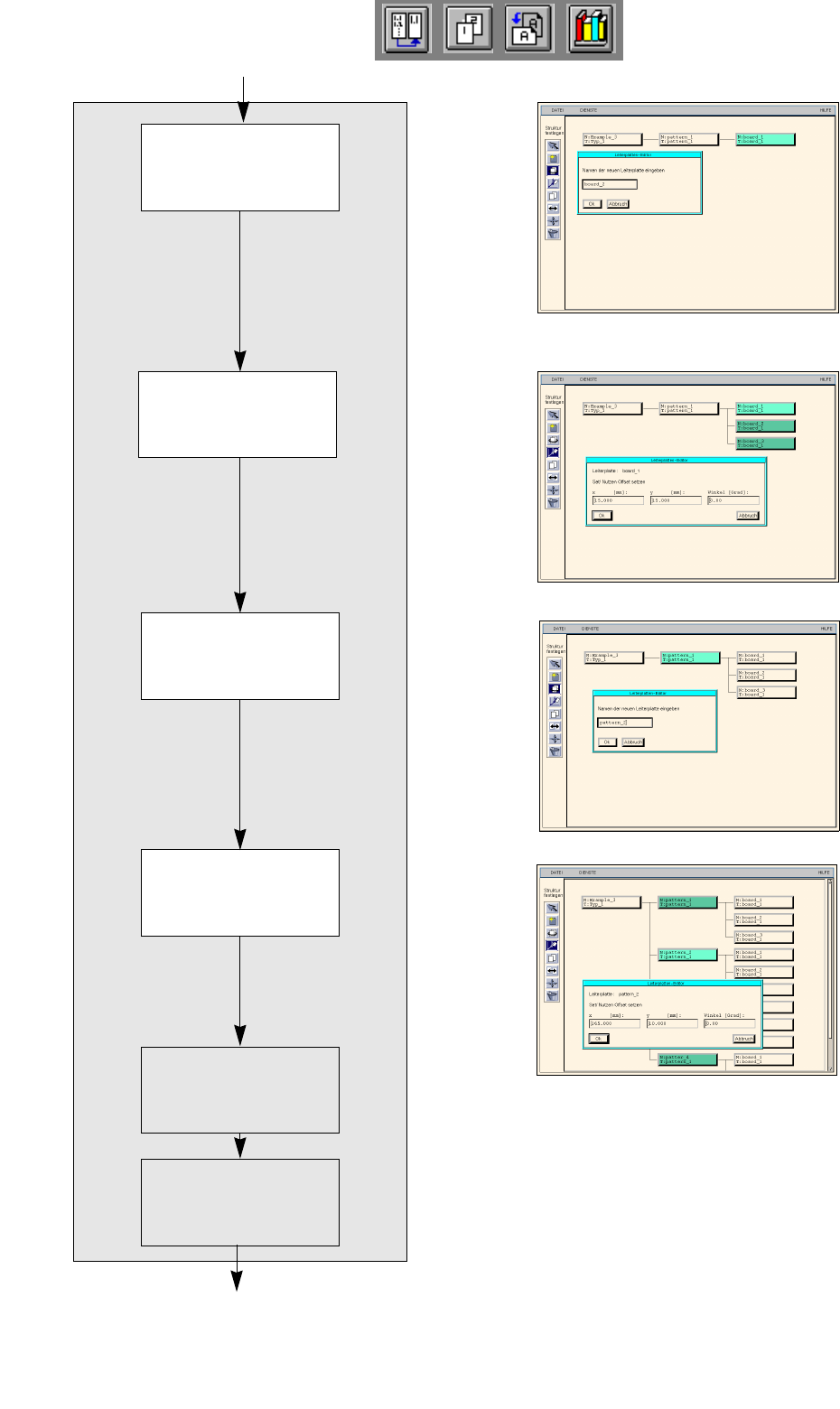

Duplicating
cluster
Entering offset values
for
duplicated cluster
Defining
fiducials
Defining
ink spot
continued from page 17-46
Duplicating single
circuits
Entering offset values
for duplicated single
circuit
continued on page 17-50
User Manual Line Computer UNIX 17 Practical Tips on Using the LC UNIX
Software Version 502.xx 10/2000 Issue 17.3 Description of Components and PCBs
561
I
t I I
65. In the Cluster Editor activate the appropriate buttons for PCB position recognition and Place. position
recognition, here: for both options no.
66. Activate the appropriate button for Ink spot, here: yes.
67. Click on the Quit option on the FILE menu.
The Cluster Editor is closed
To duplicate a single circuit, proceed as follows:
68. Activate the Duplicate icon .
69. Click on the single circuit, here: board_1.
A dialog box is opened.
70. Click on the editing field.
Enter the name for the new single circuit, here: board_2, and click on the OK button.
The dialog box is closed. The new single circuit is displayed at the third level.
71. Duplicate the other single circuit, here: board_3, analogously.
To enter the offset values for the duplicated single circuits, proceed as follows:
72. Activate the Coordinate system icon .
73. Click on a single circuit, here: board_2.
A dialog box is opened.
74. Click on the individual editing fields and enter the offset values, see Fig. 17.3.7 on page 17-553.
75. Click on the OK button.
The dialog box is closed.
76. Enter the offset values for the other single circuits, here: board_3 analogously.
To duplicate a cluster together with the single circuits contained therein:
77. Activate the Duplicate icon .
78. Click on the cluster you wish to duplicate, here: pattern_1.
A dialog box is opened.
79. Click on the editing field and enter the name, here: pattern_2.
80. Click on the OK button.
A new cluster with three single circuits each is set up. All data of the duplicated cluster are adopted.
81. Duplicate the other clusters, here: pattern_3 and pattern_4, analogously.
To enter the offset values for the duplicated clusters, proceed as follows:
82. Activate the Coordinate system icon .
83. Click on a duplicated cluster, here: pattern_2.
A dialog box is opened.
84. Click on the individual editing fields and enter the offset values, see Fig. 17.3.7 on page 17-553.
85. Click on the OK button.
The dialog box is closed.
86. Enter the offset values for the other single circuits, here: pattern_3, pattern_4 analogously.
Defining fiducials: the definition of the fiducials is dispensed with for the duplicate.
Defining ink spot: the definition of the ink spot is dispensed with for the duplicate.
