User Manual Line Computer UNIX 17 Practical Tips on Using the LC UNIX
Software Version 502.xx 10/2000 Issue 17.3 Description of Components and PCBs
563
I
t I I
Entering placement positions: the entry of placement positions is dispensed with for the duplicate.
To save the PCB data, proceed as follows:
87. In the PCB Editor click on the Save option on the FILE menu.
The PCB data are saved.
88. Click on the Quit option on the FILE menu.
The PCB Editor is closed. The description of PCB 3 is completed.
Have you entered all values correctly? Compare the solutions below (see also Fig. 17.3.7 on
page 17-553):
Di
mens
i
ons o
f
th
e
PCB
(
page
17
-
555)
Vector (0.0) -->
Corner_1:
Vector Corner_1 -->
Corner_2
PCB height
PP position
recognition
Ink spot
PCB
position
recognition
X Y X Y h
-5 -5 335 272 1.5 no no no
Offset values of the first cluster (page 17-557)
X Y Angle
10 10 0
Dimensions of the first cluster (page 17-557)
Vector (0,0) -->
Corner_1:
Vector Corner_1 -->
Corner_2
PCB height
PP position
recognition
Ink spot
PCB
position
recognition
X Y X Y h
0 0 150 116 no no yes
Offset values of the first single circuit (page 17-559
)
X Y Angle
15 15 0
Offset values of the duplicated single circuits (page 17-561)
Single circuit X Y ] Angle
board_2 60 15 0
baord_3 105 15 0
Offset values of the duplicated clusters (page 17-561)
Cluster X Y Angle
pattern_2 165 10 0
pattern_3 160 252 180
pattern_4 315 252 180
17 Practical Tips on Using the LC UNIX User Manual Line Computer UNIX
17.4 Set-Up Generation Software Version 502.xx 10/2000 Issue
564
I
t I I
FILE
Save
FILE
Quit
17.4 Set-Up Generation
A common set-up is to be created for the three PCBs.

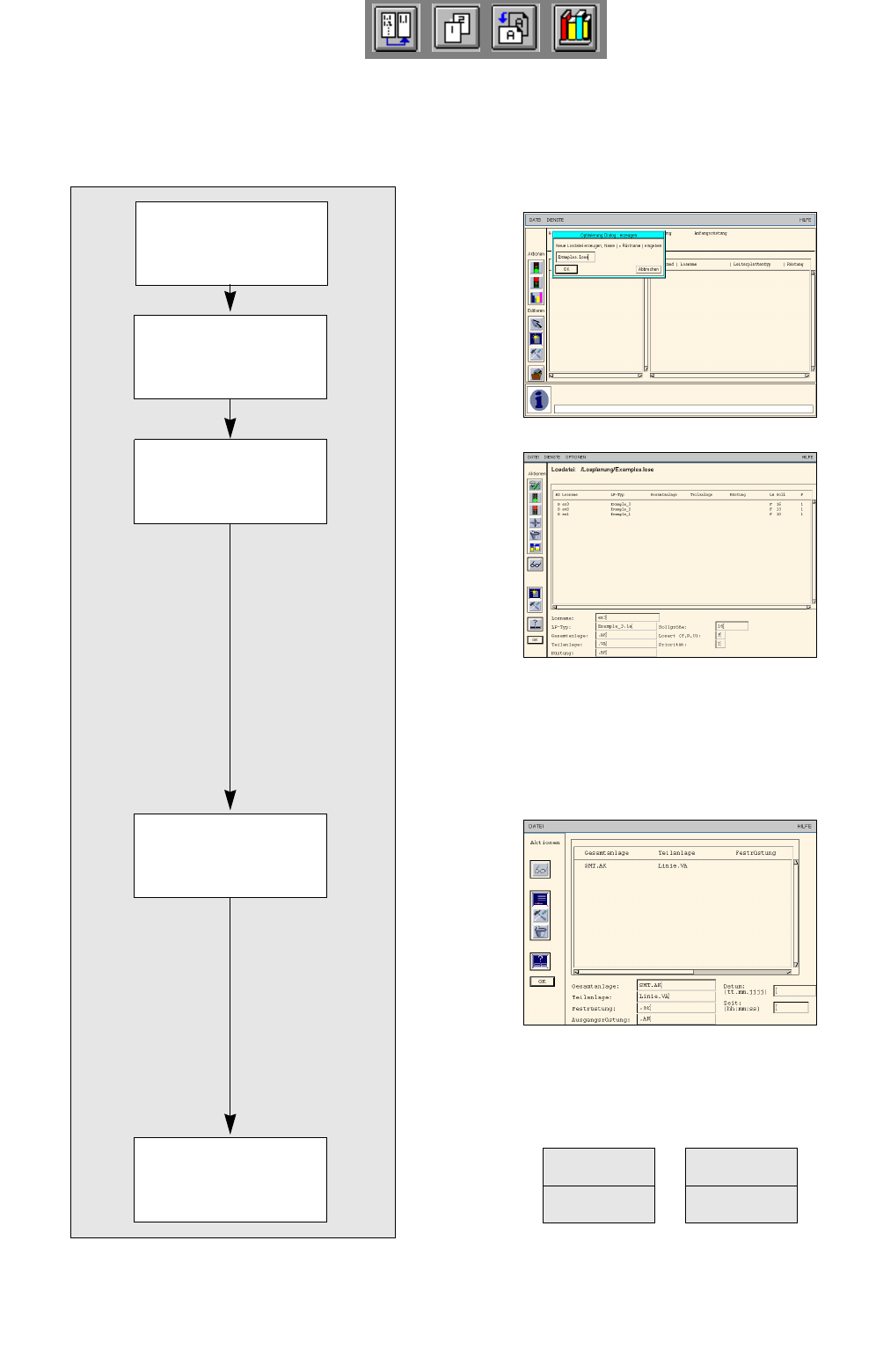

17.4.1 Lot Handling
Opening the
optimization dialog
Creating lot file
Editing lot file
Generating basic
optimization data
Saving lot file
