17 Practical Tips on Using the LC UNIX User Manual Line Computer UNIX
17.4 Set-Up Generation Software Version 502.xx 10/2000 Issue
564
I
t I I
FILE
Save
FILE
Quit

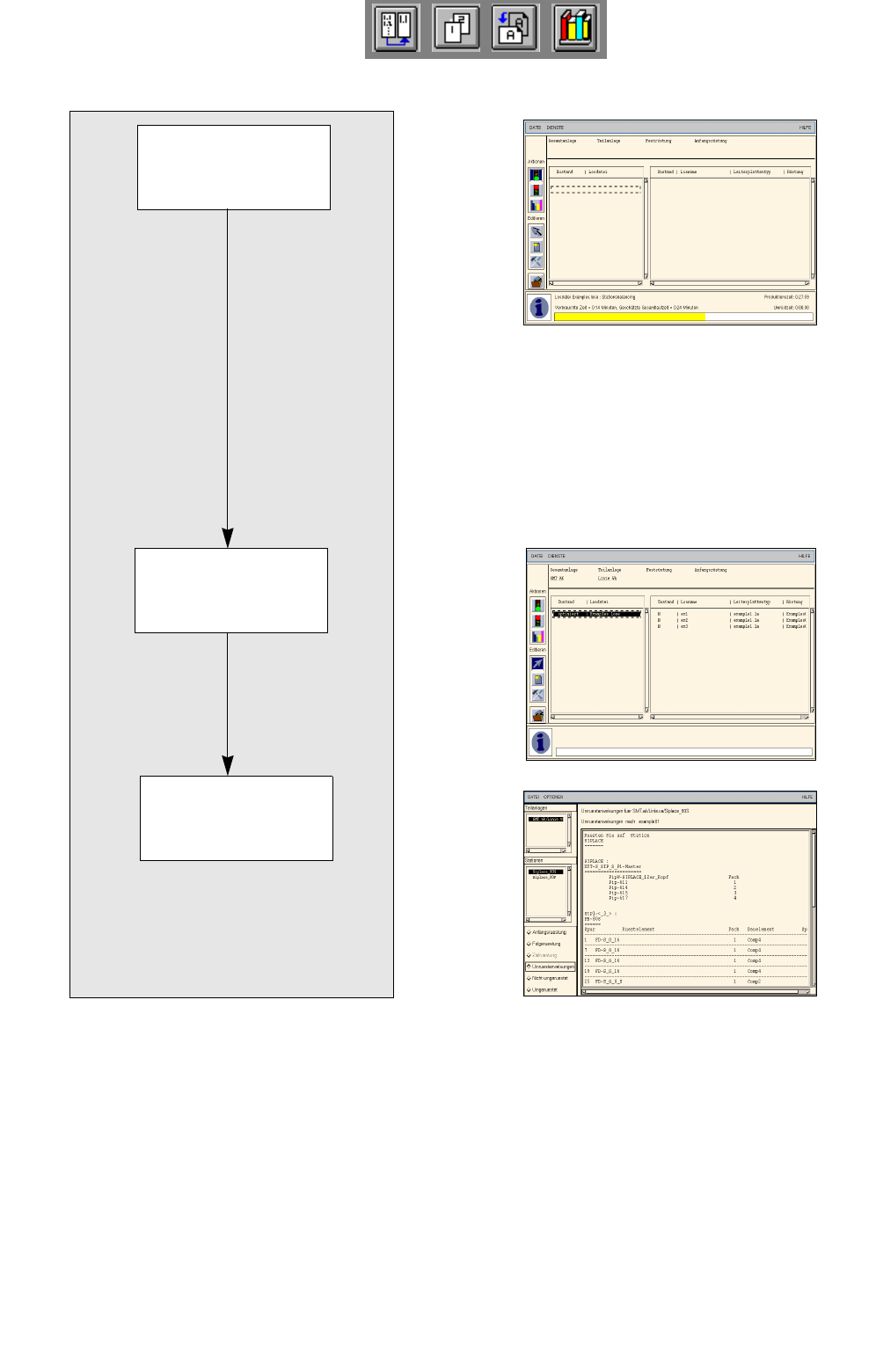

17.4 Set-Up Generation
A common set-up is to be created for the three PCBs.
17.4.1 Lot Handling
Opening the
optimization dialog
Creating lot file
Editing lot file
Generating basic
optimization data
Saving lot file
User Manual Line Computer UNIX 17 Practical Tips on Using the LC UNIX
Software Version 502.xx 10/2000 Issue 17.4 Set-Up Generation
565
I
t I I
To open the optimization dialog, proceed as follows:
1. Click on the Optimization dialog icon .
The optimization dialog is opened.
To create a lot file, proceed as follows:
2. Activate the Create icon .
A window is opened.
3. Click on the editing field and enter a name for the lot file, here: Examples.lose.
4. Click on the OK button.
Job Control is opened.
To edit a lot file, proceed as follows:
5. In Job Control activate the Create icon , then activate the Edit support icon .
The Edit support Lot Data is opened.
6. Select the PCB you wish to edit by double-clicking, here: Example_1.la .
The PCB is transferred to the Selection: field.
7. Click on the Abort button, the other data are not used at this point.
Edit support is closed. The selected PCB is transferred to the editing area.
8. In the editing area click on the Lot name field and enter the lot name, here: ex1.
9. In the editing area click on the Lot size field and enter the lot size, here: 10.
10. In the editing area click on the Lot type field and enter the lot type, here: F.
11. Click on the OK button.
The job is transferred to the lot file. In the case of faulty entries, the respective field is surrounded by a red
frame and an error message is displayed above the list. Correct the entry.
12. Insert the remaining PCBs analogously, here: Example_2.la and Example_3.la, see chart.
To create the basic optimization data, proceed as follows:
13. Click on the Basic Optimization Data... command on the SERVICES menu.
The Basic optimization data window is opened.
14. Activate the Create icon and then activate the Edit support icon .
The Edit support Basic Optimization Data is opened.
15. Select the line, here: SMT.AK, and the subline, here: Linie.VA, by double-clicking.
16. Click on the Abort button, no fixed or initial set-ups are used here. The edit support is closed.
The selected data are transferred to the editing area.
17. Click on the OK button.
The data are transferred to the list.
18. Click on the Quit command on the FILE Menu.
A dialogbox containing a request for saving data is opened
19. Click on the Yes button.
The Basic optimization data window is closed, the data are saved.
To save the lot file, proceed as follows:
20. Click on the Save command on the FILE menu.
The lot file is saved in the Job Data under the entered name.
21. Click on the Quit command on the FILE menu.
Job Control is closed. The Optimization Dialog is opened.
PCB Lot name Lot size
Lot
type
Example_1.la ex1 10 F
Example_2.la ex2 13 F
Example_2.la ex3 16 F
