User Manual Line Computer UNIX 3 Desktop (Root Window) Software Version 502.xx 10/2000 Issue 3.1 Introduction 71 I t I I 3 Desktop (Root Window) 3.1 Introd uctio n This chapter of t he User ’ s Manual prov ides the us er…
2 General Information on Using the Program User Manual Line Computer UNIX
2.5 Menu Bar in the Application Window Software Version 502.xx 10/2000 Issue
70
I
t I I
- History
Every Help topic you have previously displayed is listed in a box.
- Back
The Help topic you saw most recently is displayed.
- <<
Lets you scroll the Help Index in upward direction.
- >>
Lets you scroll the Help Index in downward direction.
- Text Search
The window for entering a search text is opened.
● Click on the Text Search button.
The following window is opened.
● Enter the search text in the editing field.
● Activate the button(s) for the search criterion by clicking on it.
The window is closed.
● Click on the Search... button.
The number of matches found are added up and displayed in a box.
Once the search is complete, the box is closed and all topics containing the search text are listed
in a separate window.
If no match of the search text has been found, a message box will be displayed informing you of
this.
editing field
search criteria
User Manual Line Computer UNIX 3 Desktop (Root Window)
Software Version 502.xx 10/2000 Issue 3.1 Introduction
71
I
t I I
3 Desktop (Root Window)
3.1 Introduction
This chapter of the User’s Manual provides the user with information on the layout, function and operation of
the desktop (root window). The desktop is the user interface of the entire LC system and is displayed after the
LC software has been started up (see chapt. 2, section 2.1.1).
3.1.1 Layout of the Desktop
The desktop fills the entire screen and cannot be changed in size. The appearance of the desktop depends on
whether the LC program is started in the user mode Programming mode or Control mode. Even though the
appropriate mode was already set upon the installation of the LC software (see
chapt. 1), it can be changed by
means of the OPTIONS menu (see section 3.2.1.2). Depending on the user mode selected, the tools on the
desktop can be used to fulfill varying tasks.
- In the programming mode the desktop provides the user with all tools required to completely define a
product and to control its production.
- In the control mode the desktop provides the user only with those tools in the form of icons that are
required for the production (control). The other tools can be activated via the menu options of the
"PRODUCT" and "PRODUCTION TOOLS" menus (see section 3.2.1.4 and section 3.2.1.5).
3 Desktop (Root Window) User Manual Line Computer UNIX
3.1 Introduction Software Version 502.xx 10/2000 Issue
72
I
t I I

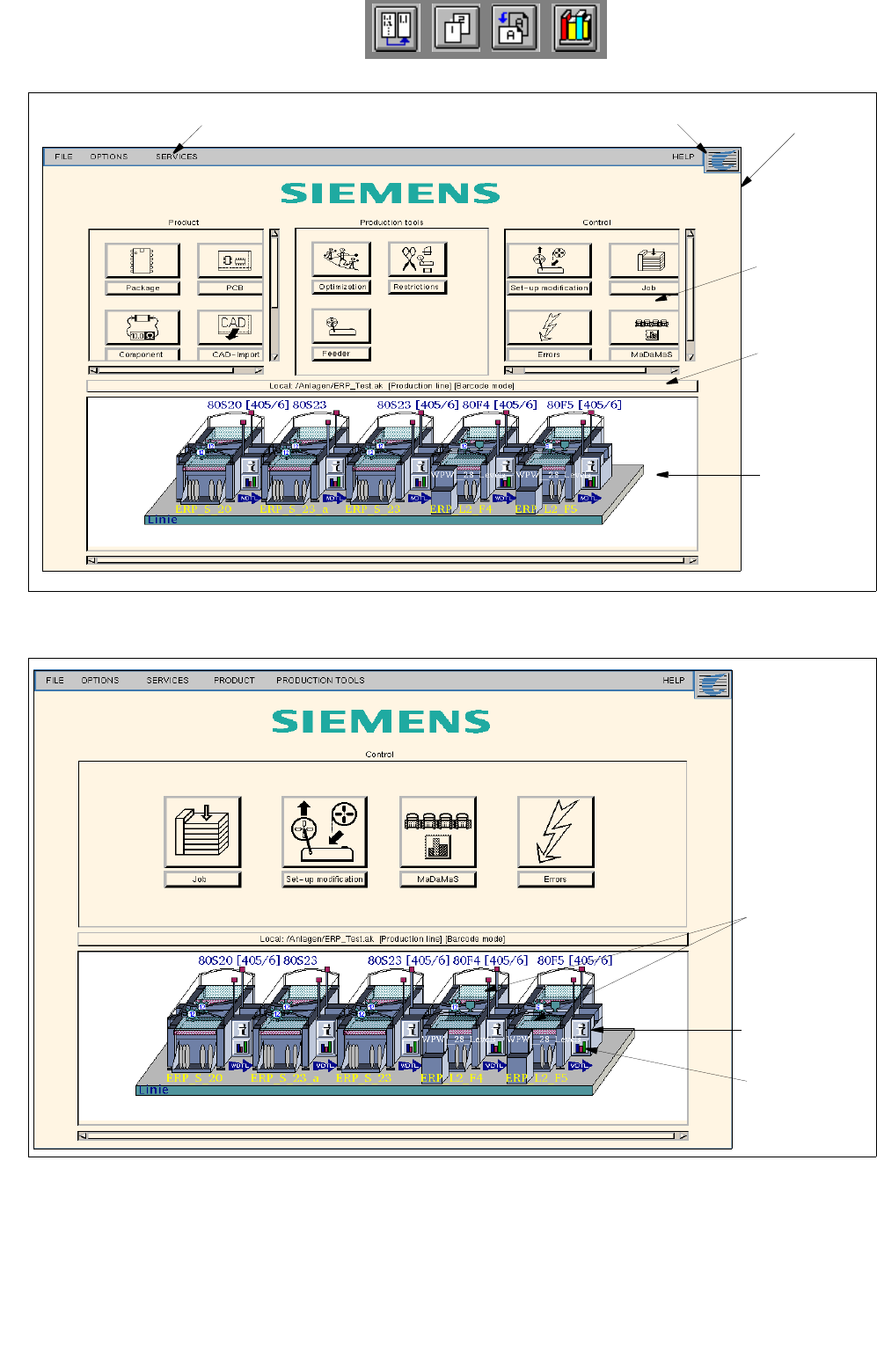

Fig. 3.1.1 Layout of the Desktop in the Programming Mode
Fig. 3.1.2 Layout of the Desktop in the Control Mode
desktop menu bar SMD symbol
main group
line selection
(current line
configuration)
main menu
display
area
button (for the
selection of a
new line)
feeder parts
symbol "i“ for
station
controller
bar chart
symbol for
MaDaMaS
