- Search for similar package forms
If this button is activated, all customer-specific package forms (GF no.
>
1500) will automatically be com-
pared for similarity with the new standard package forms after the new GF library has been installed.
If the button is deactivated, (default setting), no similarity comparison will be carried out.
NOTE
Package forms are considered to be similar if they are of the same package form type (PDC, FDC or
BGA) and, in addition, if the following criteria are met:
- PDC / FDC / BGA same length and width of the component, including the tolerance
- FDC / BGA same number of pins or "balls"
- FDC / BGA same number of lead or ball models
Procedure:
● Insert the diskette containing the new GF library into the floppy drive.
● If required, activate/deactivate the appropriate buttons in the settings area of the dialog window.
● Click on OK.

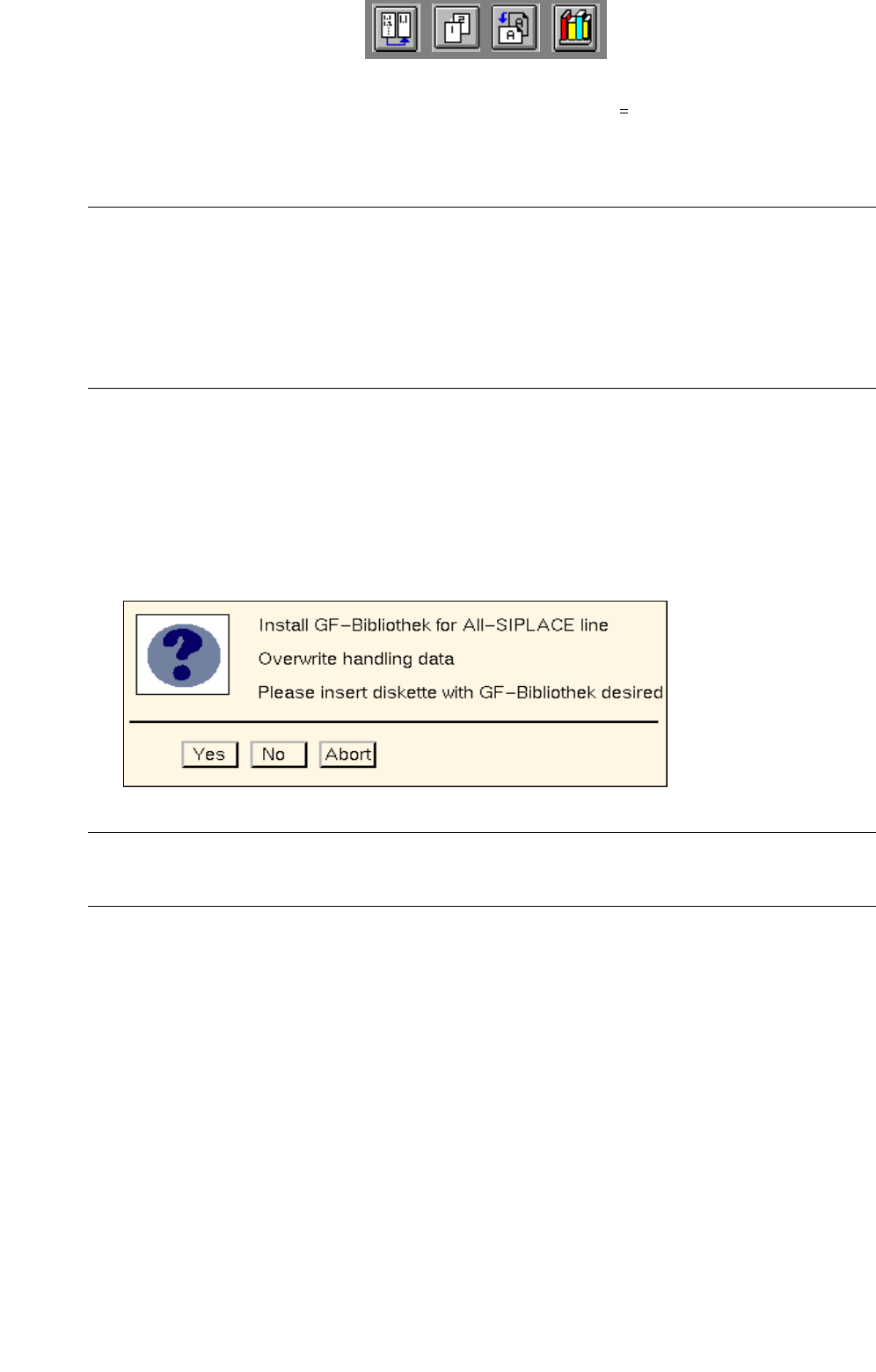

The following dialog box opens.
NOTE
The texts displayed in the dialog box vary according to the selected settings.
● Click on No or Abort if there are still settings to be changed.
● Click on Yes if the installation process is to be started based on the settings displayed. A
message is displayed in the dialog box informing you that the diskette is being read.
● Click on Abort when a message is displayed in the dialog box informing you that the GF library
has been installed.
The dialog box closes.
Use the Report button in the dialog box to obtain a display of the installation results and of any similarity
comparison that may have been performed.
● Click on Report in the dialog box.

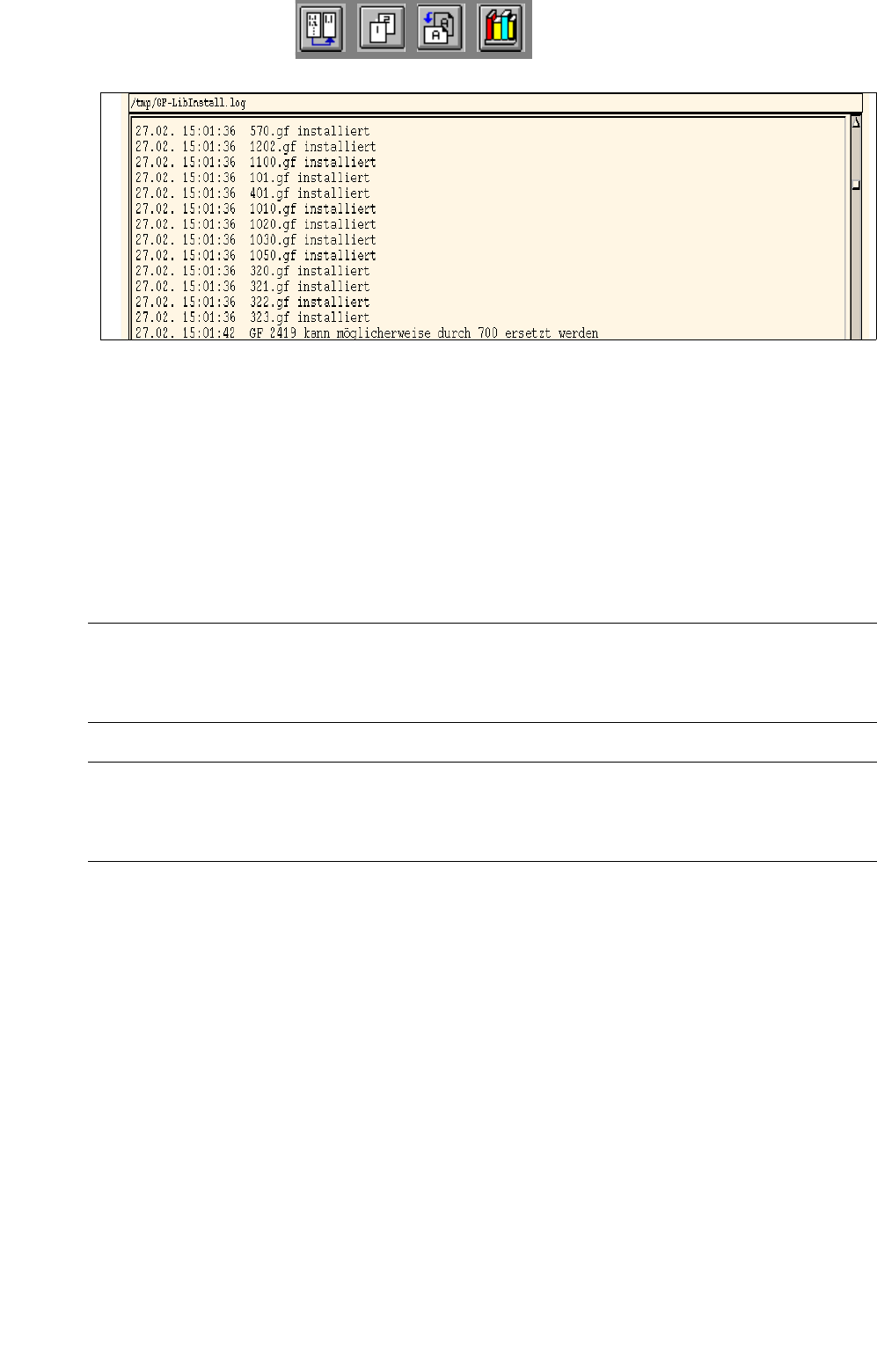

The File Display main window opens. The contents of the "GF_LibInstall.log" log file are dis-
played in the view area.
User Manual Line Computer UNIX 3 Desktop (Root Window)
Software Version 502.xx 10/2000 Issue 3.2 Desktop User Interface
87
I
t I I
● Close the File Display main window by selecting the FILE --> Quit menu option.
● Click on Cancel in the dialog box.
The dialog box closes.
● Remove the diskette from the floppy drive.
- Conversion of GF-Bibliothek (Package Form Library)
This menu option serves to either check the entire GF-Bibliothek for any entries that may have to be
changed, or to supplement the standard SIEMENS library range and/or the entire GF-Bibliothek by
adding the entries for the standard configurations of nozzle and sensor system types.
NOTE
Individual GF-files can be converted with the aid of the Data Manager (see
chapt. 4,
chapt. 4.3.4.5).
NOTE
Upon the conversion of the current GF-Bibliothek, a back-up of the entire GF-Bibliothek will be crea-
ted in the directory "Stammdaten/tmp/".
● Click on OPTIONS --> GF-Handling --> Convert GF-Bibliothek.

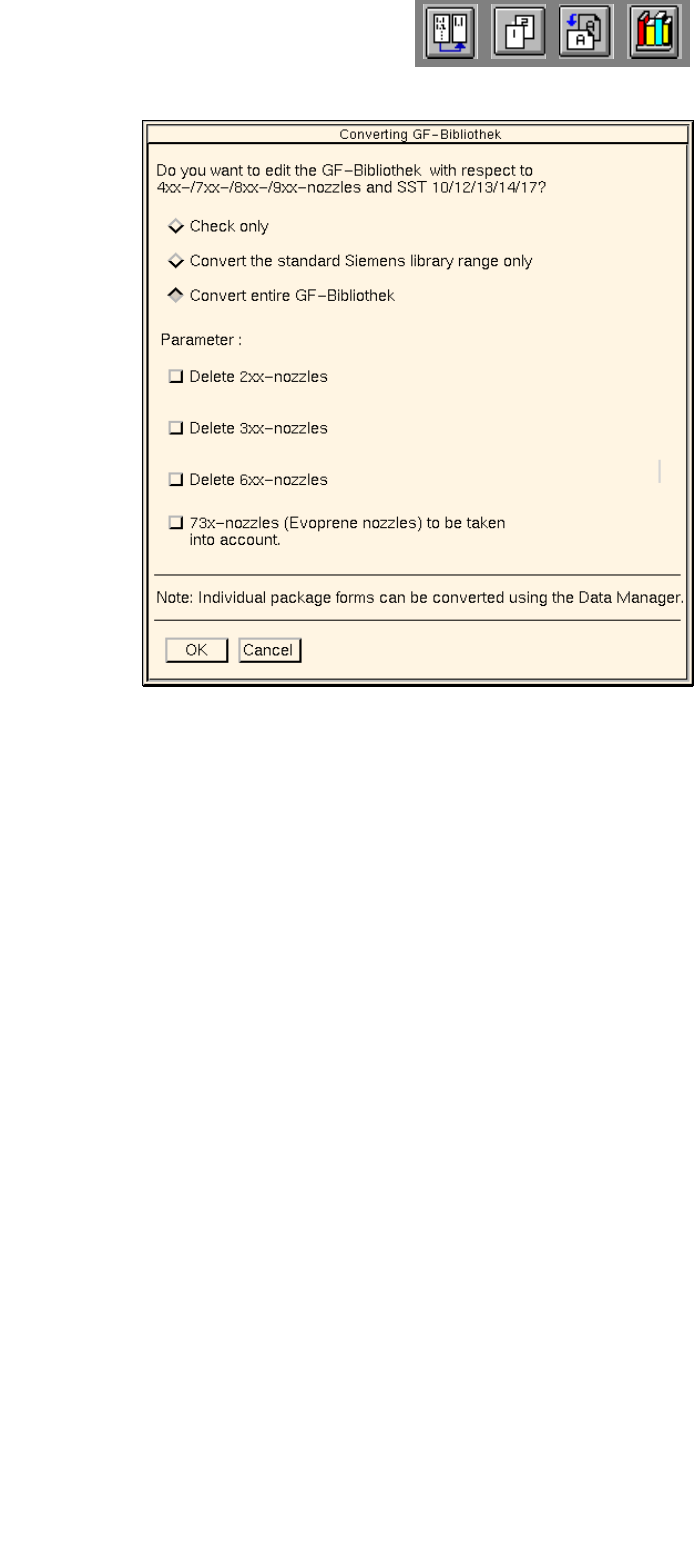

The dialog box shown below opens.
3 Desktop (Root Window) User Manual Line Computer UNIX
3.2 Desktop User Interface Software Version 502.xx 10/2000 Issue
88
I
t I I
Selection Options
- Check only
This option serves to check the entire GF-Bibliothek. During this check it is determined which entries
relating to standard configurations of nozzle and sensor system types have to be changed in the
respective GF-files.
The result of the check is entered in the "GF-Convert.log" file and can be viewed using the file display
function (see
page 3 - 89).
- Convert the standard Siemens library range only
The standard configurations of nozzle and sensor system types that may still be missing will be
entered in all GF-files contained in the GF-Bibliothek within the range from 1 through 1499.
- Convert entire GF-Bibliothek
The standard configurations of nozzle and sensor system types that may still be missing will be
entered in all GF-files contained in the GF-Bibliothek.
- Delete 2xx-nozzles
All existing nozzles of the type 2xx are deleted.
- Delete 3xx-nozzles
All existing nozzles of the type 3xx are deleted.
- Delete 6xx-nozzles
All existing nozzles of the type 6xx are deleted.
- 73xx-nozzles (Evoprene nozzles) to be taken into account
If nozzles of the type 71xx already exist, nozzles of the type 73xx will be added in addition.
